DALE SKU # DYRD-U2401US

Dynacord U240:1 - Single-Channel 240-Watt Power Amplifier

Sale price$449.00 Regular price$560.00
Save $111.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

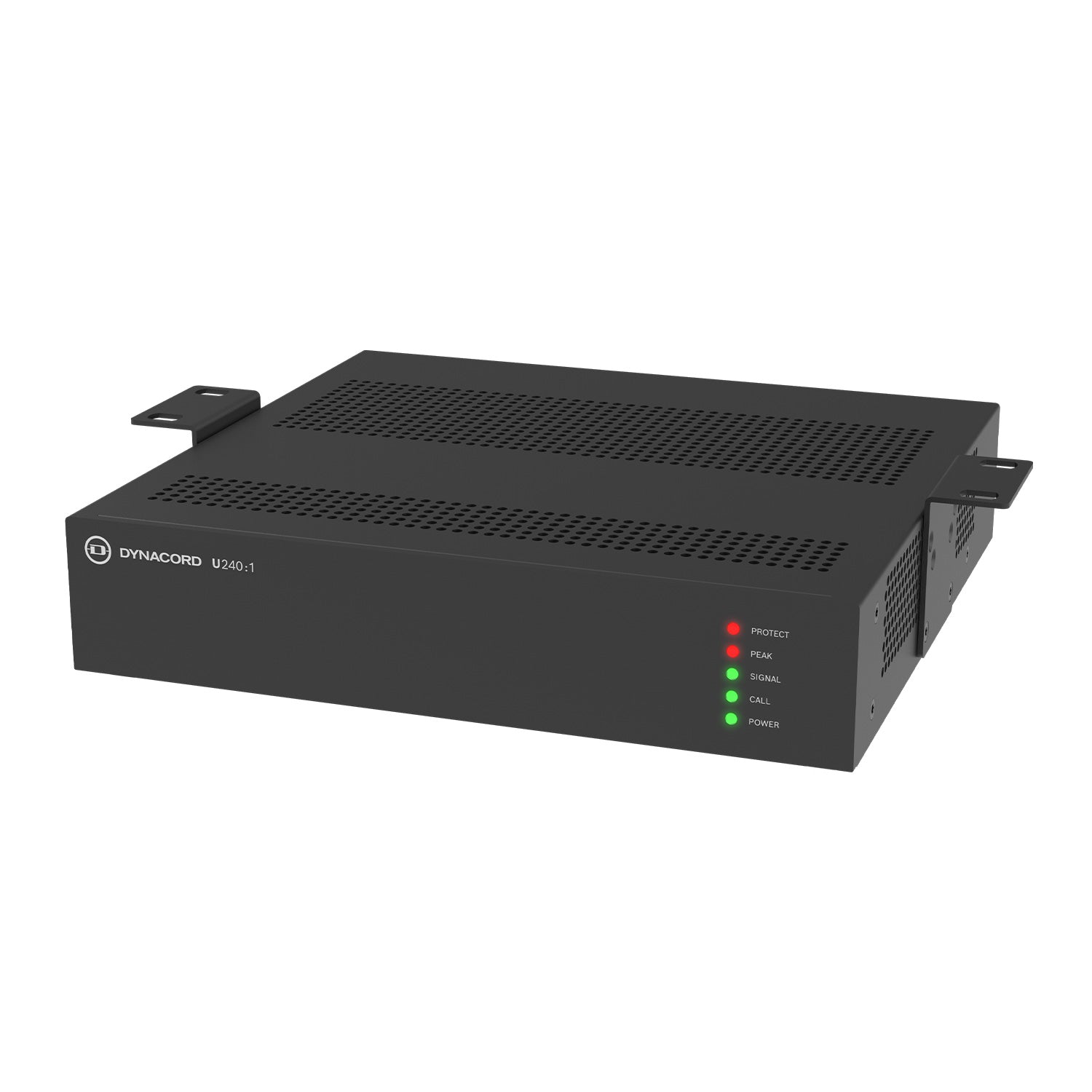

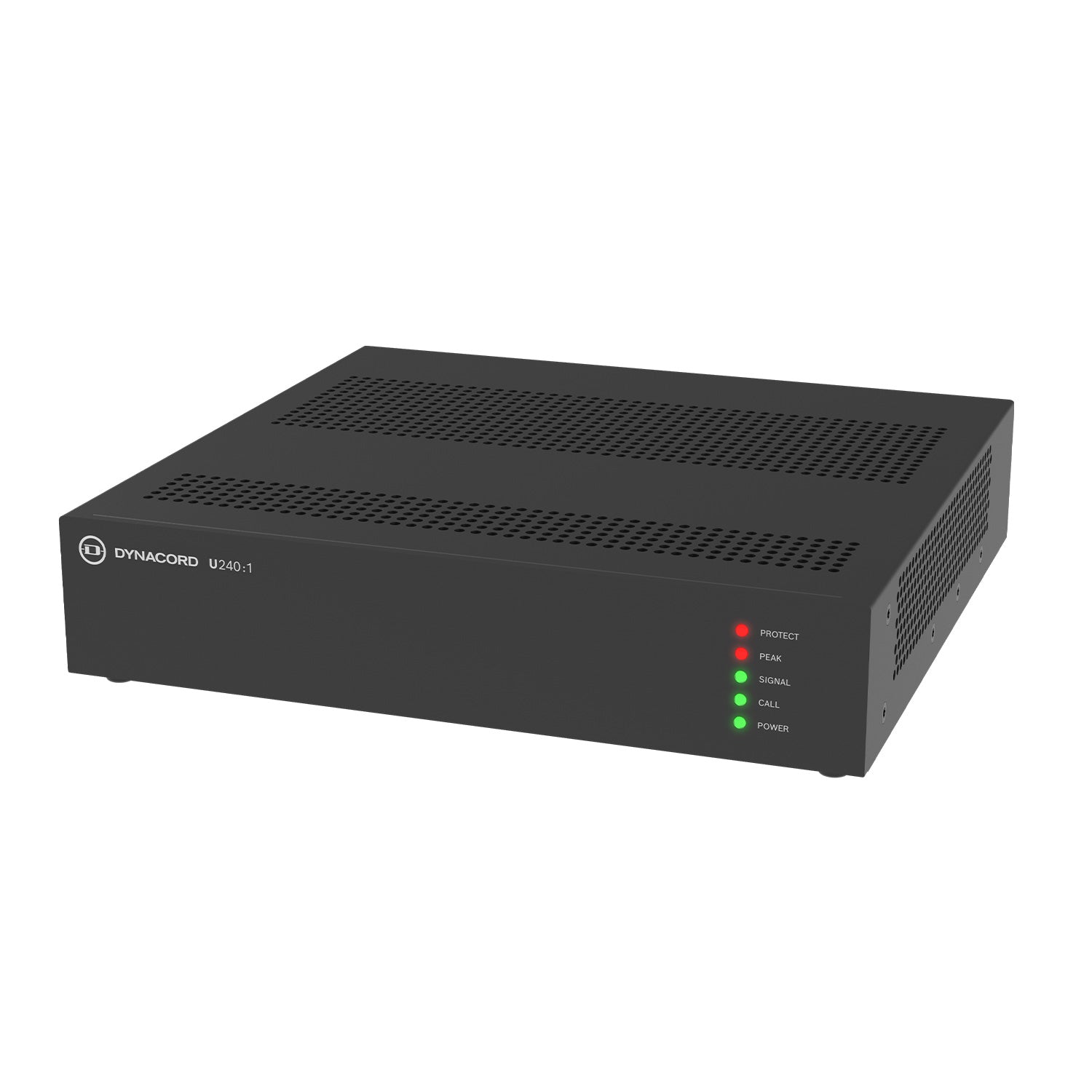

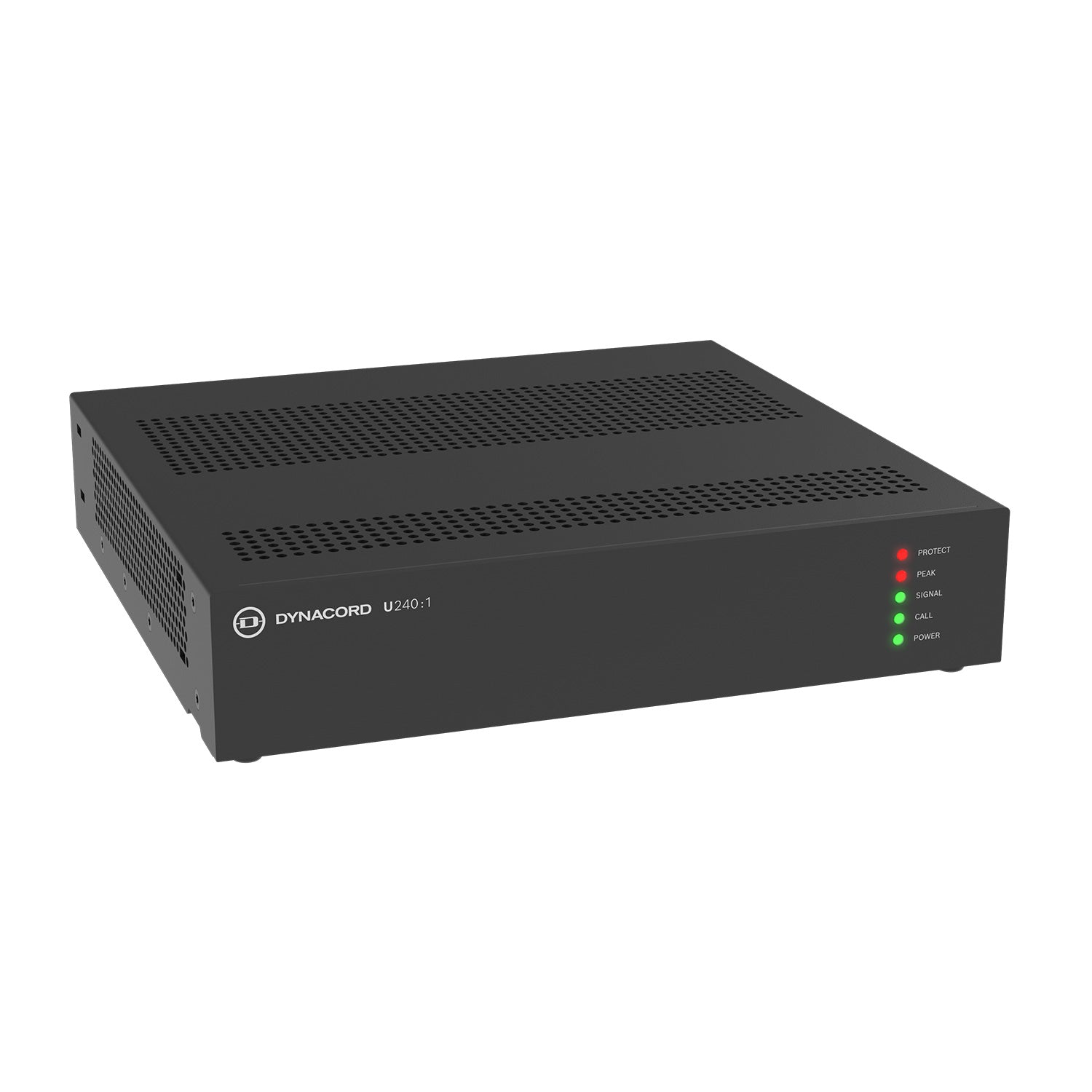

    Introducing the U240:1, a 240 W power amplifier designed to cater to the demands of small to mediumsized installations, where paramount considerations include quality, performance, and unwavering reliability. This amplifier is ideal for background music and crystal-clear voice announcement applications, making it a perfect fit for diverse environments such as bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centers. Thanks to its compact size, standing just one rack unit high and half rack wide, the U240:1 presents numerous installation possibilities, even in spaceconstrained settings. Included brackets facilitate both single and dual rack-mount configurations, while desktop and under-counter installations are equally viable. When rack-mounted side by side, two amplifiers can seamlessly inhabit a single rack unit, optimizing space utilization and effectively doubling both channel count and output power.

    Features:

    • Full power output supporting 4Ω, 8Ω, 70 V and 100 V
    • EMG override input, ensuring critical messages are heard clearly
    • Contact override with 2-tone chime for attention-grabbing alerts
    • 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
    • Space-saving compact ½ rack design, providing versatility without compromising performance
    • Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency
    Electrical
    Mains power supply
    Voltage 100 VAC - 240 VAC, 50/60 Hz
    Power 800 VA
    Consumption Standby (Remote OFF active) 1.25 W
    Idle mode 10 W / 12 W
    Remote power (ON/OFF Stand by) 2-pin, Eurostyle, contact closure
    Performance
    Frequency response, -3 dB ref. 1 kHz
    Any input to output <10 Hz Ñ 22 kHz
    Distortion <1% @rated output power, 1 kHz
    Output stage topology Class D
    Equalization
    Bass shelving ±12 dB / 150 Hz Ñ 3 dB (100 Hz)
    Treble shelving ±12 dB / 5 kHz Ñ 3 dB (10 kHz)
    Filter
    LO-CUT permanently f=20 Hz, 12 dB/oct.
    LO-CUT switchable, can be activated f=120 Hz, 12 dB/oct.
    General

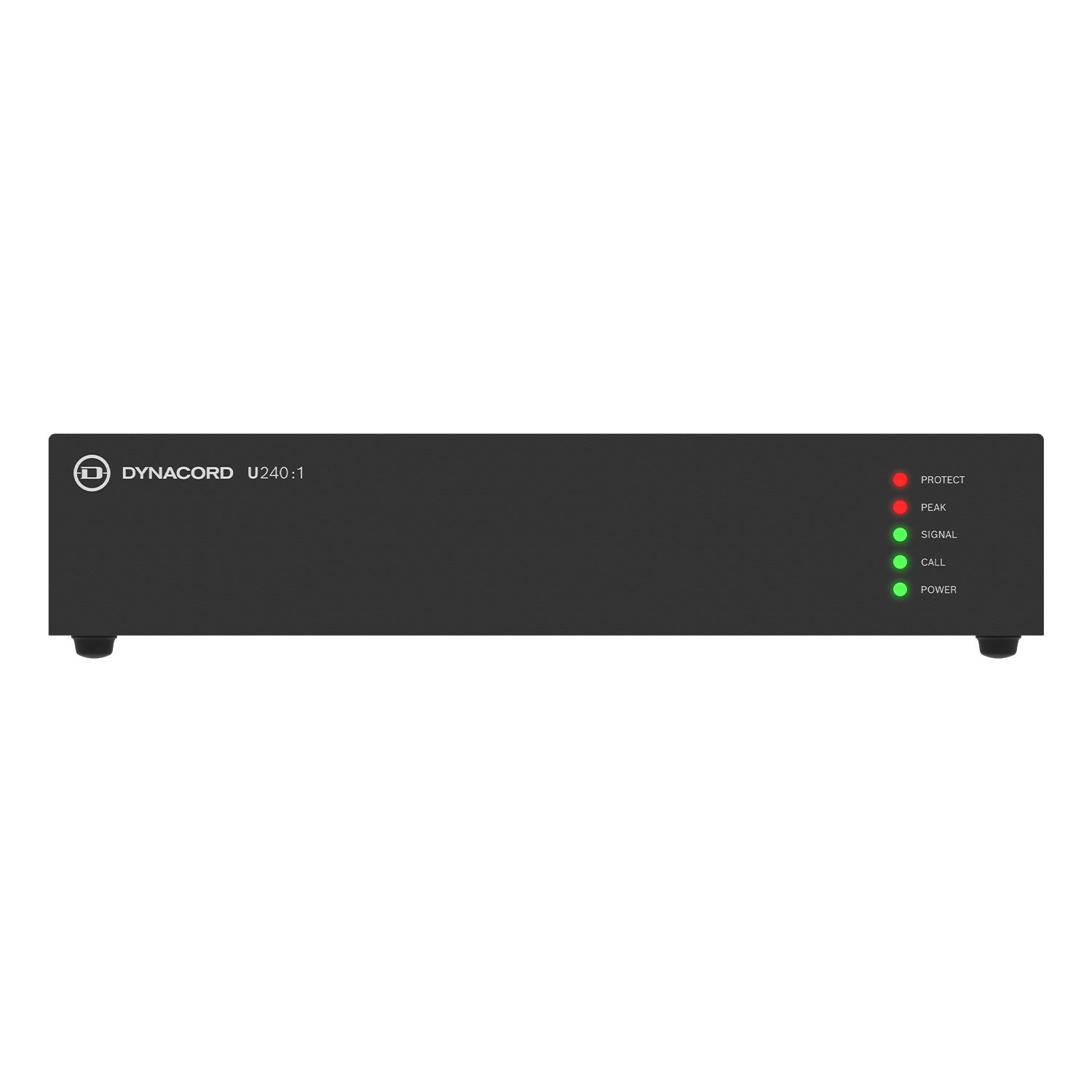

    Front status LEDs
    Protect (Red) Protection, short circuit
    Peak (Red) 1 dB before clip (input and output)
    Signal (Green) Input and output signal
    Call (Green) EMG
    Power (Green) Power on condition
    DIP switches EMG (HiZ/Line level), HPF (120 Hz), Output (HiZ/LowZ), Amp mode (70 V/100 V; 4½/8½)
    Protections
    Amplifier Audio limiters, high temperature, DC, HF, short circuit, over current protection
    Switching mode power supply (µPC controlled) Mains over/under voltage protection, inrush current limiter, mains over current, high temperature
    Remote power OFF Contact closure

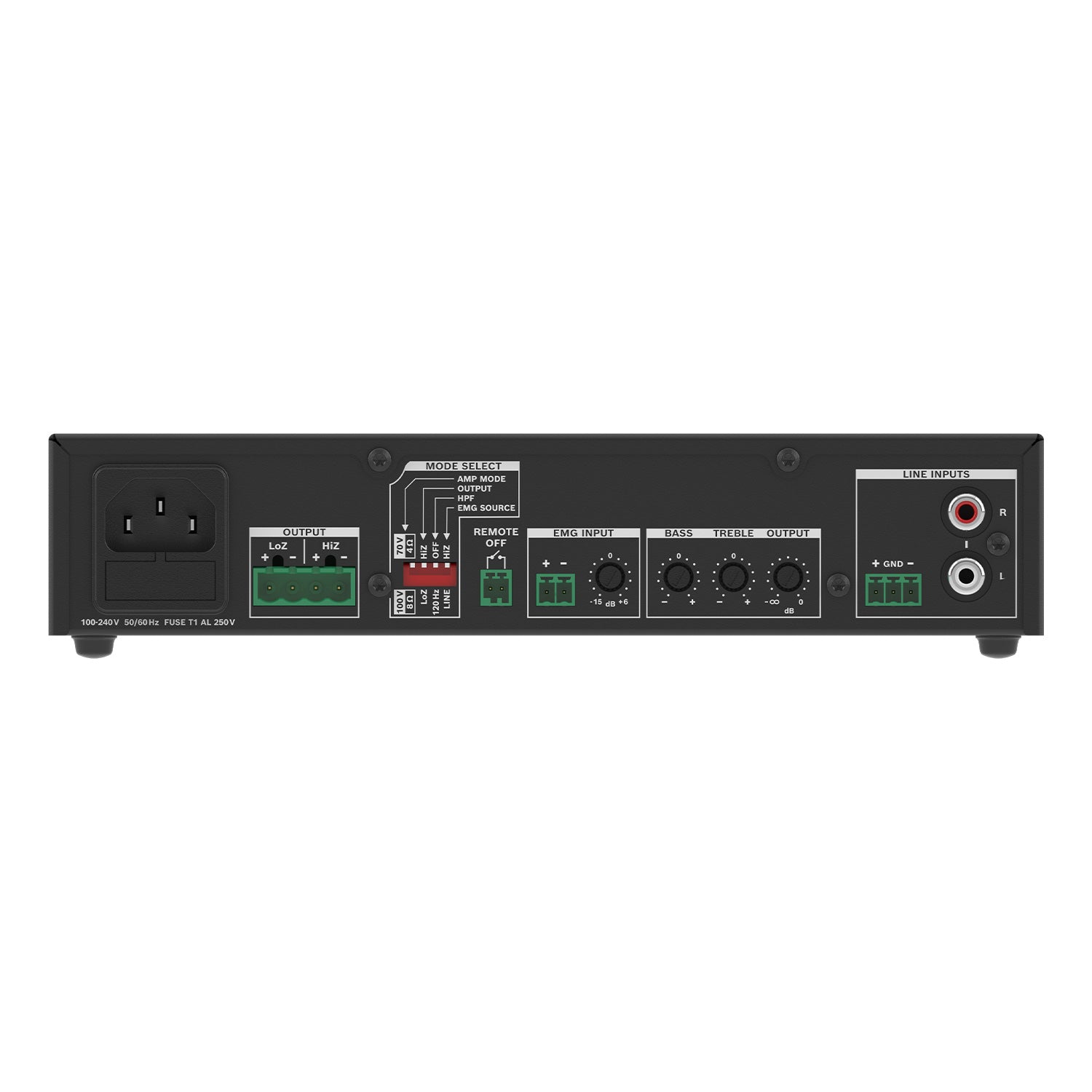

    Inputs
    Number of inputs 1
    Input
    Type Line
    Connector RCA (chinch), stereo converted to mono, unbalanced; 3-pin Eurostyle, balanced
    Sensitivity 100 mV
    Impedance 4.6 k½
    S/N (flat @max volume) >60 dB
    S/N (flat @min volume/muted) >95 dB
    Headroom >19 dB
    EMG Input
    Type Line; 100 V
    Connector 2-pin, balanced
    S/N (A-weighted) ³98 dB
    Loudspeaker output
    Connector 4-pin Eurostyle (2 pin for LowZ, 2 pin for HiZ)
    Rated output power 240 W
    Max output voltage, 1 kHz, THD=0.5%, no load 4 ½ 8 ½ 70 V 100 V
    31 VRMS 45 VRMS
    Mechanical
    Enclosure
    IEC protection class Class I (grounded)
    Dimensions (HxWxD), without acessories 44.2 mm x 218 mm x 217.7 mm
    (1.74 in x 8.6 in x 8.57 in)
    Color in RAL RAL 9017 Traffic black
    Net weight (without accessories) 1.86 kg
    (4.10 lb)
    Net weight (with accessories) 2.32 kg
    (5.11 lb)
    Shipping weight 2.68 kg
    (5.90 lb)

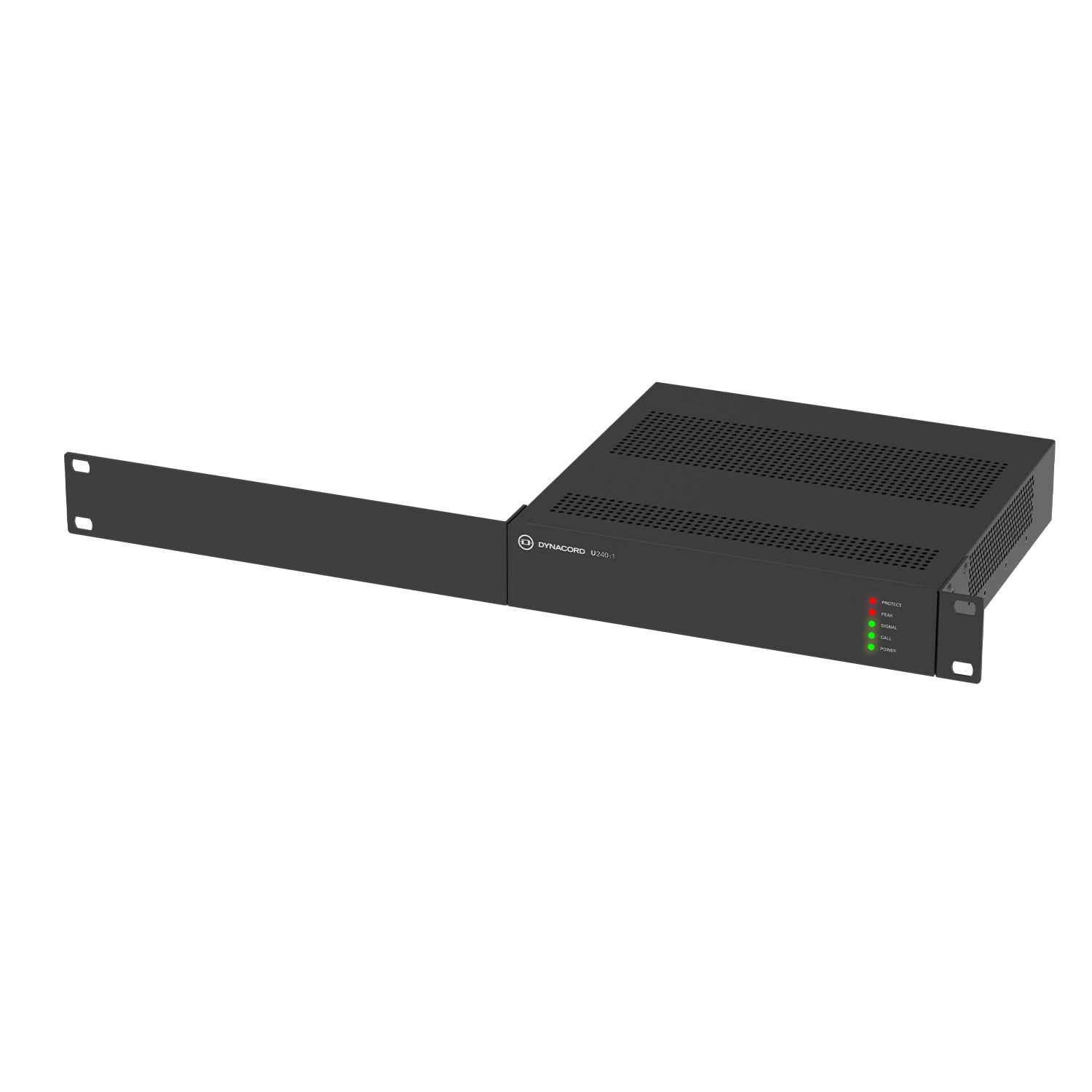

    Mounting Stand-alone; 19" rack; rack side-byside; half 19" rack; table-top; undertable
    Environmental
    Climatic conditions
    Cooling concept Four-stage-fans (Off / Slow / Medium / Fast)
    Operating temperature -5¡C Ñ 45¡C
    (23¡F Ñ 113¡F)
    Storage temperature -40¡C Ñ 70¡C
    (-40¡F Ñ158¡F)
