Earthworks PM40 PianoMic Miking System for Grand Piano

  • Dale #:

    EART-PM40
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

PM40: Pianomic system, 48 volt phantom poweredThe PianoMic™ System was designed to revolutionize piano miking and achieve an incredible improvement in piano sound for live and recording applications with no mic stands or booms. There is more gain before feedback, significantly less leakage from s... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

PM40: Pianomic system, 48 volt phantom powered

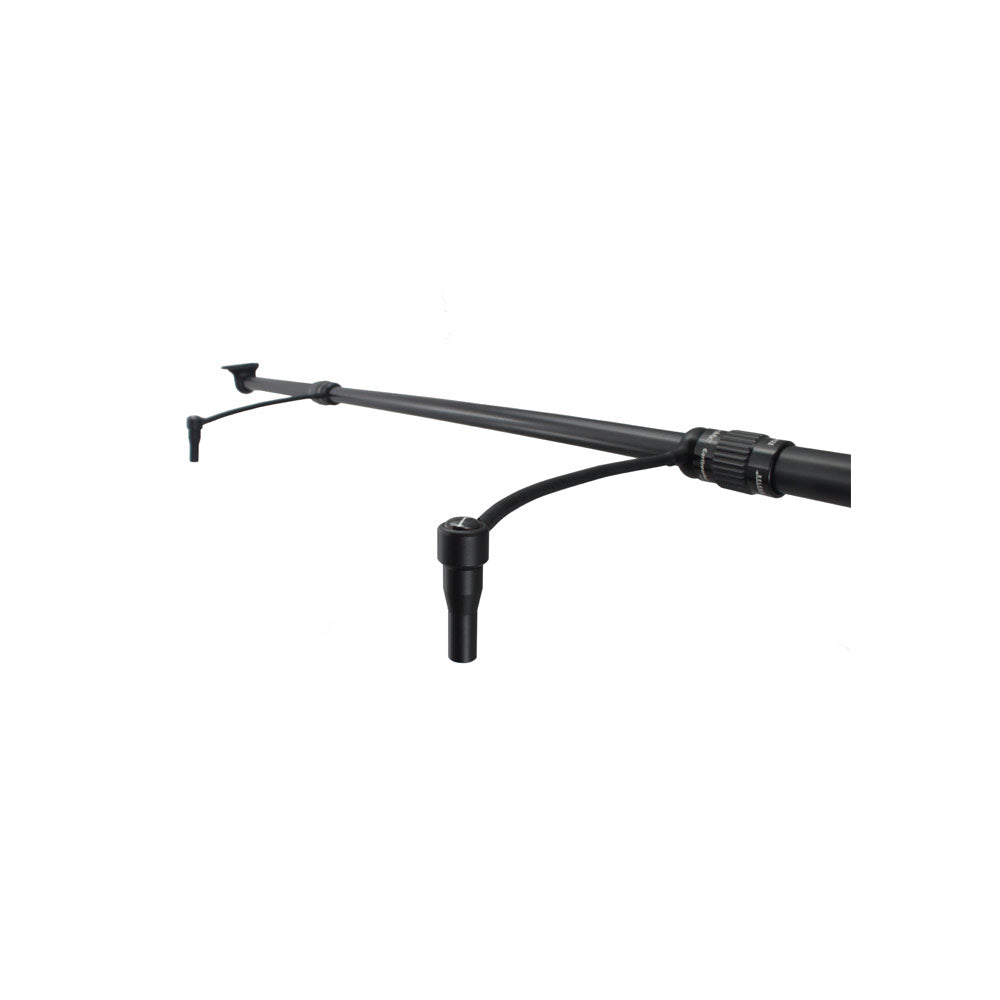

The PianoMic™ System was designed to revolutionize piano miking and achieve an incredible improvement in piano sound for live and recording applications with no mic stands or booms. There is more gain before feedback, significantly less leakage from surrounding instruments and the same pristine sound quality with the piano lid either up or down. At the heart of the system are two Random Incidence, omnidirectional, 40 kHz High Definition Microphones™. With a frequency response of 4 Hz to 40 kHz, the mics deliver extraordinary impulse response and extremely short diaphragm setting times. In addition, the microphones exhibit no proximity effect, regardless of their distance from the piano strings or soundboard. The mics, when positioned close to the sound source, also provide incredible gain before feedback.

Features

  • The original PianoMic™ System and winner of the 2008 TEC Award for Microphone Technology/Recording
  • Cannot be seen from outside of the piano (needs no stands or mic booms)
  • Superb sound with the piano lid either up or down
  • Virtually no leakage from sounds outside the piano
  • Incredible gain before feedback
  • Recording studios can now record piano with other instruments in the same room
  • They will handle high sound pressure levels with high rejection of sounds to the rear of the microphone
  • Incredible gain before feedback
  • Quick, Simple and Easy Setup
  • 40kHz Random Incidence Omnis
  • Hear the full range of the piano including the high and low strings with no hot spots

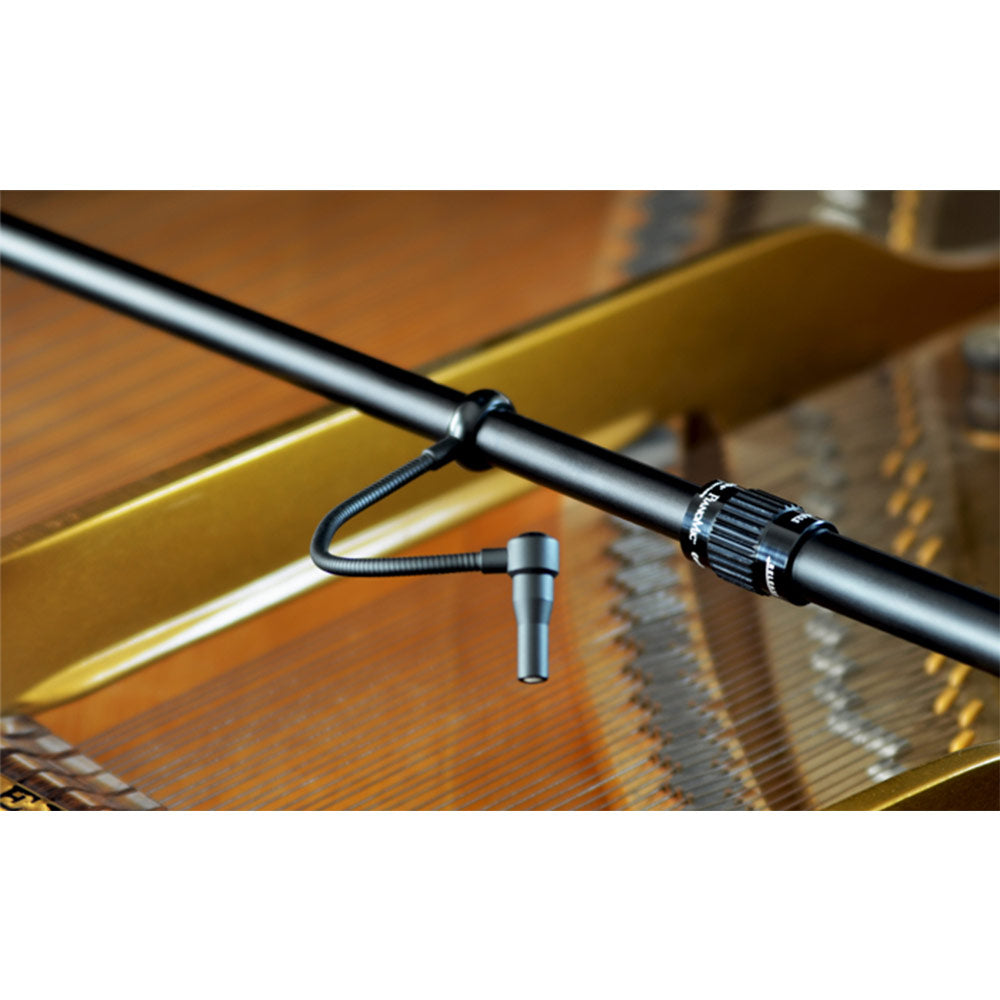

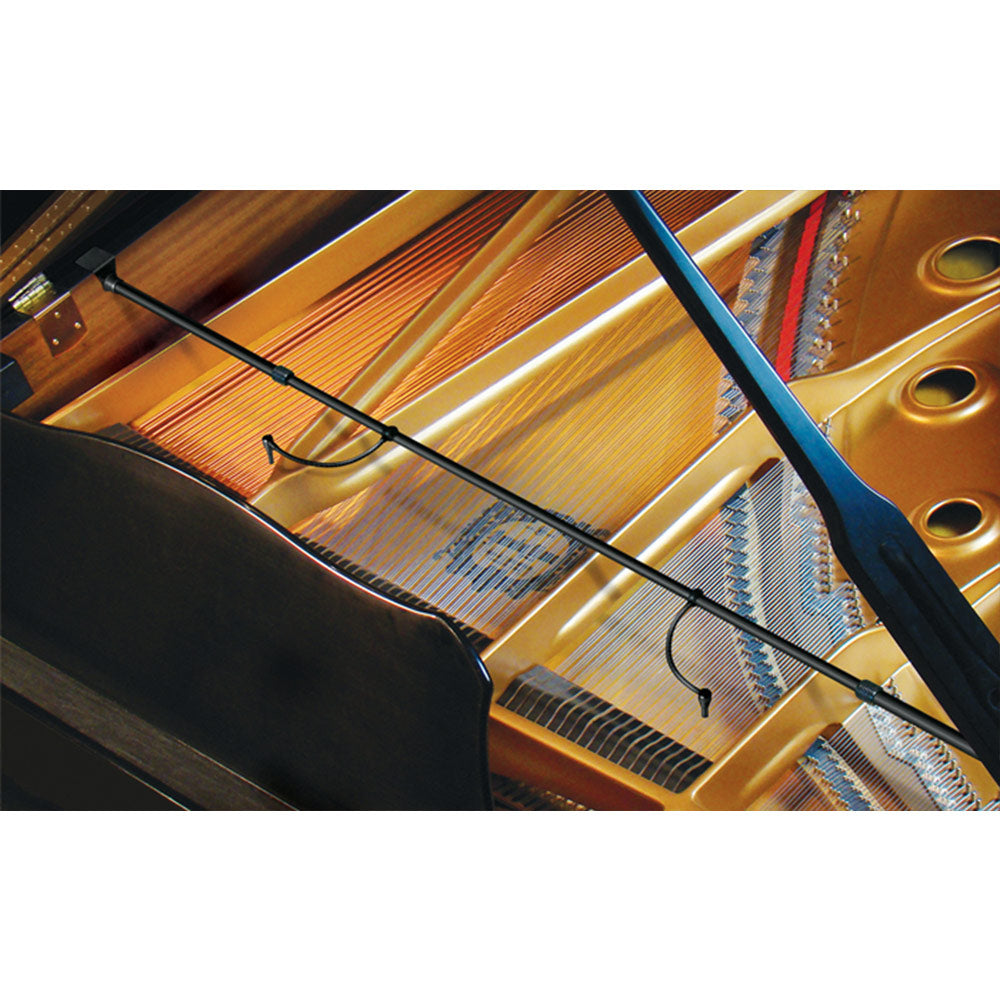

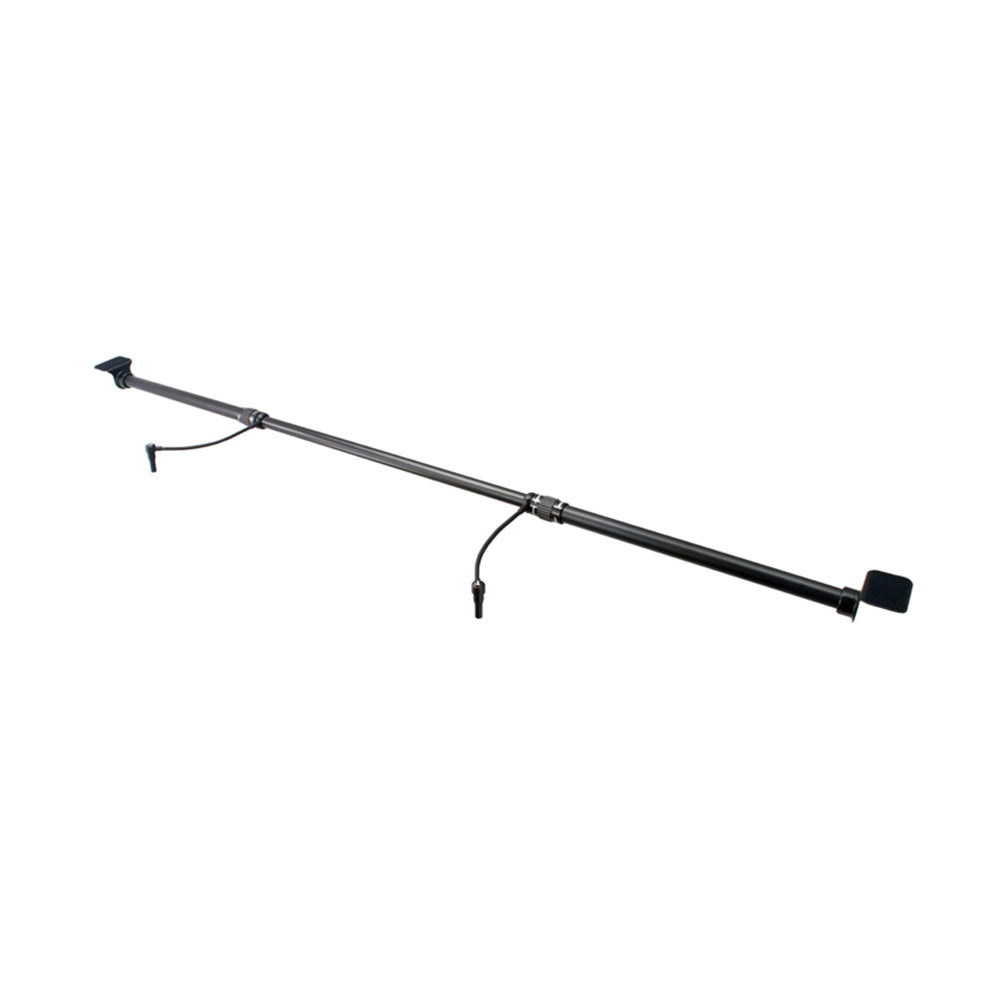

  • The telescoping bar allows the PianoMic™ to be quickly and easily installed in nearly all grand pianos and to place the microphones close to or away from the dampers and get the exact sound desired

More +

Product Specs

Frequency Response9Hz to 40kHz ±1dB
Polar PatternOmnidirectional (random incidence)
Sensitivity15mV/Pa (-36dBV/Pa)
Power Requirements24-48V Phantom, 10mA
Max Acoustic Input148dB SPL
OutputXLR-3 (pin 2+)
Output Impedance 65Ω, balanced (50Ω ea. pin 2 & 3)
Min Output Load600Ω between pins 2 & 3
Self Noise20dB SPL equivalent (A weighted)
Mic Gooseneck Length4.75 inches
Dimensions64" fully extended, 46" fully collapsed
WeightMic Assembly .75 lb. (350g) With External Electronics Box 1.5 lb. (700g)

More +
