DALE SKU # EART-SR5314B

Earthworks SR3314 Wireless Microphone Capsule for Sennheiser Threaded Systems (Black with Black Mesh)

Sale price$699.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

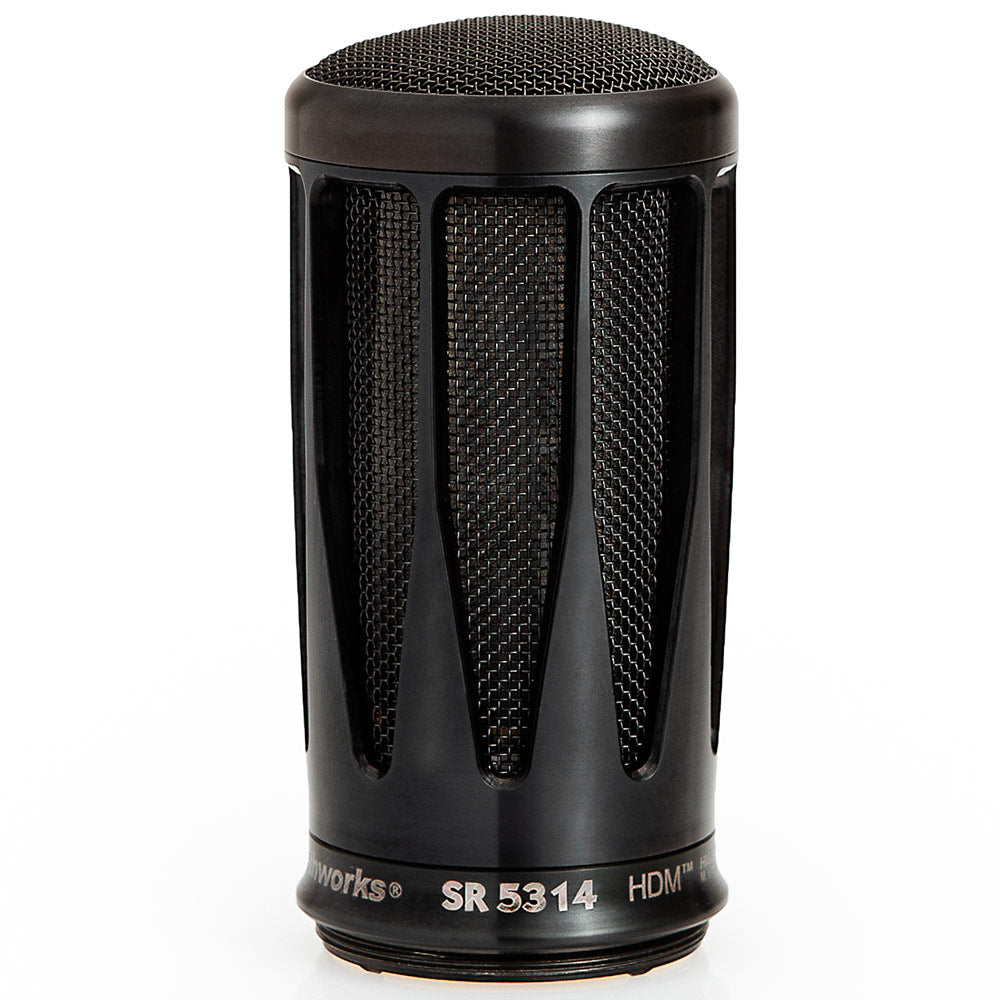

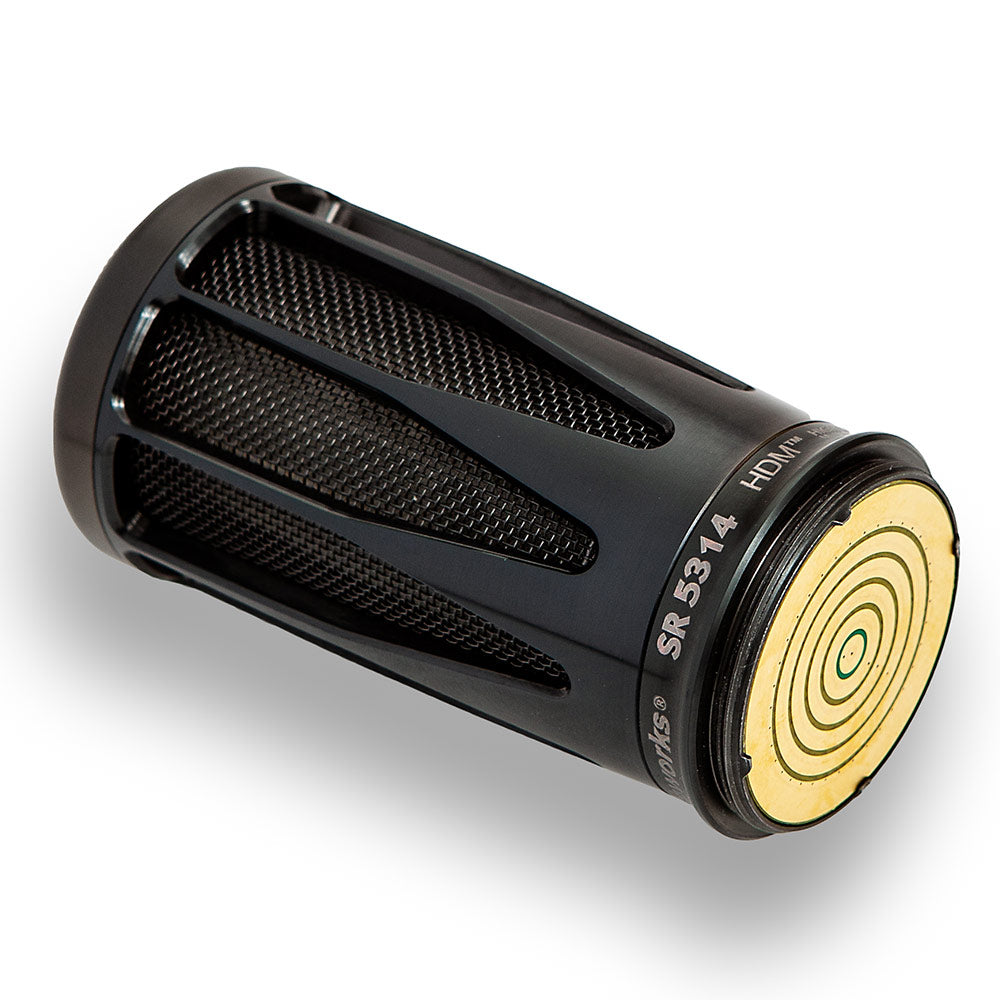

    The boldness of the Earthworks SR5314 is unmistakable. From the sleek stainless exterior designed for life on the road to the technology that lies inside–delivering the fastest and most responsive capsule. The SR5314 is for the boldest artists and engineers looking to unencumber themselves from the pitfalls and challenges of ever-changing live environments. Instead, you can focus on what matters most–the music.

    The SR5314 goes beyond the promise of delivering studio quality sound onstage by directly addressing the challenges intrinsic to these dynamic environments:

    • Tight cardioid polar pattern with a consistent frequency response all the way out to 90 degrees off-axis means the SR5314 delivers the same quality of sound even when the singer moves off-center.
    • Extreme attenuation of sound sources located beyond 90 degrees with maximum rejection at 180 degrees.
    • Consistent low frequency response across a wide range of distances, providing articulate detailed bass up close while not getting thin with distance.

    The combination of these features imbues the SR5314 with levels of feedback immunity and isolation from unwanted sound sources not found in other brands of microphones or microphone capsules, regardless of price.

    Frequency Response 20Hz-30kHz
    Polar Pattern Cardioid
    Max Acoustic Input 133 dBSPLåÊ@ 6V
    Sensitivity 6.5 mV/Pa (-43.7 dBV/Pa)
    Power Requirements 3V to 6V; 2.1 mAåÊ@ 5V
    Distortion Less than 3% THD
    Output Sennheiser-compatible concentric connector
    OutputåÊImpedance 0.1 ohms
    Noise 22dBA @ capsule output (A weighted)
    Threads 1.25"/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters
    Dimensions 3.3" (84mm) long
    1.6" (40.6mm) max dia.
    1.46" (37mm) min dia
    Weight 0.4 lbs. (0.18kg)

    The boldness of the Earthworks SR5314 is unmistakable. From the sleek stainless exterior designed for life on the road to the technology that lies inside–delivering the fastest and most responsive capsule. The SR5314 is for the boldest artists and engineers looking to unencumber themselves from the pitfalls and challenges of ever-changing live environments. Instead, you can focus on what matters most–the music.

    The SR5314 goes beyond the promise of delivering studio quality sound onstage by directly addressing the challenges intrinsic to these dynamic environments:

    • Tight cardioid polar pattern with a consistent frequency response all the way out to 90 degrees off-axis means the SR5314 delivers the same quality of sound even when the singer moves off-center.
    • Extreme attenuation of sound sources located beyond 90 degrees with maximum rejection at 180 degrees.
    • Consistent low frequency response across a wide range of distances, providing articulate detailed bass up close while not getting thin with distance.

    The combination of these features imbues the SR5314 with levels of feedback immunity and isolation from unwanted sound sources not found in other brands of microphones or microphone capsules, regardless of price.

    Frequency Response 20Hz-30kHz
    Polar Pattern Cardioid
    Max Acoustic Input 133 dBSPLåÊ@ 6V
    Sensitivity 6.5 mV/Pa (-43.7 dBV/Pa)
    Power Requirements 3V to 6V; 2.1 mAåÊ@ 5V
    Distortion Less than 3% THD
    Output Sennheiser-compatible concentric connector
    OutputåÊImpedance 0.1 ohms
    Noise 22dBA @ capsule output (A weighted)
    Threads 1.25"/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters
    Dimensions 3.3" (84mm) long
    1.6" (40.6mm) max dia.
    1.46" (37mm) min dia
    Weight 0.4 lbs. (0.18kg)
