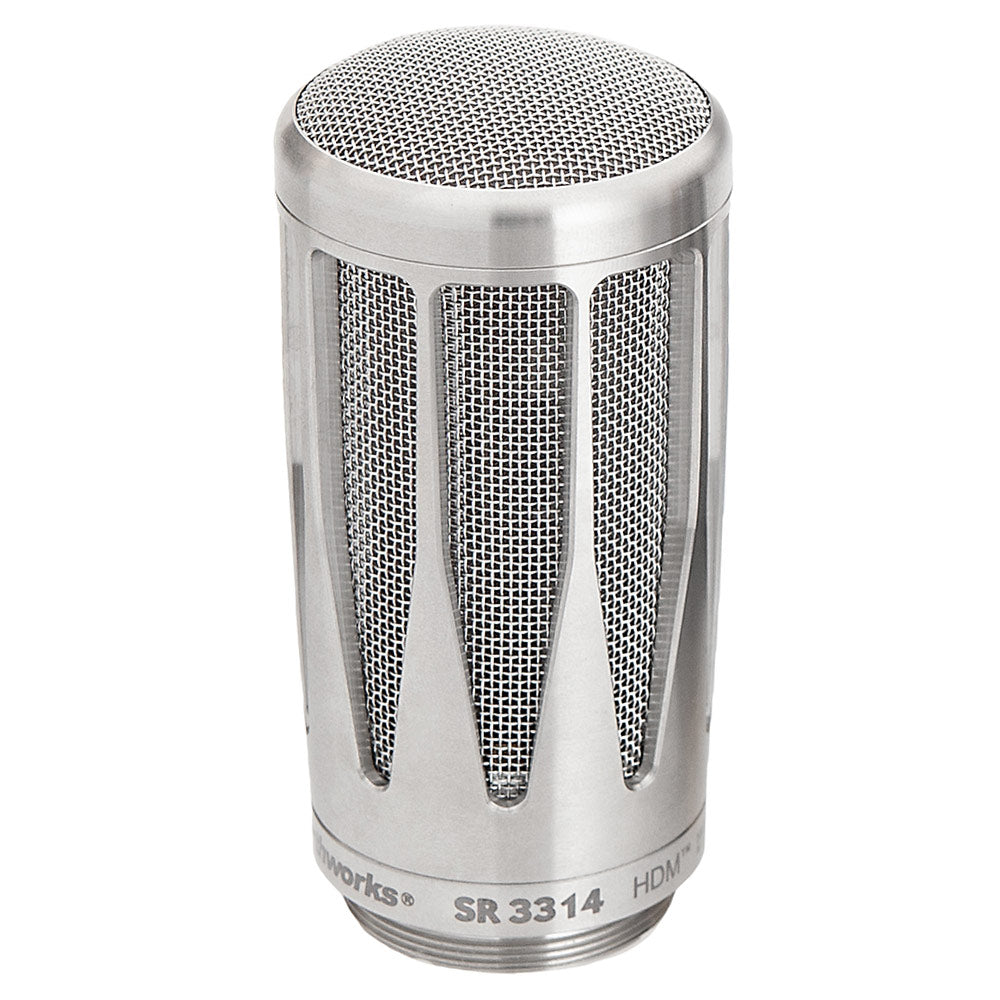

Earthworks SR3314 Wireless Microphone Capsule for Shure Threaded Systems (Stainless Steel)


  • Dale #:

    EART-SR3314
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The boldness of the Earthworks SR3314 is unmistakable. From the sleek stainless exterior designed for life on the road to the technology that lies inside–delivering the fastest and most responsive capsule. The SR3314 is for the boldest artists and engineers looking to unencumber themselves from t... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The boldness of the Earthworks SR3314 is unmistakable. From the sleek stainless exterior designed for life on the road to the technology that lies inside–delivering the fastest and most responsive capsule. The SR3314 is for the boldest artists and engineers looking to unencumber themselves from the pitfalls and challenges of ever-changing live environments. Instead, you can focus on what matters most–the music.

The SR3314 goes beyond the promise of delivering studio quality sound onstage by directly addressing the challenges intrinsic to these dynamic environments:

  • Tight cardioid polar pattern with a consistent frequency response all the way out to 90 degrees off-axis means the SR3314 delivers the same quality of sound even when the singer moves off-center.
  • Extreme attenuation of sound sources located beyond 90 degrees with maximum rejection at 180 degrees.
  • Consistent low frequency response across a wide range of distances, providing articulate detailed bass up close while not getting thin with distance.

The combination of these features imbues the SR3314 with levels of feedback immunity and isolation from unwanted sound sources not found in other brands of microphones or microphone capsules, regardless of price.

More +

Product Specs

Frequency Response 20Hz-30kHz
Polar Pattern Cardioid
Max Acoustic Input 133 dBSPL @ 6V
Sensitivity 6.5 mV/Pa (-43.7 dBV/Pa)
Power Requirements 3V to 6V; 2.1 mA @ 5V
Distortion Less than 3% THD
Output Center & outer ring on 3-ring concentric connector
Output Impedance 0.1 ohms
Noise 22dBA @ capsule output (A weighted)
Threads 1.25"/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters
Dimensions 3.3" (84mm) long
1.6" (40.6mm) max dia.
1.46" (37mm) min dia
Weight 0.4 lbs. (0.18kg)
