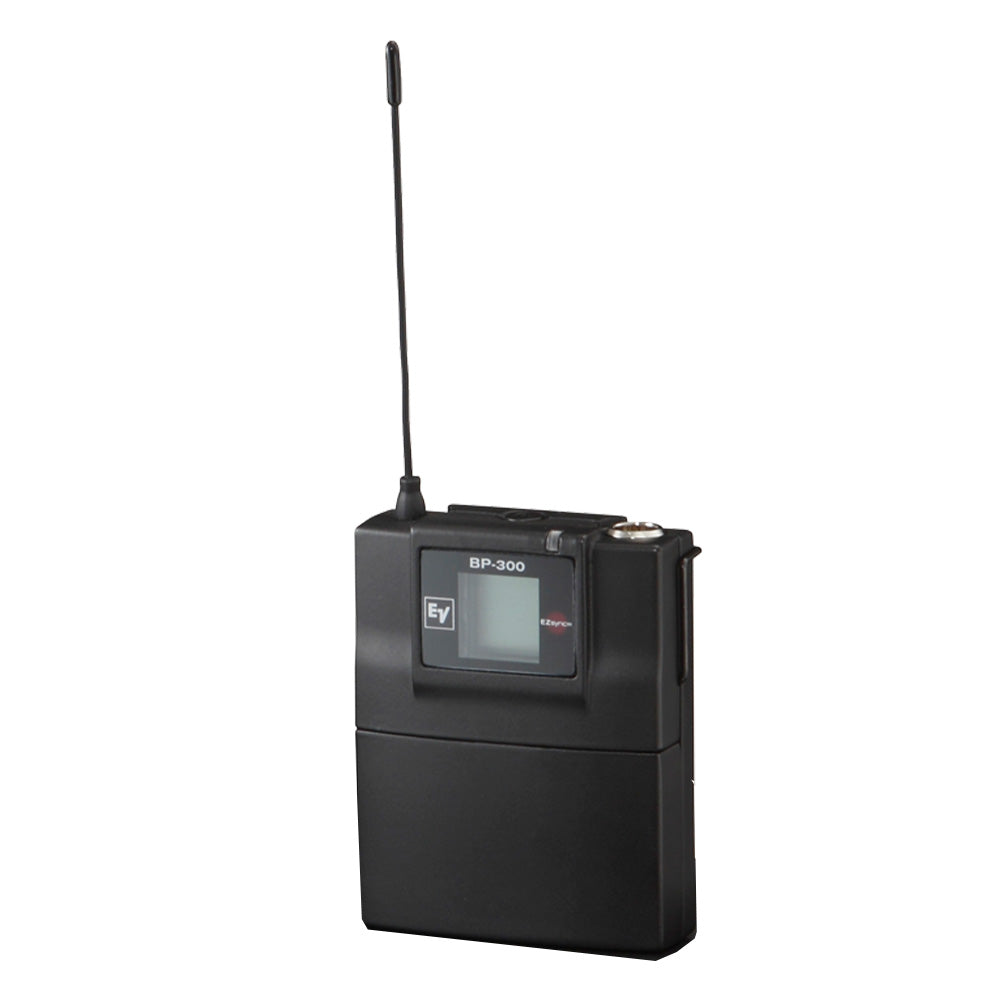

Electro-Voice BP300 - Bodypack Transmitter for RE300 Wireless (C Band / 516-532 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
BP-300 is an all new metal bodypack transmitter that is rugged, compact, and easy to use. Using two AA batteries for 14 hours of use, the BP-300 is one of the most economical transmitters around for applications that require daily operation. The mute function keeps the RF signal live while it mutes the audio to protect your channel and prevent noise in the audio system. The TA4 connector allows the use of any EV lapel or headworn microphone for a variety of applications.
Features:
- ClearScan automatically finds the clearest channel
- EZsync one-step channel setup
- 14 hour battery life from two AA alkaline
- Rugged metal transmitter
| Radiated Output | 8 mW typical |
| Back Lit LCD Display | Channel, Frequency, Mute, and Battery Level |
| TA4F Connector Wiring | Pin 1: Ground; Pin 2: Mic Input; Pin 3: +5V bias; Pin 4: +5V thru 2.2k ½ |
| Power Requirement | Two AA batteries |
| Battery Life (Typical) | > 14 hours with AA alkaline typical |
| Bodypack Antenna | Flexible external 1/4 wave |
| Dimensions (Bodypack) | 84 mm H x 66 mm W x 23 mm D (3.3 in H x 2.6 in W x 0.89 in D) |
BP-300 is an all new metal bodypack transmitter that is rugged, compact, and easy to use. Using two AA batteries for 14 hours of use, the BP-300 is one of the most economical transmitters around for applications that require daily operation. The mute function keeps the RF signal live while it mutes the audio to protect your channel and prevent noise in the audio system. The TA4 connector allows the use of any EV lapel or headworn microphone for a variety of applications.
Features:
- ClearScan automatically finds the clearest channel
- EZsync one-step channel setup
- 14 hour battery life from two AA alkaline
- Rugged metal transmitter
| Radiated Output | 8 mW typical |
| Back Lit LCD Display | Channel, Frequency, Mute, and Battery Level |
| TA4F Connector Wiring | Pin 1: Ground; Pin 2: Mic Input; Pin 3: +5V bias; Pin 4: +5V thru 2.2k ½ |
| Power Requirement | Two AA batteries |
| Battery Life (Typical) | > 14 hours with AA alkaline typical |
| Bodypack Antenna | Flexible external 1/4 wave |
| Dimensions (Bodypack) | 84 mm H x 66 mm W x 23 mm D (3.3 in H x 2.6 in W x 0.89 in D) |
