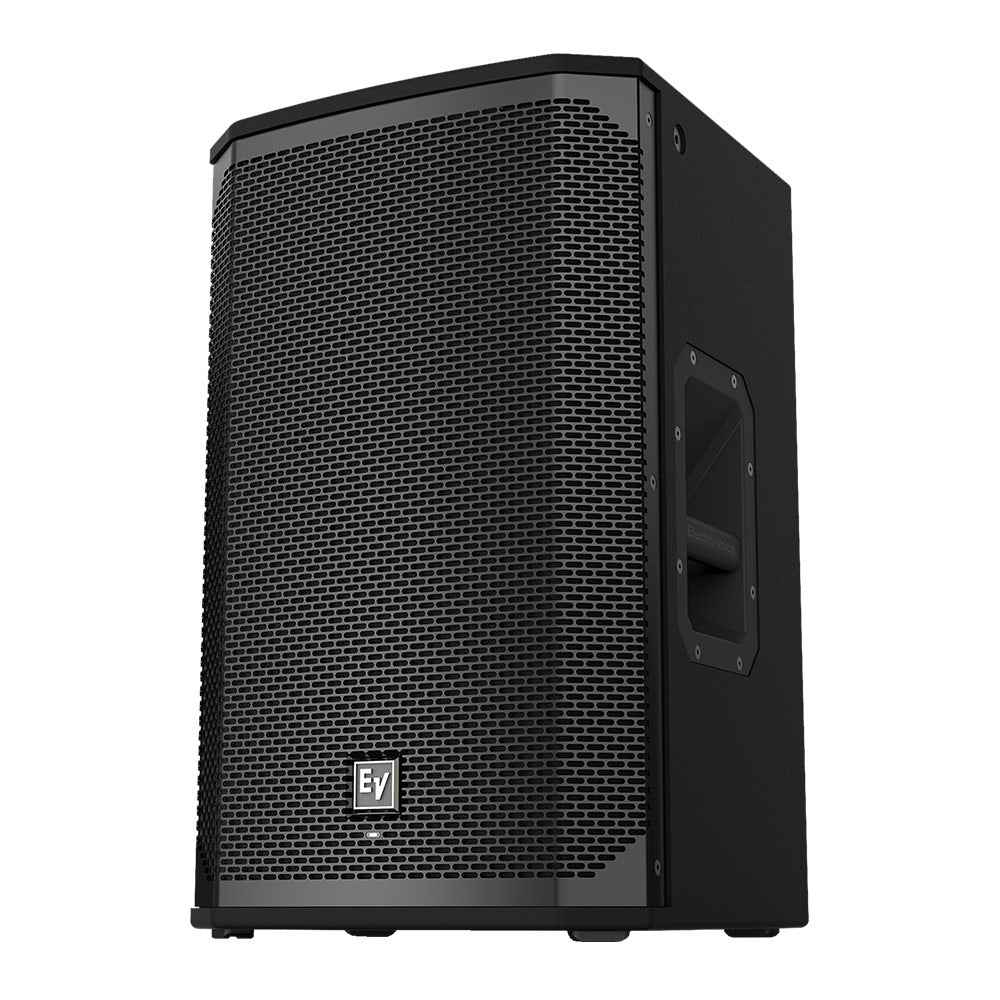

Electro-Voice EKX-12 Two-Way 12 Inch Passive Loudspeaker



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:EVI-EKX12

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The EKX series combines legendary EV sound quality and reliability with the latest technology - all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

    Features:

    • 1400 W Peak
    • 131 dB Peak SPL
    • Next?generation Signal Synchronized Transducers (SST) Waveguide Design

    High Efficiency
    High-efficiency Class-D power amplifiers (up to 1500 W) deliver up to 134 dB peak SPL via high-sensitivity transducers designed and engineered by EV.
    (Powered models only)

    • 1500 W Class D Power Amplifier
    • Integrated QuickSmartDSP
    • 134 dB Peak SPL
    • Forced Air Cooling Technology

    QuickSmartDSP (Powered models only)
    Best in class processing, EV"s signature single knob user interface, and intuitive menu navigation via LCD. Easy setup via four presets (Music, Live, Speech*, Club), sub/top system-match crossovers, three band EQ*, five user programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control* and meters, and master volume control to ensure optimal gain structure. EV exclusive Cardioid Control Technology feature for subwoofers allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed. (*Full range models only)

    • Best in class processing
    • Single knob user interface
    • Easy setup via presets

    EV engineered Components
    Signal Synchronized Transducers (SST) waveguide design, and Class D amplifiers coupled with QuickSmartDSP all work together to provide precise coverage and superior sound quality at high SPLs. EV's award winning industrial design incorporating robust wood enclosures, premium quality hardware, and durable EVCoat finish ensures that EKX speakers look as great as they sound.

    • Next generation transducers
    • Signal Synchronized Transducers (SST)
    • Waveguide Design
    • 1500W Class D Amplifier
    • QuickSmartDSP

    Intelligent Thermal Management
    Intelligent thermal management with a variable speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
    (Powered models only)

    Signal Synchronized Transducers (SST)
    EV patented Signal Synchronized Transducers (SST) waveguide design on full range models provides precise and consistent coverage.

    Ideal for portable and installed applications
    Lightweight, compact 15 mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full range models), aluminum pole mounts, and all metal handles. Subs feature large slot ports for low distortion and excellent bass extension, and are equipped with a metal grille reinforcement bar.

  • FREQUENCY RESPONSE (-3 DB) 82 Hz — 18 kHz
    FREQUENCY RANGE (-10 DB) 55 Hz - 20 kHz
    AXIAL SENSITIVITY 95 dB
    MAXIMUM SPL 131 dB peak
    REC. HIGH-PASS FREQUENCY 55 Hz
    COVERAGE (H X V) 90° x 60°
    POWER HANDLING 350 W continuous
    1400 W peak
    LF TRANSDUCER EVS-12M 300 mm (12 in)
    HF TRANSDUCER DH-1M 1-inch titanium compression driver
    CROSSOVER FREQUENCY 1.6 kHz
    NOMINAL IMPEDANCE 8 Ohms
    MINIMUM IMPEDANCE 7.5 Ohms
    CONNECTORS Dual NL4
    ENCLOSURE 15 mm, plywood with EVCoat
    GRILLE 18 AWG steel with powdercoat
    SUSPENSION (8) M10 threaded mounting points
    DIMENSIONS (H X W X D) 607 mm x 375 mm x 356 mm
    (24 in x 15 in x 14 in)
    NET WEIGHT 17.4 kg (38.3 lb)
    SHIPPING WEIGHT 21.4 kg (47.2 lb)
