Availability: In Stock
Retail Price: $1,619.00 Our Price: $899.00

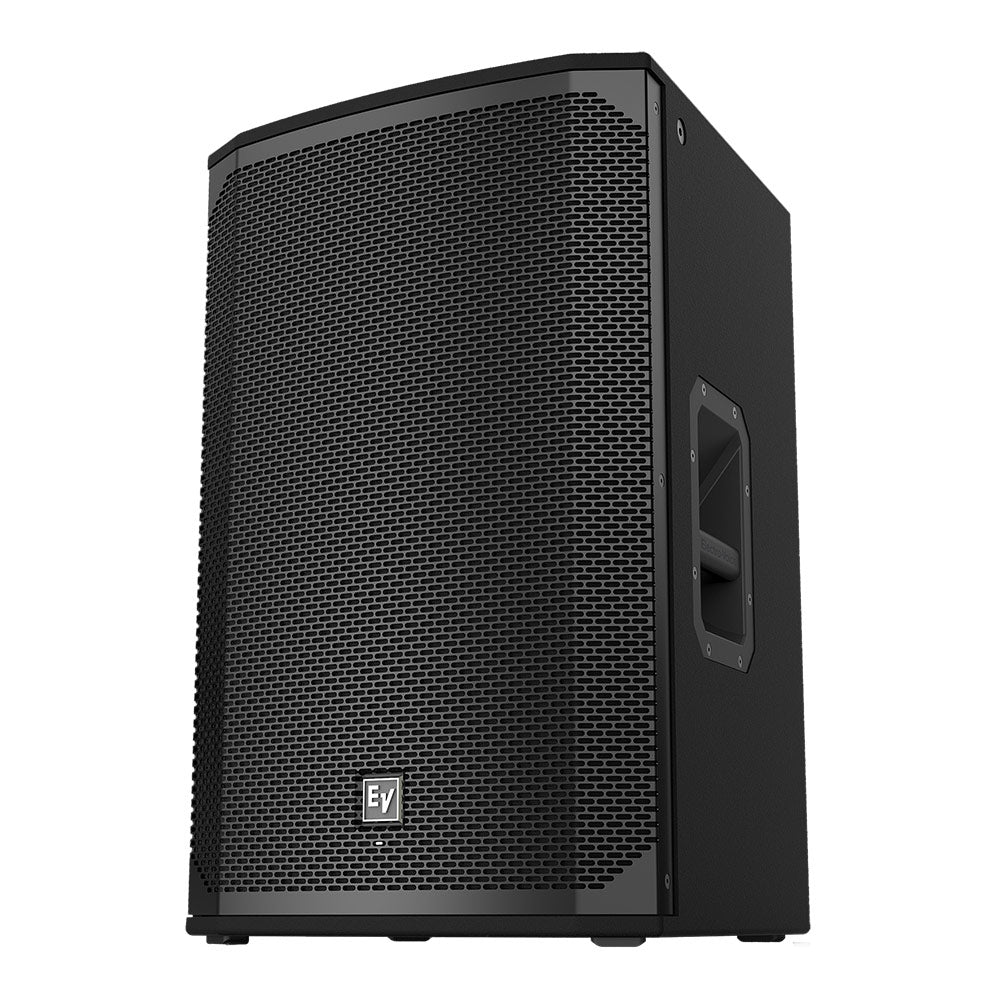

The EKX series combines legendary EV sound quality and reliability with the latest technology - all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.
High-efficiency Class-D power amplifiers (up to 1500 W) deliver up to 134 dB peak SPL via high-sensitivity transducers designed and engineered by EV.
(Powered models only)
QuickSmartDSP (Powered models only)
Best in class processing, EV"s signature single knob user interface, and intuitive menu navigation via LCD. Easy setup via four presets (Music, Live, Speech*, Club), sub/top system-match crossovers, three band EQ*, five user programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control* and meters, and master volume control to ensure optimal gain structure. EV exclusive Cardioid Control Technology feature for subwoofers allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed. (*Full range models only)
EV engineered Components
Signal Synchronized Transducers (SST) waveguide design, and Class D amplifiers coupled with QuickSmartDSP all work together to provide precise coverage and superior sound quality at high SPLs. EV's award winning industrial design incorporating robust wood enclosures, premium quality hardware, and durable EVCoat finish ensures that EKX speakers look as great as they sound.
Intelligent Thermal Management
Intelligent thermal management with a variable speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
(Powered models only)
Signal Synchronized Transducers (SST)
EV patented Signal Synchronized Transducers (SST) waveguide design on full range models provides precise and consistent coverage.
Ideal for portable and installed applications
Lightweight, compact 15 mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full range models), aluminum pole mounts, and all metal handles. Subs feature large slot ports for low distortion and excellent bass extension, and are equipped with a metal grille reinforcement bar.
|FREQUENCY RESPONSE (-3 DB)||55 Hz - 18 kHz|
|FREQUENCY RANGE (-10 DB)||48 Hz - 20 kHz|
|MAXIMUM SPL||134 dB|
|COVERAGE (H X V)||90° x 60°|
|POWER HANDLING||1500 W|
|LF TRANSDUCER||EVS-15M 381 mm (15 in)|
|HF TRANSDUCER||DH-1M 1-inch titanium compression driver|
|CROSSOVER FREQUENCY||1.7 kHz|

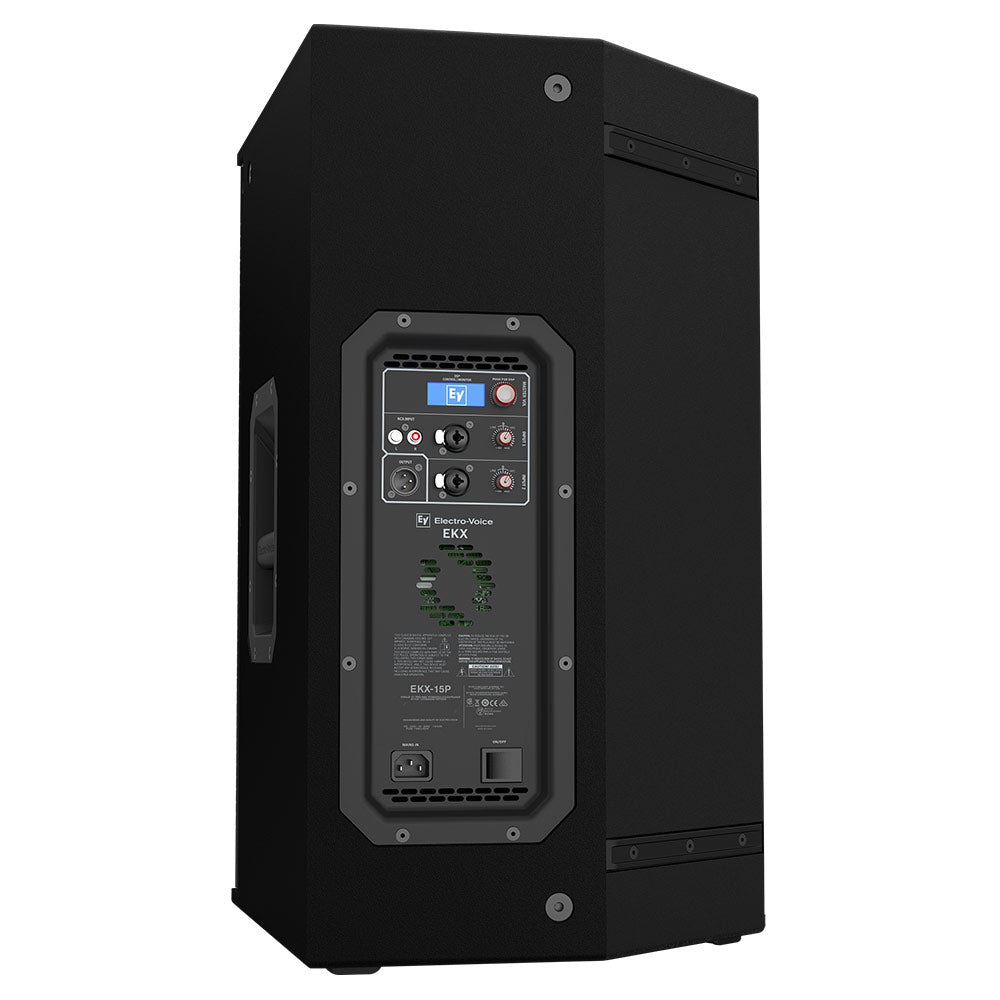

|CONNECTORS||(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output|
|ENCLOSURE||15 mm, plywood with EVCoat|
|GRILLE||18 AWG steel with powdercoat|
|SUSPENSION||(8) M10 threaded mounting points|
|DIMENSIONS (H X W X D)||685 mm x 432 mm x 429 mm |
27 in x 17 in x 17 in
|NET WEIGHT||24.4 kg (53.9 lb)|
|SHIPPING WEIGHT||29.5 kg (65.0 lb)|
|POWER CONSUMPTION||1.8 A|
