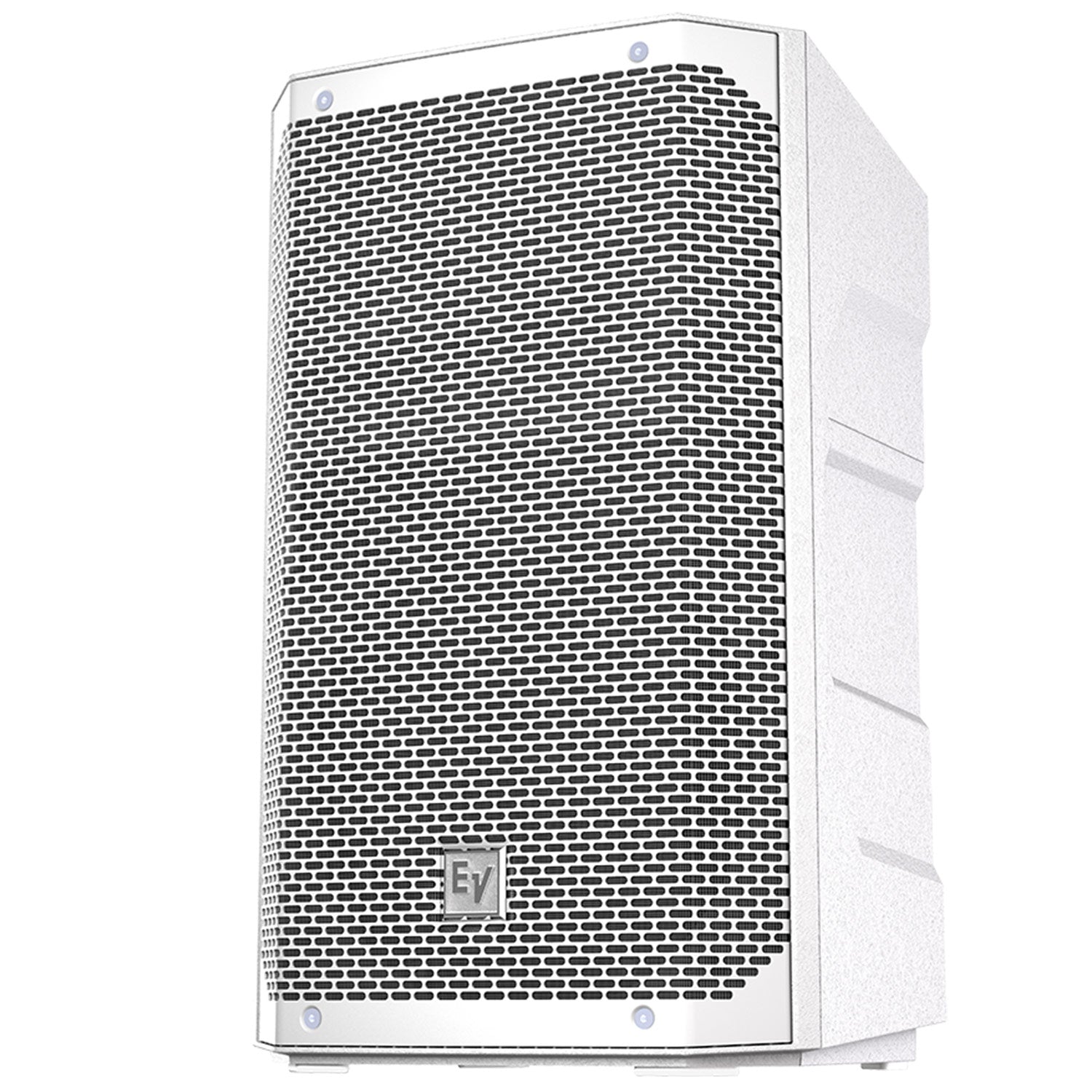

Electro-Voice ELX200-10 Passive 10-Inch 2-Way Loudspeaker (White)


  • Dale #:

    EVI-ELX20010W
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional appli... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system's highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

Features:

  • 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
  • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
  • High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.

More +

Product Specs

Available ColorsBlack or White
Axial Sensitivity (SPL, 1 W @ 1 m)90dB

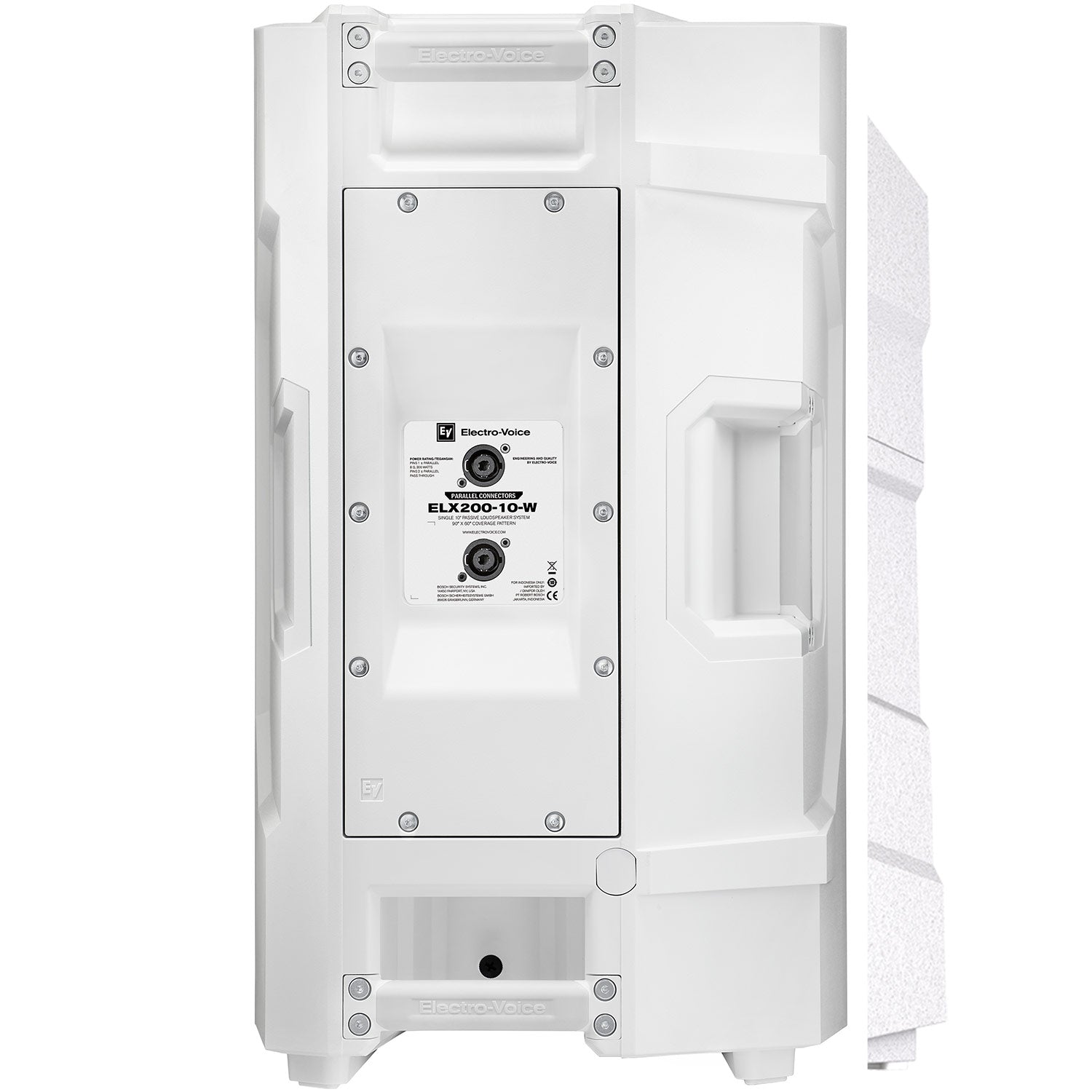

Connector TypeDual NL4
Coverage (Nominal -6 dB) H90°
Coverage (Nominal -6 dB) V60°
Crossover Frequency2 kHz
Depth12.6" (319mm)
Enclosure MaterialPolypropylene Composite
FamilyELX200
Frequency Range (-10 dB)49 Hz - 22 kHz
Frequency Response (-3 dB)65 Hz - 20 kHz
Grille18 AWG steel with powdercoat
Height20.9" (531mm)
HF TransducerDH-1C 1-inch titanium compression driver
LF TransducerEVS-10M 254 mm (10 in)
Max. SPL/1m (calc)127dB
Minimum Impedance7.2?
Nominal Impedance8?
Power Handling (Continuous / Peak)300 W/1200W
Power Rating1200W
Recommended High-Pass Frequency55Hz
Shipping Weight33.7lbs (15.3kg)
Speaker TypeFull-Range
Suspension(3) M10 suspension points
Weight Net29.5lbs (13.4kg)
Width13" (330mm)
Woofer Size10inch
