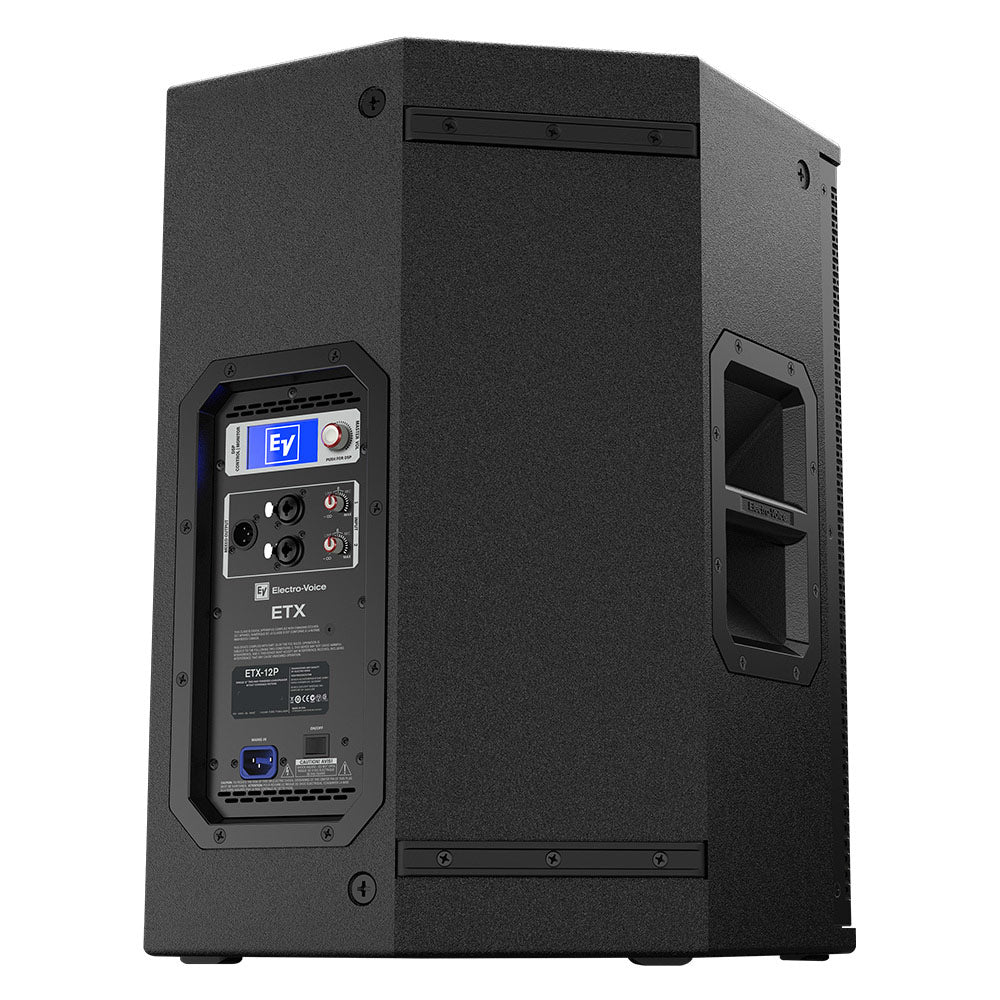

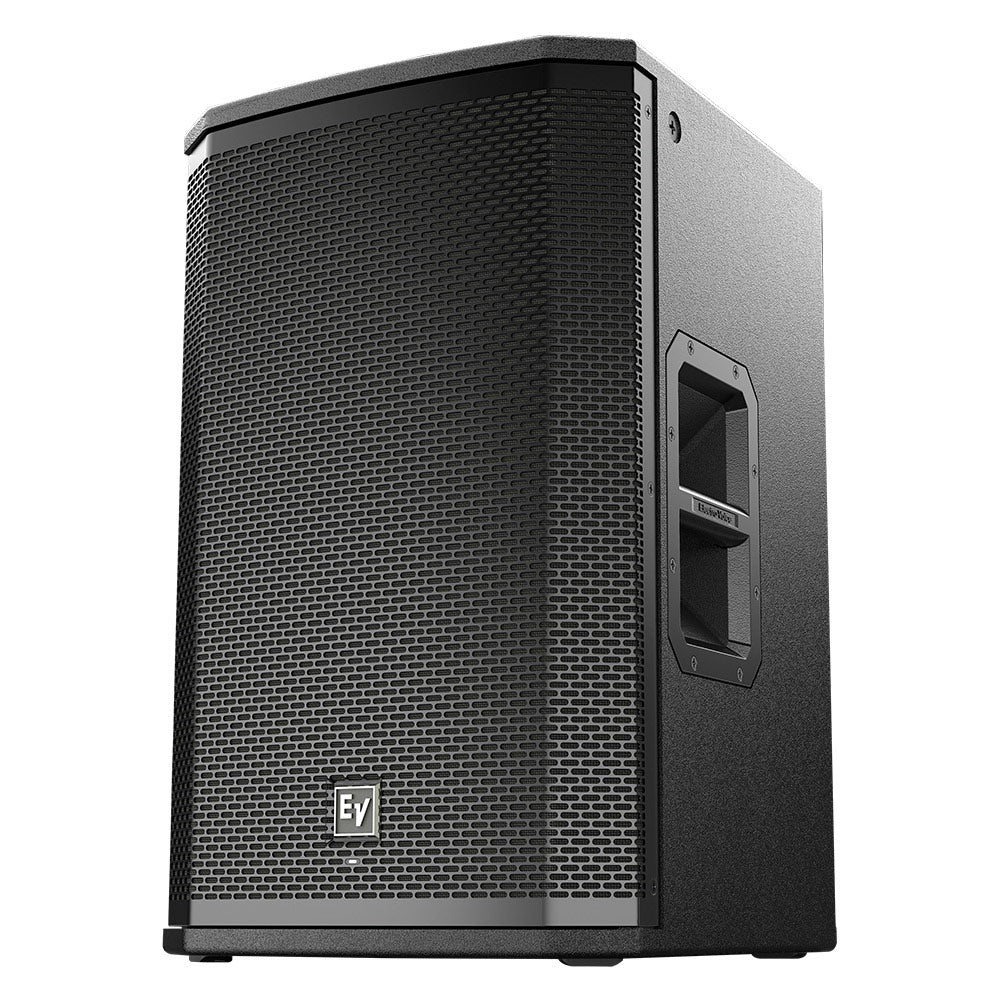

Electro-Voice ETX-12P 12 Inch 2 Way Powered Loudspeaker


  • Dale #:

    EVI-ETX12PUS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ETX family builds upon the industry leading innovation and 85 year heritage of Electro-Voice audio engineering to offer the most advanced professional portable powered loudspeakers available today. A versatile high-end choice for live entertainment venues, rental companies, pro musicians and ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ETX family builds upon the industry leading innovation and 85 year heritage of Electro-Voice audio engineering to offer the most advanced professional portable powered loudspeakers available today. A versatile high-end choice for live entertainment venues, rental companies, pro musicians and DJs, and installed sound, the ETX family features three two-way models (10-inch, 12-inch and 15-inch, all with a precision HF titanium compression driver), a three-way model (15 inch with a 6.5 inch MF driver and a precision HF titanium compression driver) and two subs (15 inch and 18 inch drivers).

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

Features:

  • 12 inch LF SMX woofer
  • 1.25 inch HF titanium compression driver
  • 2000 W Class-D power amplifier with integrated FIR Drive DSP
  • 135 dB peak SPL

EV's FIR-Drive utilizes the latest Finite Impulse Response (FIR) filter technology to optimize transducer linearity. Advanced limiter algorithms for independent peak and thermal transducer protection.

Complete full-function DSP control via a single-knob interface. LCD screen for easy system set-up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure. Subs feature a preset for true cardioid performance.

State-of-the-art components deliver the legendary EV sound quality and reliability the pros trust: 1800 W (subs) and 2000 W (full-range) Class-D power amplifiers with integrated DSP produce high SPLs utilizing high-sensitivity, low-distortion transducers (including DVX and SMX series woofers and 1.25-inch HF titanium compression drivers).

Lightweight, durable and compact 18-mm, 13-ply birch plywood enclosures finished with EVCoat. Eight mounting points for permanent installations (two-way models). Custom die-cast aluminum pole cups, handles and hardware.

EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage across all system configurations. Waveguides are custom-designed and optimized per ETX model.

More +

Product Specs

Frequency Response 55 Hz – 20 kHz
Frequency Range 43 Hz – 20 kHz
Maximum SPL 135 dB peak
Coverage (H x V) 90° x 60°
Power Rating 2000 W
LF Transducer SMX2120 300 mm (12 in)
HF Transducer DH3 B 1.25 in titanium compression driver
Crossover Frequency 1600 Hz
Connectors (2) XLR/TRS combo jack and (1) XLR link output
Enclosure 18 mm, 13 ply birch plywood with EVCoat
Grille 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Dimensions (H x W x D) 24 in x 15 in x 16 in
(613 mm x 381 mm x 400 mm)
Net Weight 52.0 lb (23.6 kg)
Shipping Weight
59.1 lb (26.8 kg)
Power Consumption 100   240 V~, 50   60 Hz, 1.6   0.8 A
