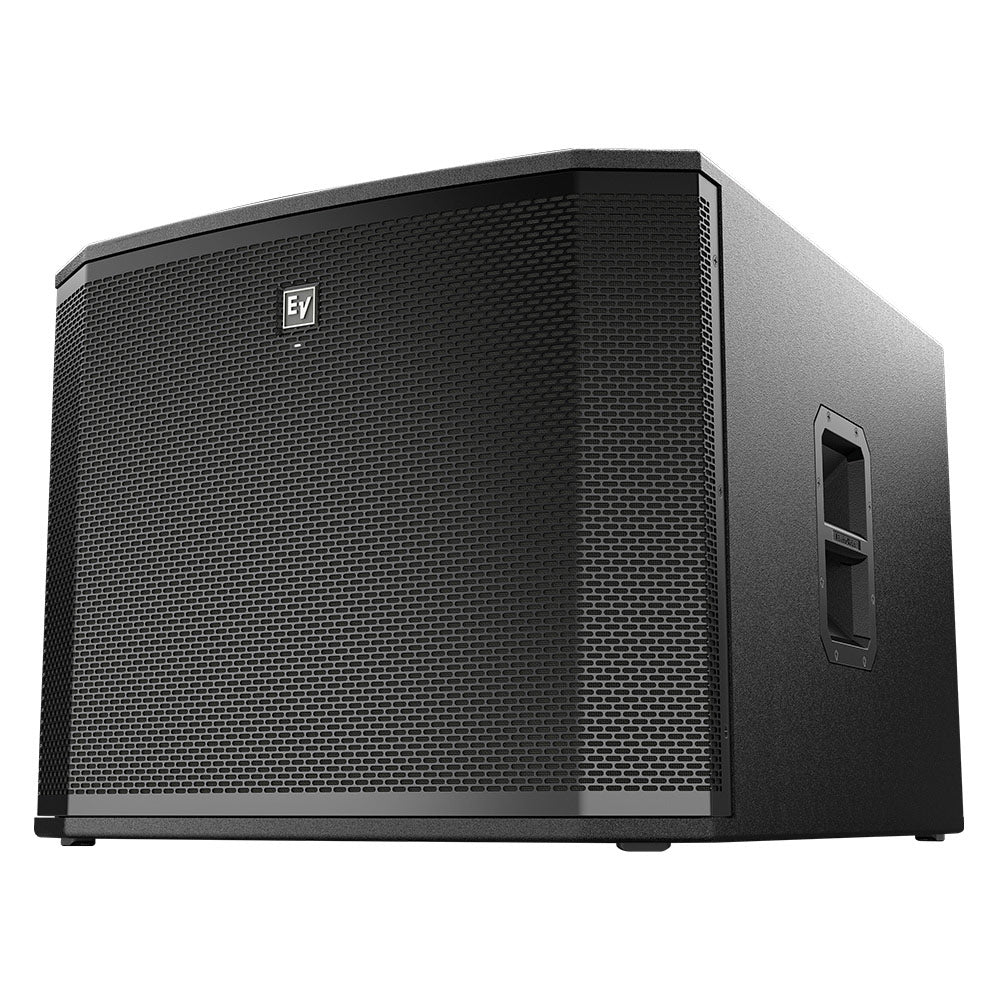

Electro-Voice ETX-18SP 18 Inch Powered Subwoofer



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:EVI-ETX18SPUS

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Shipping Charges Apply
  • The ETX family builds upon the industry-leading innovation and 85-year heritage of Electro-Voice audio engineering to offer the most advanced professional portable powered loudspeakers available today. A versatile high-end choice for live entertainment venues, rental companies, pro musicians and DJs, and installed sound, the ETX family features three two-way models (10 inch, 12 inch and 15 inch, all with a precision HF titanium compression driver), a three-way model (15 inch with a 6.5 inch MF driver and a precision HF titanium compression driver) and two subs (15 inch and 18 inch drivers).

    Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

    Features:

    • 18 inch DVX woofer for extended low-frequency response
    • 1800 W Class-D power amplifier with integrated FIR Drive DSP
    • 135 dB peak SPL
    • Special DSP preset for true cardioid performance across the full operating bandwidth
    • Combo pole cup (insert and threaded) for use with the ETX two-way models

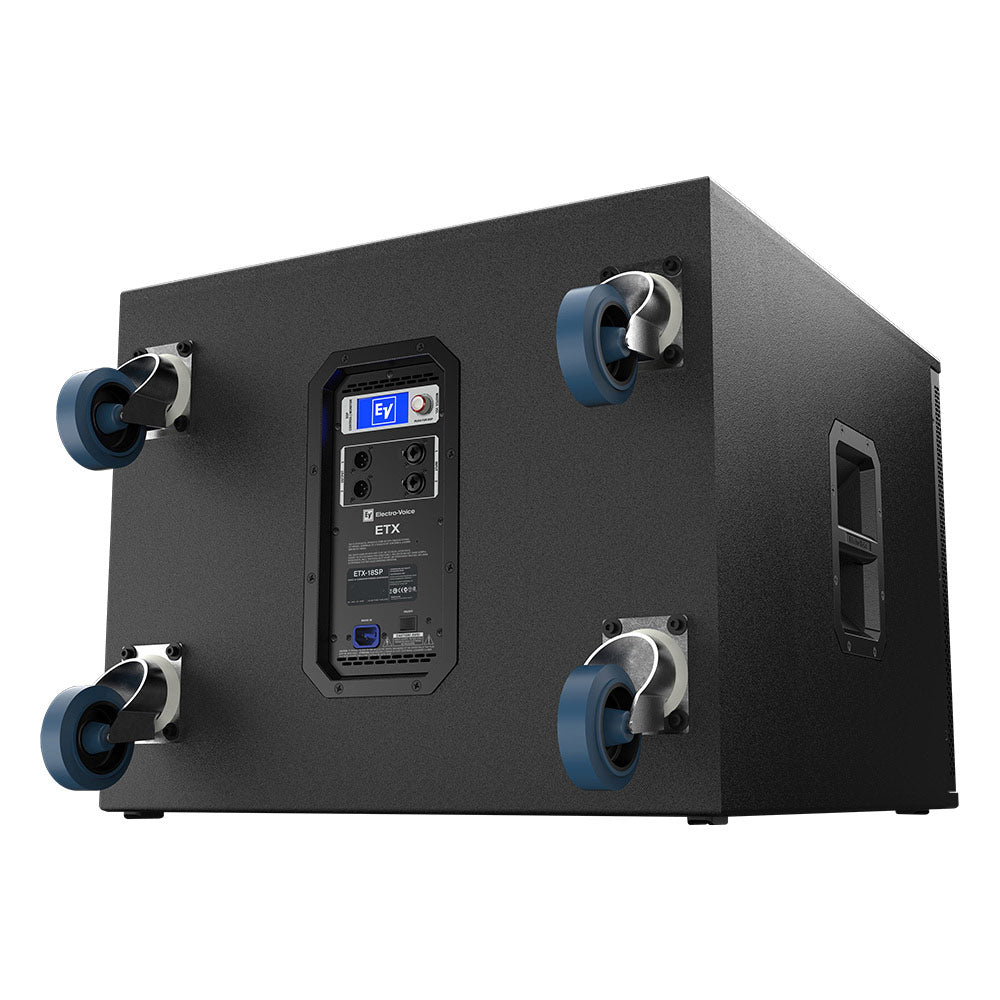

    • Removable casters

    EV's FIR?Drive utilizes the latest Finite Impulse Response (FIR) filter technology to optimize transducer linearity. Advanced limiter algorithms for independent peak and thermal transducer protection.

    Complete full?function DSP control via a single?knob interface. LCD screen for easy system set?up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure. Subs feature a preset for true cardioid performance.

    State?of?the?art components deliver the legendary EV sound quality and reliability the pros trust: 1800 W (subs) and 2000 W (full?range) Class?D power amplifiers with integrated DSP produce high SPLs utilizing high?sensitivity, low?distortion transducers (including DVX and SMX series woofers and 1.25?inch HF titanium compression drivers).

    Lightweight, durable and compact 18?mm, 13?ply birch plywood enclosures finished with EVCoat. Eight mounting points for permanent installations (two?way models). Custom die?cast aluminum pole cups, handles and hardware.

    EV?patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage across all system configurations. Waveguides are custom?designed and optimized per ETX model.

  • Frequency Response 33 Hz – 150 Hz
    Frequency Range 28 Hz – 180 Hz
    Maximum SPL 135 dB peak
    Power Rating 1800 W
    LF Transducer DVX3180A 457 mm (18 in)
    Connectors (2) XLR/TRS Combo Jack and (2) XLR link Output
    Enclosure 18 mm, 13 ply birch plywood with EVCoat
    Grille 16AWG steel with powdercoat
    Dimensions (H x W x D) 22 in x 27 in x 36 in
    (550 mm x 675 mm x 910 mm)
    Without casters:
    22 in x 27 in x 31 in
    (550 mm x 675 mm x 777 mm)
    Net Weight 114.2 lb (51.8 kg)
    Shipping Weight
    129.9 lb (58.9 kg)
    Power Consumption 100   240 V~, 50   60 Hz, 1.6   0.8 A
