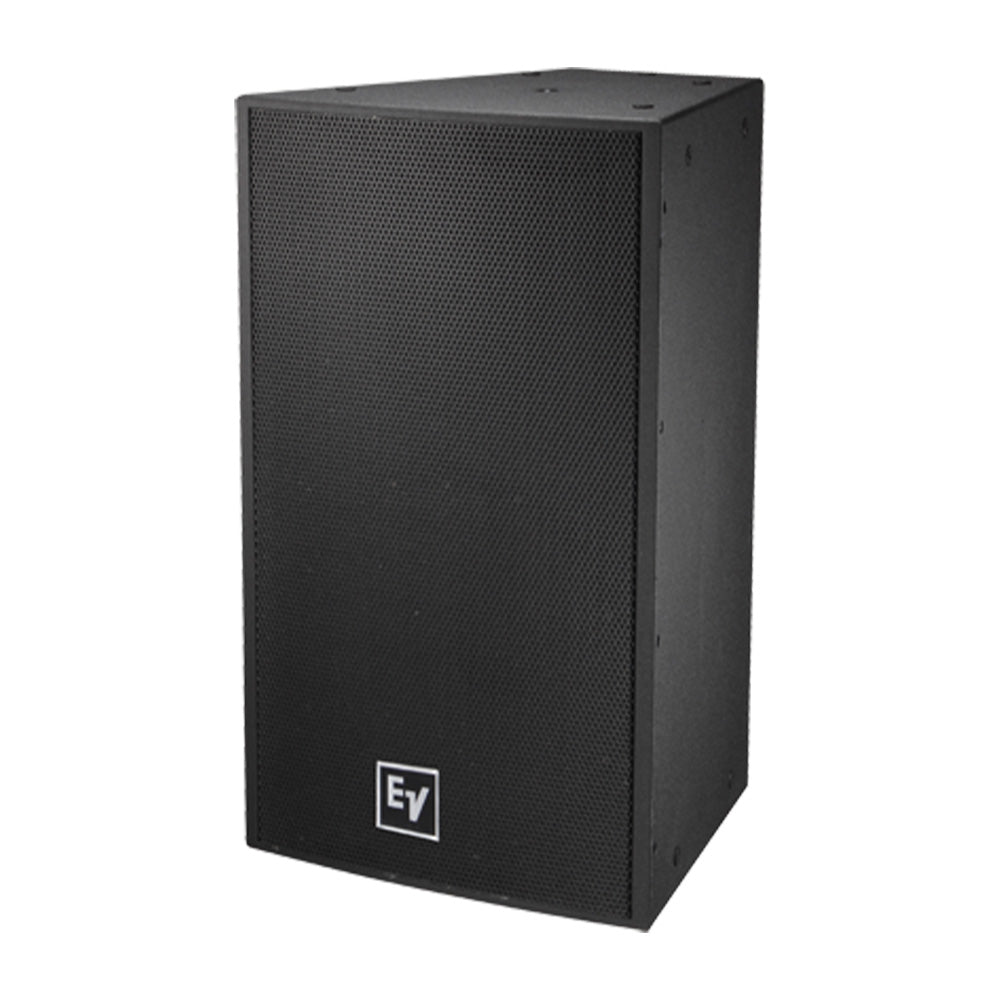

Electro-Voice EVF-1152D/66 - 60x60 Premium Arrayable 15-Inch Loudspeaker (Fiberglass / Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
EVF-1152D/66 features a 60° x 60° rotatable waveguide, design for mid-far field medium long throw raw spread coverage pattern.
EVF is the most comprehensive standard line of front loaded loudspeaker systems ever offered for installed sound. Available in 12" or 15" two?way configurations and enhanced with dedicated low?frequency systems, EVF loudspeakers match exceptional audio performance, efficiency, ease?of?use and aesthetics with unprecedented value. EVF systems incorporate the latest Electro?Voice components to ensure years of reliability and exceptional sound. "S" designated systems are equipped with SMX series symmetric drive woofers and ND2B 2" titanium compression drivers; upgraded "D" high definition systems are equipped with our highest performance DVX series symmetric drive woofers and the DH7N 3" pure titanium compression driver.
EVF two?way full?range systems are offered in seven coverage patterns that provide solutions for the widest possible range of installation challenges. The 12" Constant Directivity waveguides can be rotated to work with a vertical or horizontal orientation. Biamp operation is supported, but the sophisticated fourth?order crossover and protection network makes cost?saving, passive operation extremely attractive. Using optional rigging accessories, you can create attractive clusters that include EVF full?range systems, as well as EVF subwoofers or EVH full?range systems. Cabinets are available in three finishes: EVCoat (interior use), PI (indirect weather exposure) or FG (fiberglass—for direct weather exposure); they include twenty?two M10 threaded suspension points.
Features:
- Compact and lightweight
- Low distortion, high efficiency
- Ideal for fixed installations
- DVX3151A woofer with fully symmetric drive
- 3-inch DH7N titanium/neodymium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 40º to 90º
- 100 dB sensitivity, 134 dB maximum SPL
- Power handling: 600 W continuous, 2400 W peak
- 4th-order crossover with HF protection
- Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
- M10 threaded suspension points (22)
- Transformer kit available for distributed systems
| Frequency Range (-10 dB) | 40 Hz Ð 21 kHz |
| Suspension | 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included) |
| Weatherized | Optional |
| Minimum Impedance | 6? |
| Nominal Impedance (Passive) | 8? |
| HF Transducer | 3" DH7N diaphragm compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)_ | 70 Hz Ð 18 Hz |
| LF Nominal Impedance | 8? |
| Max. SPL/1m (calc)_ | 134dB |
| Coverage (Nominal -6 dB) H | 60¡ |
| Coverage (Nominal -6 dB) V | 60¡ |
| LF Transducer | 15" DVX3151A woofer |
| System Power Handling (Continuous/Program/Peak) | 600 , 1200 , 2400 Watts |
| Crossover Frequency | 1300Hz |
| Enclosure Material | 13-ply weather-resistant birch |
| Grille | Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind |
| Sensitivity 1 W/1 m | 100dB |
| Height | 30.26" (768.6mm) |
| Recommended High-Pass Frequency | 45Hz |
| Width | 18.5" (469.8mm) |
| Depth | 18.37" (466.6mm) |
| Weight Net | 75.84lbs (34.4kg) |
| Shipping Weight | 86.2lbs (39.1kg) |
| Available Coverage Patterns (Nominal -6 dB) HxV | 40 x 30¡ |
| Environmental Specs | Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55 |
| Internal Passive Crossover Frequency | 1300Hz |
| Passive Power Handling | 2400W peak |
| Net Weight | 75.7 lb (34.4 kg) |
| Dimensions (H x W x D) | 30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm |
| Input Connections | Euroblock; PI and FG versions include dual-gland-nut input-panel cover |
