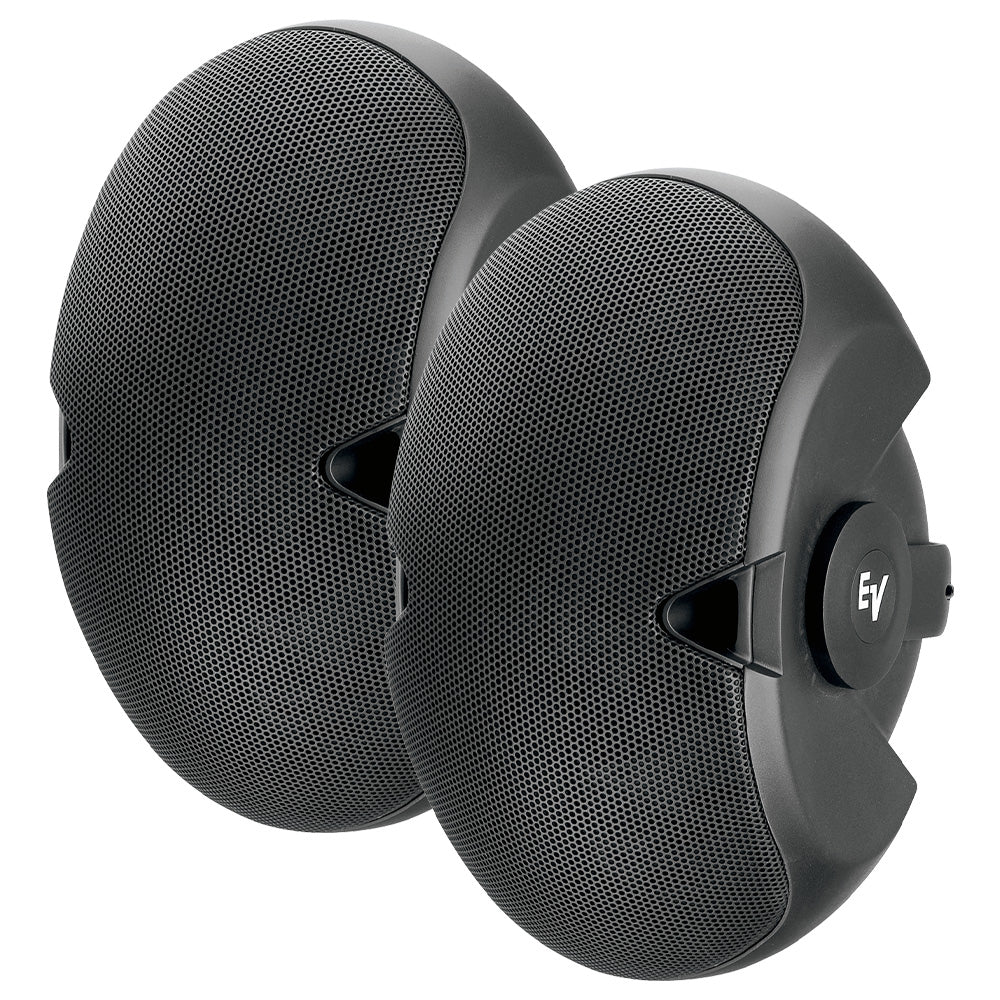

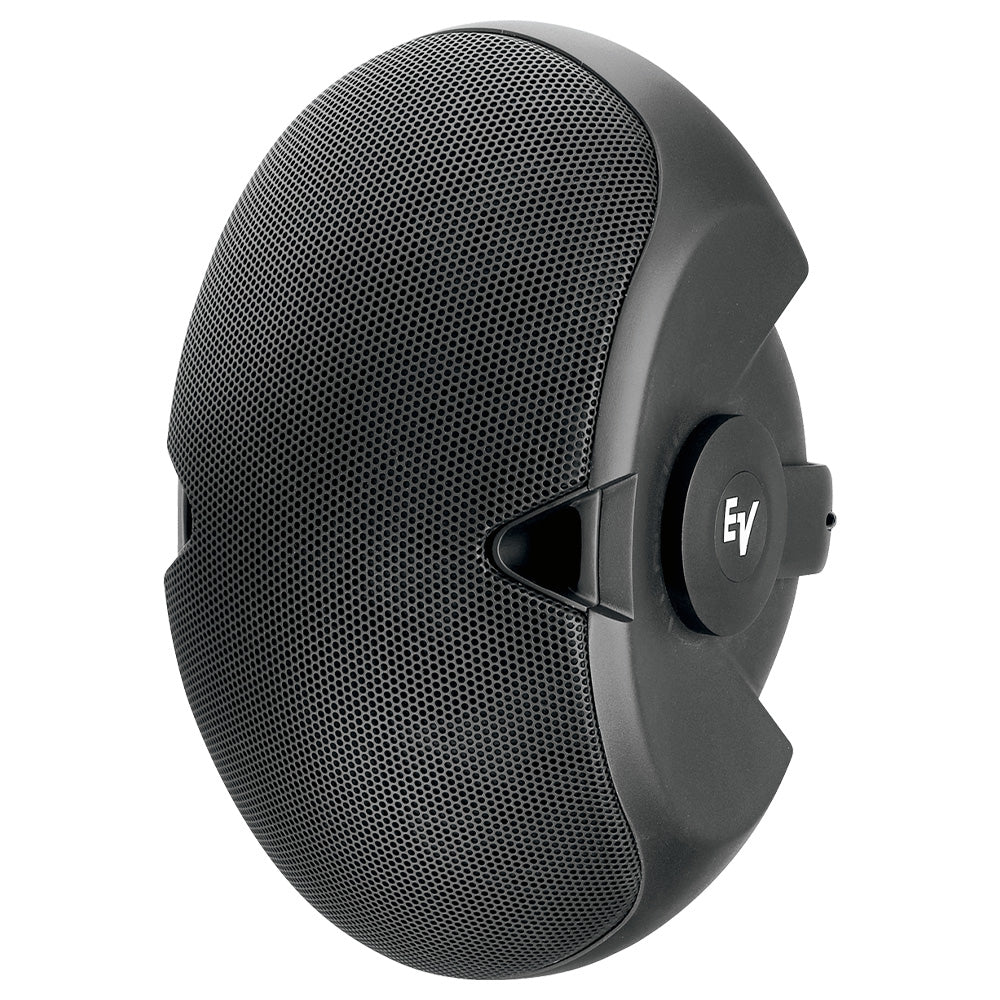

Electro-Voice EVID 4.2T - Two-Way 4-Inch Install Loudspeaker (Black / Pair)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The EVID 4.2 is a very compact full range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. Its shape and size make it nearly invisible for use in background/foreground music systems for restaurants, bars, patios, retail, and other applications.

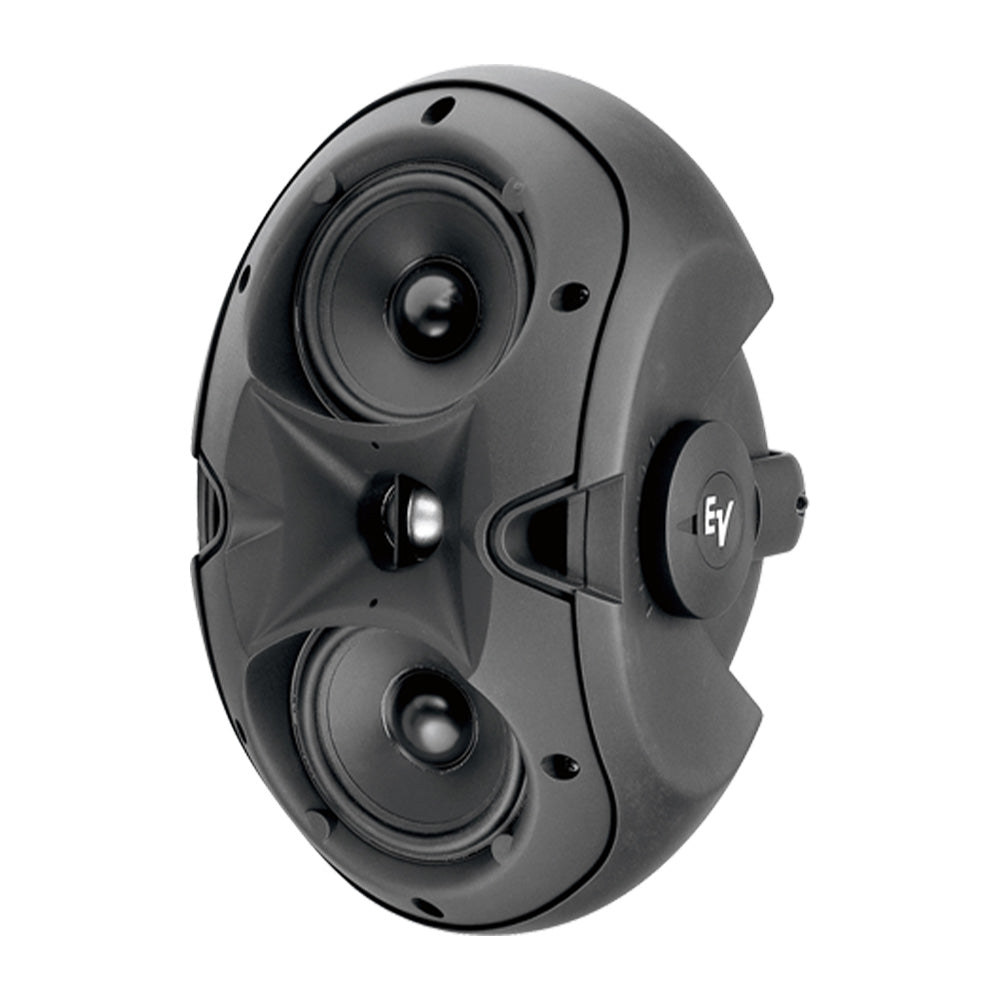

The 4.2’s three-dimensional elliptic baffle symmetrically locates the 1” Ti high frequency element with a Coherent Coverage Waveguide in front of, and between the 4” low frequency drivers. This careful shaping, location, and 10° splaying of the lf units provides coverage control by the resulting line array. Lobing is controlled by physically “shadowing” the lf transducers from each other over the bandwidth they would normally exhibit interference. EVID’s mounting system provides greater range of aiming angles in both horizontal and vertical planes than other types. The curved grille features designed-in weather resistance and a hidden leash for safety.
All models are available in black or white, and can easily be painted to match the décor. Transformer versions are also available for constant voltage systems.
Features:
- Compact full range
- Ideal for restaurants, bars, patios, and retail
- Vented LF enclosure
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure
- Coherent Coverage Waveguide
- Full-bandwidth overload protection (LF and HF)
- Elliptical weather-resistant ABS enclosure
- Paintable black or white finish
- Magnetically shielded for video applications
- Strong-Arm Mount for easy, flexible aiming
- "T" version for 70 or 100 V distributed systems
| Frequency ResponseÊ1(-10 dB) | 65Hz - 20kH |
| Power HandlingÊ2 | 200W Cont. Prog./400W Peak |
| SensitivityÊ3 | 89 dB, 1W/1m |
| Impedance | 8 ohms |
| Max SPL | 113 db |
| Horizontal CoverageÊ4 | 120¡ |
| Vertical CoverageÊ4 | 80¡ |
| Crossover Frequency | 2.2 kHz |
| LF Transducer | 2 x 4" (100 mm) |
| HF Transducer | 1" (25 mm) |
| Protection | Full System |
| Weather Resistance | Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings |
| Swing x Rotation | 100¡ x 90¡ |
| Terminals | Phoenix Connector |
| Enclosure Material | ABS (paintable) |
| "t" Version Wattage Taps | 70V: 3.75 W 70V/100V: 7.5W, 15W, 30W, 8 ohm bypass |
| Dim (H x W x D) | 12.2" x 6.9" x 8.5" (234 mm x 127 mm x 165 mm) |
| Net Weight (each) | 8.5 lbs (3.9 kg) |
| Shipping Weight (pair) | 19 lbs (8.6 kg) |
| Included Accessories | SAMª, hex key |
The EVID 4.2 is a very compact full range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. Its shape and size make it nearly invisible for use in background/foreground music systems for restaurants, bars, patios, retail, and other applications.
The 4.2’s three-dimensional elliptic baffle symmetrically locates the 1” Ti high frequency element with a Coherent Coverage Waveguide in front of, and between the 4” low frequency drivers. This careful shaping, location, and 10° splaying of the lf units provides coverage control by the resulting line array. Lobing is controlled by physically “shadowing” the lf transducers from each other over the bandwidth they would normally exhibit interference. EVID’s mounting system provides greater range of aiming angles in both horizontal and vertical planes than other types. The curved grille features designed-in weather resistance and a hidden leash for safety.
All models are available in black or white, and can easily be painted to match the décor. Transformer versions are also available for constant voltage systems.
Features:
- Compact full range
- Ideal for restaurants, bars, patios, and retail
- Vented LF enclosure
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure
- Coherent Coverage Waveguide
- Full-bandwidth overload protection (LF and HF)
- Elliptical weather-resistant ABS enclosure
- Paintable black or white finish
- Magnetically shielded for video applications
- Strong-Arm Mount for easy, flexible aiming
- "T" version for 70 or 100 V distributed systems
| Frequency ResponseÊ1(-10 dB) | 65Hz - 20kH |
| Power HandlingÊ2 | 200W Cont. Prog./400W Peak |
| SensitivityÊ3 | 89 dB, 1W/1m |
| Impedance | 8 ohms |
| Max SPL | 113 db |
| Horizontal CoverageÊ4 | 120¡ |
| Vertical CoverageÊ4 | 80¡ |
| Crossover Frequency | 2.2 kHz |
| LF Transducer | 2 x 4" (100 mm) |
| HF Transducer | 1" (25 mm) |
| Protection | Full System |
| Weather Resistance | Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings |
| Swing x Rotation | 100¡ x 90¡ |
| Terminals | Phoenix Connector |
| Enclosure Material | ABS (paintable) |
| "t" Version Wattage Taps | 70V: 3.75 W 70V/100V: 7.5W, 15W, 30W, 8 ohm bypass |
| Dim (H x W x D) | 12.2" x 6.9" x 8.5" (234 mm x 127 mm x 165 mm) |
| Net Weight (each) | 8.5 lbs (3.9 kg) |
| Shipping Weight (pair) | 19 lbs (8.6 kg) |
| Included Accessories | SAMª, hex key |
