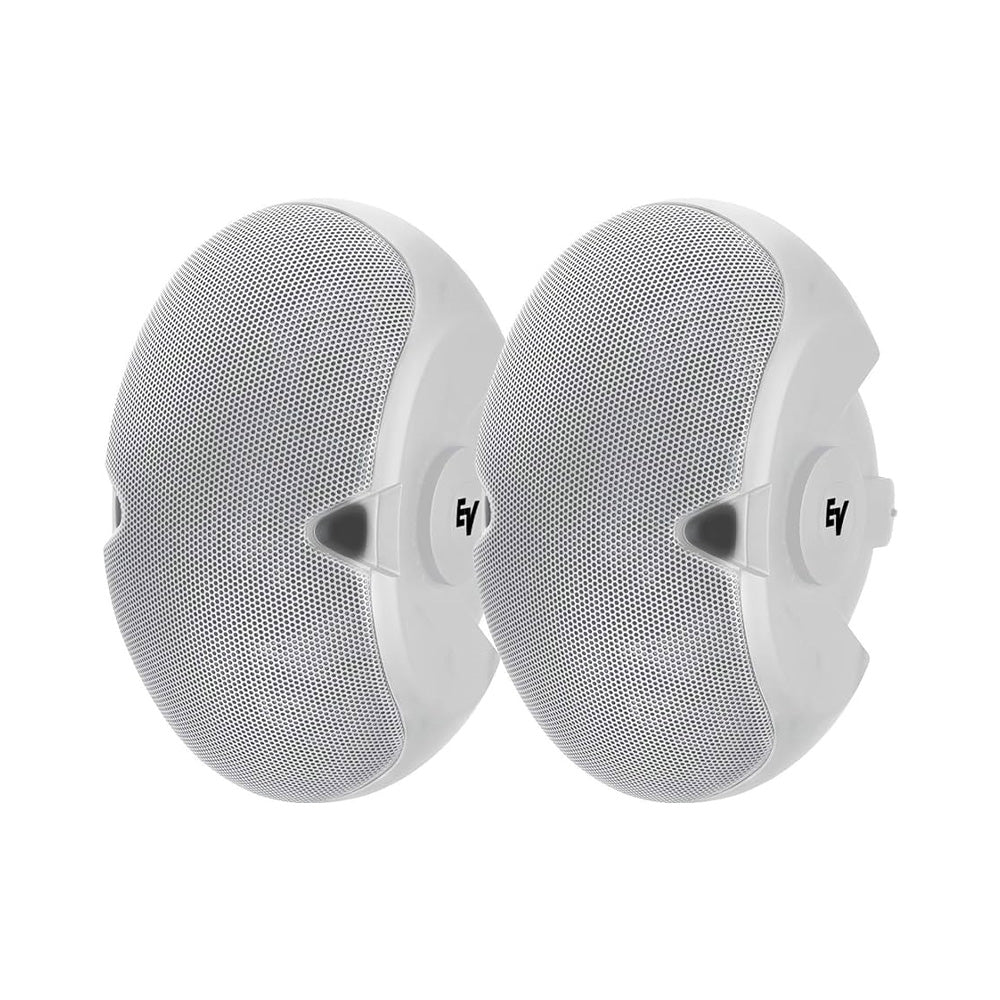

Electro-Voice EVID 4.2TW - Two-Way 4-Inch Install Loudspeaker (White / Pair)


  • Dale #:

    EVI-EVID42TW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The EVID 4.2 is a very compact full range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. Its shape and size make it nearly invisible for use in background/foreground music systems for restaurants, bars, patios, retail, and other applications. The 4.2’s three-... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The EVID 4.2 is a very compact full range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. Its shape and size make it nearly invisible for use in background/foreground music systems for restaurants, bars, patios, retail, and other applications.

The 4.2’s three-dimensional elliptic baffle symmetrically locates the 1” Ti high frequency element with a Coherent Coverage Waveguide in front of, and between the 4” low frequency drivers. This careful shaping, location, and 10° splaying of the lf units provides coverage control by the resulting line array. Lobing is controlled by physically “shadowing” the lf transducers from each other over the bandwidth they would normally exhibit interference. EVID’s mounting system provides greater range of aiming angles in both horizontal and vertical planes than other types. The curved grille features designed-in weather resistance and a hidden leash for safety.

All models are available in black or white, and can easily be painted to match the décor. Transformer versions are also available for constant voltage systems.

Features:

  • Compact full range
  • Ideal for restaurants, bars, patios, and retail
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Coherent Coverage Waveguide
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems

More +

Product Specs

Frequency Response 1(-10 dB) 65Hz - 20kH
Power Handling 2 200W Cont. Prog./400W Peak
Sensitivity 3 89 dB, 1W/1m
Impedance 8 ohms
Max SPL 113 db
Horizontal Coverage 4 120°
Vertical Coverage 4 80°
Crossover Frequency 2.2 kHz
LF Transducer 2 x 4" (100 mm)
HF Transducer 1" (25 mm)
Protection Full System
Weather Resistance Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
Swing x Rotation 100° x 90°
Terminals Phoenix Connector
Enclosure Material ABS (paintable)
"t" Version Wattage Taps 70V: 3.75 W
70V/100V: 7.5W, 15W, 30W, 8 ohm bypass
Dim (H x W x D) 12.2" x 6.9" x 8.5" (234 mm x 127 mm x 165 mm)
Net Weight (each) 8.5 lbs (3.9 kg)
Shipping Weight (pair) 19 lbs (8.6 kg)
Included Accessories SAM™, hex key
