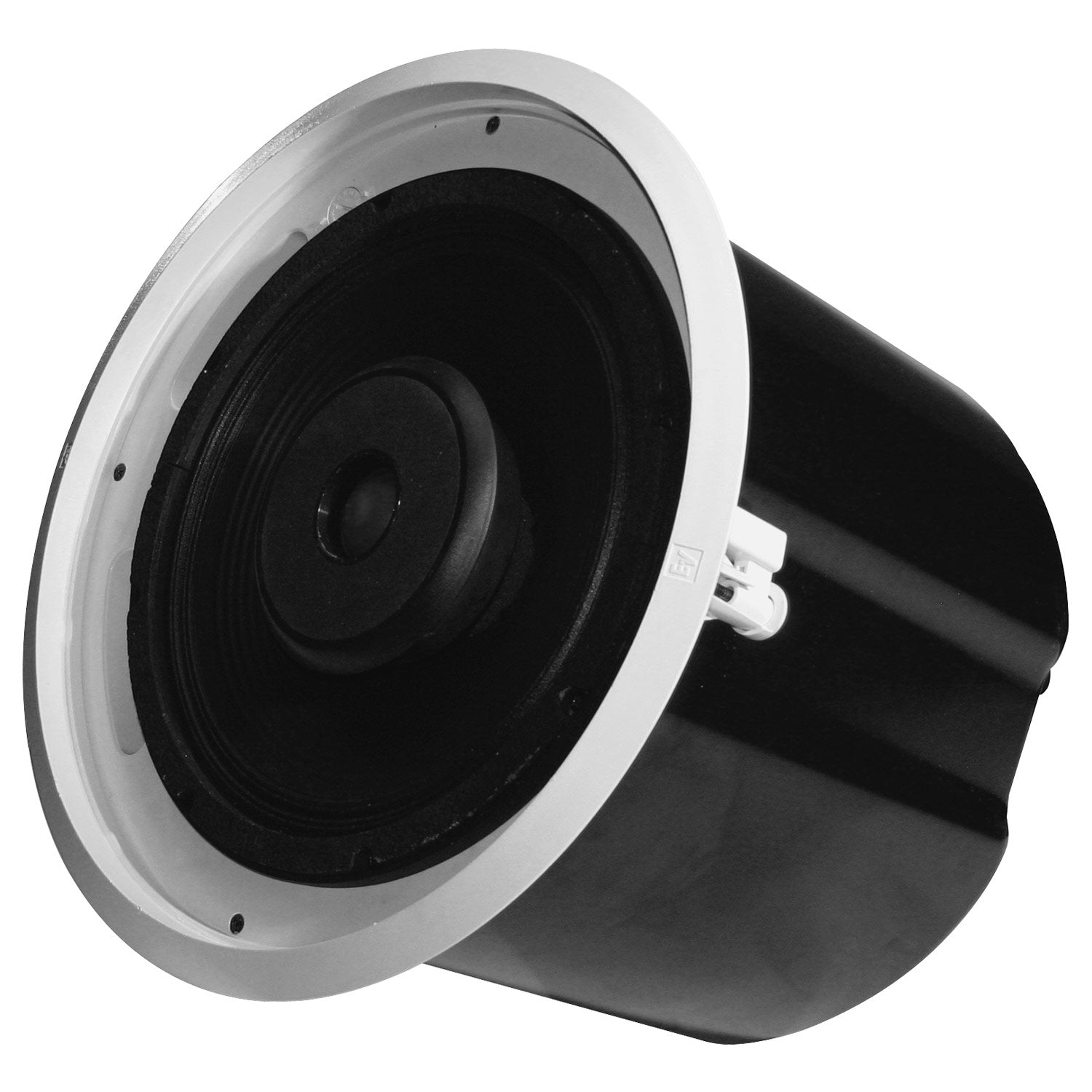

Electro-Voice EVID C12.2 - Coaxial Ceiling Mount Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Designed with both the contractor and listener in mind, EVID ceiling speakers are high-performance problemsolvers that deliver exceptional sound in even the most challenging situations. From the compact power of the C4.2 to the exclusive waveguide‑coupled design of the C8.2HC, each great-sounding EVID solution is uniquely suited to handle installer needs across a specific range of intended applications. Sonically superior and aesthetically pleasing, every EVID ceiling model installs with ease and provides lasting value. For commercial sound across all venue types, EVID has the ceiling covered.
Features:
- Full-range power for high ceilings, large spaces
- High sensitivity, high power-handling
- Integrated transformer with automatic saturation compensation for distortion free 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- White semi-gloss perforated grille
- Heavy-gauge steel enclosure in black
- 3/8-inch threaded-rod mount points for open ceilings
- Safe, easy installation with included tile bridge and mounting ring
- Complete package, requires no additional accessories
| HF Transducer | 1-inch (25 mm) (coax) |
| Speaker Type | Ported cabinet, internally damped two-way (passive crossover included) |
| Frequency Response (-3 dB)_ | 65 - 20,000Hz |
| Max. SPL/1m (calc)_ | 126dB (Half Space) |
| LF Transducer | 12-inch EVID 920-8B (coax) |
| System Power Handling (Continuous/Program/Peak) | 100Watts |
| Power Rating | 64W |
| Crossover Frequency | 2000Hz |
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel |
| Grille | Powder-coated steel |
| Available Color | White (paintable surface) (Paintable Surface) |
| Sensitivity 1 W/1 m | 100dB |
| Height | 13.11" (333mm) |
| Weight Net | 27.12lbs (12.3kg) |
| Transformer Taps (Transformer Version Only) | 4 (70 V only), 8, 16, 32, 64 W ASC protected |
| Input Formats | 8_ / 70V / 100V |
| Coverage (Nominal -6 dB) | 90 (average) |
| Mounting Systems | Integrated 3-point toggle anchors |
| Diameter (Max) | 16.3" (414mm) |
Designed with both the contractor and listener in mind, EVID ceiling speakers are high-performance problemsolvers that deliver exceptional sound in even the most challenging situations. From the compact power of the C4.2 to the exclusive waveguide‑coupled design of the C8.2HC, each great-sounding EVID solution is uniquely suited to handle installer needs across a specific range of intended applications. Sonically superior and aesthetically pleasing, every EVID ceiling model installs with ease and provides lasting value. For commercial sound across all venue types, EVID has the ceiling covered.
Features:
- Full-range power for high ceilings, large spaces
- High sensitivity, high power-handling
- Integrated transformer with automatic saturation compensation for distortion free 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- White semi-gloss perforated grille
- Heavy-gauge steel enclosure in black
- 3/8-inch threaded-rod mount points for open ceilings
- Safe, easy installation with included tile bridge and mounting ring
- Complete package, requires no additional accessories
| HF Transducer | 1-inch (25 mm) (coax) |
| Speaker Type | Ported cabinet, internally damped two-way (passive crossover included) |
| Frequency Response (-3 dB)_ | 65 - 20,000Hz |
| Max. SPL/1m (calc)_ | 126dB (Half Space) |
| LF Transducer | 12-inch EVID 920-8B (coax) |
| System Power Handling (Continuous/Program/Peak) | 100Watts |
| Power Rating | 64W |
| Crossover Frequency | 2000Hz |
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel |
| Grille | Powder-coated steel |
| Available Color | White (paintable surface) (Paintable Surface) |
| Sensitivity 1 W/1 m | 100dB |
| Height | 13.11" (333mm) |
| Weight Net | 27.12lbs (12.3kg) |
| Transformer Taps (Transformer Version Only) | 4 (70 V only), 8, 16, 32, 64 W ASC protected |
| Input Formats | 8_ / 70V / 100V |
| Coverage (Nominal -6 dB) | 90 (average) |
| Mounting Systems | Integrated 3-point toggle anchors |
| Diameter (Max) | 16.3" (414mm) |
