DALE SKU # EVI-FM42

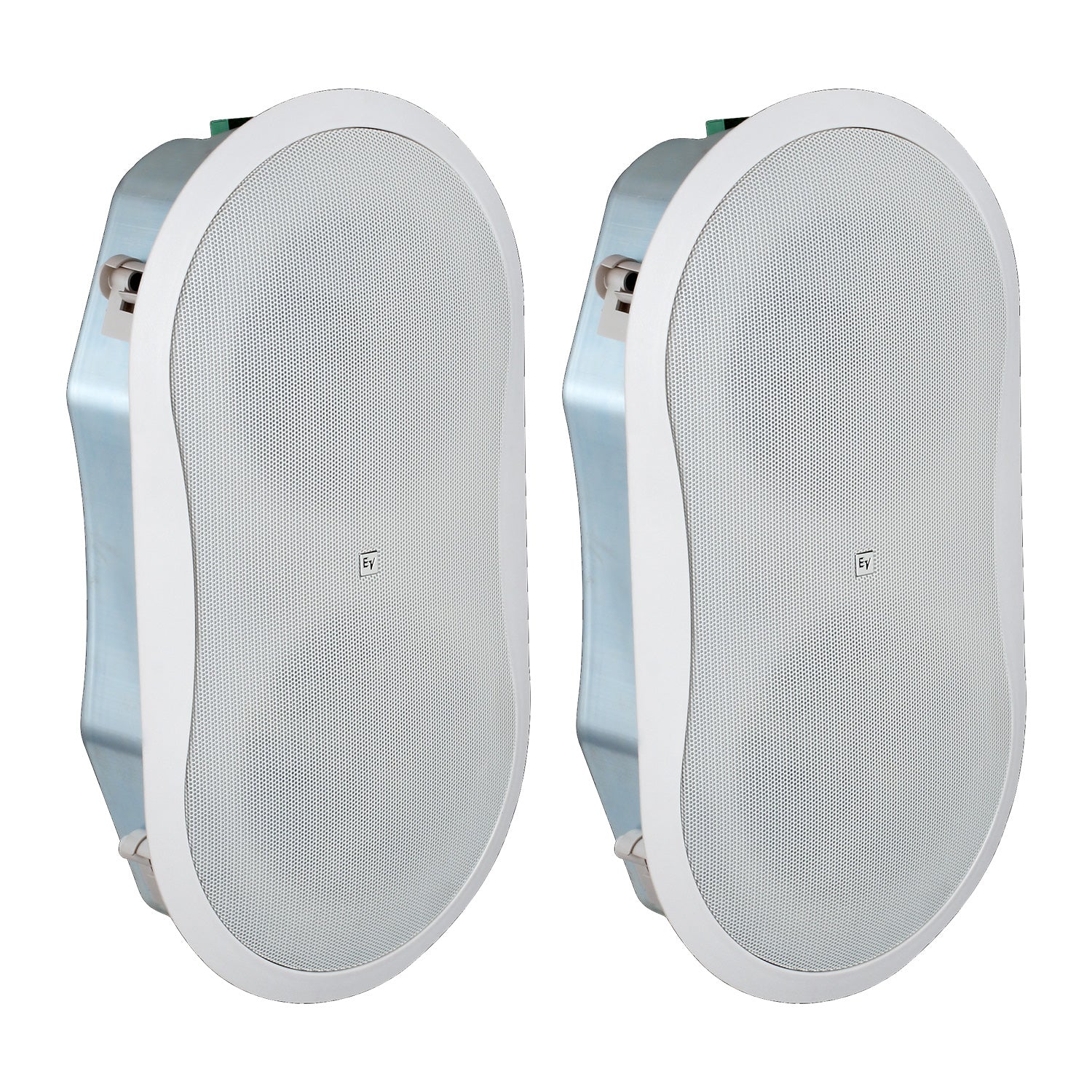

Electro-Voice EVID FM4.2 Flush Mount In-Wall Speaker System (Pair)

Sale price$395.00 Regular price$546.00
Save $151.00
  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Electro-Voice EVID FM4.2 flush-mounted loudspeaker system is a complete two-way in-wall loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 4 two-way loudspeaker coupled with a 4 passive radiator and an internal line-matching transformer. The loudspeaker features 4 low- frequency cone and high-temperature voice-coil assembly along with a 4 long excursion passive radiator and titanium coated dome tweeter. The EVID FM4.2 loudspeaker utilizes a crossover network, centered at 3,600 Hz, that provides 16-dB-per-octave tweeter protection outside of its operating range. In addition the EVID FM4.2 features a comprehensive protection circuit to shield the woofer and tweeter drivers from excessive power levels.

    Features:

    • Shallow profile, ideal for tight wall or ceiling spaces
    • Tuned passive radiator extends bass, enhances performance
    • High quality 1-inch titanium dome tweeter
    • Full-bandwidth overload protection
    • 70 V, 100 V, and 8 ohms operation in the same model for off-the-shelf versatility
    • Front-panel mode/wattage switch
    • Fully-sealed enclosure provides superior isolation to protect adjacent rooms
    • Secure Phoenix-style pass-through connectors for easy wiring and installation.
    • Four point "quick mounting" tabs for fast attachment in any wall cavity
    • Can-mounted transformer for enhanced rigidity
    • Ribbed back can eliminates flexing

    EVID premium commercial loudspeakers bring best-in-class sonic characteriztics and stunning high fidelity to a broad range of installation applications including performance and sports venues, retail environments, conference and meeting rooms, and hospitality settings such as restaurants and bars. EVID loudspeakers feature innovative designs that beautify not only the sound of a room but also its looks. EVID 3.2, 4.2, and 6.2 models are available in "T"-designated versions with internal 70 or 100 V line transformer. High power and high performance, EVID is the superior solution to today's installation needs.

    Input Connections 4-pin Phoenix
    Nominal Impedance 8 ½
    Transformer Taps (Transformer Version Only) 1.75, 3.75, 7.5, 15, 30 at 70 v
    Frequency Response (-10ÊdB) 52 - 20000ÊHz
    Sensitivity 1 W/1 m 87ÊdB
    Max.ÊSPL/1m (calc) 110ÊdB
    Coverage (Nominal -6ÊdB) H 150 ¡
    Coverage (Nominal -6ÊdB) V 150 ¡
    System Power Handling (Continuous/Program/Peak) 50//200 Watts
    LFÊTransducer 4 inch with 4 inch passive radiator
    LFÊPower Handling 4-inch, plus 4-inch passive Watts
    HFÊPower Handling 1-inch (Titanium dome) Watts
    HFÊTransducer 1 inch Titanium dome tweeter
    Enclosure Material Zinc Plated Metal
    Height 13.78"Ê(350Êmm)
    Width 7.41"Ê(188.3Êmm)
    Depth 3.76"Ê(95.6Êmm)
    Weight Net 2.9ÊkgÊ(6.39Êlbs)

    The Electro-Voice EVID FM4.2 flush-mounted loudspeaker system is a complete two-way in-wall loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 4 two-way loudspeaker coupled with a 4 passive radiator and an internal line-matching transformer. The loudspeaker features 4 low- frequency cone and high-temperature voice-coil assembly along with a 4 long excursion passive radiator and titanium coated dome tweeter. The EVID FM4.2 loudspeaker utilizes a crossover network, centered at 3,600 Hz, that provides 16-dB-per-octave tweeter protection outside of its operating range. In addition the EVID FM4.2 features a comprehensive protection circuit to shield the woofer and tweeter drivers from excessive power levels.

    Features:

    • Shallow profile, ideal for tight wall or ceiling spaces
    • Tuned passive radiator extends bass, enhances performance
    • High quality 1-inch titanium dome tweeter
    • Full-bandwidth overload protection
    • 70 V, 100 V, and 8 ohms operation in the same model for off-the-shelf versatility
    • Front-panel mode/wattage switch
    • Fully-sealed enclosure provides superior isolation to protect adjacent rooms
    • Secure Phoenix-style pass-through connectors for easy wiring and installation.
    • Four point "quick mounting" tabs for fast attachment in any wall cavity
    • Can-mounted transformer for enhanced rigidity
    • Ribbed back can eliminates flexing

    EVID premium commercial loudspeakers bring best-in-class sonic characteriztics and stunning high fidelity to a broad range of installation applications including performance and sports venues, retail environments, conference and meeting rooms, and hospitality settings such as restaurants and bars. EVID loudspeakers feature innovative designs that beautify not only the sound of a room but also its looks. EVID 3.2, 4.2, and 6.2 models are available in "T"-designated versions with internal 70 or 100 V line transformer. High power and high performance, EVID is the superior solution to today's installation needs.

    Input Connections 4-pin Phoenix
    Nominal Impedance 8 ½
    Transformer Taps (Transformer Version Only) 1.75, 3.75, 7.5, 15, 30 at 70 v
    Frequency Response (-10ÊdB) 52 - 20000ÊHz
    Sensitivity 1 W/1 m 87ÊdB
    Max.ÊSPL/1m (calc) 110ÊdB
    Coverage (Nominal -6ÊdB) H 150 ¡
    Coverage (Nominal -6ÊdB) V 150 ¡
    System Power Handling (Continuous/Program/Peak) 50//200 Watts
    LFÊTransducer 4 inch with 4 inch passive radiator
    LFÊPower Handling 4-inch, plus 4-inch passive Watts
    HFÊPower Handling 1-inch (Titanium dome) Watts
    HFÊTransducer 1 inch Titanium dome tweeter
    Enclosure Material Zinc Plated Metal
    Height 13.78"Ê(350Êmm)
    Width 7.41"Ê(188.3Êmm)
    Depth 3.76"Ê(95.6Êmm)
    Weight Net 2.9ÊkgÊ(6.39Êlbs)
