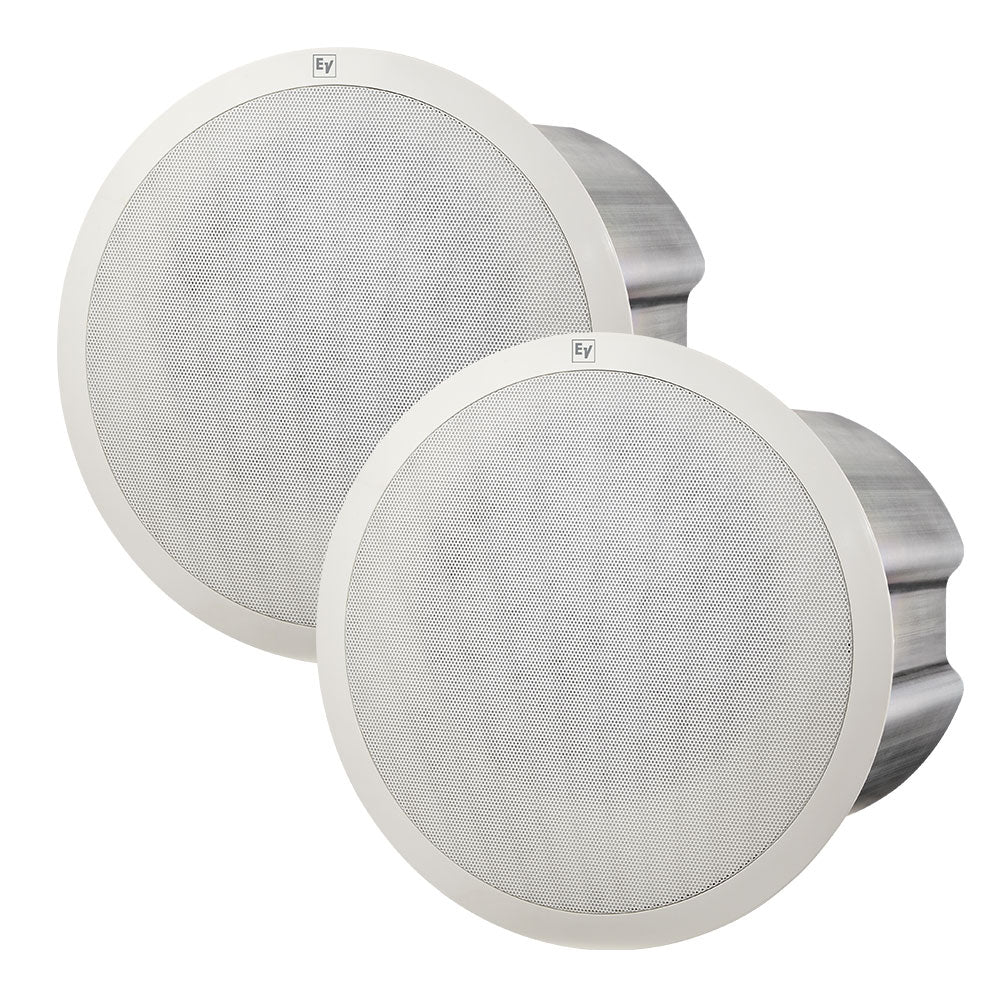

Electro-Voice EVID PC8.2 - Premium 2-Way 8-Inch Ceiling Speaker (White / Pair)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The PC8.2 (8-inch two-way) is designed to be the most advanced ceiling speaker available today, with superior performance across every detail. Each self-contained unit features a dedicated compression driver for enhanced high-frequency performance and coverage control in comparison to current EVID ceiling speaker offerings. Simplified wiring and innovative new integrated mounting hardware allows for quicker installation into a wide range of ceiling cavities and construction formats.
The model adds increased power handling (100 W), higher output (113 dB / 114 dB), and wider coverage angles (120˚ / 105˚) to the user-friendly installation and low-profile looks that contractors expect from EVID products, complimenting the range as a new, high-end option. Ideal for retail spaces, restaurants, theater and stadium concourses, shopping malls, and a wide range of applications where premium-quality distributed audio is required.
Features:
- High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
- High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
- Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.

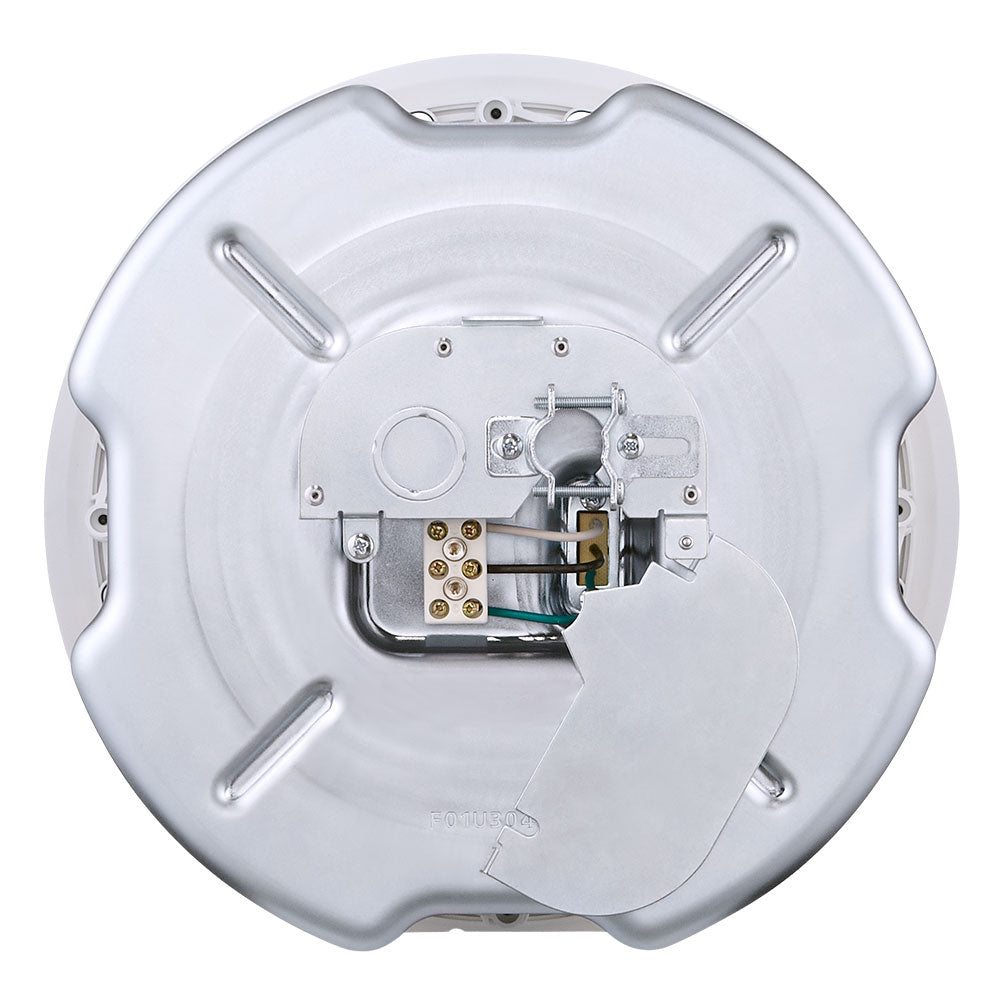

- Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
- Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with UL 1480, and 2043 standards.
| Weatherized | No |
| HF Transducer | 35 mm compression driver |
| Frequency Range (-10 dB)_ | 40 - 20kHz |
| Max. SPL/1m (calc)_ | 108 db avg, 114 pkdB |
| LF Transducer | 200 mm (8 in) |
| Power Rating | 200W |
| HF Power Handling | 200W program, 100W pink noiseWatts |
| Connector Type | Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size |
| Enclosure Material | ABS plastic (UL94V-0) baffle, steel back can |
| Grille | Color-matched steel grille with fabric |
| Available Color | White |
| Sensitivity 1 W/1 m | 88dB |
| Height | 12.76" (324mm) |
| Weight Net | 17.64lbs (8kg) |
| Shipping Weight | 44.6lbs (20.23kg) |
| Transformer Taps (Transformer Version Only) | 70V: 60W, 30W, 15W, 7.5W, 8½, 100V: 60W, 30W, 15W, 8½ |
| Coverage (Nominal -6 dB) | 100¡ |
| Mounting Systems | C ring, tile bridge |
| Impedance | 8½ |
| Cutout Size | 11.59" (294.3mm) |
| Regulatory Approvals | UL1480; UL2043 |
| Diameter (Max) | 12.87" (327mm) |
