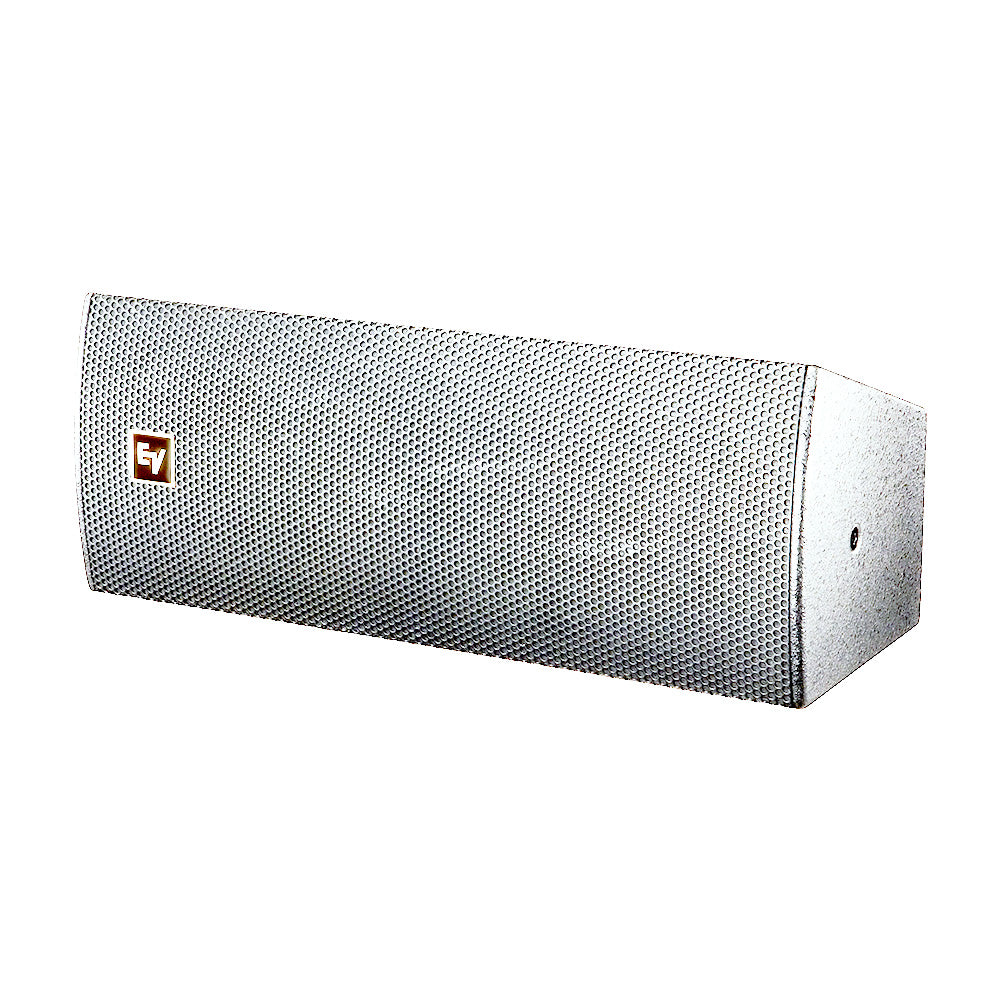

Electro-Voice EVU-2062/95 - Ultra-Compact 2-Way Dual 6.5-Inch Install Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bringing ultracompact design to the EV Innovation family of installation loudspeakers, the EVU series shines in applications including delay, under?balcony fill, front?fill, wall mounting and distributed audio. EVU loudspeakers feature a rotatable Constant Directivity waveguide that provides truly uniform sound dispersion while allowing the horizontal coverage pattern to be independent of enclosure orientation. Sonically matched to complement the other EV Innovation products, EVU helps make EV Innovation the industry's most comprehensive and versatile line of installed?sound loudspeakers.
A fourth?order, 90 Hz high?pass filter is recommended for use with all EVU loudspeakers.
Features:
- Sonically matched to all EV-Innovation lines
- Sophisticated 18-dB-octave passive crossover/EQ networks
- Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
- Optional Neutrik Speakon(R) connector panel
- One 1.3-inch (33 mm) diaphragm compression driver
- U-bracket included
- Optional 70 V and 100 V operation
- OmniMount(R)-compatible rear mounting points
- Available in black or white (interior use)
- Ultracompact 8 x 14.5 inch enclosure
- 90º x 50º rotatable waveguide
- Ultra-high power handling for size: 160 W continuous
- 120 dB Max SPL
- Asymmetrical trapezoidal enclosure design
- Compatible with OmniMount
| Frequency Range (-10 dB) | 70 - 20000kHz (Half Space) |
| Suspension | Six M8 threaded points |
| Weatherized | No |
| Minimum Impedance | 6? |
| HF Transducer | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)_ | 100 - 16000Hz (Half Space) |
| Max. SPL/1m (calc)_ | 125dB |
| Coverage (Nominal -6 dB) H | 90¡ |
| Coverage (Nominal -6 dB) V | 50¡ |
| LF Transducer | Two 6.5-inch (165 mm) ICT-6.5-8 woofers |
| Power Rating | 1200W |
| System Power Handling (Continuous/Program/Peak) | 300//1200Watts (EIA RS-426A (eight hours)) |
| Connector Type | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) |
| Enclosure Material | 9-ply hardwood plywood |
| Grille | 18-gauge steel with cloth behind |
| Available Color | Black or white |
| Height | 8.23" (209mm) |
| Width | 20.98" (533mm) |
| Recommended High-Pass Frequency | 90Hz |
| Depth | 8.15" (207mm) |
| Weight Net | 24.91lbs (11.3kg) |
| Shipping Weight | 31.31lbs (14.2kg) |
| Nominal Impedance | 8? |
| Finish | Textured paint |
| Waveguide | 6 in. x 6 in., rotatable |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 94dB ((1W/1M)) |
| Passive Power Handling | 1400W peak |
Bringing ultracompact design to the EV Innovation family of installation loudspeakers, the EVU series shines in applications including delay, under?balcony fill, front?fill, wall mounting and distributed audio. EVU loudspeakers feature a rotatable Constant Directivity waveguide that provides truly uniform sound dispersion while allowing the horizontal coverage pattern to be independent of enclosure orientation. Sonically matched to complement the other EV Innovation products, EVU helps make EV Innovation the industry's most comprehensive and versatile line of installed?sound loudspeakers.
A fourth?order, 90 Hz high?pass filter is recommended for use with all EVU loudspeakers.
Features:
- Sonically matched to all EV-Innovation lines
- Sophisticated 18-dB-octave passive crossover/EQ networks
- Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
- Optional Neutrik Speakon(R) connector panel
- One 1.3-inch (33 mm) diaphragm compression driver
- U-bracket included
- Optional 70 V and 100 V operation
- OmniMount(R)-compatible rear mounting points
- Available in black or white (interior use)
- Ultracompact 8 x 14.5 inch enclosure
- 90º x 50º rotatable waveguide
- Ultra-high power handling for size: 160 W continuous
- 120 dB Max SPL
- Asymmetrical trapezoidal enclosure design
- Compatible with OmniMount
| Frequency Range (-10 dB) | 70 - 20000kHz (Half Space) |
| Suspension | Six M8 threaded points |
| Weatherized | No |
| Minimum Impedance | 6? |
| HF Transducer | One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver |
| Speaker Type | Full-Range, Two-Way |
| Frequency Response (-3 dB)_ | 100 - 16000Hz (Half Space) |
| Max. SPL/1m (calc)_ | 125dB |
| Coverage (Nominal -6 dB) H | 90¡ |
| Coverage (Nominal -6 dB) V | 50¡ |
| LF Transducer | Two 6.5-inch (165 mm) ICT-6.5-8 woofers |
| Power Rating | 1200W |
| System Power Handling (Continuous/Program/Peak) | 300//1200Watts (EIA RS-426A (eight hours)) |
| Connector Type | 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire) |
| Enclosure Material | 9-ply hardwood plywood |
| Grille | 18-gauge steel with cloth behind |
| Available Color | Black or white |
| Height | 8.23" (209mm) |
| Width | 20.98" (533mm) |
| Recommended High-Pass Frequency | 90Hz |
| Depth | 8.15" (207mm) |
| Weight Net | 24.91lbs (11.3kg) |
| Shipping Weight | 31.31lbs (14.2kg) |
| Nominal Impedance | 8? |
| Finish | Textured paint |
| Waveguide | 6 in. x 6 in., rotatable |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 94dB ((1W/1M)) |
| Passive Power Handling | 1400W peak |
