Electro-Voice MB-300 Horizontal Array Kit for Side-By-Side Arraying


  • Dale #:

    EVI-MB300
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

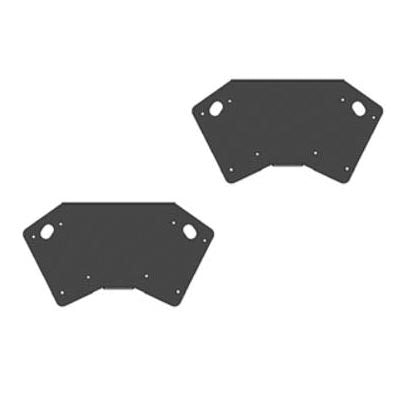

The Mb300 horizontal array kit contains two brackets and eight of each of the following: 5/16-18 x 1 hex-head bolts, 5/16 lock washers, 5/16-18 nuts. Chart 1 (below) details part descriptions, quantity and part numbers. The Mb300 is used in conjunction with the Mb200 installation bracket to creat... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Mb300 horizontal array kit contains two brackets and eight of each of the following: 5/16-18 x 1 hex-head bolts, 5/16 lock washers, 5/16-18 nuts. Chart 1 (below) details part descriptions, quantity and part numbers. The Mb300 is used in conjunction with the Mb200 installation bracket to create a speaker array. Selection of the required number of each kit is shown in Chart 2 (below).

The array can be constructed in either of two angular configurations: 1. Speakers side by side (50Îç angle) for a tight array. 2. Speakers spread slightly (60Îçangle) for wider coverage. Note that a full 360Îç array can only be accomplished with the 60Îç angle pattern. Suspension of the speaker array is made easy with the four 12.7-mm (0.5-in.) holes located on the Mb300. A cable, chain quick link, or other suitable hardware which is rated for overhead lifting (not supplied with this kit) can be used to connect to the array for flying

The Mb300 horizontal array kit contains two brackets and eight of each of the following: 5/16-18 x 1 hex-head bolts, 5/16 lock washers, 5/16-18 nuts. The Mb300 is used in conjunction with the Mb200 installation bracket to create a speaker array. The array can be constructed in either of two angular configurations:Speakers side by side (50 deg. angle) for a tight arraySpeakers spread slightly (60 deg. angle) for wider coverage

More +

Product Specs

Suspension HolesFour 12.7-mm (0.5-in.) diameter holes
Mb300 Mounting HolesFour 8-mm (5/16-in.) diameter holes
Material10-gauge cold-rolled steel
FinishBlack wrinkle powder coat
Net Weight3.63 kg (8.0 lb)
Shipping Weight4.08 kg (9.0 lb)
