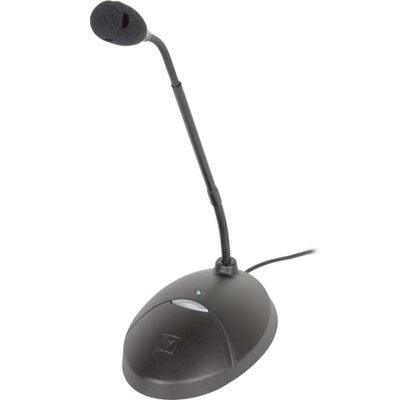

Electro-Voice PolarChoice PC Desktop-12 Miniature Multi-Pattern Gooseneck Podium Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PolarChoice™ Desktop is a high quality desk microphone that can be used with both standard and automatic mixers.The PC Desktop features the exclusive EV PolarChoice miniature multi-pattern gooseneck microphone. The multi-pattern versatility of the PolarChoice microphone makes it a true "problem solver". With one nondirectional and 3 directional polar patterns available, the PolarChoice microphone is ideal for virtually any installation. The PC Desktop also includes a switchable high pass filter that helps reduce any vibration induced noise pickup.The PC Desktop features a large push button mute switch that has a much better "feel" than membrane switches. The mute button can be configured for push-on / push-off, push-to-talk, or push-to-mute function. Switch programming is easily accomplished without disassembling the microphone. A switch on the bottom quickly converts the PC Desktop to automatic mixer mode. In this mode, audio is always on.
Features:
- Multi-pattern versatility. Choose between omni, cardioid, supercardioid or hypercardioid to easily adapt to any situation.
- Consistent microphone voicing across all four patterns.
- Switch can be programmed to operate as either latching on/off or momentary push-to-mute/pushto-talk.
- Disassembly of the mic isn't required to change switch functions.
- Compatible with echo cancellation for conference applications.
- High visibility blue LED clearly displays mic status to the user.
- Exceptional sound quality with EV's proven PolarChoice design.
| Generation Element | Dual condenser, back electret |
| Frequency Response | 50 Hz to 20,000 Hz |
| Polar Patterns | Omnidirectional Cardioid Supercardioid Hypercardioid |
| Switches and Controls | Top mounted momentary push-button Configuration switches |
| Sensitivity, Open Circuit Voltage, 1 kHz | 5.6mV/Pascal |
| Clipping Level (1% THD) | >135 dB SPL |
| Equivalent Noise | <26 dB SPL ÒAÓ weighted (0 dB=20 micropascals) |
| Dynamic Range | >109 dB |
| Output Impedance, 1 kHz | 200 ohms |
| Power Requirements | 12-52 VDC |
| Current Consumption | <8 mA with P12 supply |
| Polarity | Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm |
| Cable | 10-foot, 5-conductor (2-conductor shielded) black cable, terminated with a professional 3-pin male XLR style connector with gold plated pins. |
| Logic Levels | Standard TTL levels for switch out and LED Control 5 Volts = Logic High 0 Volts = Logic Low |
| Dimensions | Base: Length: 175 mm (6.9 in.) Width: 117 mm (4.6 in.) Height: 56 mm (2.2 in.) |
| Gooseneck Length: 318 mm (12.5 in.) | |
| Maximum Head Diameter | 14.6 mm (0.58 in.) |
| Gooseneck Diameter | 6.4 mm (0.25 in.), lower section: 7.9 mm (0.31 in.) |
| Accessories Furnished | Windscreen |
| Optional Accessories | WS-PC1 large windscreen |
| Color | Nonreflecting black |
| Environmental Conditions | Relative Humidity 0-50%: -29¡ to 74¡C (-20¡ to 165¡F) Relative Humidity 0 to 95%: -29¡ to 57¡C (-20¡ to 135¡F) |
| Net Weight | 712 grams (25.1 oz) |
| Shipping Weight | 1102 grams (38.9 oz) |
The PolarChoice™ Desktop is a high quality desk microphone that can be used with both standard and automatic mixers.The PC Desktop features the exclusive EV PolarChoice miniature multi-pattern gooseneck microphone. The multi-pattern versatility of the PolarChoice microphone makes it a true "problem solver". With one nondirectional and 3 directional polar patterns available, the PolarChoice microphone is ideal for virtually any installation. The PC Desktop also includes a switchable high pass filter that helps reduce any vibration induced noise pickup.The PC Desktop features a large push button mute switch that has a much better "feel" than membrane switches. The mute button can be configured for push-on / push-off, push-to-talk, or push-to-mute function. Switch programming is easily accomplished without disassembling the microphone. A switch on the bottom quickly converts the PC Desktop to automatic mixer mode. In this mode, audio is always on.
Features:
- Multi-pattern versatility. Choose between omni, cardioid, supercardioid or hypercardioid to easily adapt to any situation.
- Consistent microphone voicing across all four patterns.
- Switch can be programmed to operate as either latching on/off or momentary push-to-mute/pushto-talk.
- Disassembly of the mic isn't required to change switch functions.
- Compatible with echo cancellation for conference applications.
- High visibility blue LED clearly displays mic status to the user.
- Exceptional sound quality with EV's proven PolarChoice design.
| Generation Element | Dual condenser, back electret |
| Frequency Response | 50 Hz to 20,000 Hz |
| Polar Patterns | Omnidirectional Cardioid Supercardioid Hypercardioid |
| Switches and Controls | Top mounted momentary push-button Configuration switches |
| Sensitivity, Open Circuit Voltage, 1 kHz | 5.6mV/Pascal |
| Clipping Level (1% THD) | >135 dB SPL |
| Equivalent Noise | <26 dB SPL ÒAÓ weighted (0 dB=20 micropascals) |
| Dynamic Range | >109 dB |
| Output Impedance, 1 kHz | 200 ohms |
| Power Requirements | 12-52 VDC |
| Current Consumption | <8 mA with P12 supply |
| Polarity | Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm |
| Cable | 10-foot, 5-conductor (2-conductor shielded) black cable, terminated with a professional 3-pin male XLR style connector with gold plated pins. |
| Logic Levels | Standard TTL levels for switch out and LED Control 5 Volts = Logic High 0 Volts = Logic Low |
| Dimensions | Base: Length: 175 mm (6.9 in.) Width: 117 mm (4.6 in.) Height: 56 mm (2.2 in.) |
| Gooseneck Length: 318 mm (12.5 in.) | |
| Maximum Head Diameter | 14.6 mm (0.58 in.) |
| Gooseneck Diameter | 6.4 mm (0.25 in.), lower section: 7.9 mm (0.31 in.) |
| Accessories Furnished | Windscreen |
| Optional Accessories | WS-PC1 large windscreen |
| Color | Nonreflecting black |
| Environmental Conditions | Relative Humidity 0-50%: -29¡ to 74¡C (-20¡ to 165¡F) Relative Humidity 0 to 95%: -29¡ to 57¡C (-20¡ to 135¡F) |
| Net Weight | 712 grams (25.1 oz) |
| Shipping Weight | 1102 grams (38.9 oz) |
