Electro-Voice RE3-ACC-ALPA Active Log Periodic Antenna for RE Wireless Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

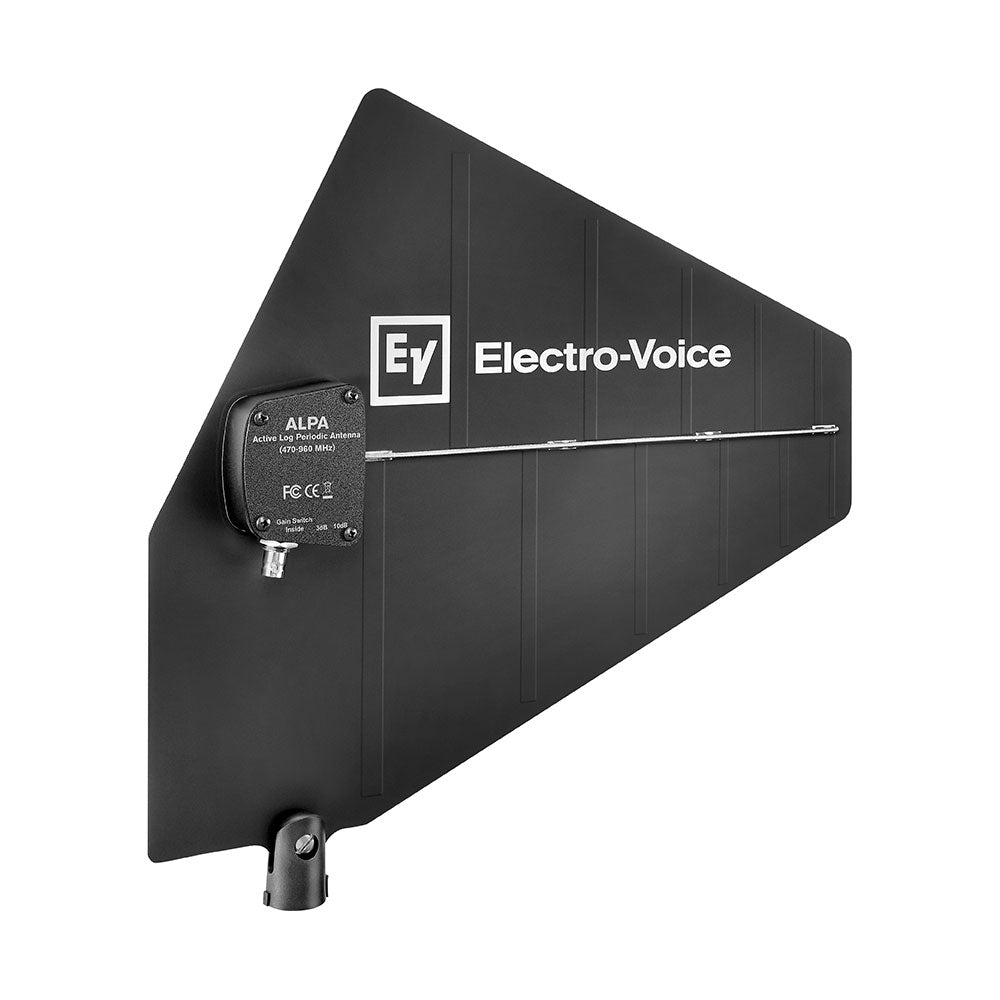

The ALPA is an active directional antenna with switchable 3 dB and 10 dB of amplified gain, which increases the desired RF signal while rejecting unwanted RF signals. ALPA mounts on a standard threaded microphone stand for easy placement. Intended to extend system range, ALPA should be used in conjunction with high-quality, low-loss coax cables such as items from the Electro-Voice CXU grade cables, which are available in various lengths. RF gain at the antenna can be increased by placing an RE3- ACC-RFAMP RF booster in line using short coax.
Features:
- Extends system range
- Switchable 3 dB and 10 dB of active gain
- Mounts on standard threaded microphone stand
| Antenna type | Active UHF directional antenna |
| Frequency band | 470 to 960 MHz |
| Effective working angle | 100 degrees |
| Antenna gain | Selectable 3 dB and 10 dB |
| RF connector | BNC |
| Color | Black |
| Net weight | 11.6 oz. (328 g) |
| Gross weight | 1 lb 11.5 oz. (780 g) |
The ALPA is an active directional antenna with switchable 3 dB and 10 dB of amplified gain, which increases the desired RF signal while rejecting unwanted RF signals. ALPA mounts on a standard threaded microphone stand for easy placement. Intended to extend system range, ALPA should be used in conjunction with high-quality, low-loss coax cables such as items from the Electro-Voice CXU grade cables, which are available in various lengths. RF gain at the antenna can be increased by placing an RE3- ACC-RFAMP RF booster in line using short coax.
Features:
- Extends system range
- Switchable 3 dB and 10 dB of active gain
- Mounts on standard threaded microphone stand
| Antenna type | Active UHF directional antenna |
| Frequency band | 470 to 960 MHz |
| Effective working angle | 100 degrees |
| Antenna gain | Selectable 3 dB and 10 dB |
| RF connector | BNC |
| Color | Black |
| Net weight | 11.6 oz. (328 g) |
| Gross weight | 1 lb 11.5 oz. (780 g) |
