Electro-Voice RE3-ACC-PLPA Passive Log Periodic Antenna for RE3 Wireless
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

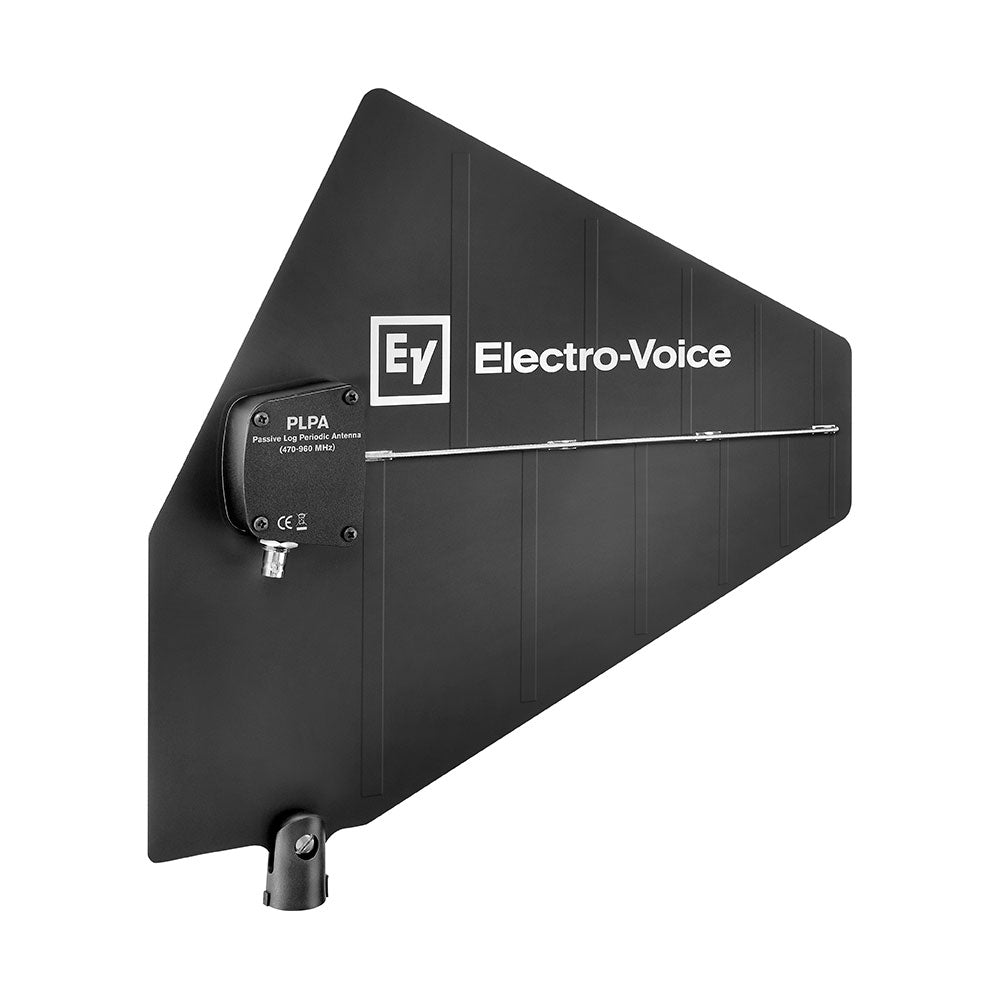

The PLPA is a passive directional antenna, which increases the desired RF signal while rejecting unwanted RF signals. PLPA mounts on a standard threaded microphone stand for easy placement. Intended to extend system range, PLPA should be used in conjunction with high quality, low-loss coax cables such as items from the Electro-Voice CXU grade cables, which are available in various lengths. RF gain at the antenna can be further increased by placing an RE3-ACC-RFAMP RF booster in line using short coax.
Features:
- Extends system range
- High efficiency with 10 dB of passive gain
- Mounts on standard threaded microphone stand
| Antenna type | Passive UHF directional antenna |
| Frequency band | 470 to 960 MHz |
| Effective working angle | 100 degrees |
| Antenna gain | 10 dB |
| RF connector | BNC |
| Color | Black |
| Net weight | 13.6 oz. (388 g) |
| Gross weight | 1 lb 13.6 oz. (840 g) |
The PLPA is a passive directional antenna, which increases the desired RF signal while rejecting unwanted RF signals. PLPA mounts on a standard threaded microphone stand for easy placement. Intended to extend system range, PLPA should be used in conjunction with high quality, low-loss coax cables such as items from the Electro-Voice CXU grade cables, which are available in various lengths. RF gain at the antenna can be further increased by placing an RE3-ACC-RFAMP RF booster in line using short coax.
Features:
- Extends system range
- High efficiency with 10 dB of passive gain
- Mounts on standard threaded microphone stand
| Antenna type | Passive UHF directional antenna |
| Frequency band | 470 to 960 MHz |
| Effective working angle | 100 degrees |
| Antenna gain | 10 dB |
| RF connector | BNC |
| Color | Black |
| Net weight | 13.6 oz. (388 g) |
| Gross weight | 1 lb 13.6 oz. (840 g) |
