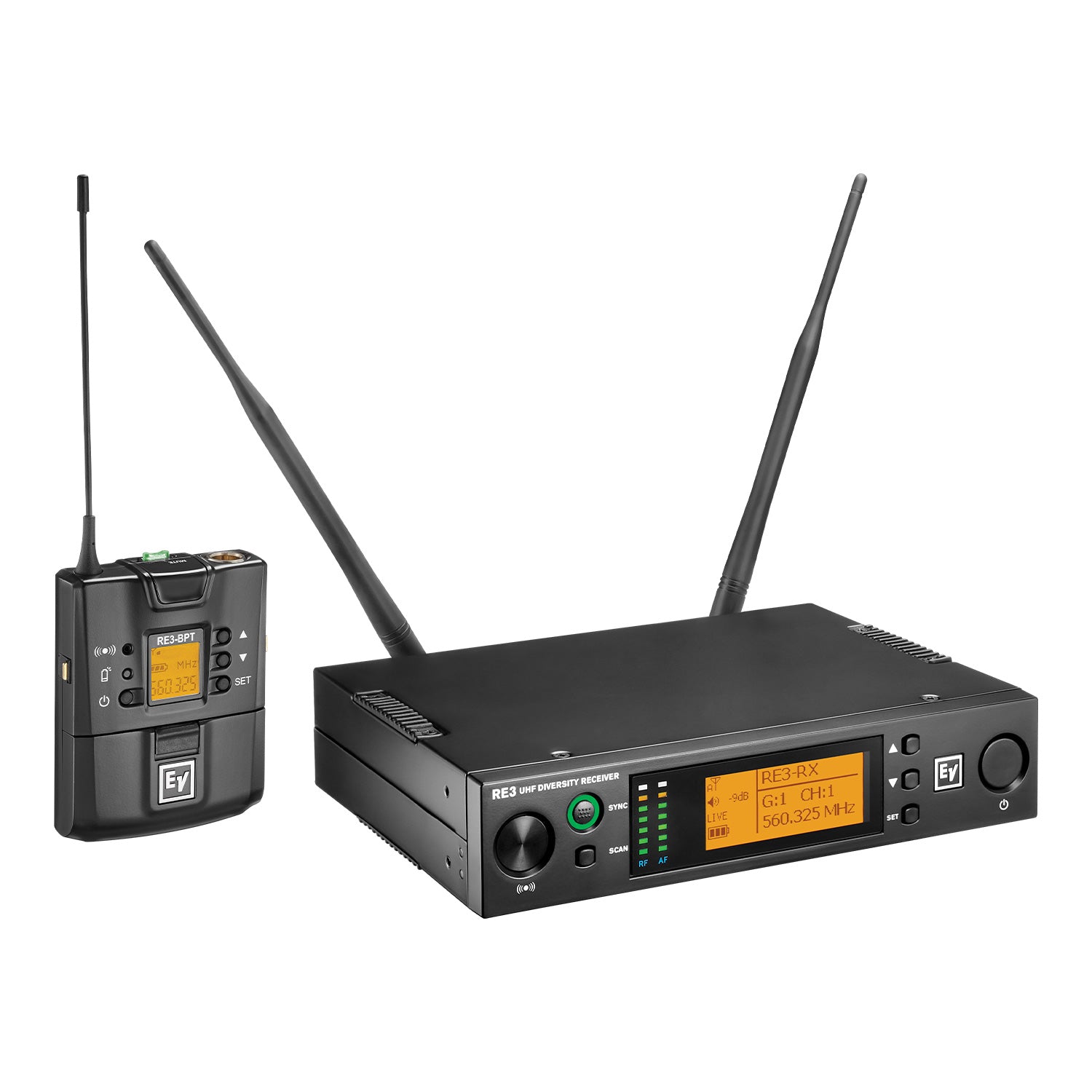

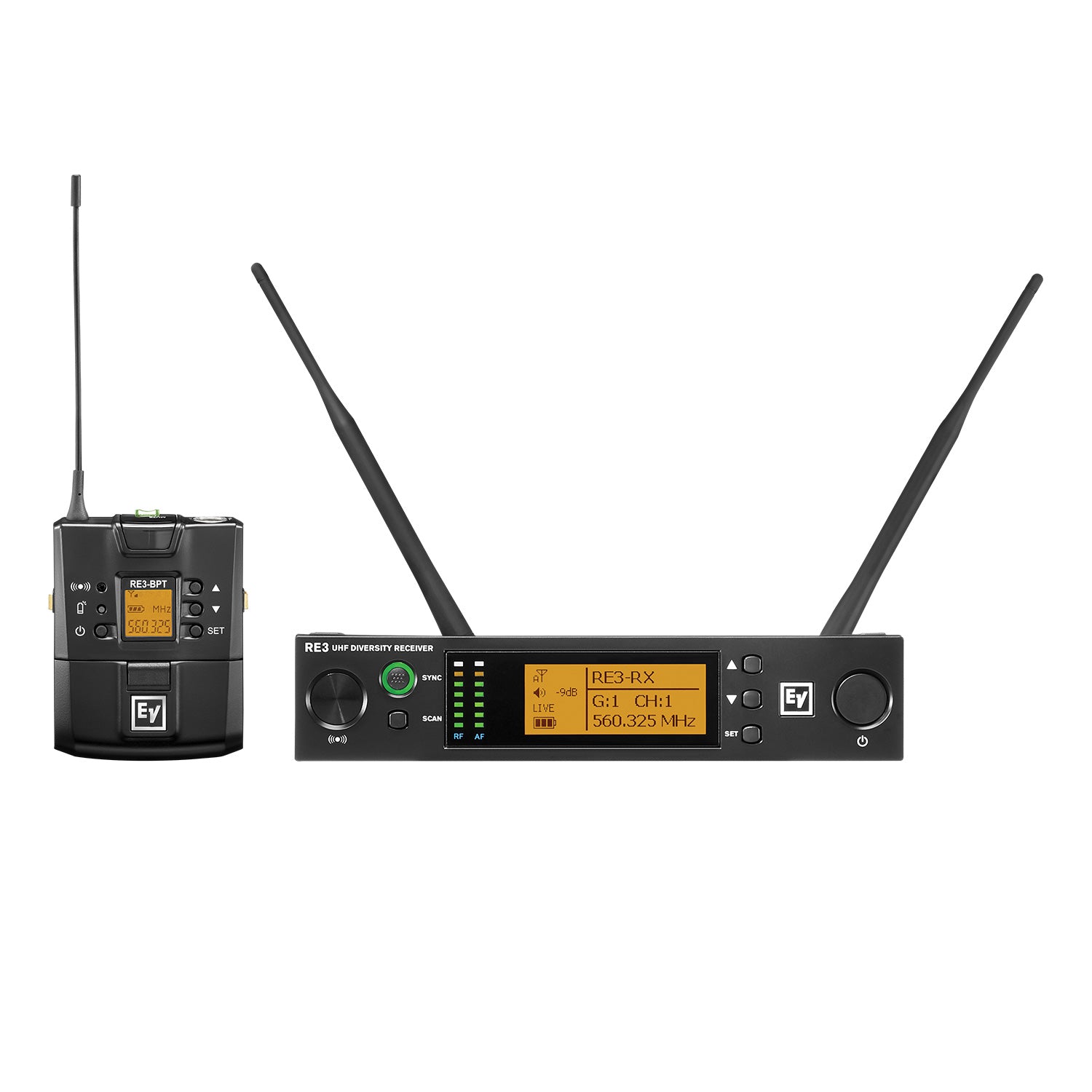

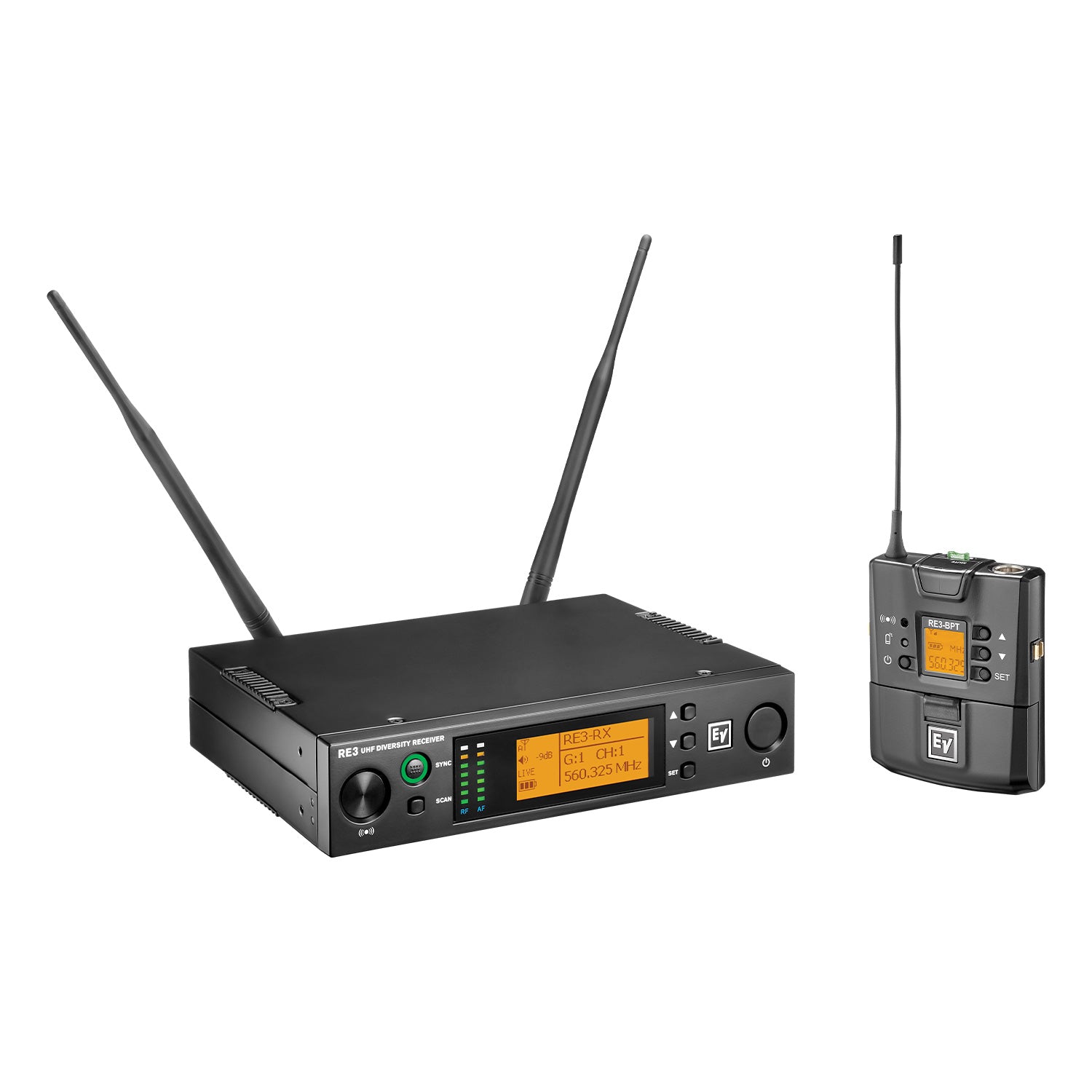

Electro-Voice RE3-BPKRSB - Referee Switch Bodypack Wireless System (5H Band / 560 - 596 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description
Bodypack UHF wireless set containing no input device for the RE3-BPTRSB bodypack transmitter which is modified for use only with the RSB-2 referee switch. Serving as an ideal referee foundation set, it can be completed when coupled with any Electro-Voice lavalier or head-worn microphone and the SB-2 referee switch. Microphone and RSB-2 switch not included.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
Features:
RE3-BPTRSB Bodypack Transmitter
- Modified for use with RSB-2 Referee Switch ONLY
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Unique magnetic latch and lock for easy access to batteries
RE3-RX Diversity Receiver
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
Set Contains:
- RE3-BPTRSB modified bodypack UHF transmitter for use with RSB-2 referee switch
- RE3-RX diversity UHF receiver
- Two receiver antennas
- Universal power supply
- Two AA batteries
- Receiver rack mounting hardware
- Owner's manual
- Documentation packet
- Declaration of conformity
RE3-RX receiver | |
Frequency Oscillation Mode | Phase-locked loop (PLL) |
Carrier Frequency Range | 470 - 865 MHz (tuning bandwidth is band dependent) |
Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
Sync Frequency | Ultrasonic 40 kHz |
Diversity | Antenna diversity |
Bandwidth | 36MHz |
Signal/Noise Ratio | >100dB(A) |
Total Harmonic Distortion (Thd) | <0.6%@1kHz |
Receiving Sensitivity | -81dBm for -12dB SINAD |
Frequency Response | 63Hz~16kHzå±2dB (BPT) 51Hz~1tkHzå±2dB (HHT) |
Antenna Type | Detachable å_ wave with BNC connector |
Antenna Booster Power | DC12 - 15V/100mA |
Function Display By | LCD |
Contents Of Display | Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator. |
Control Functions | Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset. |
Sync Data Options | Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch) |
Audio Frequency Output Level | å_‰Ûð (6.3mm) Phone Jack?-10dBV XLR Jack: -4dBV (Line) / -24dBV (MIC) |
Audio Frequency Output | |
Impedance | 240? (unbalanced) 1400? (balanced) |
Squelch and noise muting | Noise muting and tone code locking |
Output Ports | 1 x balanced XLRM jack 1 x unbalanced å_‰Ûð TS (6.3mm) jack |
Power Supply | DC12~15V/500mA |
Finish | Black polyurethane paint |
Dimensions | Width: 8.27 inch (210mm) Height: (with feet attached) 1.85 inch (47mm) Height: (without feet attached) 1.73 inch (44mm) Depth: (including antenna jack) 6.89 inch (175mm) Depth: (not including antenna jack) 6.1 inch (155mm) |
RE3-BPT bodypack transmitter | |
Frequency Oscillation Mode | Phase-locked loop (PLL) |
Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
Sync Frequency | Ultrasonic |
RF Power Output | 5L (488-524MHz): Low 10mW / High 50mW 5H (560-596MHz): Low 10mW / High 50mW |
Display By | LCD + LED |
Function Controls | Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock. |
RF Stability | <å±10kHz@Fc |
Modulation Frequency Shift | Wideband FM å±48kHz deviation |
Harmonic Radiation | <-50dBc |
Input Jack | 4-pin mini jack |
Battery | 2 x AA alkaline battery or NiMH rechargeable battery |
Charging contacts | Yes |
Dimensions (without antenna) | Height: 3.2 inch (81.5mm) Width: 2.54 inch (64.5mm) Depth: 0.98 inch (25mm) |
Bodypack UHF wireless set containing no input device for the RE3-BPTRSB bodypack transmitter which is modified for use only with the RSB-2 referee switch. Serving as an ideal referee foundation set, it can be completed when coupled with any Electro-Voice lavalier or head-worn microphone and the SB-2 referee switch. Microphone and RSB-2 switch not included.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
Features:
RE3-BPTRSB Bodypack Transmitter
- Modified for use with RSB-2 Referee Switch ONLY
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Unique magnetic latch and lock for easy access to batteries
RE3-RX Diversity Receiver
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
Set Contains:
- RE3-BPTRSB modified bodypack UHF transmitter for use with RSB-2 referee switch
- RE3-RX diversity UHF receiver
- Two receiver antennas
- Universal power supply
- Two AA batteries
- Receiver rack mounting hardware
- Owner's manual
- Documentation packet
- Declaration of conformity
RE3-RX receiver | |
Frequency Oscillation Mode | Phase-locked loop (PLL) |
Carrier Frequency Range | 470 - 865 MHz (tuning bandwidth is band dependent) |
Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
Sync Frequency | Ultrasonic 40 kHz |
Diversity | Antenna diversity |
Bandwidth | 36MHz |
Signal/Noise Ratio | >100dB(A) |
Total Harmonic Distortion (Thd) | <0.6%@1kHz |
Receiving Sensitivity | -81dBm for -12dB SINAD |
Frequency Response | 63Hz~16kHzå±2dB (BPT) 51Hz~1tkHzå±2dB (HHT) |
Antenna Type | Detachable å_ wave with BNC connector |
Antenna Booster Power | DC12 - 15V/100mA |
Function Display By | LCD |
Contents Of Display | Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator. |
Control Functions | Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset. |
Sync Data Options | Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch) |
Audio Frequency Output Level | å_‰Ûð (6.3mm) Phone Jack?-10dBV XLR Jack: -4dBV (Line) / -24dBV (MIC) |
Audio Frequency Output | |
Impedance | 240? (unbalanced) 1400? (balanced) |
Squelch and noise muting | Noise muting and tone code locking |
Output Ports | 1 x balanced XLRM jack 1 x unbalanced å_‰Ûð TS (6.3mm) jack |
Power Supply | DC12~15V/500mA |
Finish | Black polyurethane paint |
Dimensions | Width: 8.27 inch (210mm) Height: (with feet attached) 1.85 inch (47mm) Height: (without feet attached) 1.73 inch (44mm) Depth: (including antenna jack) 6.89 inch (175mm) Depth: (not including antenna jack) 6.1 inch (155mm) |
RE3-BPT bodypack transmitter | |
Frequency Oscillation Mode | Phase-locked loop (PLL) |
Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
Sync Frequency | Ultrasonic |
RF Power Output | 5L (488-524MHz): Low 10mW / High 50mW 5H (560-596MHz): Low 10mW / High 50mW |
Display By | LCD + LED |
Function Controls | Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock. |
RF Stability | <å±10kHz@Fc |
Modulation Frequency Shift | Wideband FM å±48kHz deviation |
Harmonic Radiation | <-50dBc |
Input Jack | 4-pin mini jack |
Battery | 2 x AA alkaline battery or NiMH rechargeable battery |
Charging contacts | Yes |
Dimensions (without antenna) | Height: 3.2 inch (81.5mm) Width: 2.54 inch (64.5mm) Depth: 0.98 inch (25mm) |
