DALE SKU # EVI-RE3BPNID5L

Electro-Voice RE3-BPNID Bodypack Wireless System (5L Band / 488 - 524 MHz)

Sale price$509.00 Regular price$568.00
Save $59.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

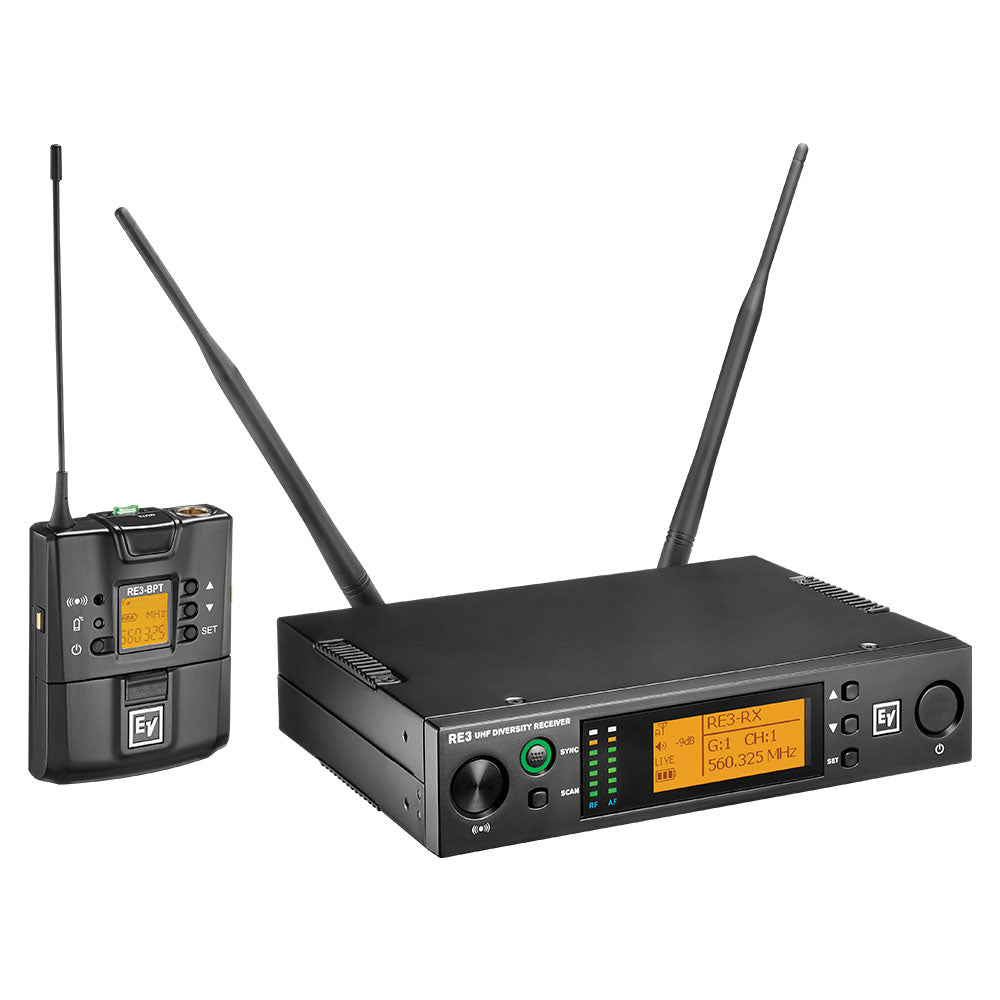

    Bodypack UHF wireless set containing no input device for the bodypack transmitter. Serving as an ideal foundation set, it can be completed when coupled with any Electro-Voice lavalier, headworn, or instrument input device.

    Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

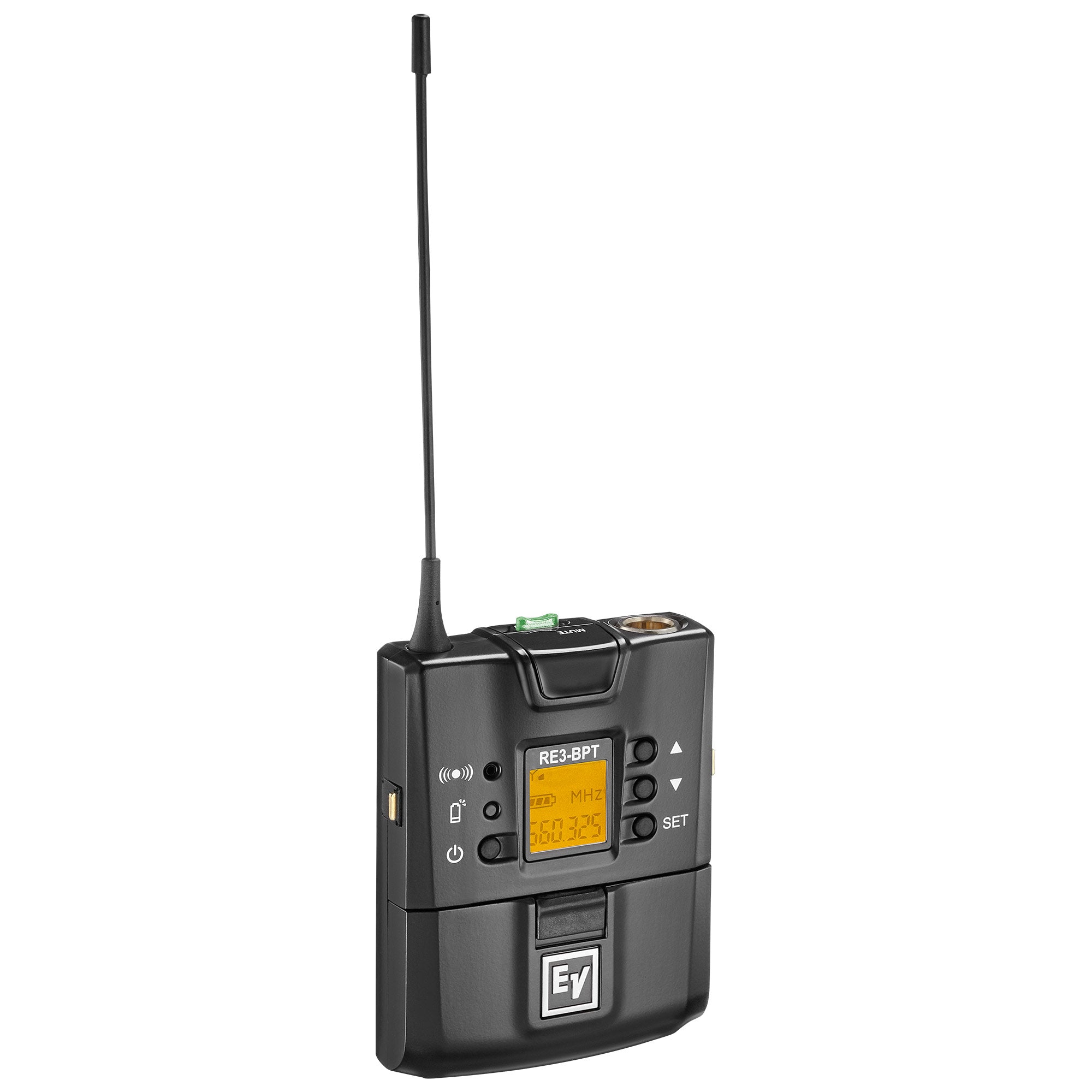

    RE3-BPT Bodypack Transmitter

    • Robust metal body
    • Sync function for easy frequency setup
    • Selectable low and high output power (band specific)
    • Up to 36 MHz tuning bandwidth (band specific)
    • Unique magnetic latch and lock for easy access to batteries

    RE3-RX Diversity Receiver

    • Diversity reception minimizes dropouts
    • Frequency scanning for selecting open frequencies
    • Sync function links transmitter to receiver for easy setup
    • Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
    • Easy-to-read LCD display

    Included Accessories:

    • Two receiver antennas
    • Universal power supply
    • Two AA batteries
    • Receiver rack mounting hardware
    • Owner's manual
    • Documentation packet
    • Declaration of conformity
    RE3-RX receiver
    Frequency Oscillation Mode Phase-locked loop (PLL)
    Carrier Frequency Range 470 - 865 MHz
    (tuning bandwidth is band dependent)
    Frequency Ranges 5L: 36 MHz (488-524 MHz)
    5H: 36 MHz (560-596 MHz)
    Sync Frequency Ultrasonic 40 kHz
    Diversity Antenna diversity
    Bandwidth 36MHz
    Signal/Noise Ratio >100dB(A)
    Total Harmonic Distortion (Thd) <0.6%@1kHz
    Receiving Sensitivity -81dBm for -12dB SINAD
    Frequency Response 63Hz~16kHz±2dB (BPT)
    51Hz~1tkHz±2dB (HHT)
    Antenna Type Detachable _ wave with BNC connector
    Antenna Booster Power DC12 - 15V/100mA
    Function Display By LCD
    Contents Of Display Group, channel, frequency, antenna A/B, transmitter battery
    level, transmitter status (mute, live, or no sync), output level
    attenuation, AF indication, RF indication, key lock indicator.
    Control Functions Power, scan, frequency, group, channel, squelch, TX
    sensitivity, TX attenuation, TX RF power, TX auto off, TX key
    lock, TX display info, TX sync configuration, RX output
    volume, RX output level, RX antenna booster power, RX key
    lock, RX display contrast, RX display brightness, RX system
    reset.
    Sync Data Options Frequency, group, channel, sensitivity level, attenuation
    status, RF power, auto off status, key lock status, transmitter
    display (freq or Gp/Ch)
    Audio Frequency Output Level _Ó (6.3mm) Phone Jack?-10dBV
    XLR Jack: -4dBV (Line) / -24dBV (MIC)
    Audio Frequency Output
    Impedance 240? (unbalanced)
    1400? (balanced)
    Squelch and noise muting Noise muting and tone code locking

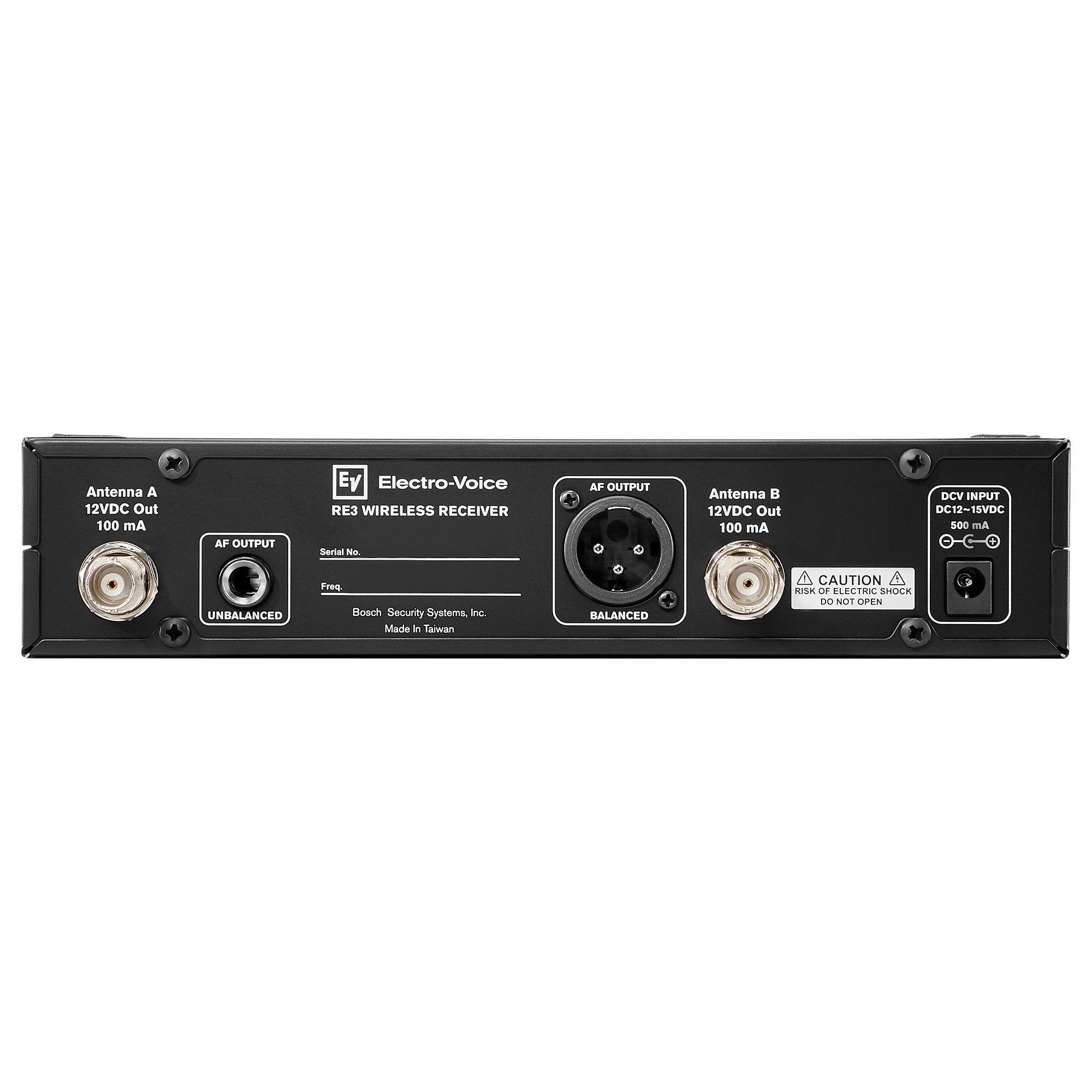

    Output Ports 1 x balanced XLRM jack
    1 x unbalanced _Ó TS (6.3mm) jack
    Power Supply DC12~15V/500mA
    Finish Black polyurethane paint
    Dimensions Width: 8.27 inch (210mm)
    Height: (with feet attached) 1.85 inch (47mm)
    Height: (without feet attached) 1.73 inch (44mm)
    Depth: (including antenna jack) 6.89 inch (175mm)
    Depth: (not including antenna jack) 6.1 inch (155mm)

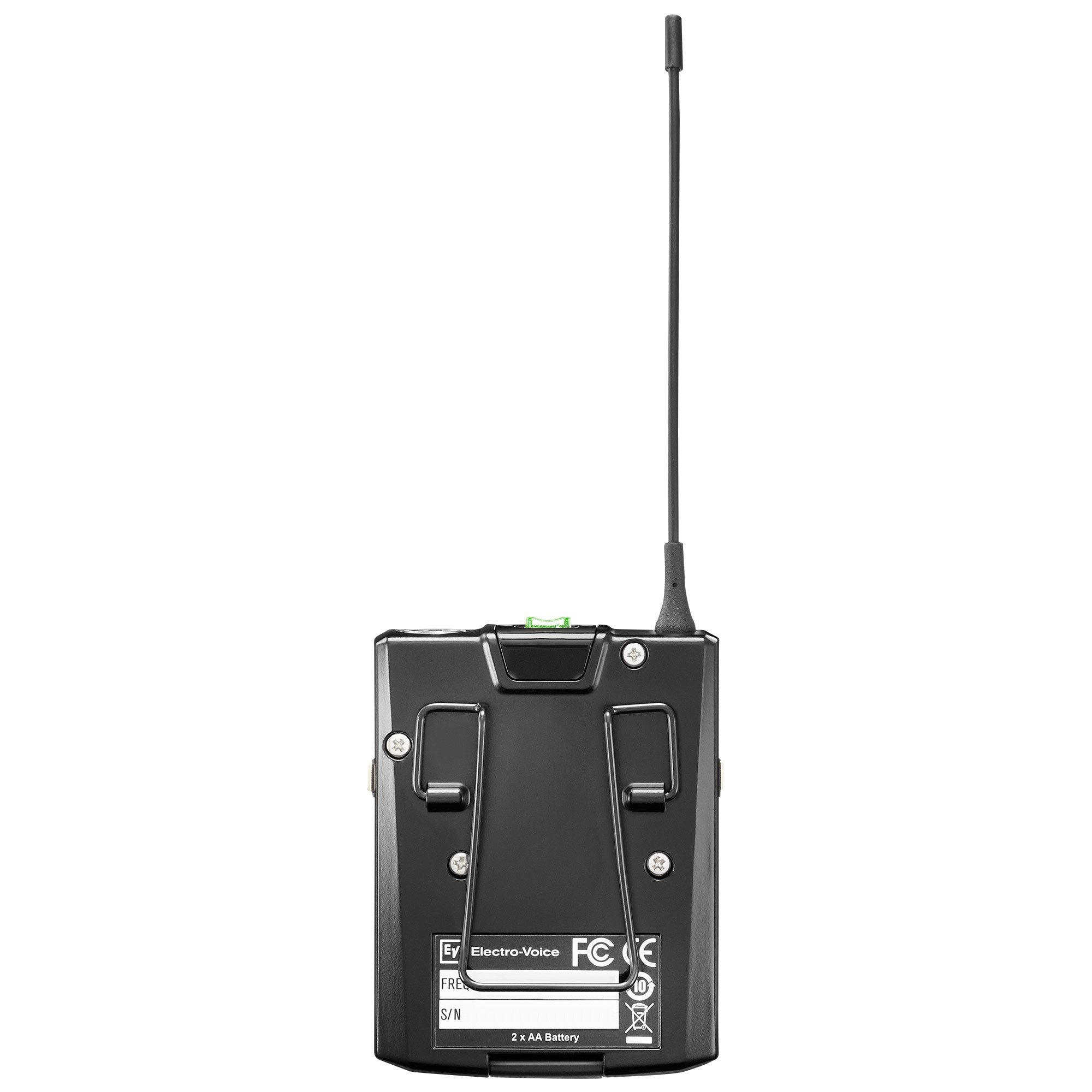

    RE3-BPT bodypack transmitter
    Frequency Oscillation Mode Phase-locked loop (PLL)
    Frequency Ranges 5L: 36 MHz (488-524 MHz)
    5H: 36 MHz (560-596 MHz)
    Sync Frequency Ultrasonic
    RF Power Output 5L (488-524MHz): Low 10mW / High 50mW
    5H (560-596MHz): Low 10mW / High 50mW
    Display By LCD + LED
    Function Controls Power, mute, group, channel, frequency, sensitivity
    adjustment, input level attenuation, RF power, auto off, key
    lock.
    RF Stability <±10kHz@Fc
    Modulation Frequency Shift Wideband FM
    ±48kHz deviation
    Harmonic Radiation <-50dBc
    Input Jack 4-pin mini jack
    Battery 2 x AA alkaline battery or NiMH rechargeable battery
    Charging contacts Yes
    Dimensions (without antenna) Height: 3.2 inch (81.5mm)
    Width: 2.54 inch (64.5mm)
    Depth: 0.98 inch (25mm)

    Ê
