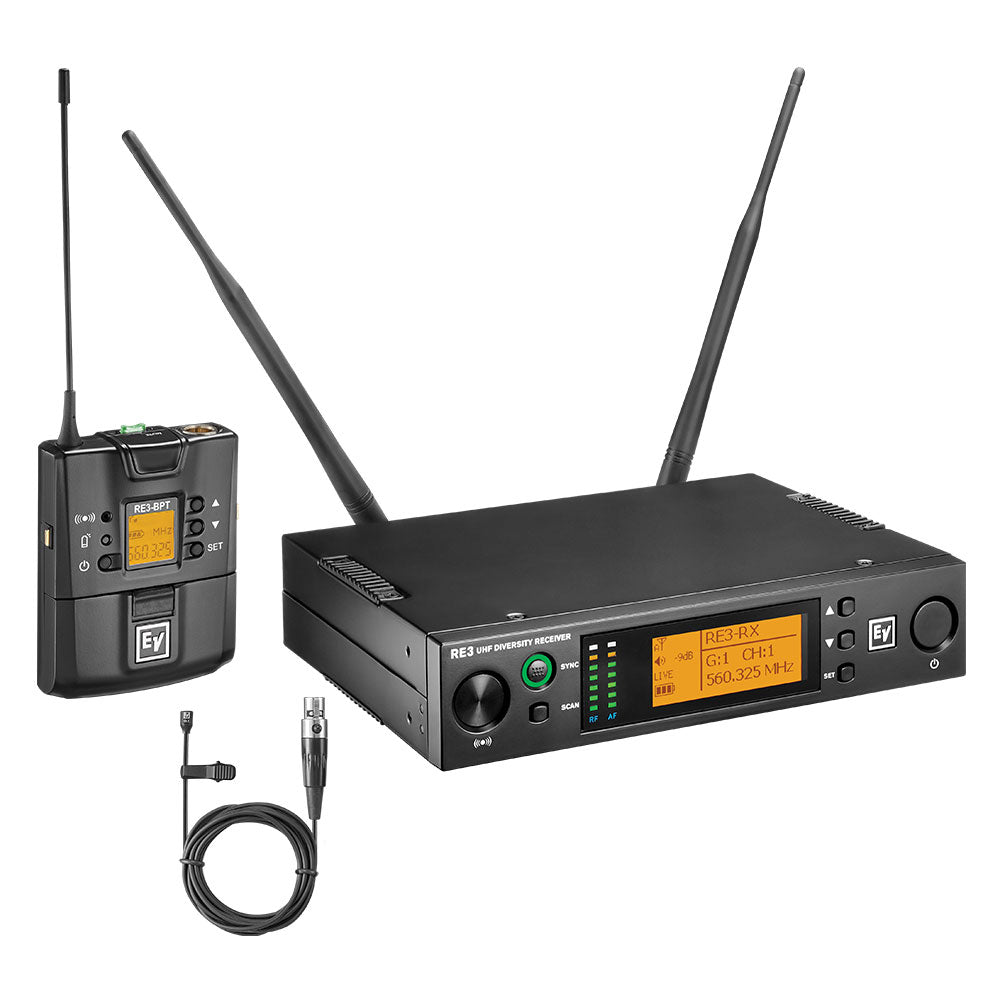

Electro-Voice RE3-BPOL Lavalier Wireless System (5L Band / 488 - 524 MHz)

  • Dale #:

    EVI-RE3BPOL5L
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Bodypack UHF wireless set featuring OL3 omnidirectional lavalier microphone for voice performance and presentations. The OL3 delivers an open and natural sound even when the user is turning their head side-to-side, and its low-profile design eliminates unsightly presence other larger sized lavali... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bodypack UHF wireless set featuring OL3 omnidirectional lavalier microphone for voice performance and presentations. The OL3 delivers an open and natural sound even when the user is turning their head side-to-side, and its low-profile design eliminates unsightly presence other larger sized lavaliers present.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

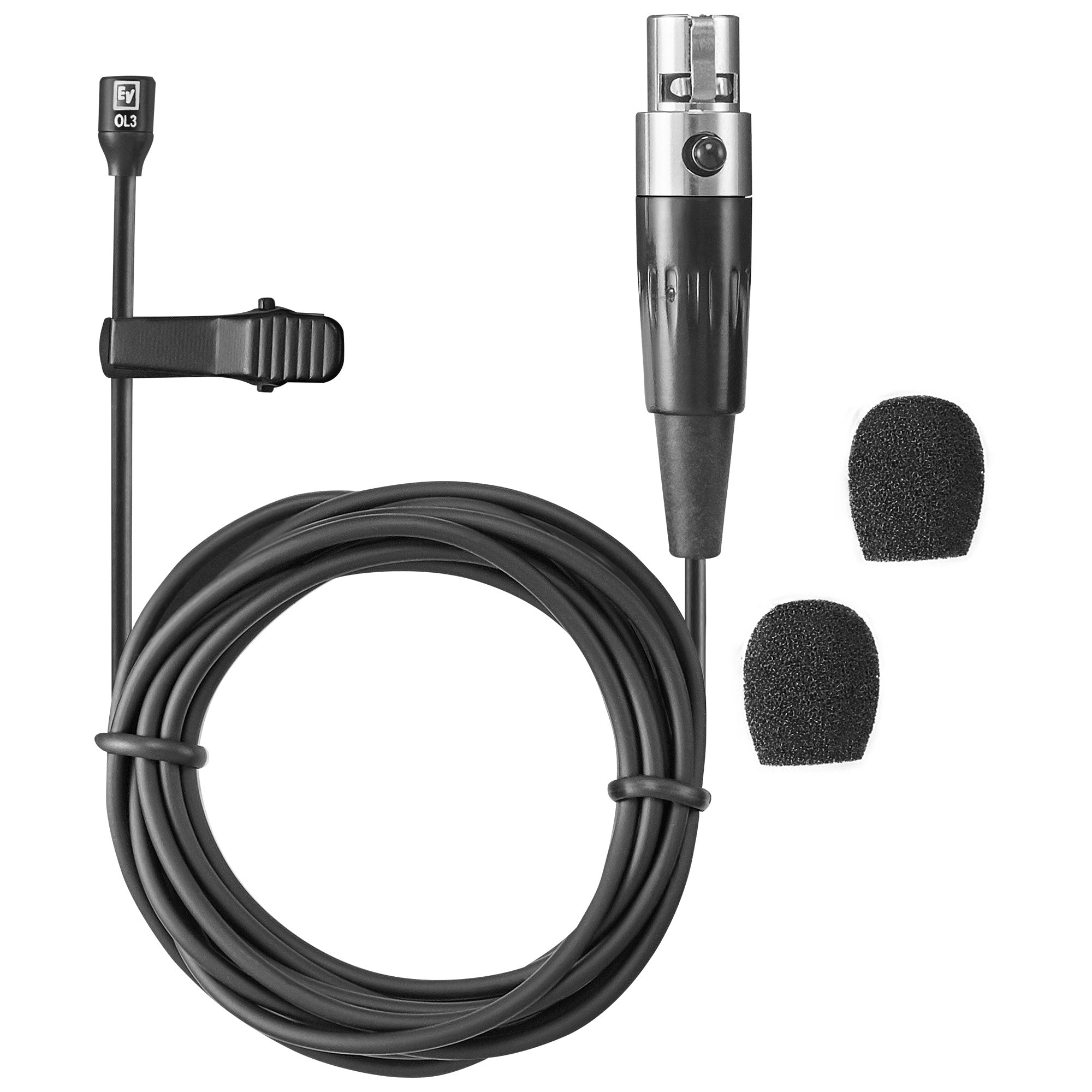

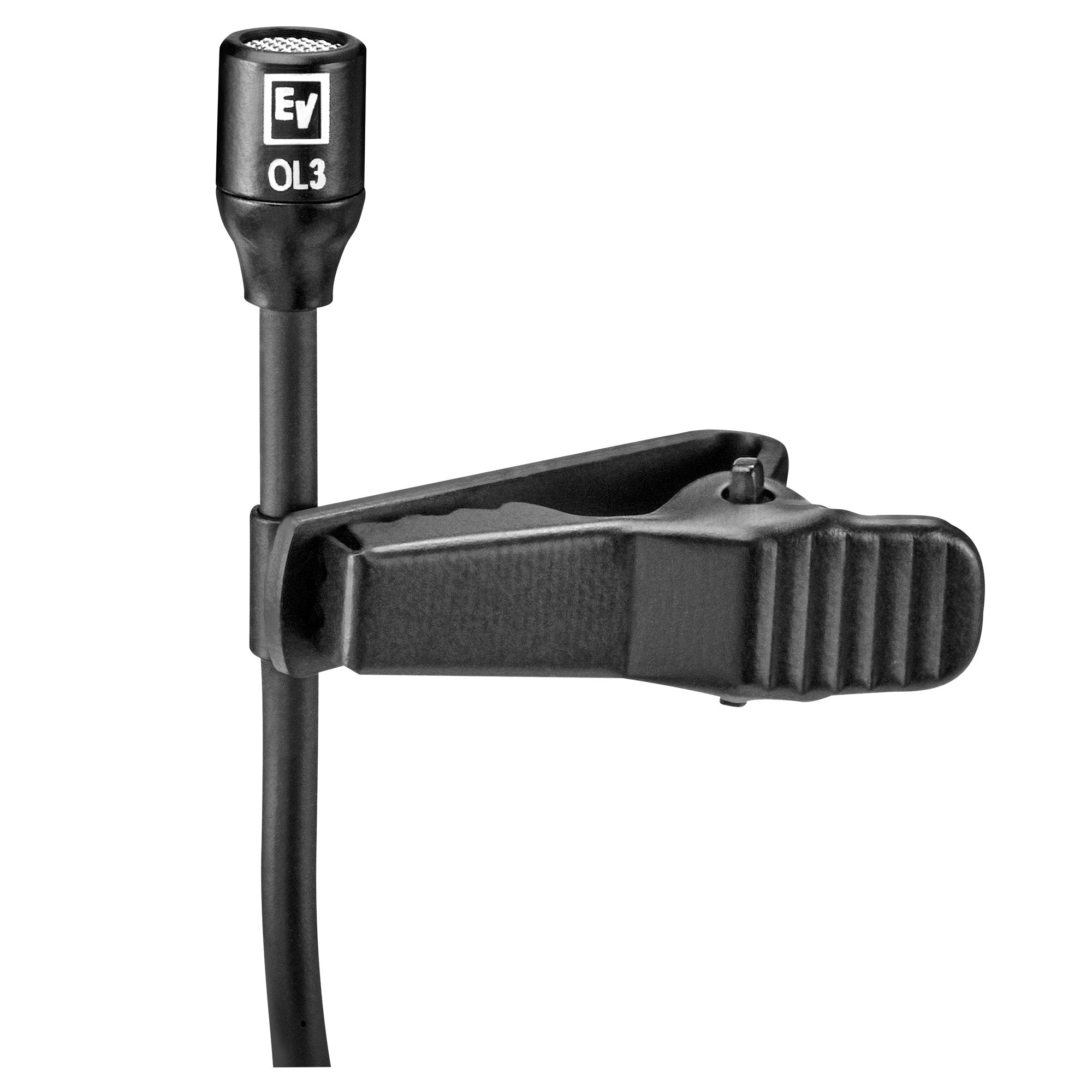

OL3 Omnidirectional Lavalier Microphone

  • Small and unobtrusive low-profile design
  • Omni-directional polar pattern delivers an open and natural sound
  • No proximity effect
  • Wide dynamic range and frequency response
  • Clothing clip holds microphone securely and attaches easily to garments

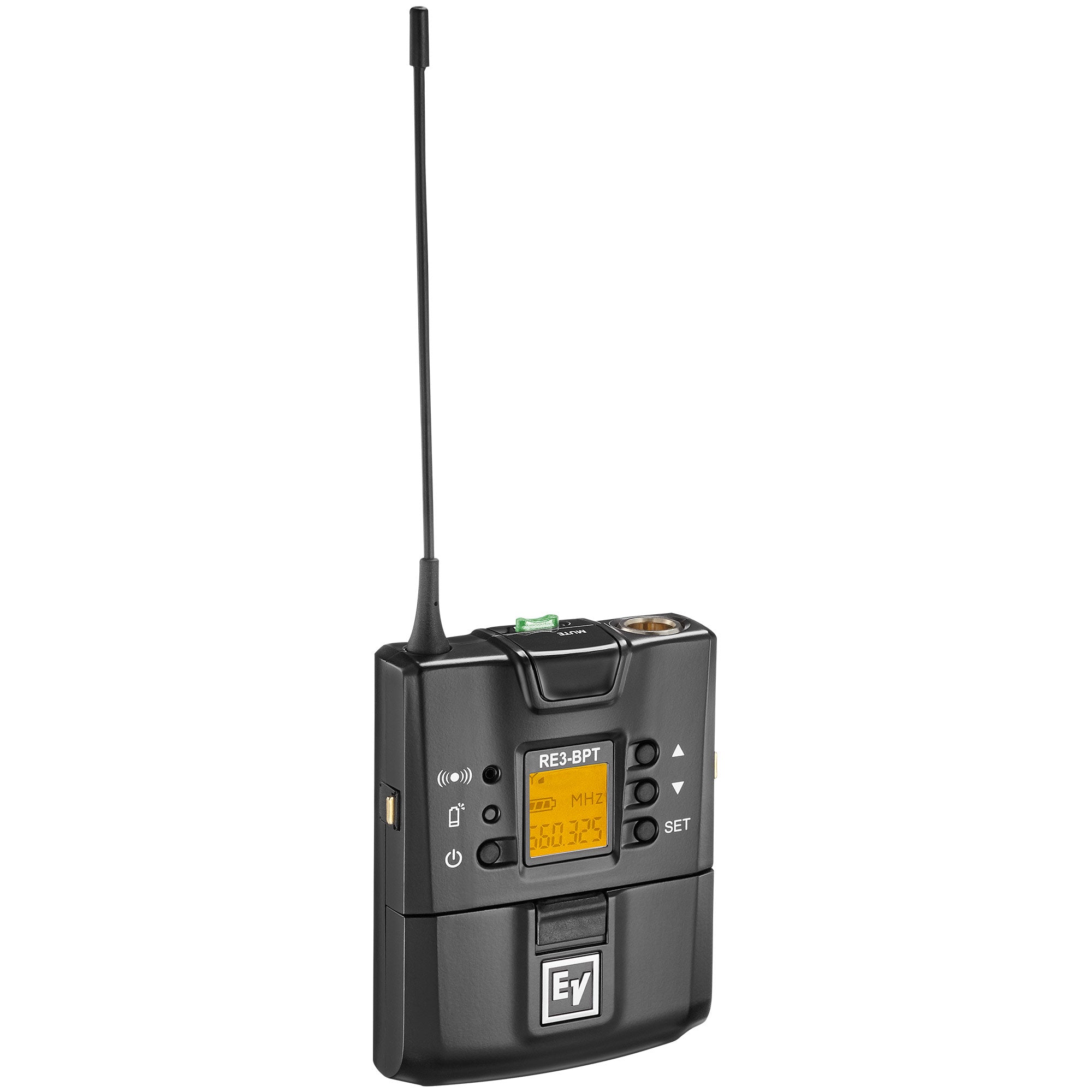

RE3-BPT Bodypack Transmitter

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)
  • Unique magnetic latch and lock for easy access to batteries

RE3-RX Diversity Receiver

  • Diversity reception minimizes dropouts
  • Frequency scanning for selecting open frequencies
  • Sync function links transmitter to receiver for easy setup
  • Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
  • Easy-to-read LCD display

Included Accessories:

  • Two receiver antennas
  • Universal power supply
  • Two AA batteries
  • Receiver rack mounting hardware
  • Owner’s manual
  • Documentation packet
  • Declaration of conformity

More +

Product Specs

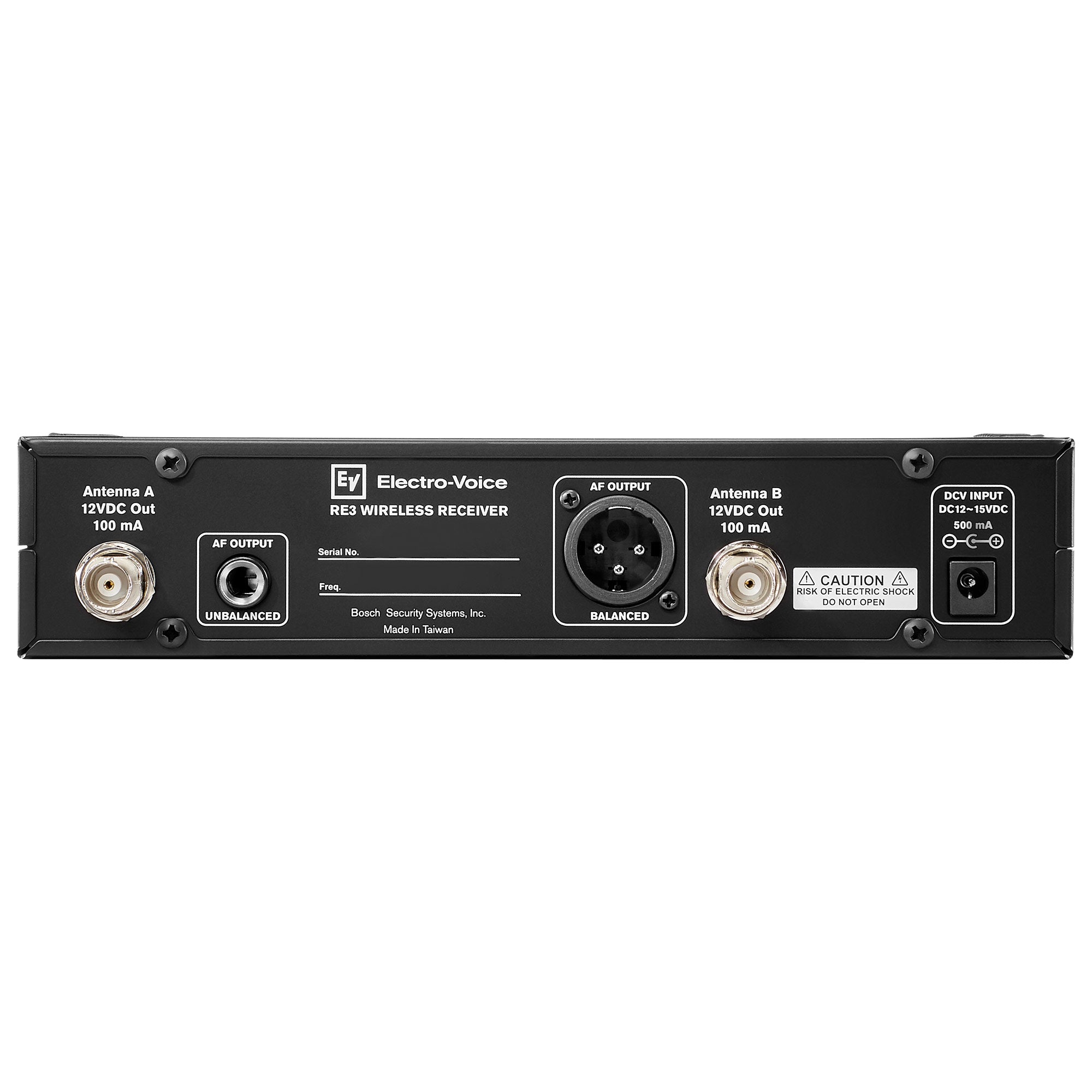

RE3-RX receiver
Frequency Oscillation Mode Phase-locked loop (PLL)
Carrier Frequency Range 470 - 865 MHz
(tuning bandwidth is band dependent)
Frequency Ranges 5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
Sync Frequency Ultrasonic 40 kHz
Diversity Antenna diversity
Bandwidth 36MHz
Signal/Noise Ratio >100dB(A)
Total Harmonic Distortion (Thd) <0.6%@1kHz
Receiving Sensitivity -81dBm for -12dB SINAD
Frequency Response 63Hz~16kHz±2dB (BPT)
51Hz~1tkHz±2dB (HHT)
Antenna Type Detachable ½ wave with BNC connector
Antenna Booster Power DC12 - 15V/100mA
Function Display By LCD
Contents Of Display Group, channel, frequency, antenna A/B, transmitter battery
level, transmitter status (mute, live, or no sync), output level
attenuation, AF indication, RF indication, key lock indicator.
Control Functions Power, scan, frequency, group, channel, squelch, TX
sensitivity, TX attenuation, TX RF power, TX auto off, TX key
lock, TX display info, TX sync configuration, RX output
volume, RX output level, RX antenna booster power, RX key
lock, RX display contrast, RX display brightness, RX system
reset.
Sync Data Options Frequency, group, channel, sensitivity level, attenuation
status, RF power, auto off status, key lock status, transmitter
display (freq or Gp/Ch)
Audio Frequency Output Level ¼” (6.3mm) Phone Jack?-10dBV
XLR Jack: -4dBV (Line) & -24dBV (MIC)
Audio Frequency Output
Impedance 240? (unbalanced)
1400? (balanced)
Squelch and noise muting Noise muting and tone code locking
Output Ports 1 x balanced XLRM jack
1 x unbalanced ¼” TS (6.3mm) jack
Power Supply DC12~15V/500mA
Finish Black polyurethane paint
Dimensions Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm)

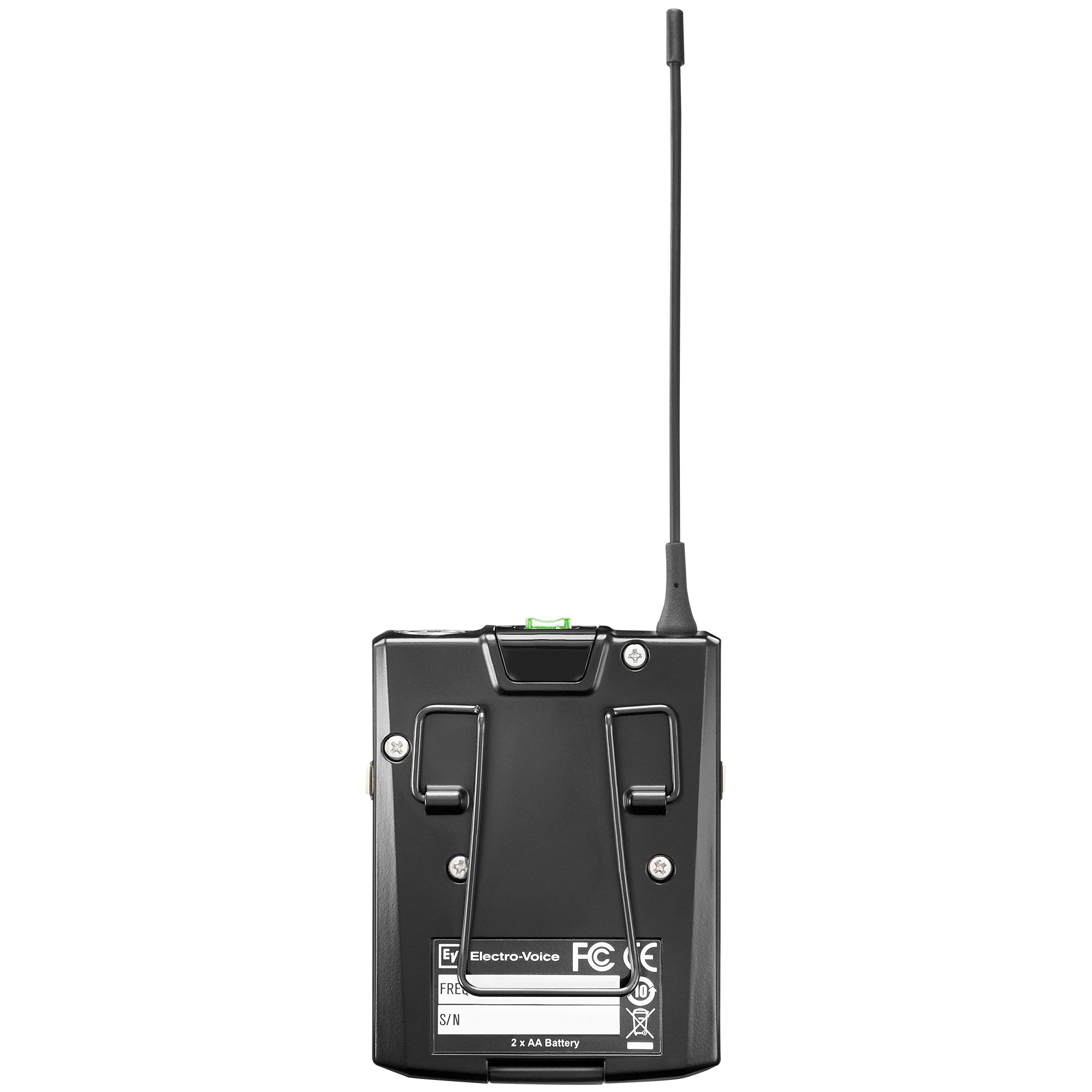

RE3-BPT bodypack transmitter
Frequency Oscillation Mode Phase-locked loop (PLL)
Frequency Ranges 5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
Sync Frequency Ultrasonic
RF Power Output 5L (488-524MHz): Low 10mW / High 50mW
5H (560-596MHz): Low 10mW / High 50mW
Display By LCD + LED
Function Controls Power, mute, group, channel, frequency, sensitivity
adjustment, input level attenuation, RF power, auto off, key
lock.
RF Stability <±10kHz@Fc
Modulation Frequency Shift Wideband FM
±48kHz deviation
Harmonic Radiation <-50dBc
Input Jack 4-pin mini jack
Battery 2 x AA alkaline battery or NiMH rechargeable battery
Charging contacts Yes
Dimensions (without antenna) Height: 3.2 inch (81.5mm)
Width: 2.54 inch (64.5mm)
Depth: 0.98 inch (25mm)
