Electro-Voice RE3-BPTRSB - Referee Switch Bodypack Wireless Transmitter (6M Band / 653 - 663 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

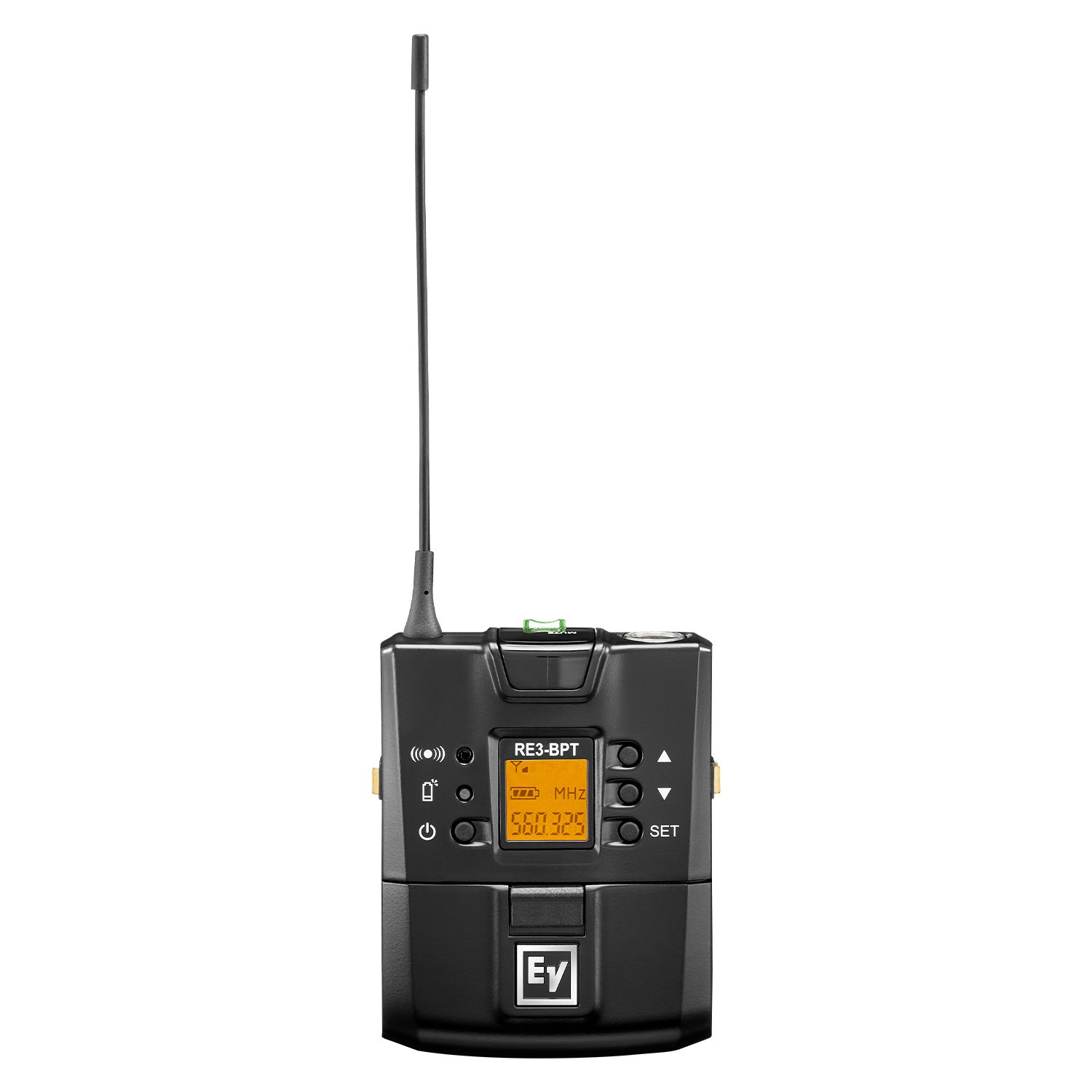

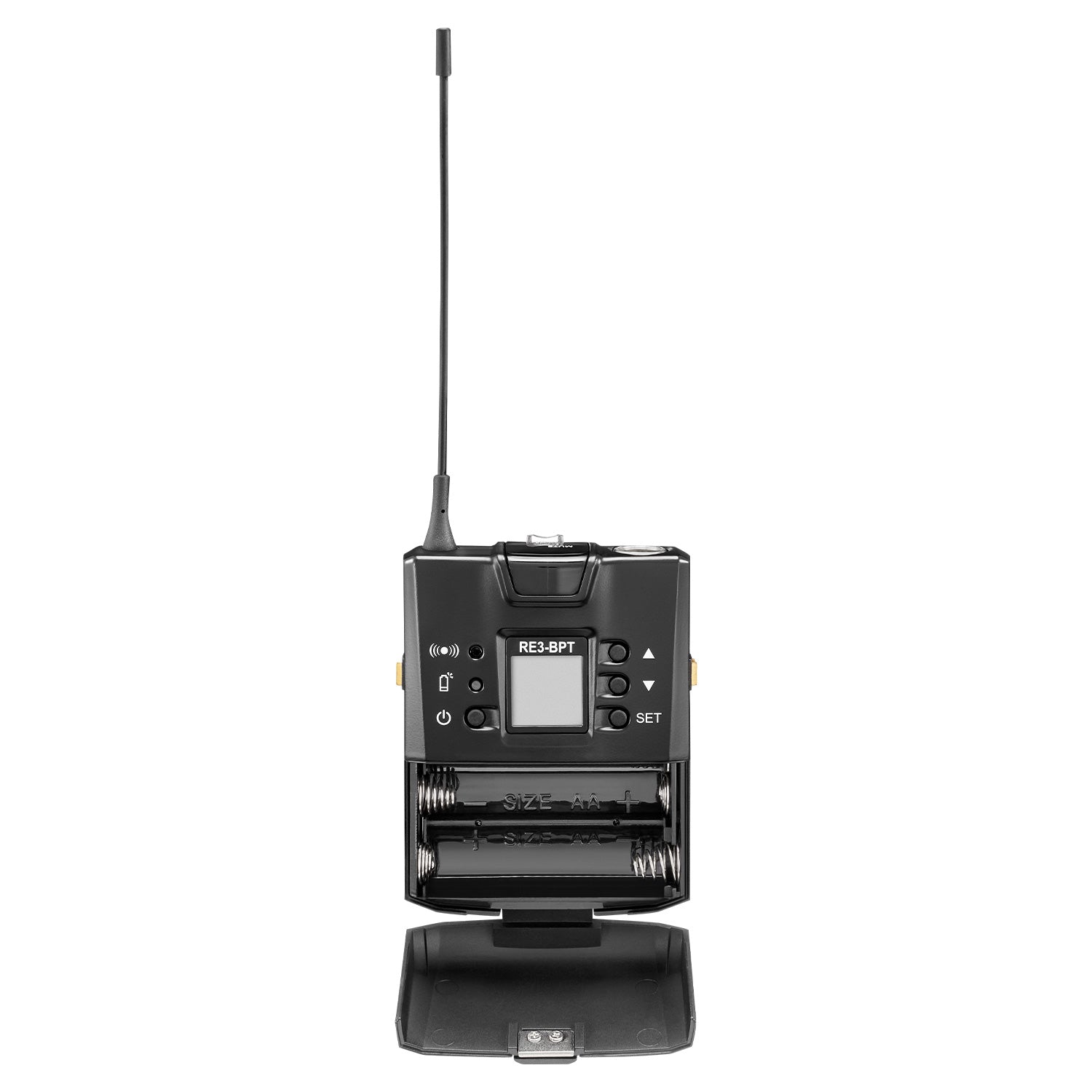

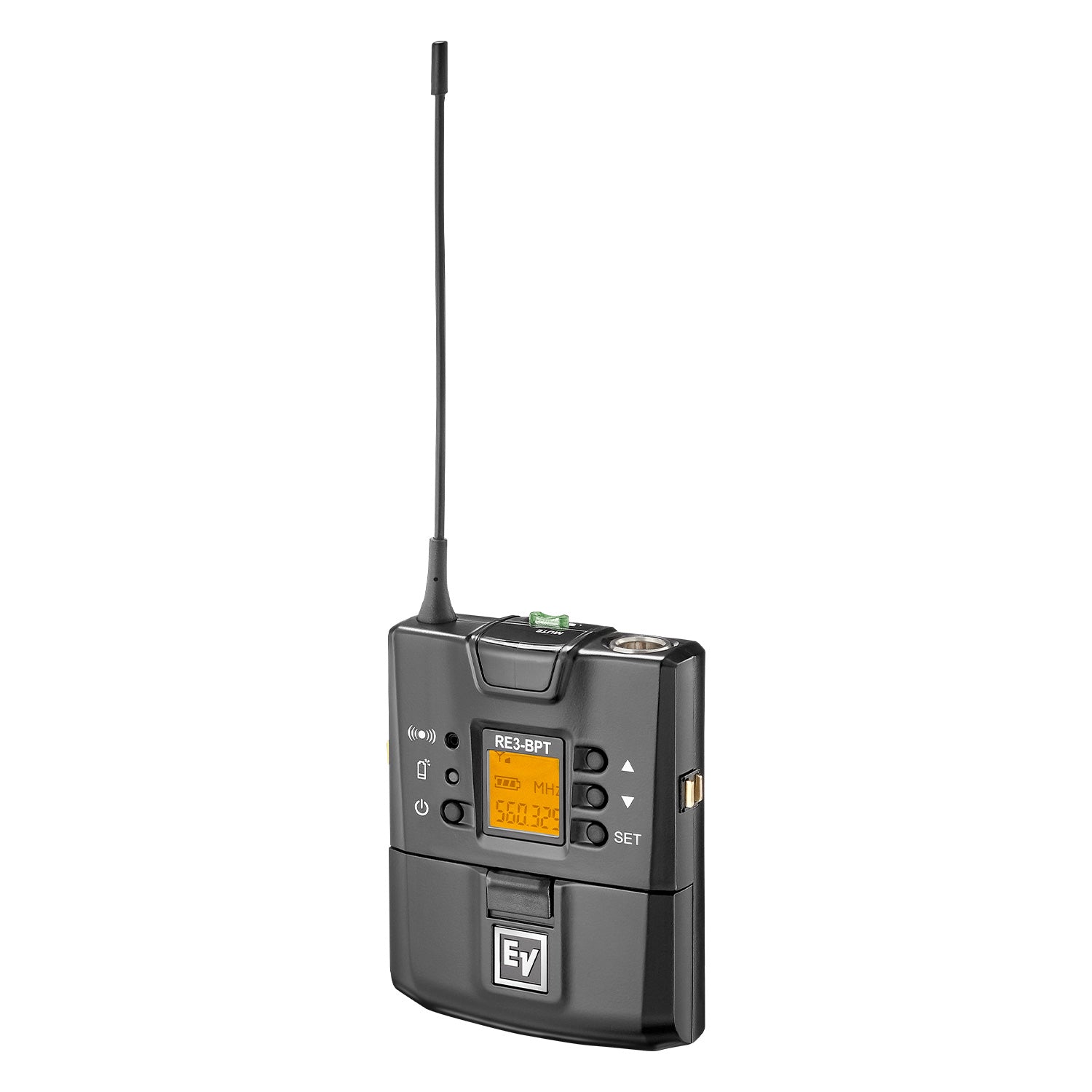

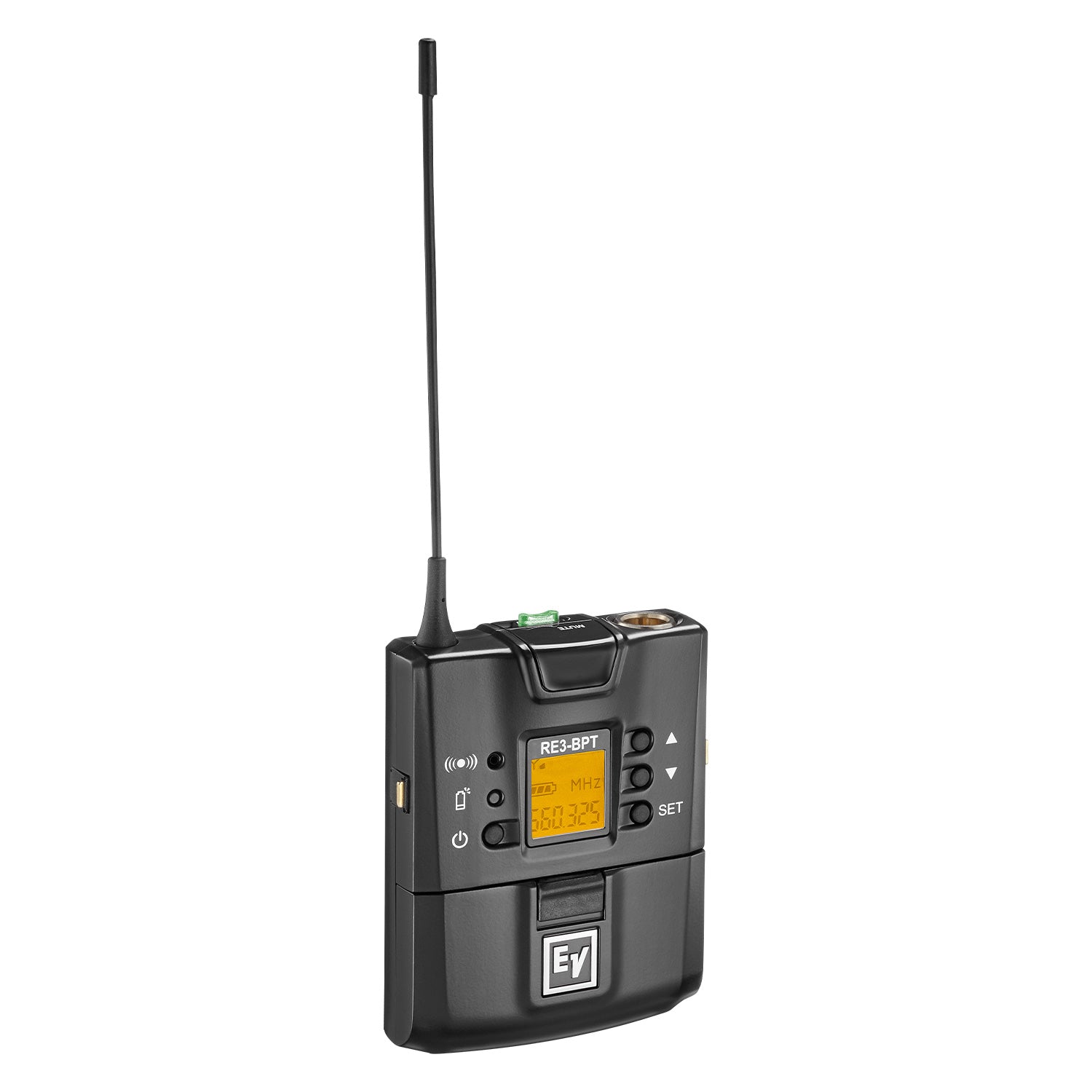

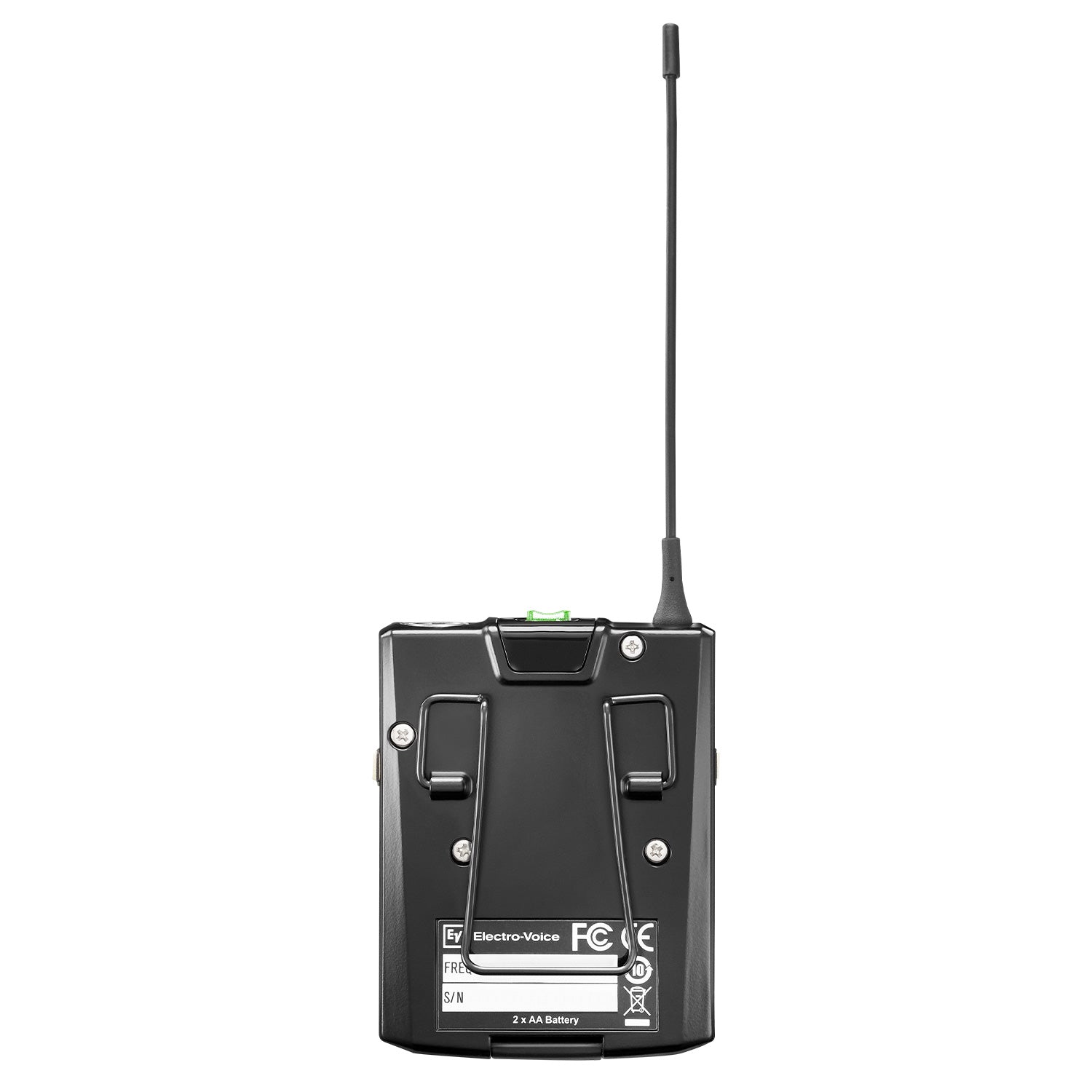

Wired to work exclusively with the RSB-2 Referee Switch, the RE3-BPTRSB is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it the ideal form factor for the rigorous use expected during sporting event officiating. The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells. The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data. The selectable output power (band specific) assists in overcoming the challenges of both long, or short, transmission ranges. The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference. The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless. Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.
Features:
- Modified for use with RSB-2 Referee Switch ONLY
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Unique magnetic latch and lock for easy access to batteries
| RE3-BPT bodypack transmitter | |
| Frequency Oscillation Mode | Phase-locked loop (PLL) |
| Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
| Sync Frequency | Ultrasonic |
| RF Power Output | 5L (488-524MHz): Low 10mW / High 50mW 5H (560-596MHz): Low 10mW / High 50mW |
| Display By | LCD + LED |
| Function Controls | Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock. |
| RF Stability | <å±10kHz@Fc |
| Modulation Frequency Shift | Wideband FM å±48kHz deviation |
| Harmonic Radiation | <-50dBc |
| Input Jack | 4-pin mini jack |
| Battery | 2 x AA alkaline battery or NiMH rechargeable battery |
| Charging contacts | Yes |
| Dimensions (without antenna) | Height: 3.2 inch (81.5mm) Width: 2.54 inch (64.5mm) Depth: 0.98 inch (25mm) |
Wired to work exclusively with the RSB-2 Referee Switch, the RE3-BPTRSB is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it the ideal form factor for the rigorous use expected during sporting event officiating. The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells. The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data. The selectable output power (band specific) assists in overcoming the challenges of both long, or short, transmission ranges. The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference. The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless. Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.
Features:
- Modified for use with RSB-2 Referee Switch ONLY
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Unique magnetic latch and lock for easy access to batteries
| RE3-BPT bodypack transmitter | |
| Frequency Oscillation Mode | Phase-locked loop (PLL) |
| Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
| Sync Frequency | Ultrasonic |
| RF Power Output | 5L (488-524MHz): Low 10mW / High 50mW 5H (560-596MHz): Low 10mW / High 50mW |
| Display By | LCD + LED |
| Function Controls | Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock. |
| RF Stability | <å±10kHz@Fc |
| Modulation Frequency Shift | Wideband FM å±48kHz deviation |
| Harmonic Radiation | <-50dBc |
| Input Jack | 4-pin mini jack |
| Battery | 2 x AA alkaline battery or NiMH rechargeable battery |
| Charging contacts | Yes |
| Dimensions (without antenna) | Height: 3.2 inch (81.5mm) Width: 2.54 inch (64.5mm) Depth: 0.98 inch (25mm) |
