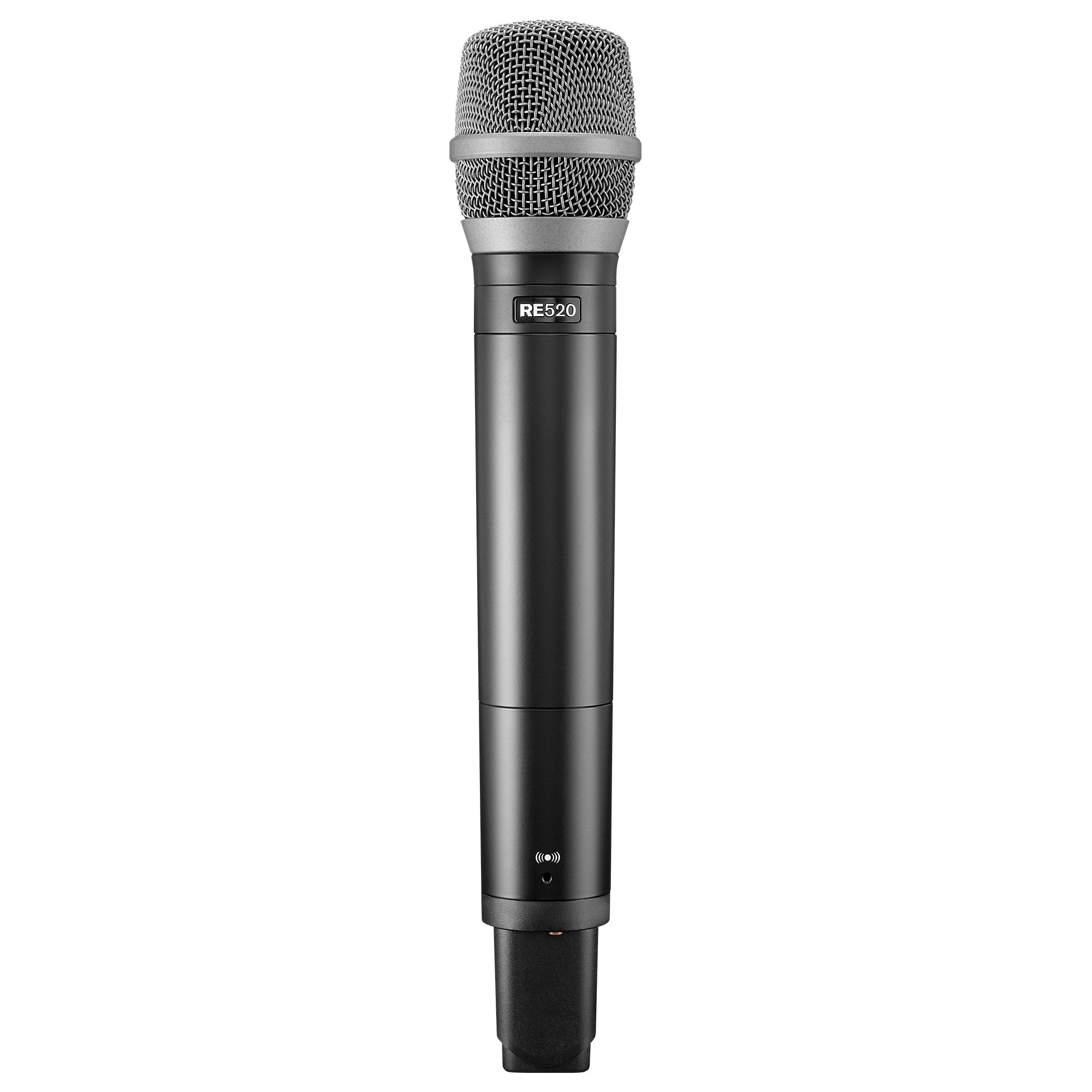

Electro-Voice RE3-HHT520 Handheld Wireless Transmitter (5L Band / 488 - 524 MHz)

  • Dale #:

    EVI-RE3HHT5205L
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Fitted with RE520 capsule.The RE3-HHT is a lightweight, yet robust UHF handheld transmitter body. It is ideally-suited for professional performance and presentation applications. Due to its commonly-used 1.25" diameter, 28 UN-2A thread pitch microphone head coupling, it accepts mic heads using th... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

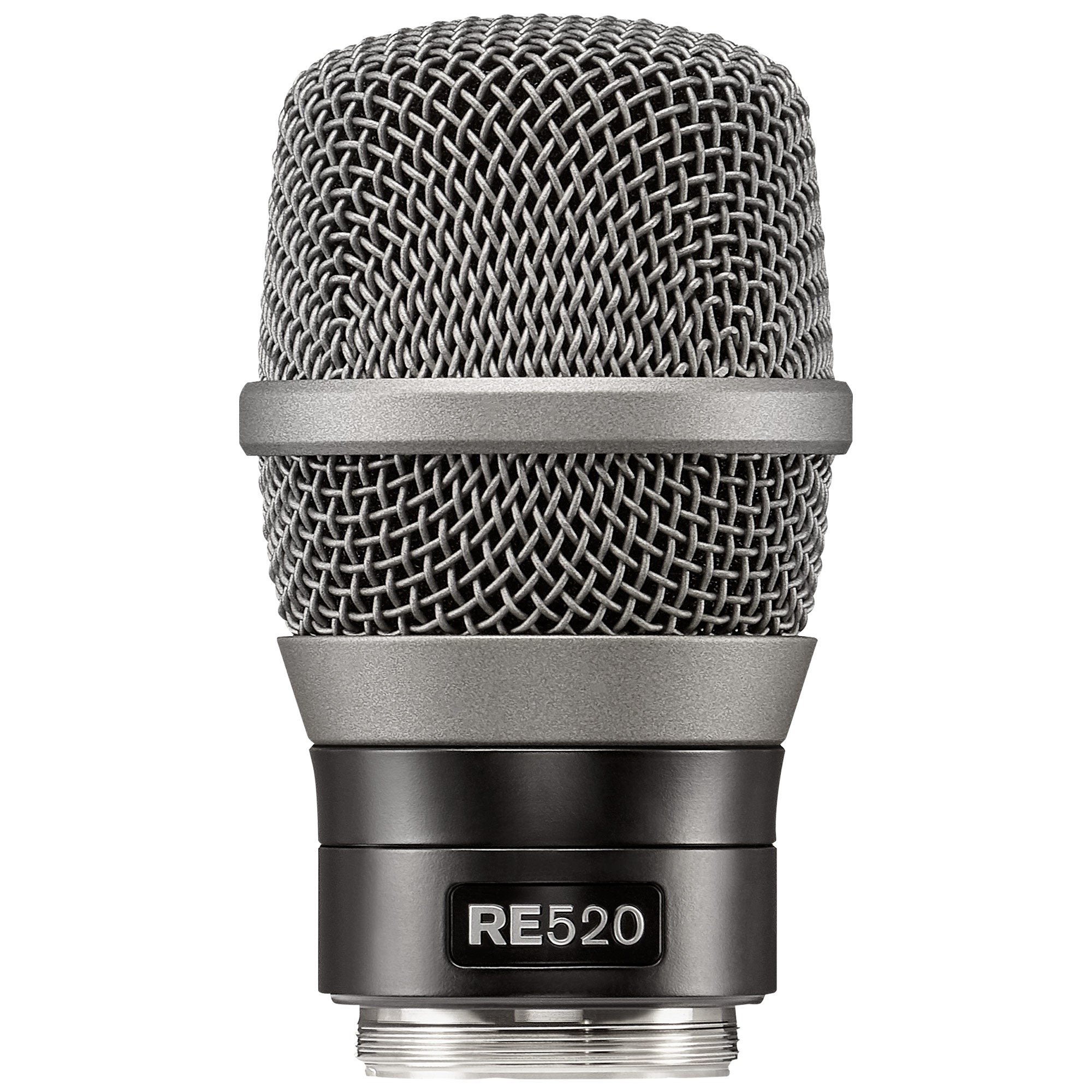

Fitted with RE520 capsule.

The RE3-HHT is a lightweight, yet robust UHF handheld transmitter body. It is ideally-suited for professional performance and presentation applications. Due to its commonly-used 1.25" diameter, 28 UN-2A thread pitch microphone head coupling, it accepts mic heads using this common coupling convention. Although primarily intended to accept the ND and RE Series heads developed for RE3 listed in the accessories section of this data sheet, the RE3-HHT will adapt other microphone heads using the 1.25" diameter, 28 UN-2A thread pitch coupling scheme.

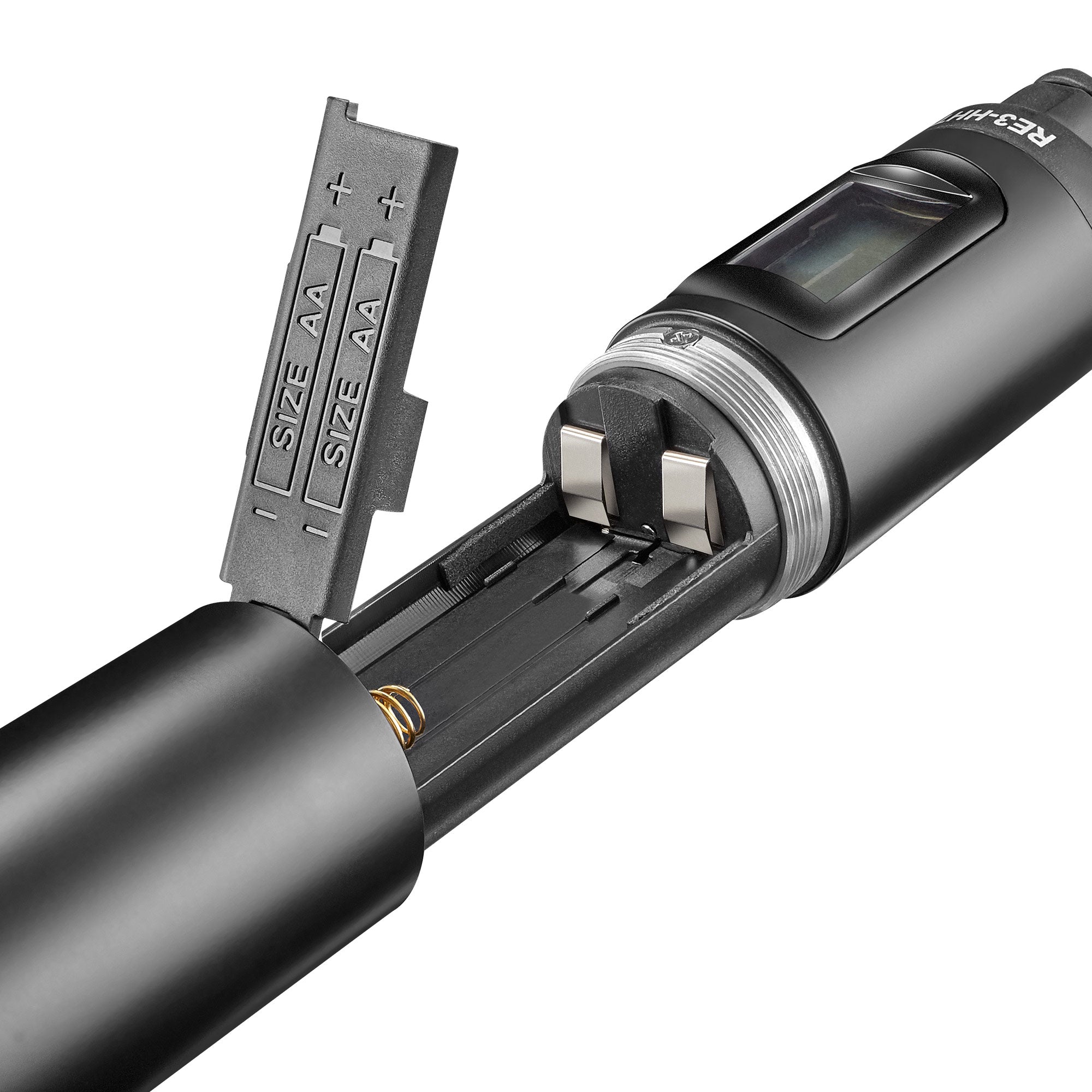

The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells.

The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data.

The selectable output power (band specific) assists in overcoming the challenges of both long, or short, transmission ranges.

The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference.

The threaded coupling makes attaching and interchanging a variety of heads simple and convenient.

Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.

Features:

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)
  • Common threaded coupling allows microphone head interchangeable

More +

Product Specs

RE3-HHT handheld transmitter
Frequency Oscillation Mode Phase-locked loop (PLL)
Frequency Ranges 5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
Sync Frequency Ultrasonic
RF Power Output 5L (488-524MHz): Low 10mW / High 50mW
5H (560-596MHz): Low 10mW / High 50mW

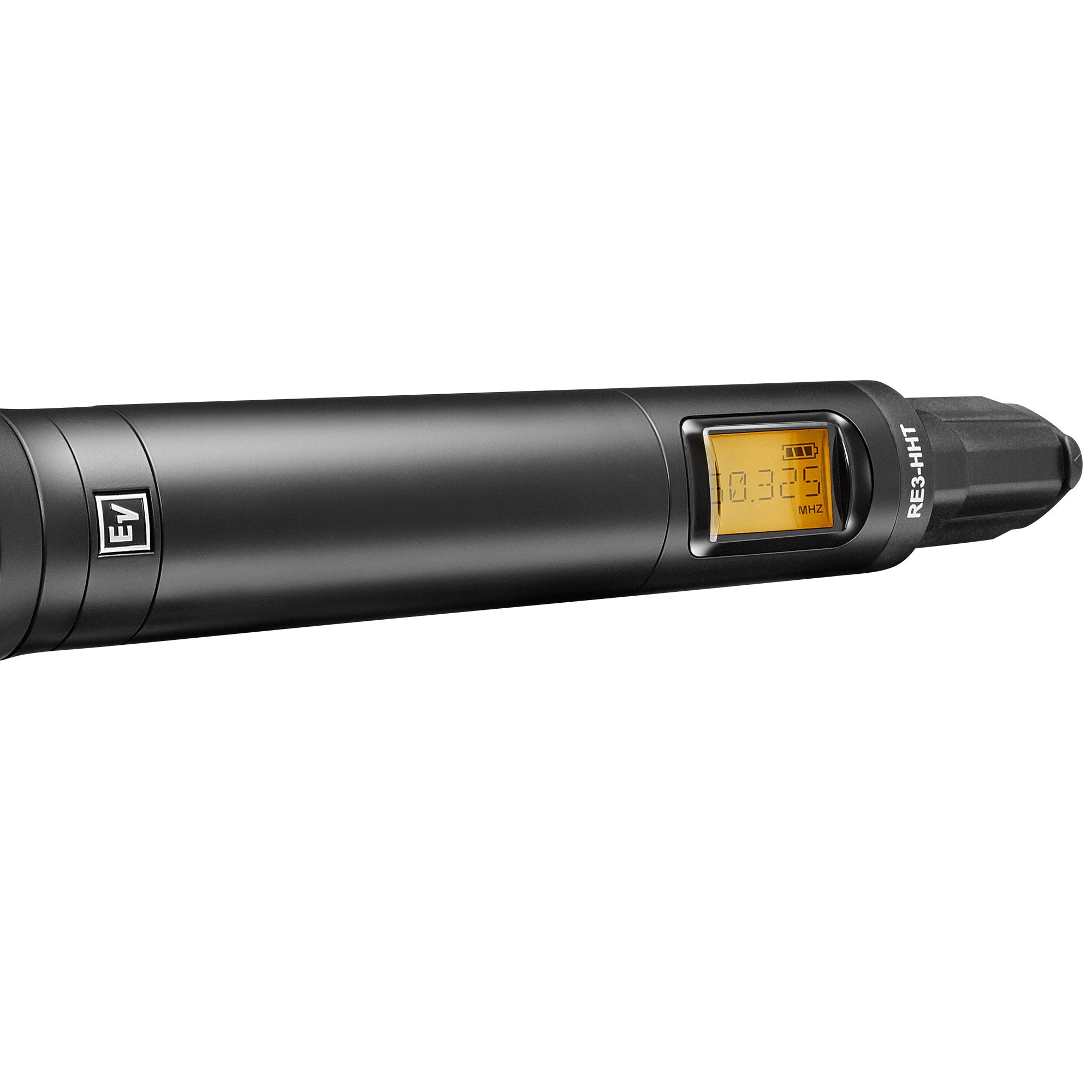

Display By LCD + LED

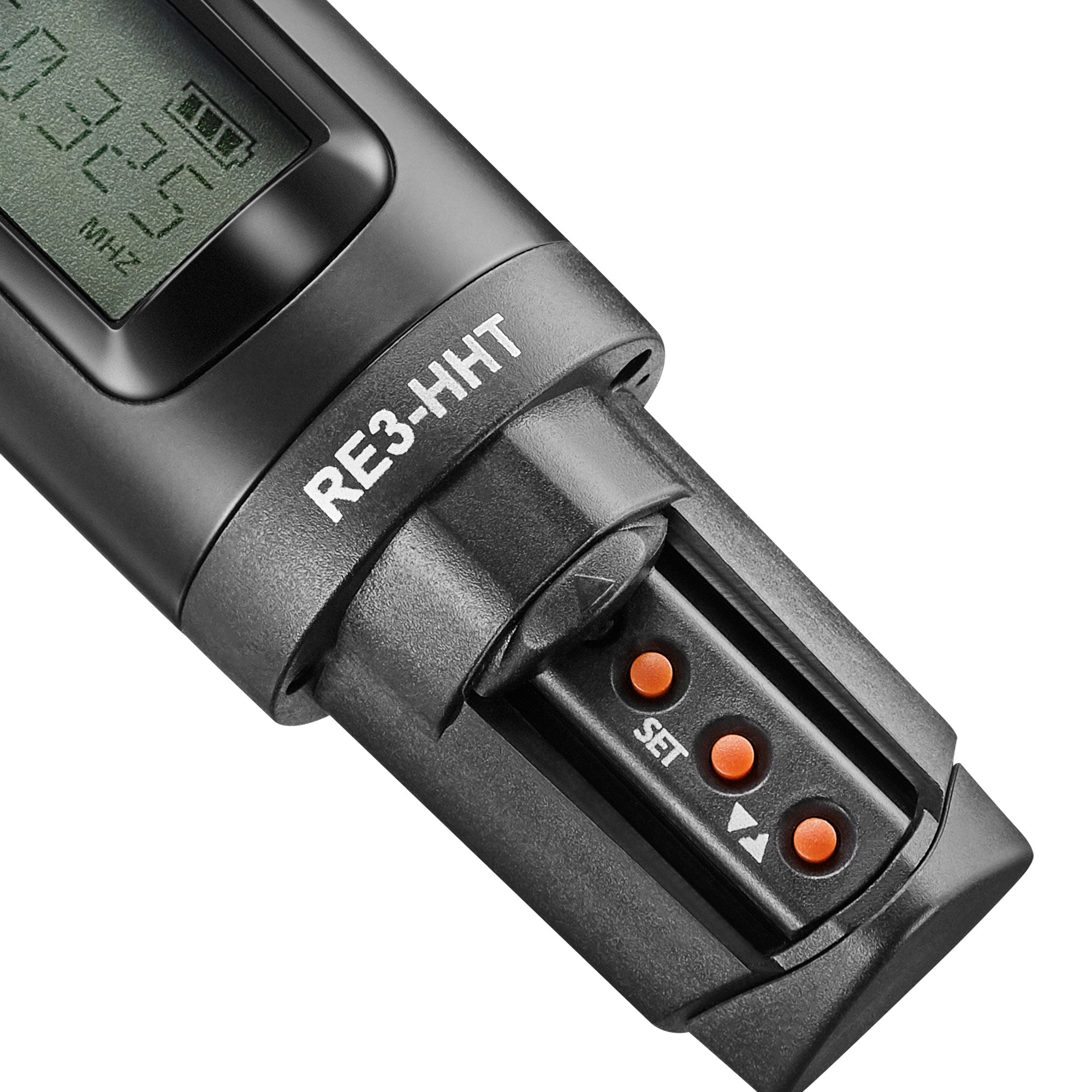

Function Controls Power, mute, group, channel, frequency, sensitivity
adjustment, RF power, auto off, key lock.
RF Stability <±10kHz@Fc
Modulation Frequency Shift Wideband FM ±48kHz deviation
Harmonic Radiation <-50dBc
Battery 2 x AA alkaline battery or NiMH rechargeable battery
Charging Contacts Yes

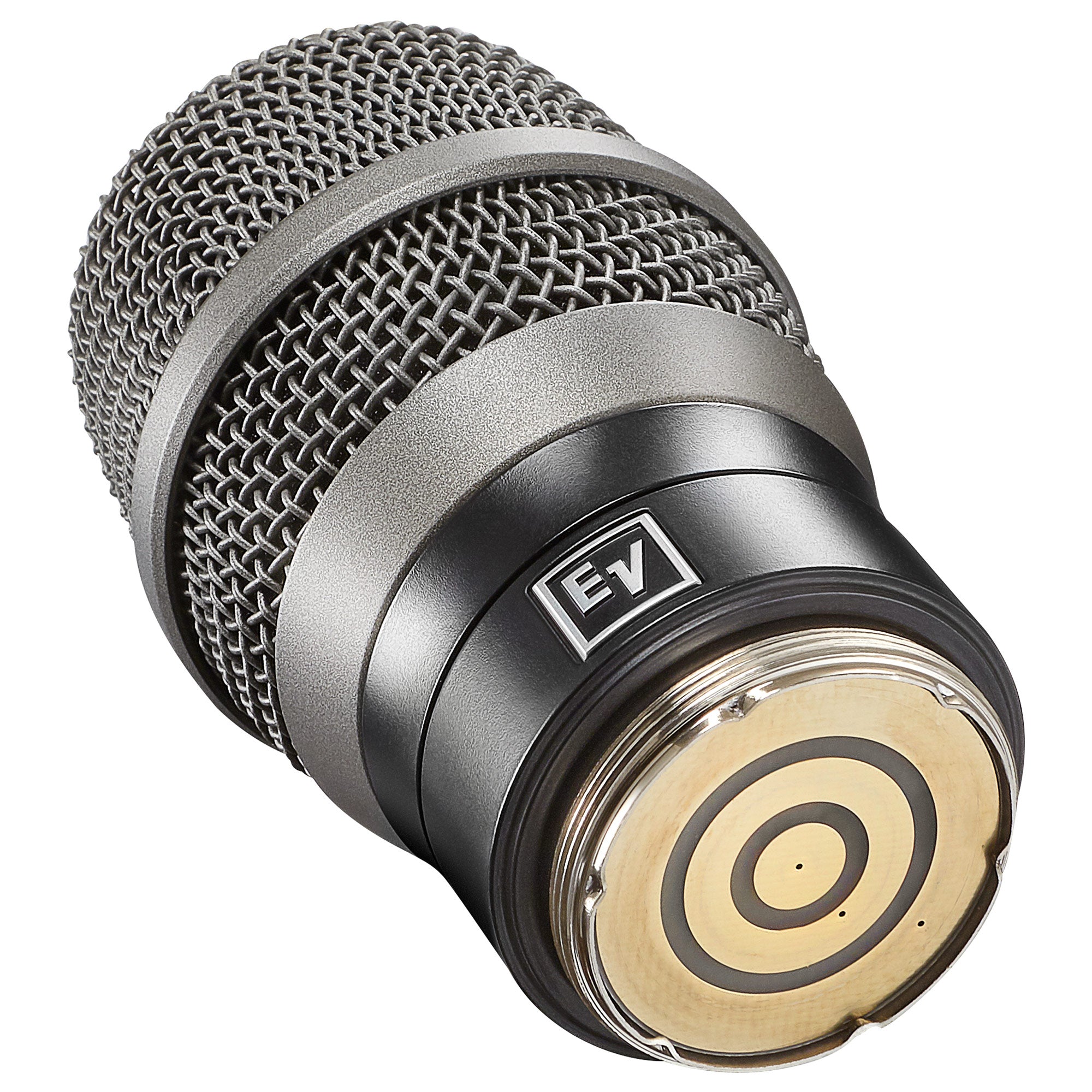

Microphone Head Coupling 1.25” diameter, 28 UN-2A thread pitch
Microphone Electrical Contact 3-ring/3-pin
Finish Black polyurethane paint
Dimensions (without head) Height: 7.52 inch (191mm)
Width at threaded end: 1.46 inch (37mm)
Width at control cover: 0.856 inch (22mm)

More +
