Description

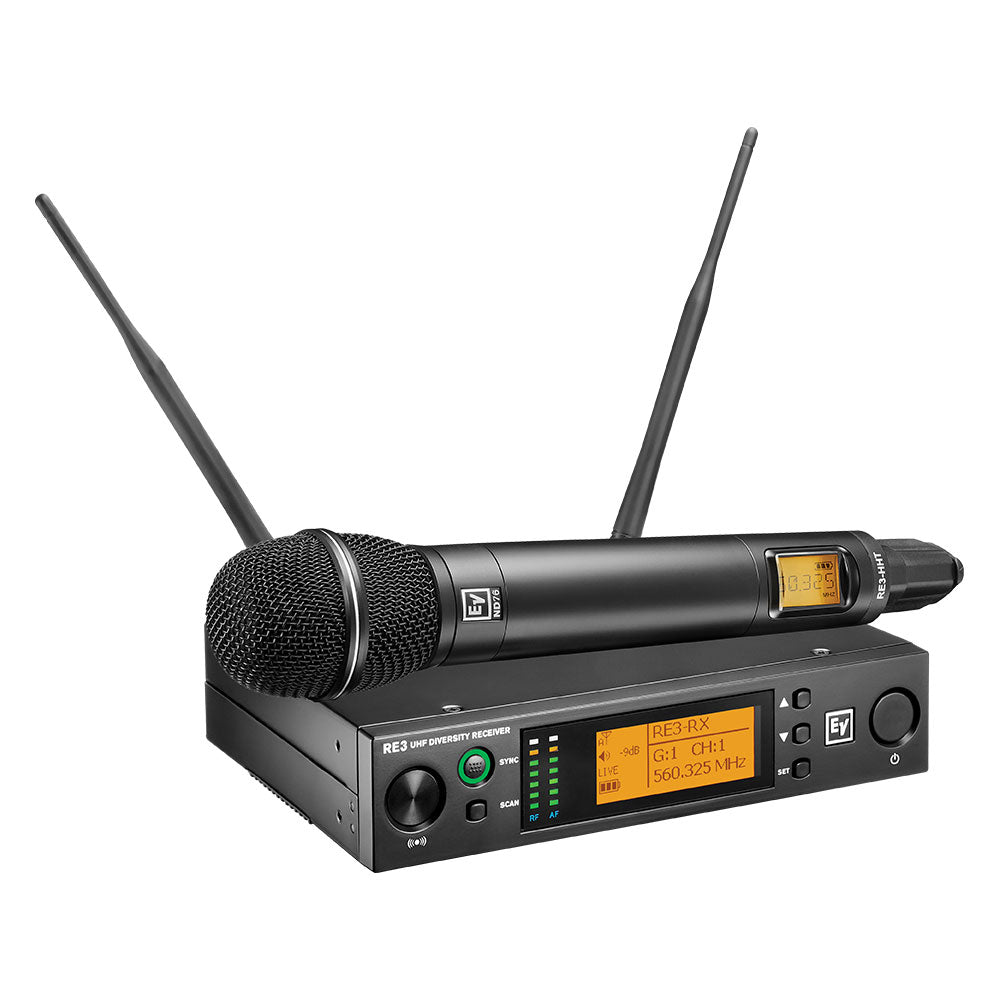

Handheld UHF wireless set featuring ND76 dynamic cardioid microphone head for vocal performance and presentations. The ND 76's crisp, clear, and balanced vocal presence is ideal for all-around voice applications. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and... Read MoreRetail Price: $735.00 Our Price: $659.00
Free Shipping (Continental US)
Suggested Accessories
Description
Handheld UHF wireless set featuring ND76 dynamic cardioid microphone head for vocal performance and presentations. The ND 76's crisp, clear, and balanced vocal presence is ideal for all-around voice applications.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

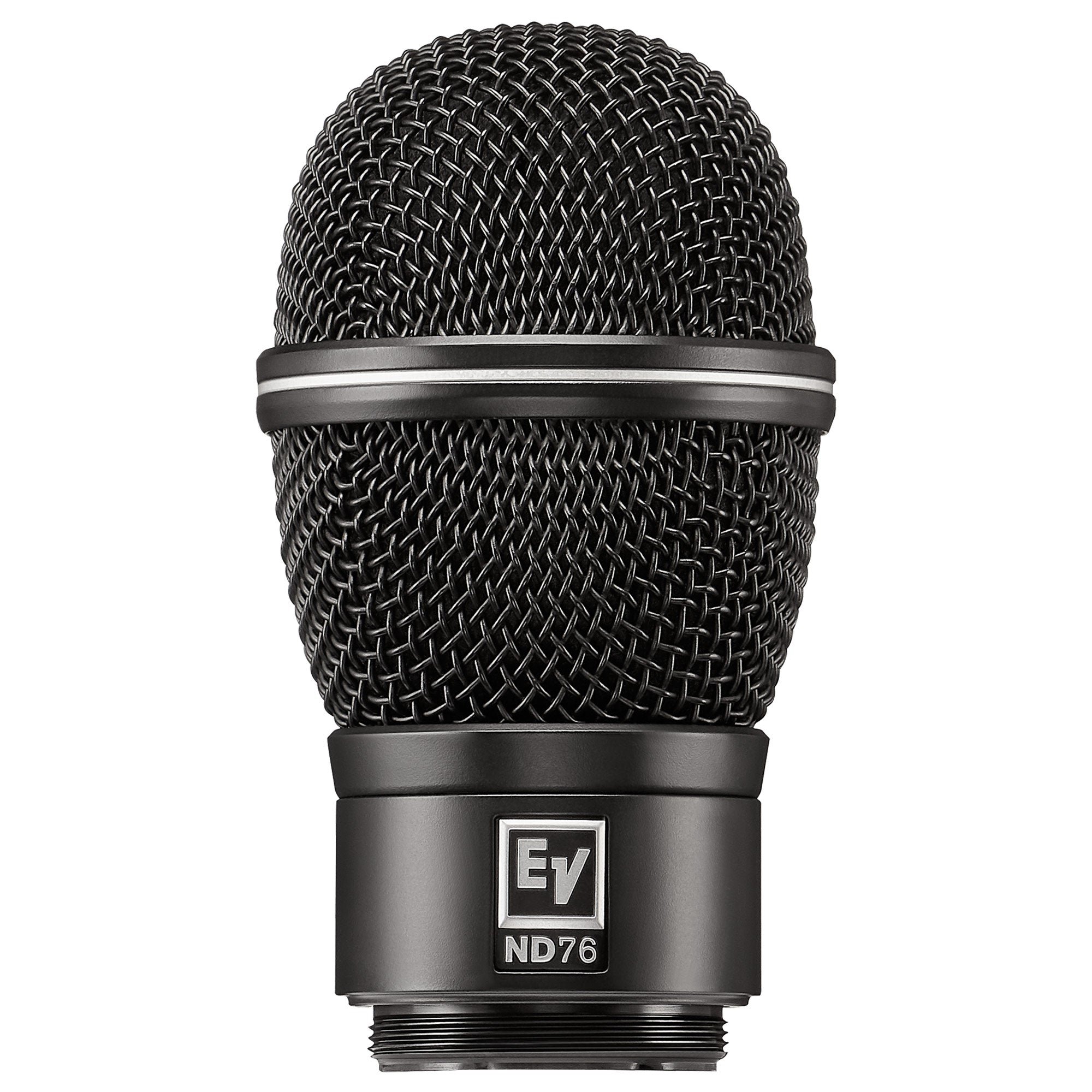

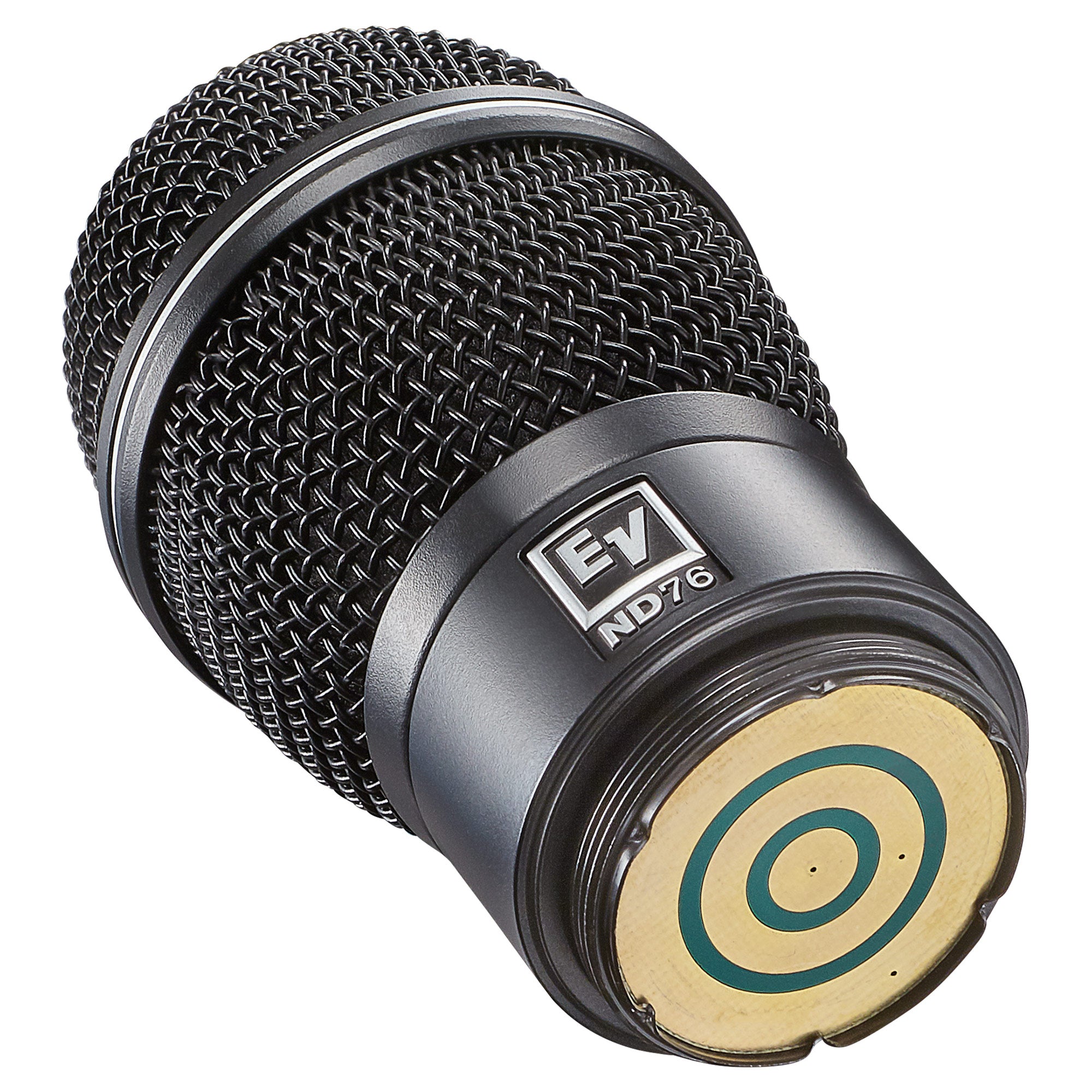

ND76-RC3 Wireless Head with ND76 Capsule

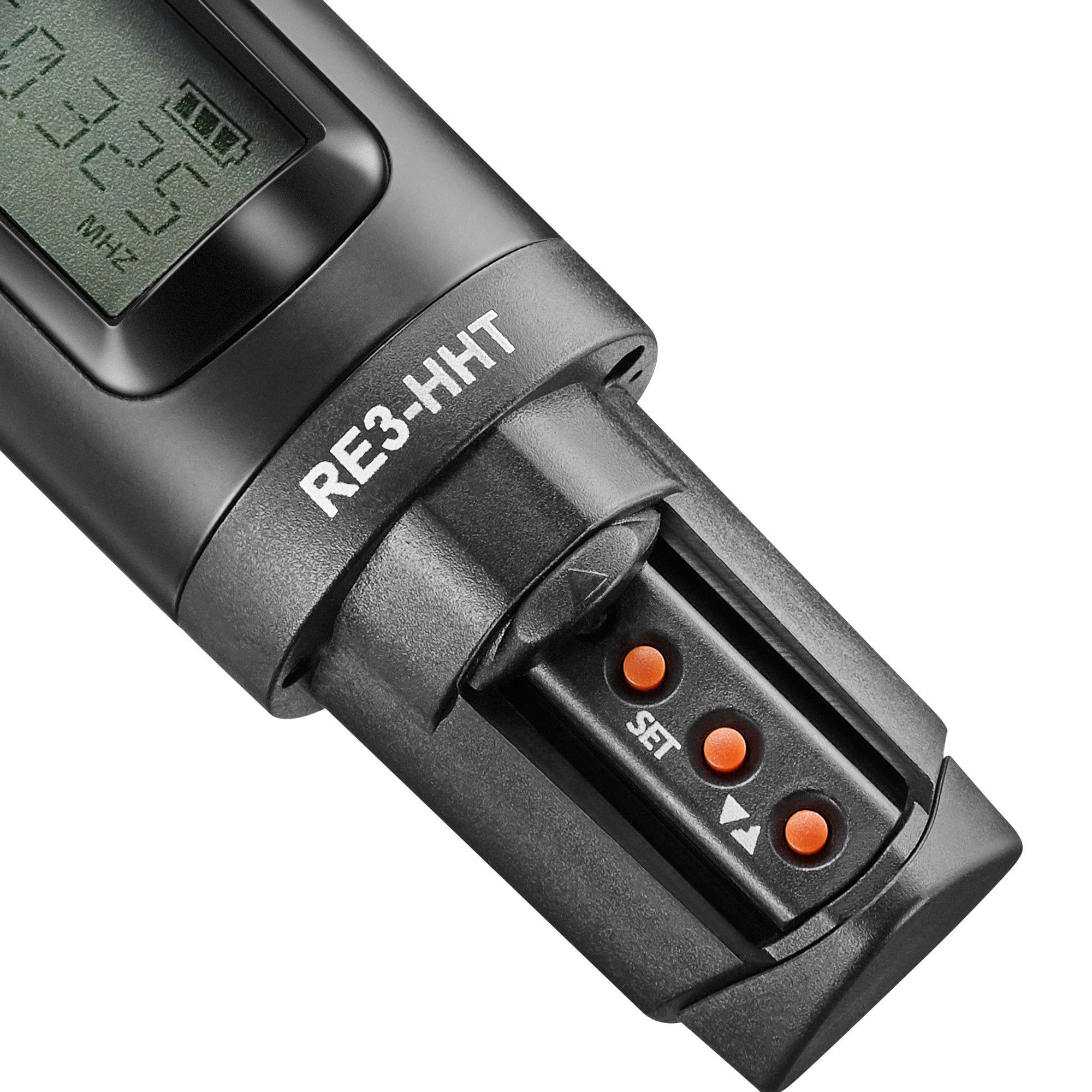

RE3-HHT Handheld Transmitter

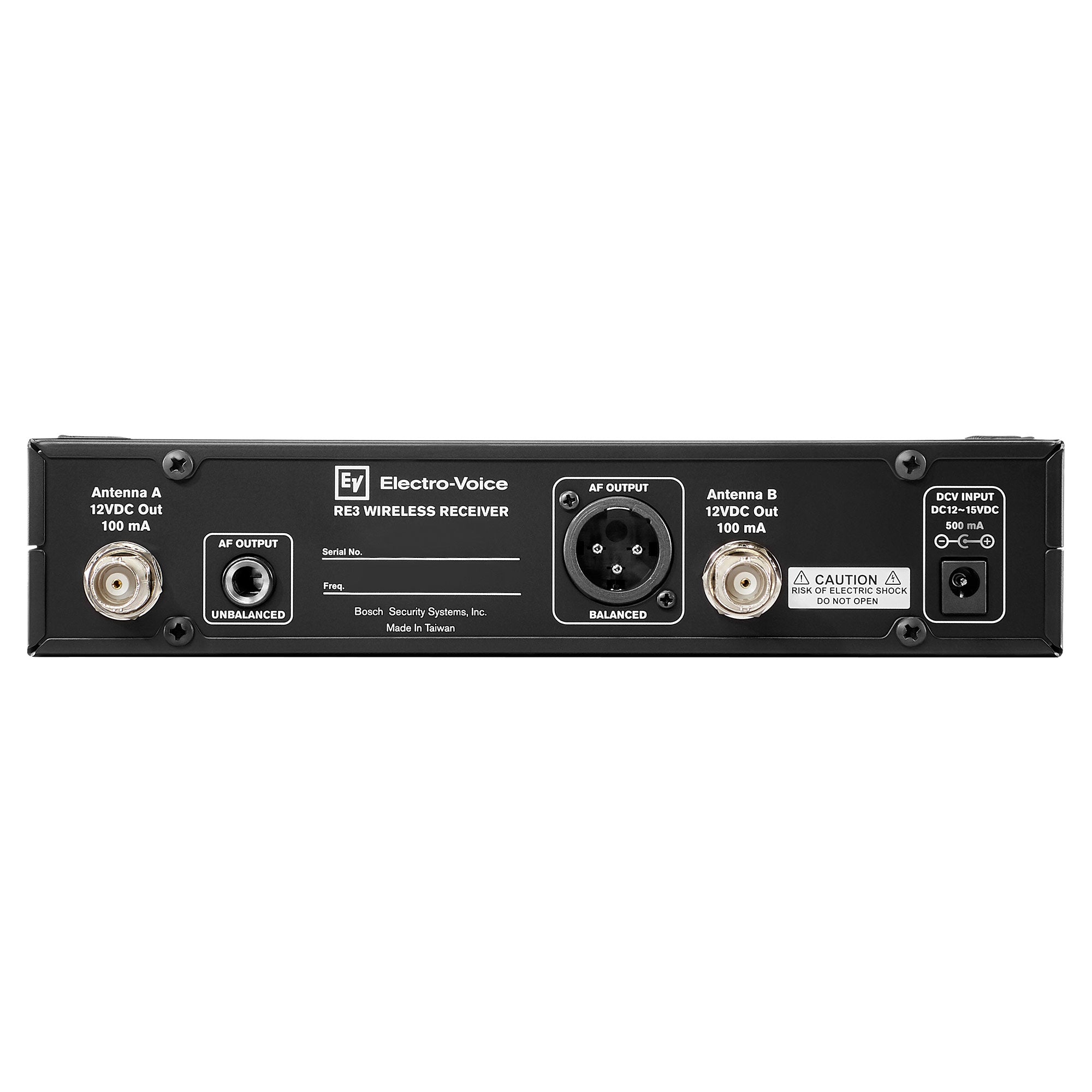

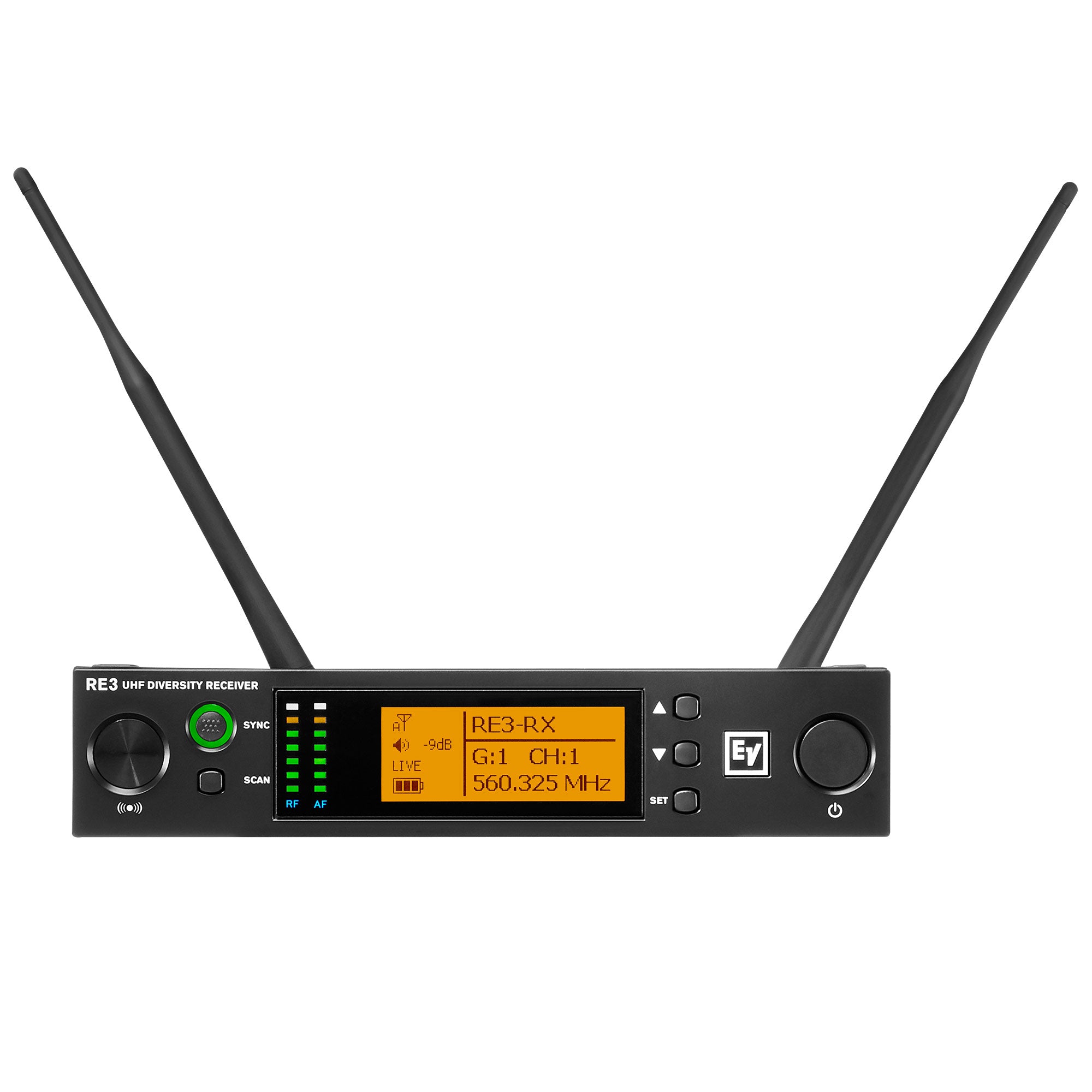

RE3-RX Diversity Receiver
Included Accessories
More +
Product Specs
RE3-RX receiver | |
Frequency Oscillation Mode | Phase-locked loop (PLL) |
Carrier Frequency Range | 470 - 865 MHz (tuning bandwidth is band dependent) |
Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
Sync Frequency | Ultrasonic 40 kHz |
Diversity | Antenna diversity |
Bandwidth | 36MHz |
Signal/Noise Ratio | >100dB(A) |
Total Harmonic Distortion (Thd) | <0.6%@1kHz |
Receiving Sensitivity | -81dBm for -12dB SINAD |
Frequency Response | 63Hz~16kHz±2dB (BPT) 51Hz~1tkHz±2dB (HHT) |
Antenna Type | Detachable ½ wave with BNC connector |
Antenna Booster Power | DC12 - 15V/100mA |
Function Display By | LCD |
Contents Of Display | Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator. |
Control Functions | Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset. |
Sync Data Options | Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch) |
Audio Frequency Output Level | ¼” (6.3mm) Phone Jack?-10dBV XLR Jack: -4dBV (Line) & -24dBV (MIC) |
Audio Frequency Output | |
Impedance | 240? (unbalanced) 1400? (balanced) |
Squelch and noise muting | Noise muting and tone code locking |
Output Ports | 1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack |
Power Supply | DC12~15V/500mA |
Finish | Black polyurethane paint |
Dimensions | Width: 8.27 inch (210mm) Height: (with feet attached) 1.85 inch (47mm) Height: (without feet attached) 1.73 inch (44mm) Depth: (including antenna jack) 6.89 inch (175mm) Depth: (not including antenna jack) 6.1 inch (155mm) |
RE3-HHT handheld transmitter | |
Frequency Oscillation Mode | Phase-locked loop (PLL) |
Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
Sync Frequency | Ultrasonic |
RF Power Output | 5L (488-524MHz): Low 10mW / High 50mW 5H (560-596MHz): Low 10mW / High 50mW |
Display By | LCD + LED |
Function Controls | Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock. |
RF Stability | <±10kHz@Fc |
Modulation Frequency Shift | Wideband FM ±48kHz deviation |
Harmonic Radiation | <-50dBc |

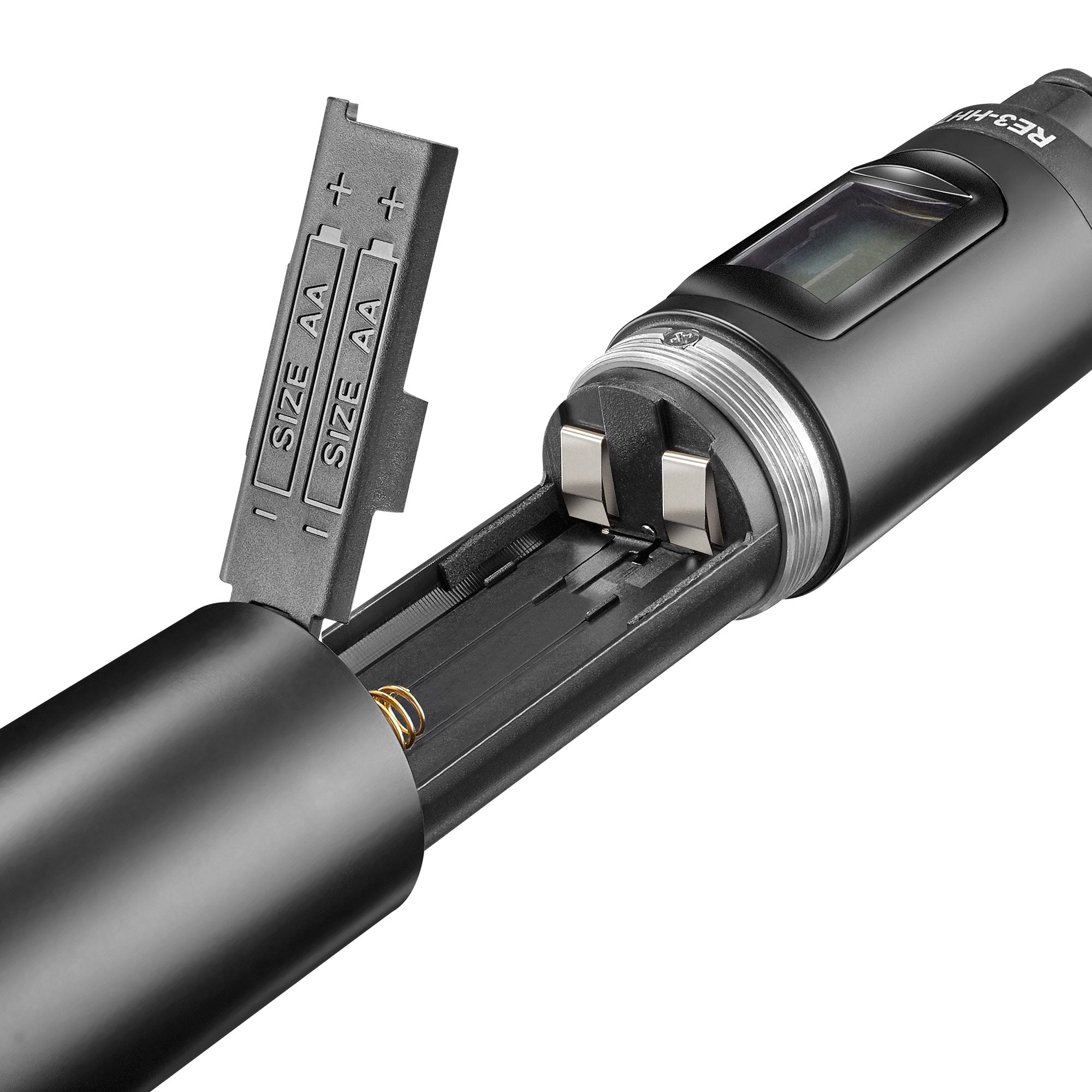

Battery | 2 x AA alkaline battery or NiMH rechargeable battery |
Charging Contacts | Yes |
Microphone Head Coupling | 1.25” diameter, 28 UN-2A thread pitch |
Microphone Electrical Contact | 3-ring/3-pin |
Finish | Black polyurethane paint |
Dimensions (without head) | Height: 7.52 inch (191mm) Width at threaded end: 1.46 inch (37mm) Width at control cover: 0.856 inch (22mm) |
