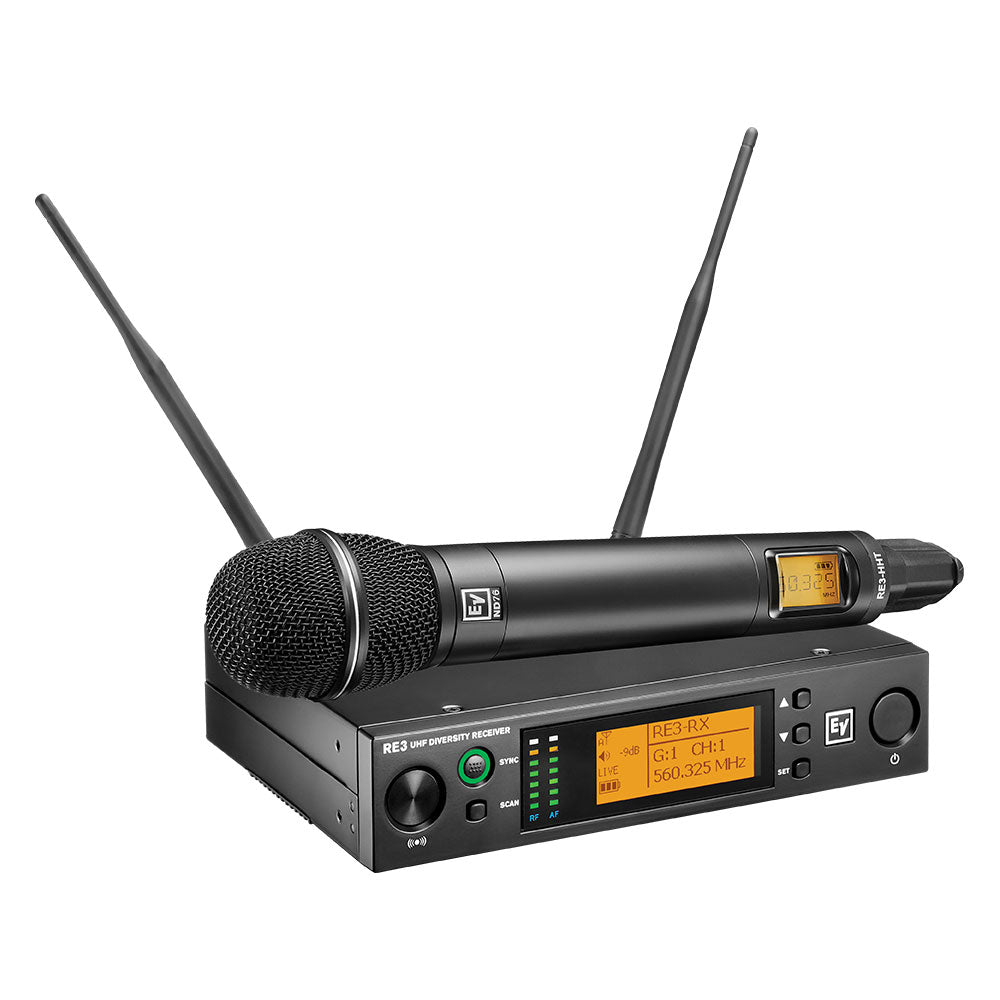

Electro-Voice RE3-ND76 - Handheld Wireless System (6M Band / 653 - 663 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Electro-Voice RE3-ND76 - Handheld Wireless System (6M Band / 653 - 663 MHz)
Sale price$659.00
Regular price$735.00
Description
Handheld UHF wireless set featuring ND76 dynamic cardioid microphone head for vocal performance and presentations. The ND 76's crisp, clear, and balanced vocal presence is ideal for all-around voice applications.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

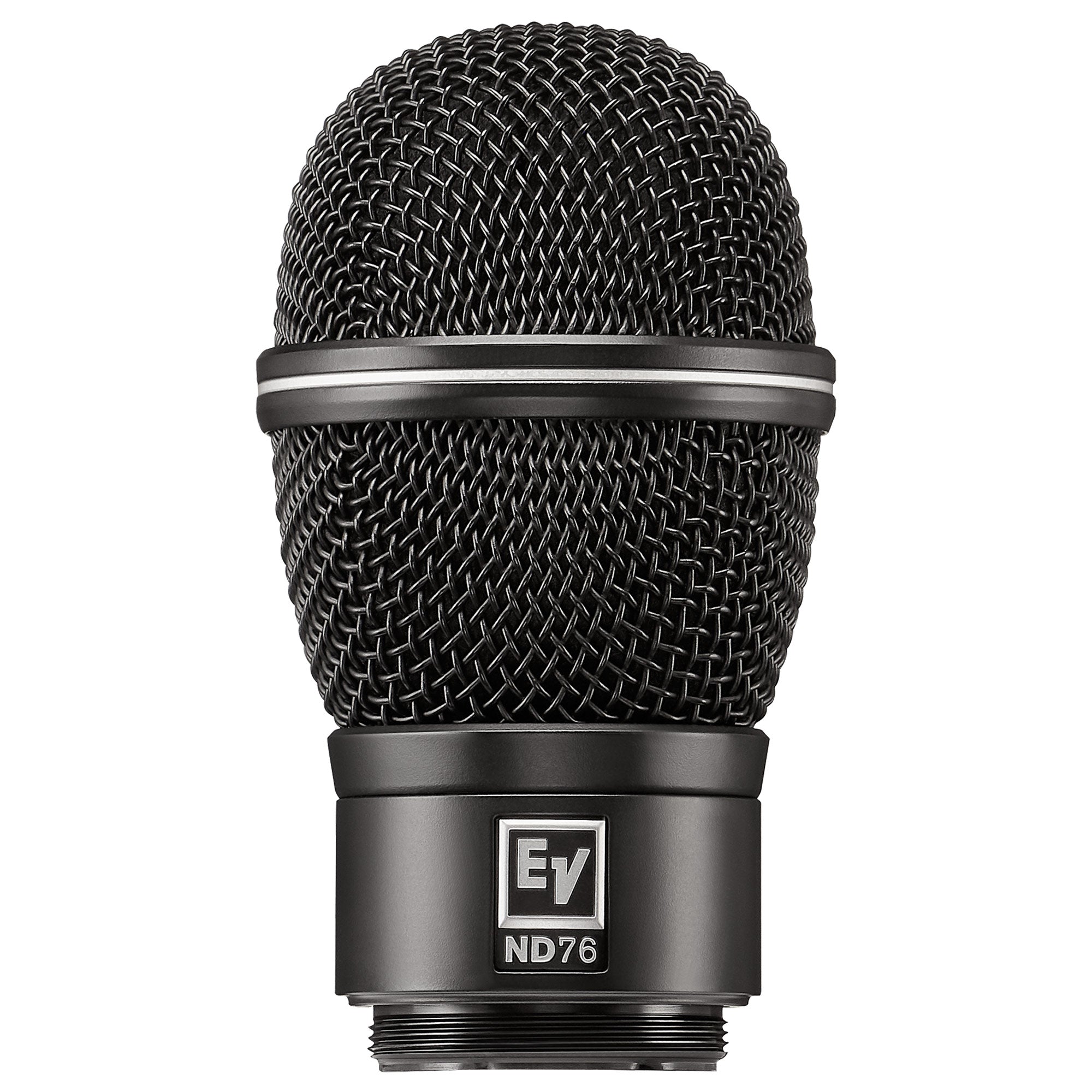

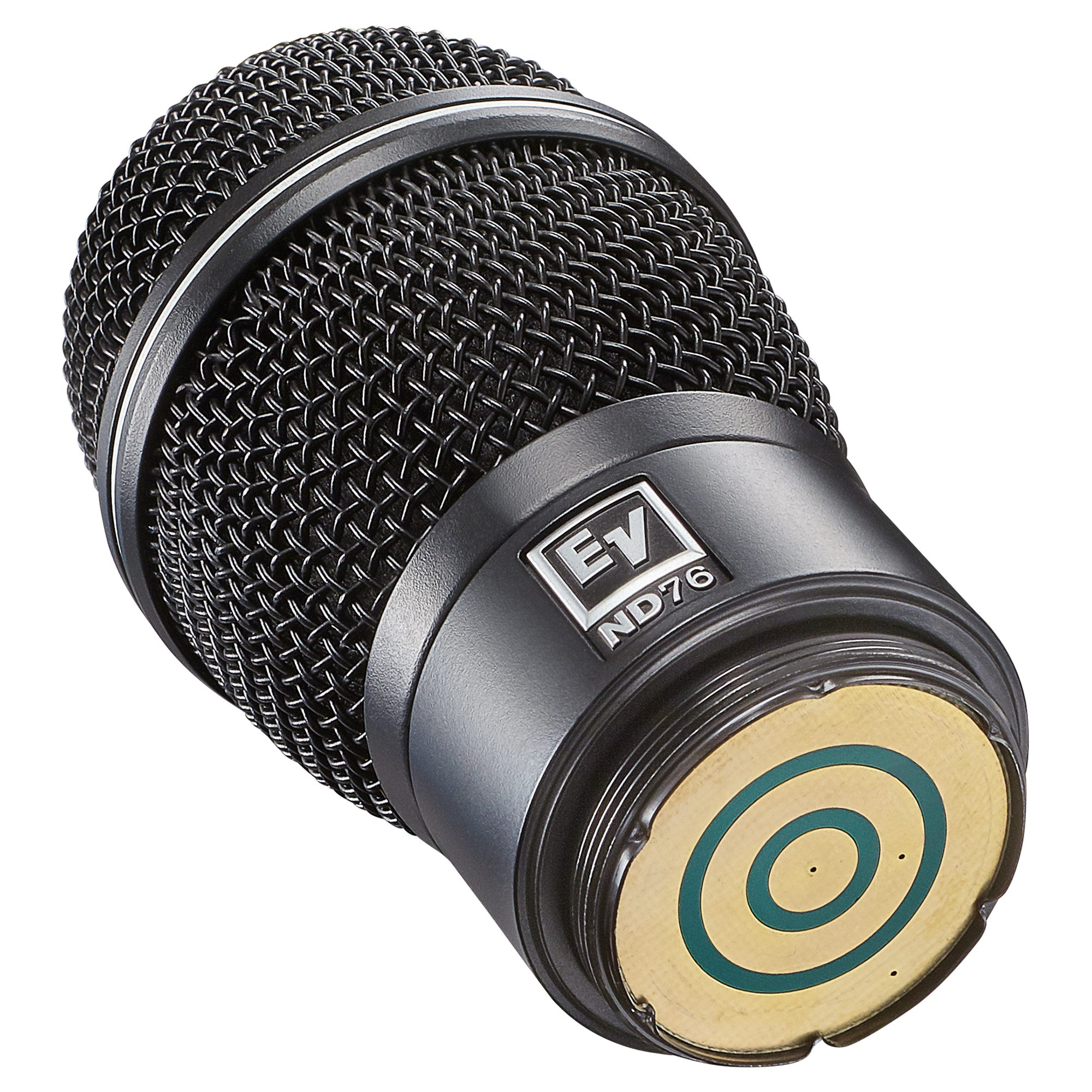

ND76-RC3 Wireless Head with ND76 Capsule
- Thread-on microphone head for Electro-Voice handheld transmitters (compatible with many other brand's handheld transmitters)
- Excellent all-around vocal performance: crisp, clear and balanced
- Large diaphragm dynamic capsule creates a rich and detailed frequency response
- Shock-mounted capsule minimizes handling noise
- Memraflex grille resists denting

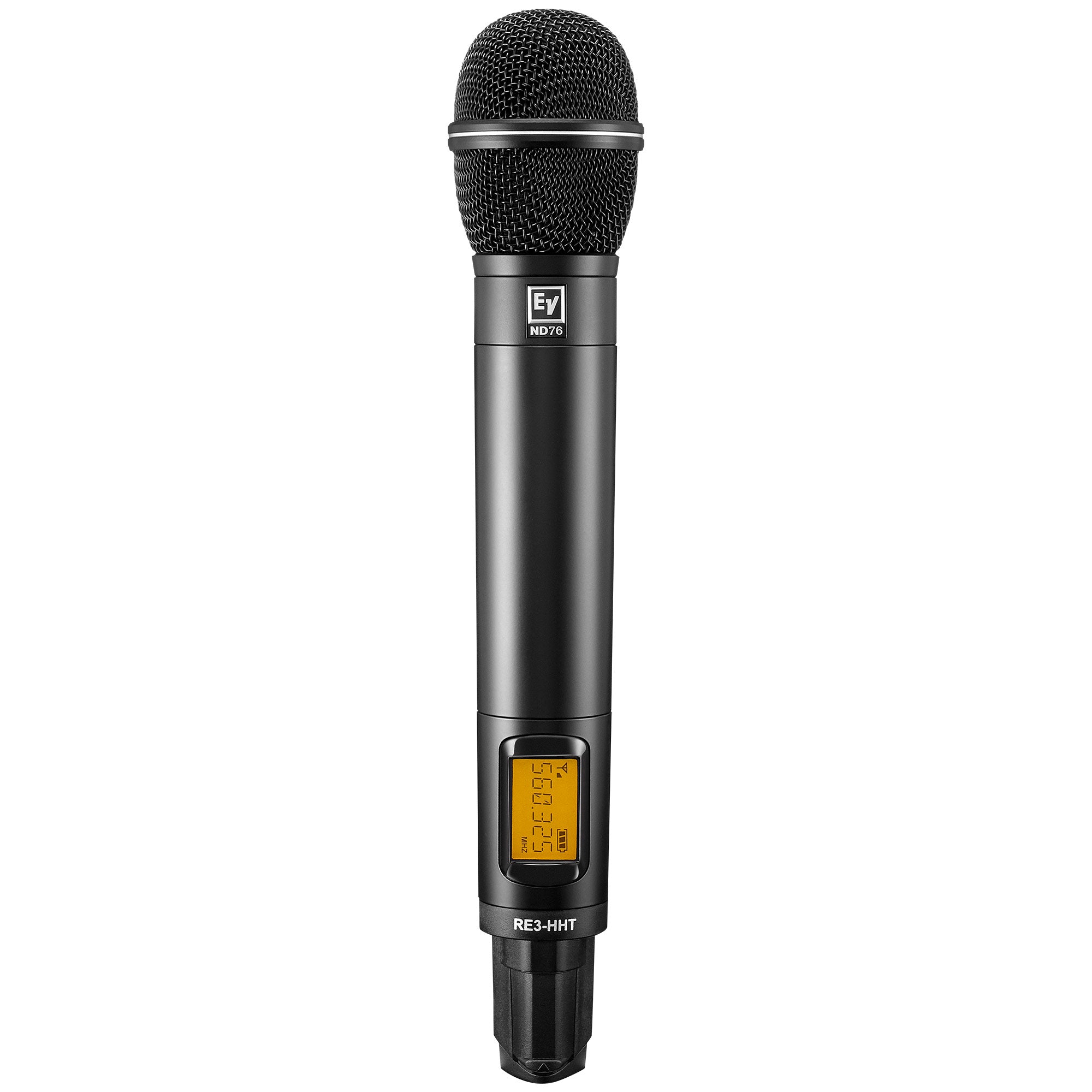

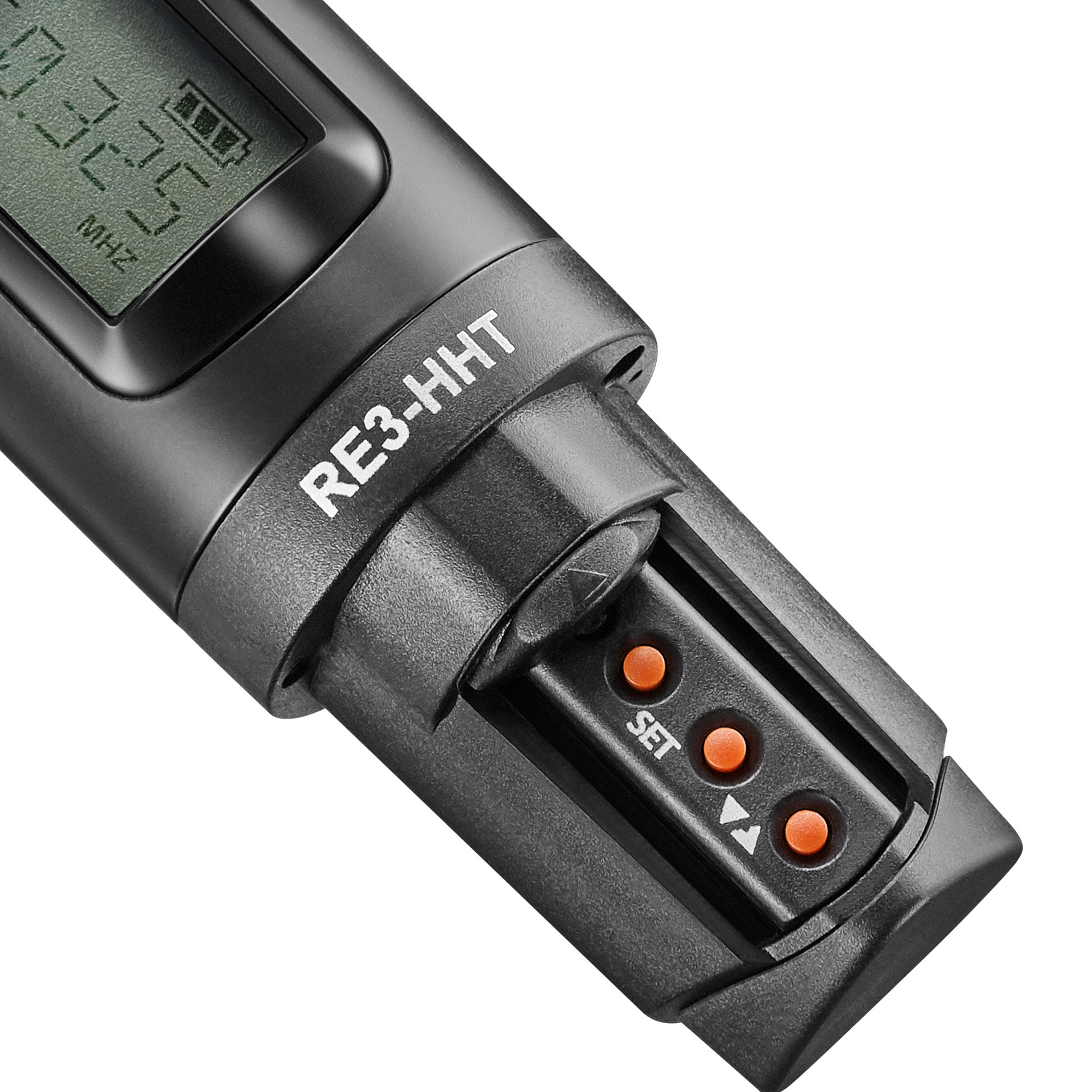

RE3-HHT Handheld Transmitter
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Common threaded coupling allows microphone head interchangeable

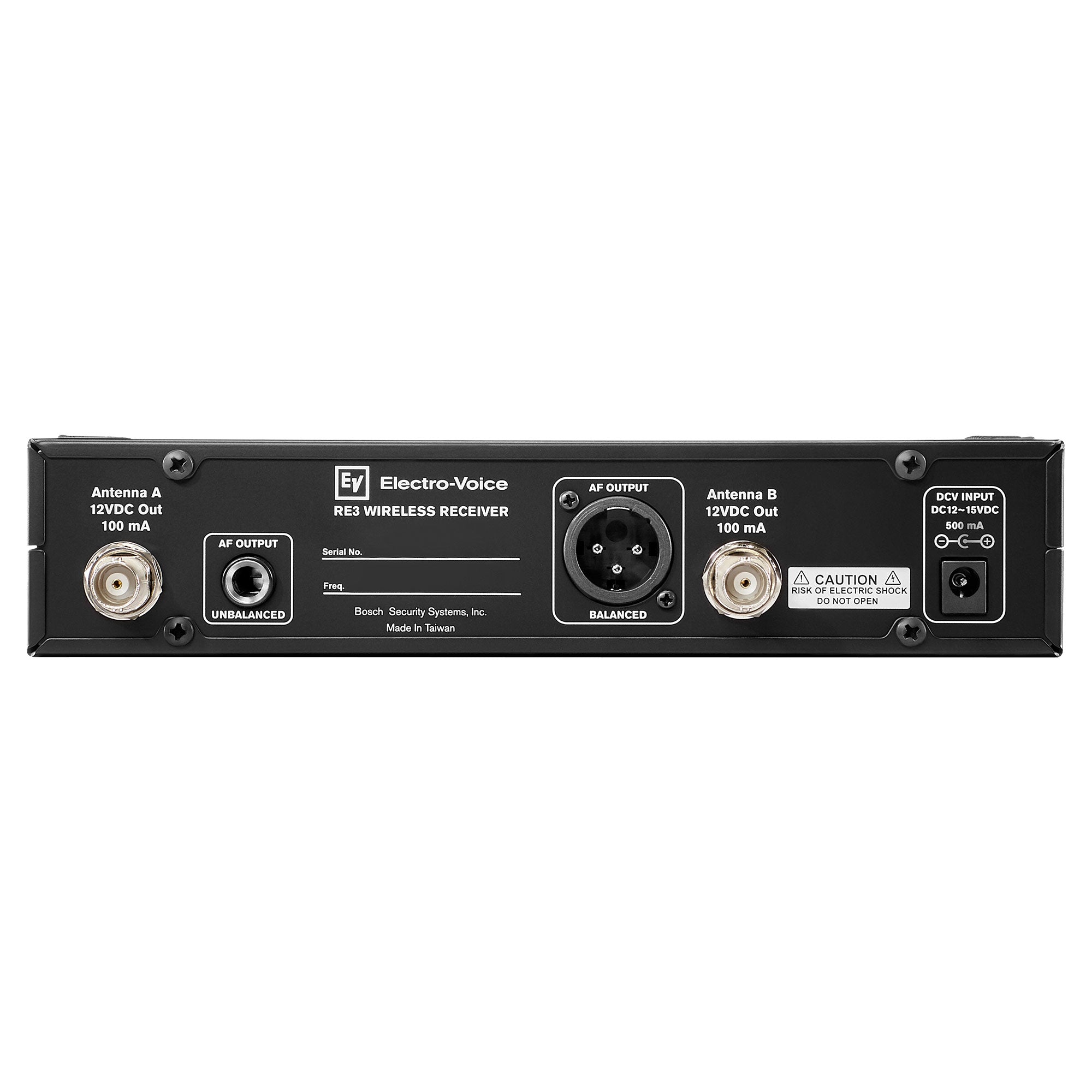

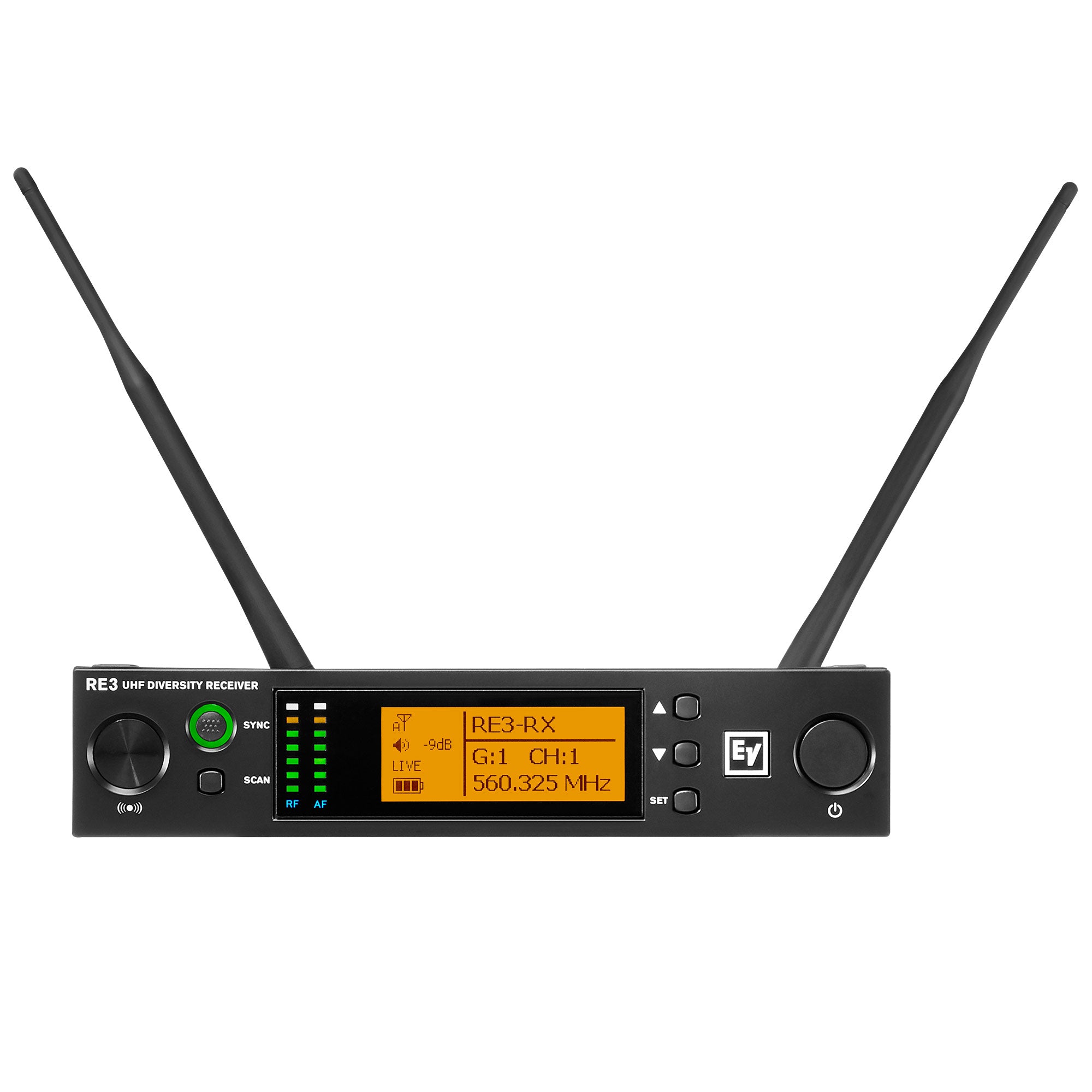

RE3-RX Diversity Receiver
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
Included Accessories
- Microphone stand adapter
- Two receiver antennas
- Universal power supply
- Two AA batteries
- Receiver rack mounting hardware
- Owner's manual
- Documentation packet
- Declaration of conformity
| RE3-RX receiver | |
| Frequency Oscillation Mode | Phase-locked loop (PLL) |
| Carrier Frequency Range | 470 - 865 MHz (tuning bandwidth is band dependent) |
| Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
| Sync Frequency | Ultrasonic 40 kHz |
| Diversity | Antenna diversity |
| Bandwidth | 36MHz |
| Signal/Noise Ratio | >100dB(A) |
| Total Harmonic Distortion (Thd) | <0.6%@1kHz |
| Receiving Sensitivity | -81dBm for -12dB SINAD |
| Frequency Response | 63Hz~16kHzå±2dB (BPT) 51Hz~1tkHzå±2dB (HHT) |
| Antenna Type | Detachable å_ wave with BNC connector |
| Antenna Booster Power | DC12 - 15V/100mA |
| Function Display By | LCD |
| Contents Of Display | Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator. |
| Control Functions | Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset. |
| Sync Data Options | Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch) |
| Audio Frequency Output Level | å_‰Ûð (6.3mm) Phone Jack?-10dBV XLR Jack: -4dBV (Line) / -24dBV (MIC) |
| Audio Frequency Output | |
| Impedance | 240? (unbalanced) 1400? (balanced) |
| Squelch and noise muting | Noise muting and tone code locking |
| Output Ports | 1 x balanced XLRM jack 1 x unbalanced å_‰Ûð TS (6.3mm) jack |
| Power Supply | DC12~15V/500mA |
| Finish | Black polyurethane paint |
| Dimensions | Width: 8.27 inch (210mm) Height: (with feet attached) 1.85 inch (47mm) Height: (without feet attached) 1.73 inch (44mm) Depth: (including antenna jack) 6.89 inch (175mm) Depth: (not including antenna jack) 6.1 inch (155mm) |
| RE3-HHT handheld transmitter | |
| Frequency Oscillation Mode | Phase-locked loop (PLL) |
| Frequency Ranges | 5L: 36 MHz (488-524 MHz) 5H: 36 MHz (560-596 MHz) |
| Sync Frequency | Ultrasonic |
| RF Power Output | 5L (488-524MHz): Low 10mW / High 50mW 5H (560-596MHz): Low 10mW / High 50mW |
| Display By | LCD + LED |
| Function Controls | Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock. |
| RF Stability | <å±10kHz@Fc |
| Modulation Frequency Shift | Wideband FM å±48kHz deviation |
| Harmonic Radiation | <-50dBc |

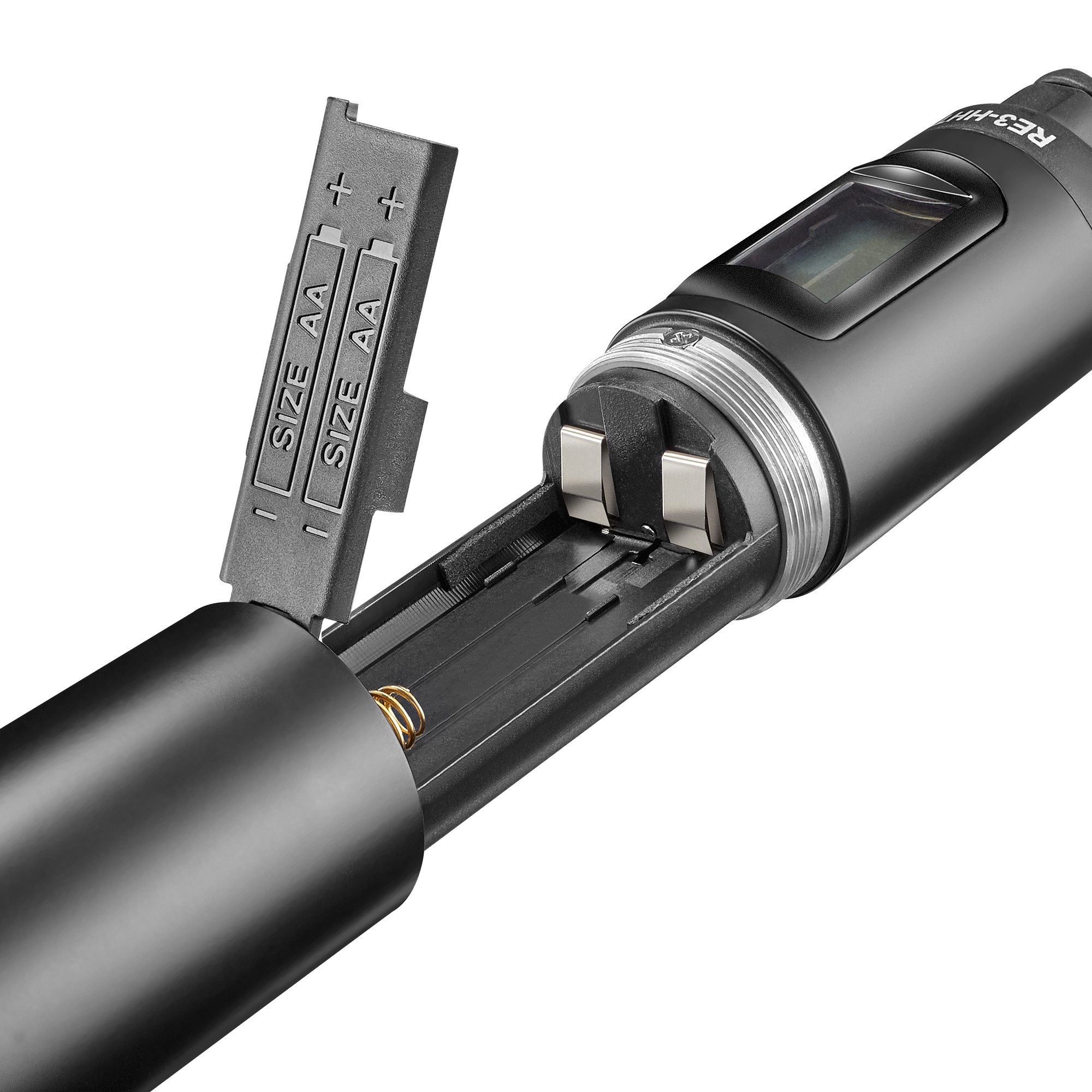

| Battery | 2 x AA alkaline battery or NiMH rechargeable battery |
| Charging Contacts | Yes |
| Microphone Head Coupling | 1.25‰Ûð diameter, 28 UN-2A thread pitch |
| Microphone Electrical Contact | 3-ring/3-pin |
| Finish | Black polyurethane paint |
| Dimensions (without head) | Height: 7.52 inch (191mm) Width at threaded end: 1.46 inch (37mm) Width at control cover: 0.856 inch (22mm) |
