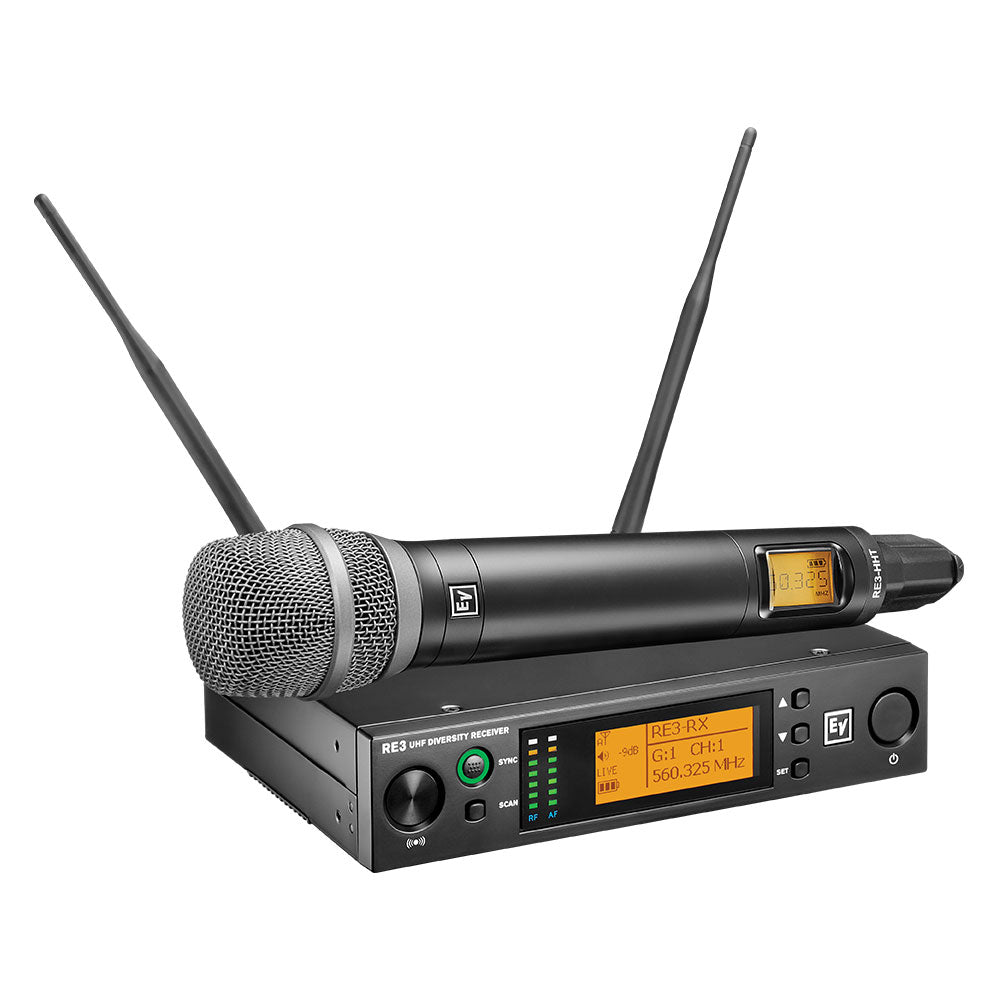

Electro-Voice RE3-RE520 Handheld Wireless System (5H Band / 560 - 596 MHz)

  • Dale #:

    EVI-RE3RE5205H
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Handheld UHF wireless set featuring RE520 condenser supercardioid microphone head for vocal performance and presentations. The RE520’s sound is detailed, full, and vivid, with a tight and clear low end, natural and present midrange, and an exceptionally-detailed high end. The supercardioid patter... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Handheld UHF wireless set featuring RE520 condenser supercardioid microphone head for vocal performance and presentations. The RE520’s sound is detailed, full, and vivid, with a tight and clear low end, natural and present midrange, and an exceptionally-detailed high end. The supercardioid pattern provides excellent acoustic isolation.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

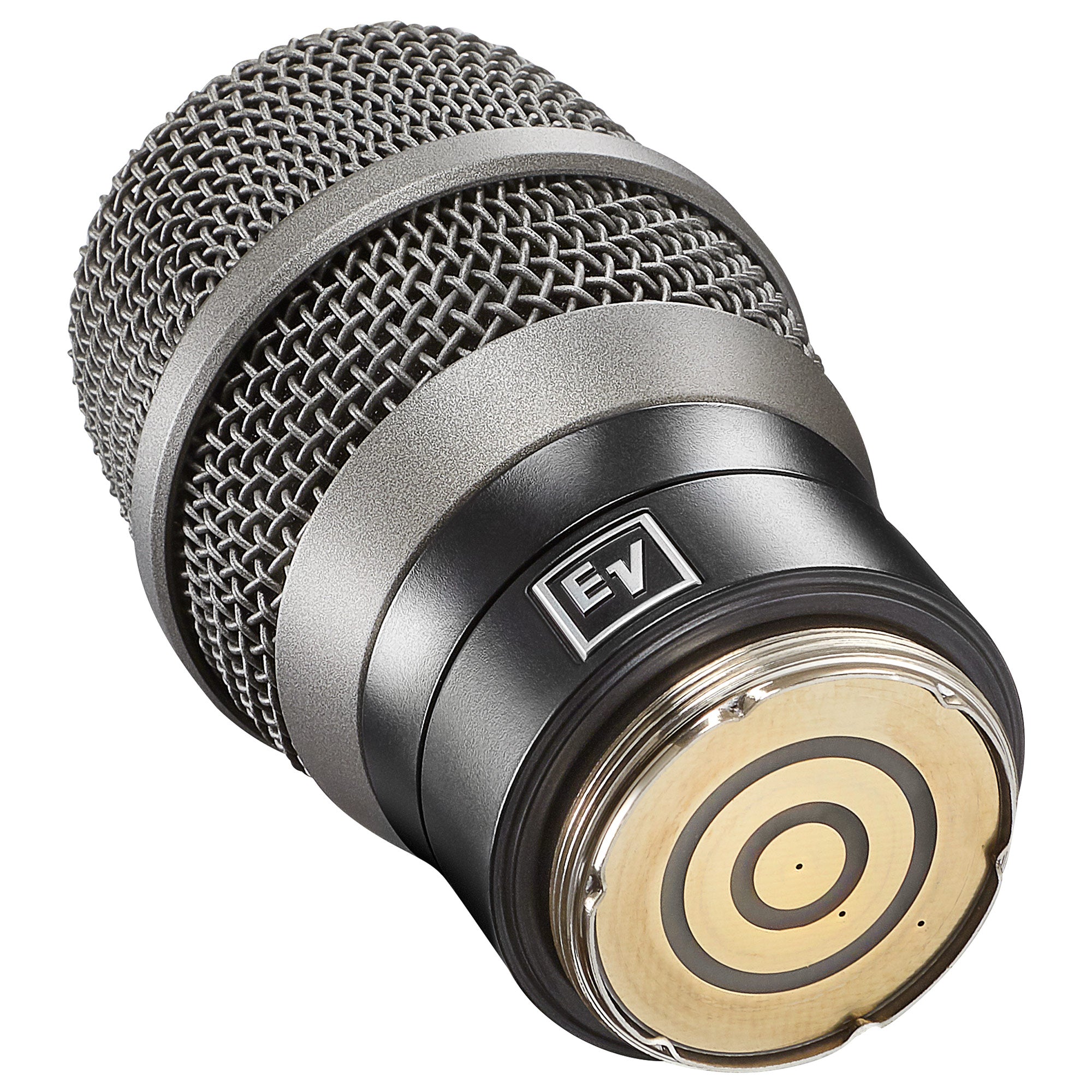

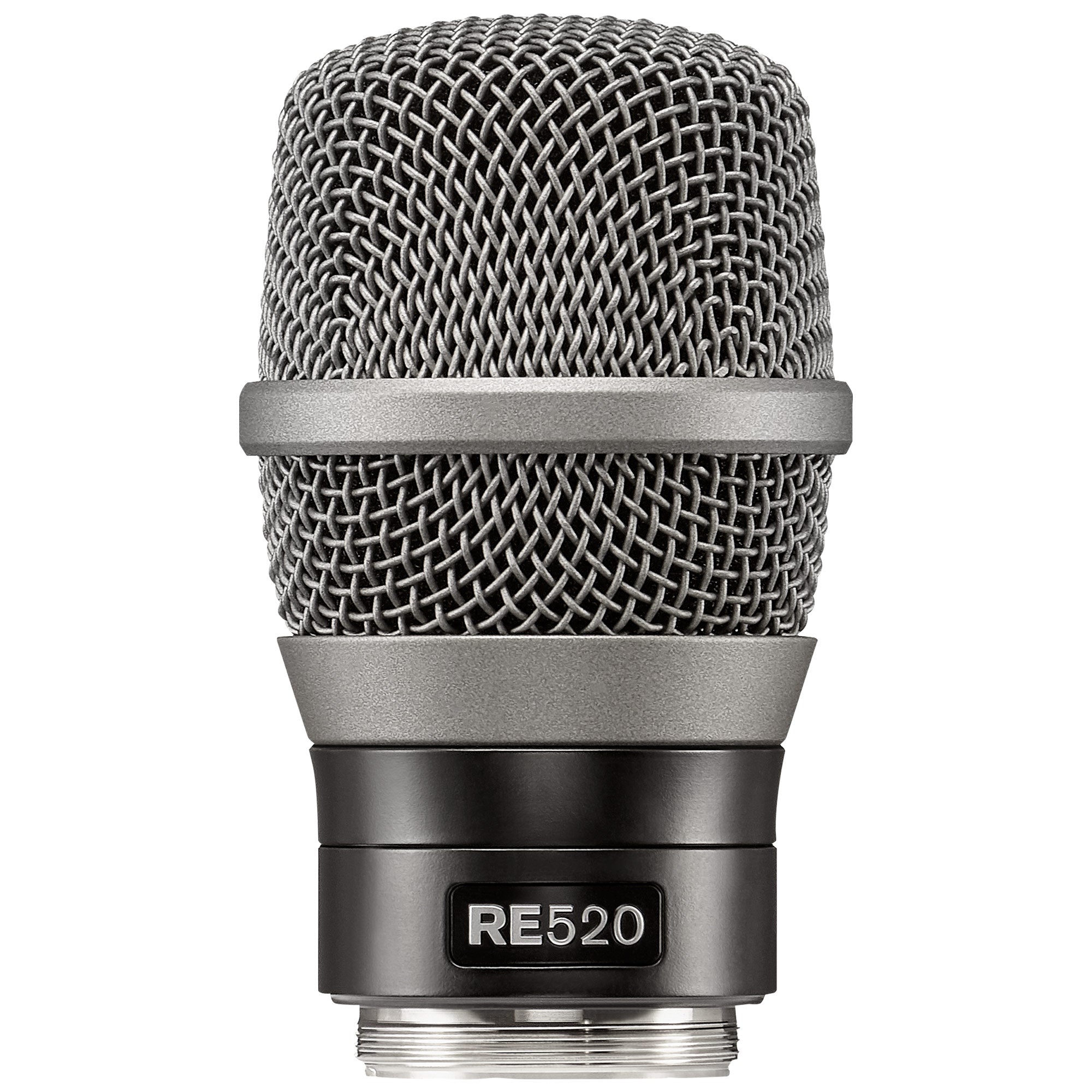

RE520-RC3 Wireless Head with RE520 Capsule

  • Thread-on microphone head for Electro-Voice handheld transmitters (compatible with many other brand's handheld transmitters)
  • Excellent all-around vocal performance: crisp, clear and balanced
  • Large diaphragm dynamic capsule creates a rich and detailed frequency response
  • Shock-mounted capsule minimizes handling noise
  • Memraflex grille resists denting

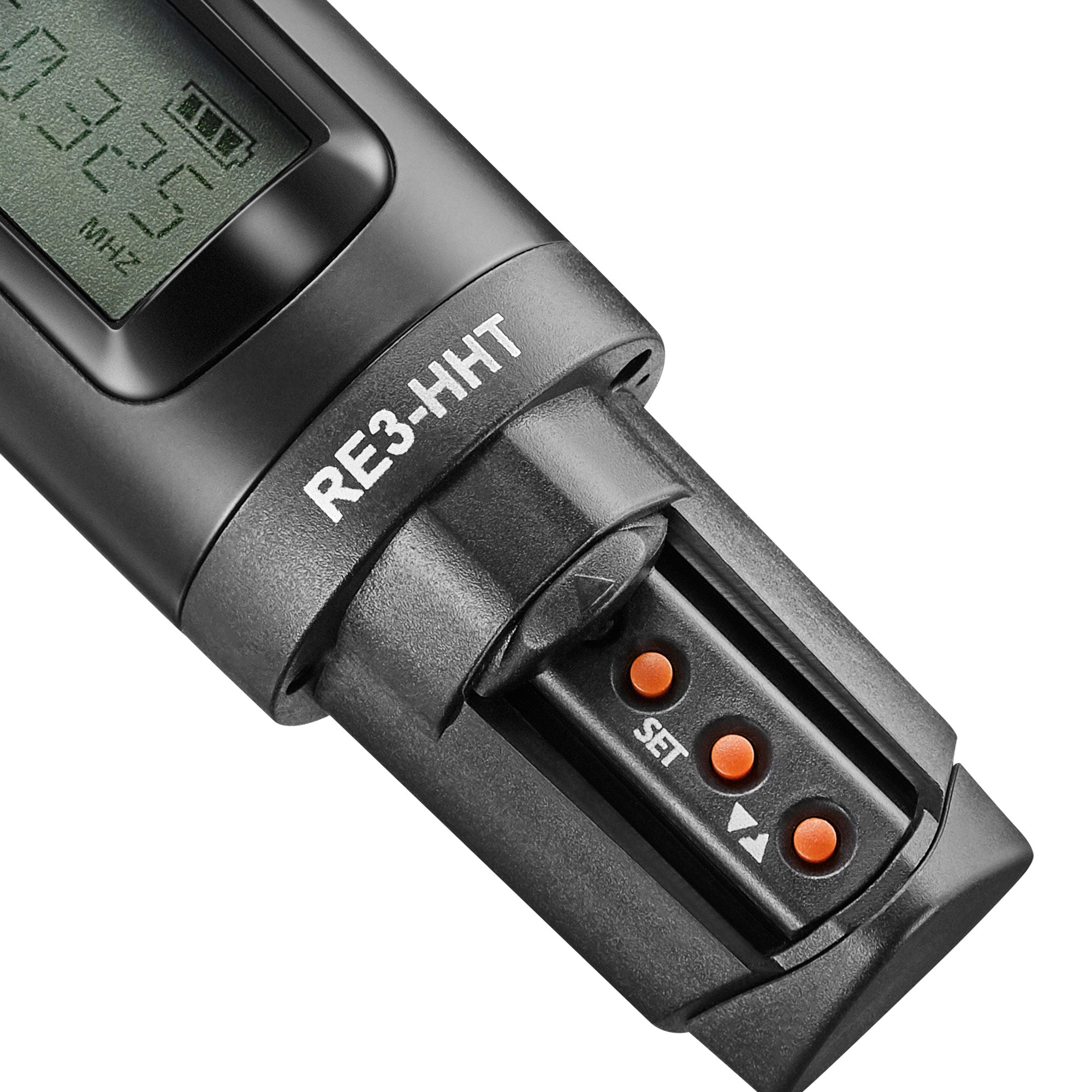

RE3-HHT Handheld Transmitter

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)
  • Common threaded coupling allows microphone head interchangeable

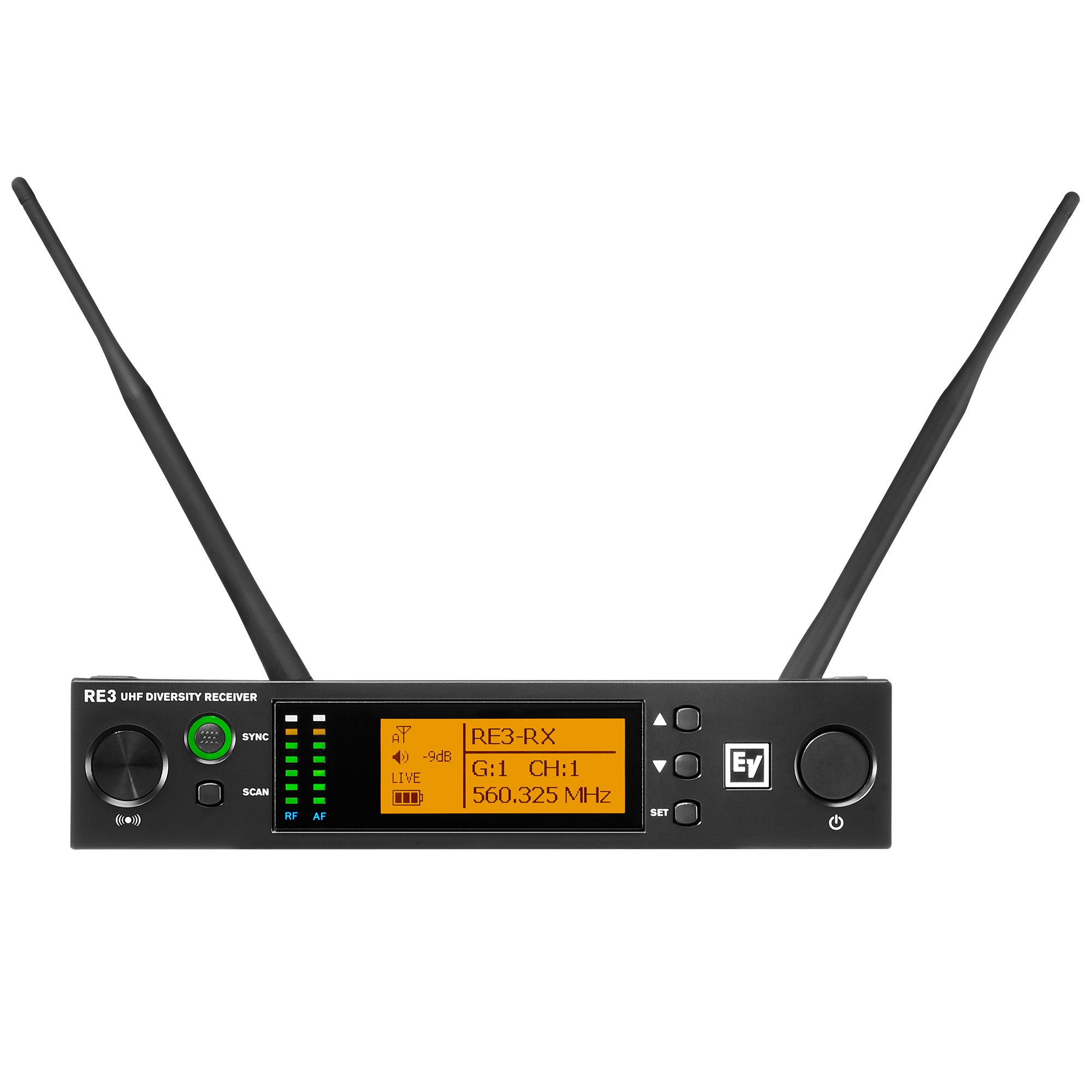

RE3-RX Diversity Receiver

  • Diversity reception minimizes dropouts
  • Frequency scanning for selecting open frequencies
  • Sync function links transmitter to receiver for easy setup
  • Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
  • Easy-to-read LCD display

Included Accessories

  • Microphone stand adapter
  • Two receiver antennas
  • Universal power supply
  • Two AA batteries
  • Receiver rack mounting hardware
  • Owner’s manual
  • Documentation packet
  • Declaration of conformity

More +

Product Specs

RE3-RX receiver
Frequency Oscillation Mode Phase-locked loop (PLL)
Carrier Frequency Range 470 - 865 MHz
(tuning bandwidth is band dependent)
Frequency Ranges 5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
Sync Frequency Ultrasonic 40 kHz
Diversity Antenna diversity
Bandwidth 36MHz
Signal/Noise Ratio >100dB(A)
Total Harmonic Distortion (Thd) <0.6%@1kHz
Receiving Sensitivity -81dBm for -12dB SINAD
Frequency Response 63Hz~16kHz±2dB (BPT)
51Hz~1tkHz±2dB (HHT)
Antenna Type Detachable ½ wave with BNC connector
Antenna Booster Power DC12 - 15V/100mA
Function Display By LCD
Contents Of Display Group, channel, frequency, antenna A/B, transmitter battery
level, transmitter status (mute, live, or no sync), output level
attenuation, AF indication, RF indication, key lock indicator.
Control Functions Power, scan, frequency, group, channel, squelch, TX
sensitivity, TX attenuation, TX RF power, TX auto off, TX key
lock, TX display info, TX sync configuration, RX output
volume, RX output level, RX antenna booster power, RX key
lock, RX display contrast, RX display brightness, RX system
reset.
Sync Data Options Frequency, group, channel, sensitivity level, attenuation
status, RF power, auto off status, key lock status, transmitter
display (freq or Gp/Ch)
Audio Frequency Output Level ¼” (6.3mm) Phone Jack?-10dBV
XLR Jack: -4dBV (Line) & -24dBV (MIC)
Audio Frequency Output
Impedance 240? (unbalanced)
1400? (balanced)
Squelch and noise muting Noise muting and tone code locking

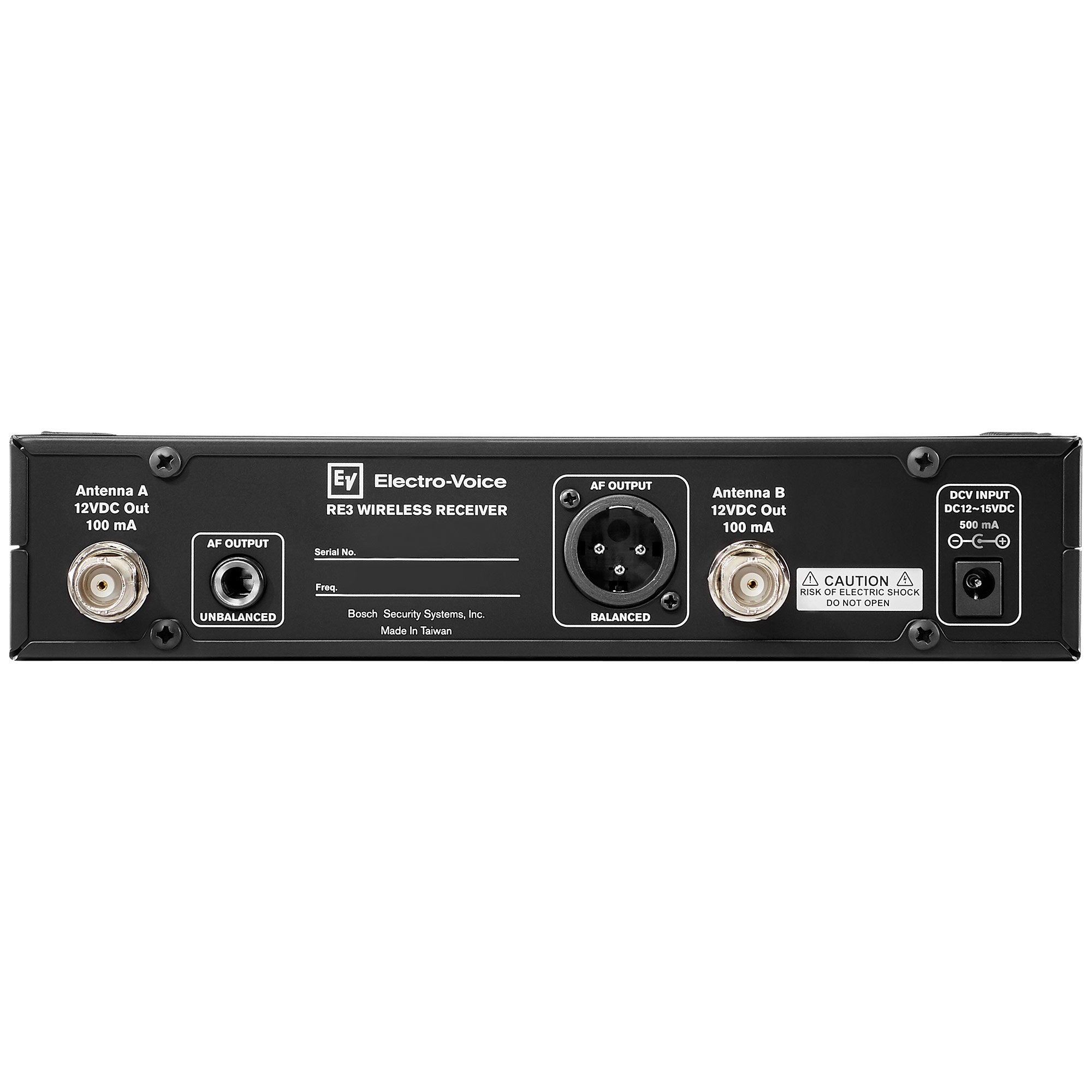

Output Ports 1 x balanced XLRM jack
1 x unbalanced ¼” TS (6.3mm) jack
Power Supply DC12~15V/500mA
Finish Black polyurethane paint
Dimensions Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm)
RE3-HHT handheld transmitter
Frequency Oscillation Mode Phase-locked loop (PLL)
Frequency Ranges 5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
Sync Frequency Ultrasonic
RF Power Output 5L (488-524MHz): Low 10mW / High 50mW
5H (560-596MHz): Low 10mW / High 50mW
Display By LCD + LED
Function Controls Power, mute, group, channel, frequency, sensitivity
adjustment, RF power, auto off, key lock.
RF Stability <±10kHz@Fc
Modulation Frequency Shift Wideband FM ±48kHz deviation
Harmonic Radiation <-50dBc

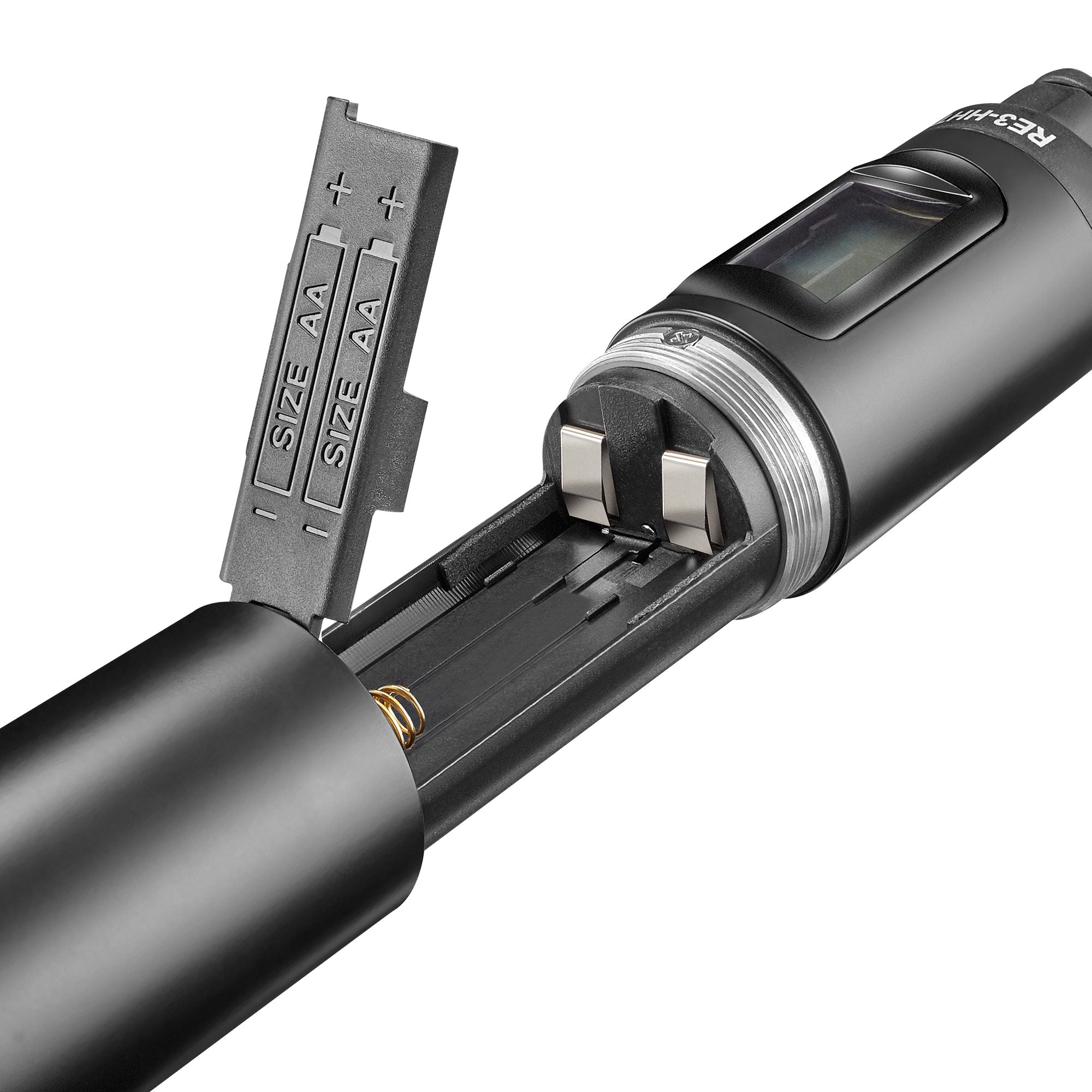

Battery 2 x AA alkaline battery or NiMH rechargeable battery
Charging Contacts Yes
Microphone Head Coupling 1.25” diameter, 28 UN-2A thread pitch
Microphone Electrical Contact 3-ring/3-pin
Finish Black polyurethane paint
Dimensions (without head) Height: 7.52 inch (191mm)
Width at threaded end: 1.46 inch (37mm)
Width at control cover: 0.856 inch (22mm)
