Electro-Voice RE3-RX Half Rack Wireless Receiver (5L Band / 488 - 524 MHz)

  • Dale #:

    EVI-RE3RX5L
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR and unbalanced ¼” TRS outputs. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Setup is quick and simple using th... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR and unbalanced ¼” TRS outputs.

The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

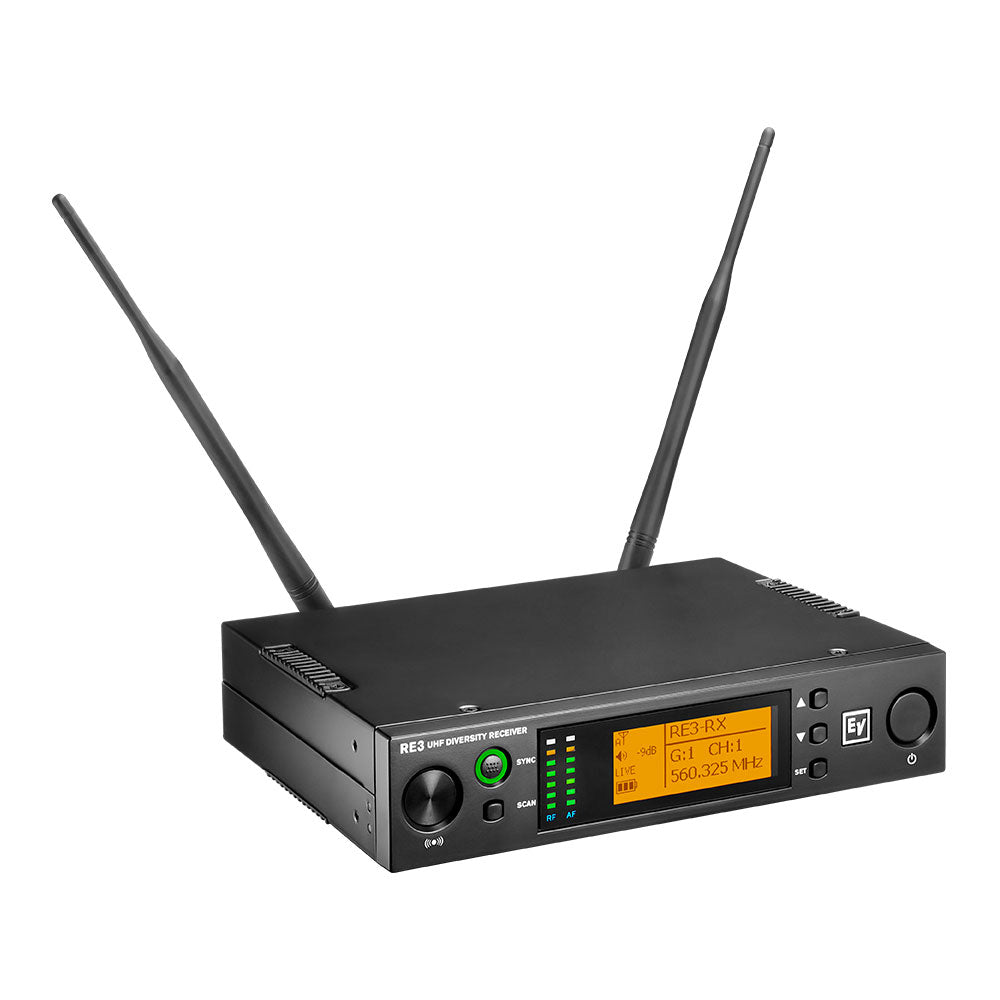

The RE3-RX is a professional rack-mountable, ½ space diversity receiver. Designed to function as the control center for an RE3 wireless set, it features frequency scanning and synchronizing, as well as full transmitter control settings which synchronize to a mated transmitter.

The diversity reception technology minimizes the chances of signal dropouts by providing two separate antenna locations which are electronically chosen moment-by-moment based on signal strength and stability.

The easy-to-use frequency scanning function simplifies locating and tuning to a clear operating frequency. The sync function wirelessly synchronizes all operating parameters to the mated transmitter.

The wide tuning bandwidth provides access to a wide range of frequencies, selectable in 25kHz steps for trouble-free operation of single and multi-channel systems.

The easy-to-read LCD display provides vivid viewing of all menus and operating parameters.

Features:

  • Diversity reception minimizes dropouts
  • Frequency scanning for selecting open frequencies
  • Sync function links transmitter to receiver for easy setup
  • Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
  • Easy-to-read LCD display

More +

Product Specs

RE3-RX receiver
Frequency Oscillation Mode Phase-locked loop (PLL)
Carrier Frequency Range 470 - 865 MHz
(tuning bandwidth is band dependent)
Frequency Ranges 5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
Sync Frequency Ultrasonic 40 kHz
Diversity Antenna diversity
Bandwidth 36MHz
Signal/Noise Ratio >100dB(A)
Total Harmonic Distortion (Thd) <0.6%@1kHz
Receiving Sensitivity -81dBm for -12dB SINAD
Frequency Response 63Hz~16kHz±2dB (BPT)
51Hz~1tkHz±2dB (HHT)
Antenna Type Detachable ½ wave with BNC connector
Antenna Booster Power DC12 - 15V/100mA
Function Display By LCD
Contents Of Display Group, channel, frequency, antenna A/B, transmitter battery
level, transmitter status (mute, live, or no sync), output level
attenuation, AF indication, RF indication, key lock indicator.
Control Functions Power, scan, frequency, group, channel, squelch, TX
sensitivity, TX attenuation, TX RF power, TX auto off, TX key
lock, TX display info, TX sync configuration, RX output
volume, RX output level, RX antenna booster power, RX key
lock, RX display contrast, RX display brightness, RX system
reset.
Sync Data Options Frequency, group, channel, sensitivity level, attenuation
status, RF power, auto off status, key lock status, transmitter
display (freq or Gp/Ch)
Audio Frequency Output Level ¼” (6.3mm) Phone Jack?-10dBV
XLR Jack: -4dBV (Line) & -24dBV (MIC)
Audio Frequency Output
Impedance 240? (unbalanced)
1400? (balanced)
Squelch and noise muting Noise muting and tone code locking

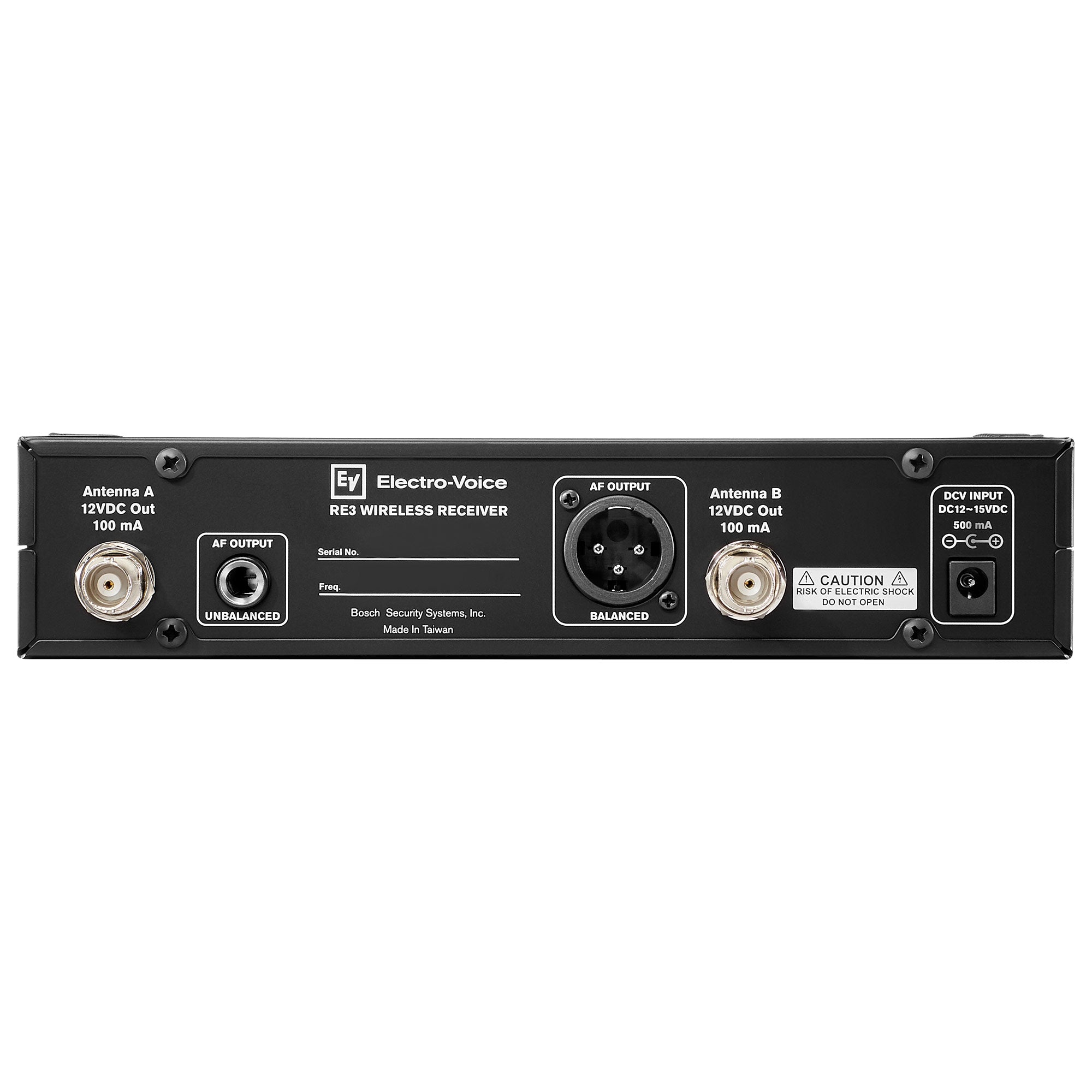

Output Ports 1 x balanced XLRM jack
1 x unbalanced ¼” TS (6.3mm) jack
Power Supply DC12~15V/500mA
Finish Black polyurethane paint
Dimensions Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm)
