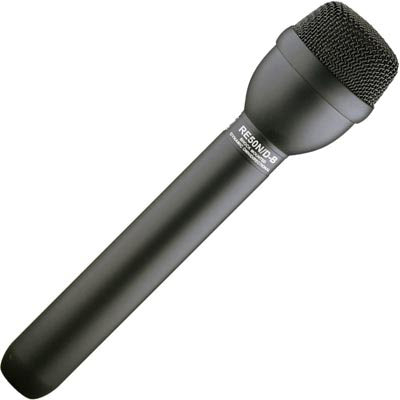

Electro-Voice RE50N/D-B Omnidirectional Dynamic ENG Microphone
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The RE50N/D-B delivers all of the outstanding performance of the industry-standard RE50B with the added benefit of a high-output neodymium capsule magnet. A top choice in broadcast television production where the additional gain of a neodymium capsule is well-suited for particular camera or recording device inputs.
Features:
- Omnidirectional dynamic characteristic
- Higher output neodymium magnet structure
- Extremely low handling noise
- Four-stage filter blocks wind noise and pops
- Withstands high humidity, temperature extremes, and corrosive salt air
| Generation Element | Dynamic |
| Frequency Response | 80 Hz to 13,000 Hz (see chart) |
| Polar Pattern | Omnidirectional |
| Impedance | 150 ohms balanced |
| Sensitivity, Open CircuitVoltage, 1 kHz | 2.2mV/Pascal |
| Diaphragm Material | Acoustalloy |
| Magnetic Circuit | N/DYM magnet in a nonwelded circuit |
| Microphone Connector | 3-Pin, XLR-type, PIN 2 positive |
| Polarity | Pin 2 positive, referenced to pin 3 with positive pressure on diaphragm |
| Case Material | Aluminum |
| Finish | Semi-Gloss inch Camera inch Black |
| Accessories Included | 323S Stand Adapter (Black) Zippered Vinyl Carrying Pouch |
| Dimensions | Length = 197mm (7.75 inch ) Max. Diameter = 49mm (1.94 inch ) Shank Diameter = 25mm (1.0 inch ) |
| Net Weight | 269 grams (9.5 oz.) |
| Shipping Weight | 539 grams (19 oz.) |
The RE50N/D-B delivers all of the outstanding performance of the industry-standard RE50B with the added benefit of a high-output neodymium capsule magnet. A top choice in broadcast television production where the additional gain of a neodymium capsule is well-suited for particular camera or recording device inputs.
Features:
- Omnidirectional dynamic characteristic
- Higher output neodymium magnet structure
- Extremely low handling noise
- Four-stage filter blocks wind noise and pops
- Withstands high humidity, temperature extremes, and corrosive salt air
| Generation Element | Dynamic |
| Frequency Response | 80 Hz to 13,000 Hz (see chart) |
| Polar Pattern | Omnidirectional |
| Impedance | 150 ohms balanced |
| Sensitivity, Open CircuitVoltage, 1 kHz | 2.2mV/Pascal |
| Diaphragm Material | Acoustalloy |
| Magnetic Circuit | N/DYM magnet in a nonwelded circuit |
| Microphone Connector | 3-Pin, XLR-type, PIN 2 positive |
| Polarity | Pin 2 positive, referenced to pin 3 with positive pressure on diaphragm |
| Case Material | Aluminum |
| Finish | Semi-Gloss inch Camera inch Black |
| Accessories Included | 323S Stand Adapter (Black) Zippered Vinyl Carrying Pouch |
| Dimensions | Length = 197mm (7.75 inch ) Max. Diameter = 49mm (1.94 inch ) Shank Diameter = 25mm (1.0 inch ) |
| Net Weight | 269 grams (9.5 oz.) |
| Shipping Weight | 539 grams (19 oz.) |
