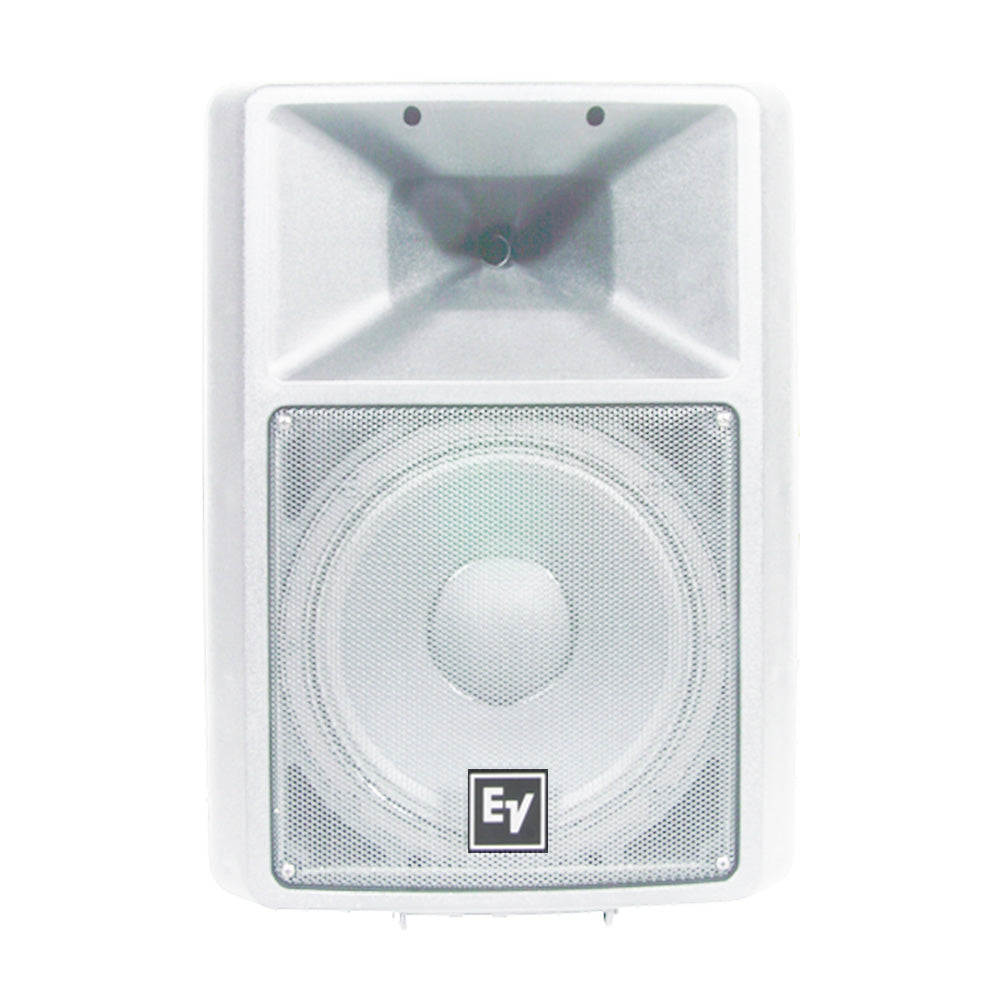

Electro-Voice SX100+E - Two-Way 12-Inch Passive Loudspeaker (White)

The Electro-Voice ® Sx100+ is a 200-watt, 12-inch two-way, high efficiency, constant-directivity portable speaker system. Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state of-the-art professional loudspeaker system. Its performance and physical design make it perfect for many applications requiring quality sound in portable and fixed environments.

The high-frequency section of the Sx100+ utilizes a molded in, 65° x 65° constant-directivity horn. This unique pattern contributes to high intelligibility, vocals sound natural yet cut through in reverberant, noisy rooms. Coverage pattern is uniform, sound quality off-axis is very well maintained, even at 45° off axis (a 90° total coverage angle).

The horn's unique, Varipath throat geometry helps driver output to the corners of the room, areas which are not described in the usual specifications of horizontal and vertical coverage angles. This results in more uniform coverage throughout, even to those parts of the audience that typically do not receive the strongest coverage.

The Sx100+'s high-frequency horn is driven by the DH3, a one-inch-throat, wide-bandwidth, titanium-diaphragm driver using a unique, convex-drive TimePathTM phasing plug structure (U.S. Patent #4,525,604) for smooth and extended high-frequency response.

Features:

• Compact, portable sound reinforcement
• Ideal for live sound, speech, DJ, AV, institutional use
• 1.25-inch DH3/2010A titanium HF compression driver
• 65º x 65º Constant-directivity Varipath horn
• High efficiency, 127 db maximum SPL
• Power handling: 200 W continuous, 800 W peak
• Ring-Mode Decoupling (RMD) for increased intelligibility
• Trapezoidal black or white copolymer enclosure
• Integral monitor stand, pole mount, rigging points
