DALE SKU # EVI-SX300E

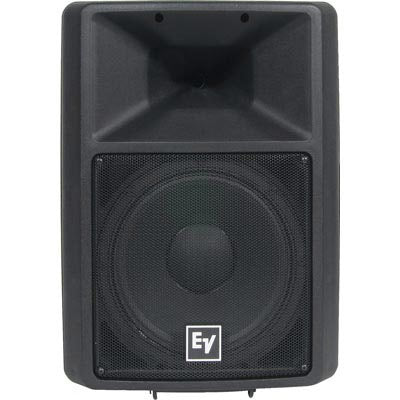

Electro-Voice Sx300E - Two-Way 12-Inch Passive Loudspeaker (Black)

Sale price$949.00 Regular price$1,249.00
Save $300.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Electro-Voice Sx300 is a 300-watt, 12-inch two-way, high-efficiency, constant-directivity compact speaker system with Ring-Mode Decoupling (RMD). Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state-of-the-art professional loudspeaker system. The high-frequency section of the Sx300 utilizes a molded-in, 65-degree x 65-degree constant-directivity horn. This unique pattern contributes to high intelligibility, vocals sound natural yet cut through in reverberant, noisy rooms. In addition, the coverage pattern is unusually uniform over its range of operation. Sound quality off axis is very well maintained, even at 45-degree off axis (a 90-degree total coverage angle), beyond the rated coverage angle. The horn's unique, Varipath throat geometry helps direct driver output to the corners of the room, this helps cover areas of the audience that typically do not recieve good coverage. High-impact polypropylene structural foam provides a stiff and extremely durable lightweight enclosure. Molded into the cabinet are an integral carrying handle and a stand socket for mounting on 1-3/8-inch stands. Rubber feet that are attatched to the bottom of the cabinet and mating sockets that are molded into the top provide a means of stacking systems. The trapezoidal-shaped cabinet, in combination with the uniform, 65-degree x 65-degree directivity characteristics, make the Sx300 ideal for use alone or in arrays.

    Features:

    • Compact, portable sound reinforcement
    • Designed for use alone or in arrays
    • Cast-frame DL12BFH woofer
    • 1.25-inch DH3/2010A titanium HF compression driver
    • 65º x 65º Constant-directivity Varipath horn
    • Ring-Mode Decoupling (RMD) for increased intelligibility
    • Power handling: 300 W continuous, 1200 W peak
    • Dual Neutrik Speakon(R) high-current connectors
    • Trapezoidal black or white polypropylene enclosure
    • Rubber feet and mating sockets for stacking
    • Integral handles, pole mount
    Frequency Range (-10 dB) 50 - 20000kHz
    Weatherized No
    Flying Yes
    Minimum Impedance
    Nominal Impedance (Passive)
    HF Transducer 1.25-inch DH3/2010A
    Speaker Type Full-Range, Mid-High, Two-Way
    Woofer Size 12inch
    Powered or Passive Passive
    Max. SPL/1m (calc)_ 131/123dB (Low Z/100V)
    Coverage (Nominal -6 dB) H 65¡ (Const.-dir. horn)
    LF Transducer 12-inch DL12BFH
    Coverage (Nominal -6 dB) V 65¡ (Const.-dir. horn)
    System Power Handling (Continuous/Program/Peak) 300/1200Watts (Long-Term/Short-Term)
    Crossover Frequency 1500Hz
    Enclosure Material Copolymer Composite
    Available Color Black or white
    Sensitivity 1 W/1 m 99dB
    Height 23.07" (586mm)
    Width 16.89" (429mm)
    Internal Crossover Yes
    Depth 12.28" (312mm)
    Weight Net 39.02lbs (17.7kg)
    Family Sx
    Chassis Size 304.8 mm
    Axial Sensitivity (SPL, 1 W @ 1 m) 99dB
    Input Connections 2 four-pin Speakon
    Directivity Index 11.1dB (+2.4/-4.1 dB)

    The Electro-Voice Sx300 is a 300-watt, 12-inch two-way, high-efficiency, constant-directivity compact speaker system with Ring-Mode Decoupling (RMD). Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state-of-the-art professional loudspeaker system. The high-frequency section of the Sx300 utilizes a molded-in, 65-degree x 65-degree constant-directivity horn. This unique pattern contributes to high intelligibility, vocals sound natural yet cut through in reverberant, noisy rooms. In addition, the coverage pattern is unusually uniform over its range of operation. Sound quality off axis is very well maintained, even at 45-degree off axis (a 90-degree total coverage angle), beyond the rated coverage angle. The horn's unique, Varipath throat geometry helps direct driver output to the corners of the room, this helps cover areas of the audience that typically do not recieve good coverage. High-impact polypropylene structural foam provides a stiff and extremely durable lightweight enclosure. Molded into the cabinet are an integral carrying handle and a stand socket for mounting on 1-3/8-inch stands. Rubber feet that are attatched to the bottom of the cabinet and mating sockets that are molded into the top provide a means of stacking systems. The trapezoidal-shaped cabinet, in combination with the uniform, 65-degree x 65-degree directivity characteristics, make the Sx300 ideal for use alone or in arrays.

    Features:

    • Compact, portable sound reinforcement
    • Designed for use alone or in arrays
    • Cast-frame DL12BFH woofer
    • 1.25-inch DH3/2010A titanium HF compression driver
    • 65º x 65º Constant-directivity Varipath horn
    • Ring-Mode Decoupling (RMD) for increased intelligibility
    • Power handling: 300 W continuous, 1200 W peak
    • Dual Neutrik Speakon(R) high-current connectors
    • Trapezoidal black or white polypropylene enclosure
    • Rubber feet and mating sockets for stacking
    • Integral handles, pole mount
    Frequency Range (-10 dB) 50 - 20000kHz
    Weatherized No
    Flying Yes
    Minimum Impedance
    Nominal Impedance (Passive)
    HF Transducer 1.25-inch DH3/2010A
    Speaker Type Full-Range, Mid-High, Two-Way
    Woofer Size 12inch
    Powered or Passive Passive
    Max. SPL/1m (calc)_ 131/123dB (Low Z/100V)
    Coverage (Nominal -6 dB) H 65¡ (Const.-dir. horn)
    LF Transducer 12-inch DL12BFH
    Coverage (Nominal -6 dB) V 65¡ (Const.-dir. horn)
    System Power Handling (Continuous/Program/Peak) 300/1200Watts (Long-Term/Short-Term)
    Crossover Frequency 1500Hz
    Enclosure Material Copolymer Composite
    Available Color Black or white
    Sensitivity 1 W/1 m 99dB
    Height 23.07" (586mm)
    Width 16.89" (429mm)
    Internal Crossover Yes
    Depth 12.28" (312mm)
    Weight Net 39.02lbs (17.7kg)
    Family Sx
    Chassis Size 304.8 mm
    Axial Sensitivity (SPL, 1 W @ 1 m) 99dB
    Input Connections 2 four-pin Speakon
    Directivity Index 11.1dB (+2.4/-4.1 dB)
