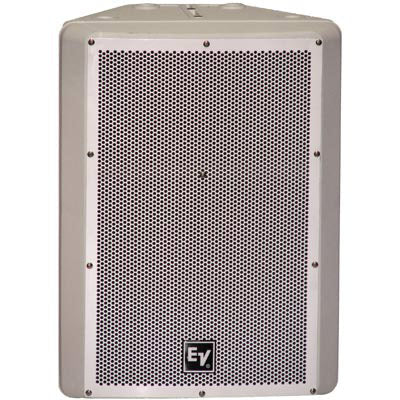

Electro-Voice SX300PIX-W 300-Watt 70/100V 12 Inch Passive 2-Way Indoor/Outdoor Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Sx300PIX is a compact, two-way, 12-inch, full-range system.
Features:
- Dual Neutrik Speakon high-current connectors
- Full-faced, black, powder-coated, stainless steel grille, backed by foam weather shield for a smooth appearance and weather resistance
- 70.7/100-volt, 100-watt transformer with selectable taps at 50 watts, 70 watts, 100 watts, 140 watts and 200 watts
- Suspension points accommodate optional Mb100 set of three forged eyebolts and Mb200 wall and ceiling brackets
- Mb300 horizontal array kits are available for side-by-side arraying of two systems (requires one Mb200 wall/ceiling bracket per speaker).
It features a built-in 65 degree x 65 degree Constant Directivity, high-frequency horn, which provides excellent pattern control and better projection than typical compact speakers with 90 deg. horns. The Sx300PIX's black, lightweight, polypropylene enclosure is extremely rugged and durable.
| Frequency Response (-10dB) | 50 - 20000 Hz |
| Sensitivity 1W/1m | 99 dB |
| Max. SPL / 1m (calc) | 131 dB |
| Coverage (nominal -6dB) H¡ | 65 ¡ |
| Coverage (nominal -6dB) V¡ | 65 ¡ |
| LF Transducer | DL12BFH |
| HF Transducer | DH2010 |
| Crossover Frequency | 1500 Hz |
| Nominal Impedance (Passive) | 8 Ohms |
| Minimum Impedance | 6 Ohms |
| Color | Black,white |
| Directivity Index | 11.1 dB |
| Flying | Yes |
| Input Connections | Four-pin Speakon (2) |
| Outdoor | yes |
| Transformer | Yes |
| Chassis Size | 12 inches |
| Internal Crossover | Yes |
| Speaker Type | Fullrange, Mid-High, Two-Way |
The Sx300PIX is a compact, two-way, 12-inch, full-range system.
Features:
- Dual Neutrik Speakon high-current connectors
- Full-faced, black, powder-coated, stainless steel grille, backed by foam weather shield for a smooth appearance and weather resistance
- 70.7/100-volt, 100-watt transformer with selectable taps at 50 watts, 70 watts, 100 watts, 140 watts and 200 watts
- Suspension points accommodate optional Mb100 set of three forged eyebolts and Mb200 wall and ceiling brackets
- Mb300 horizontal array kits are available for side-by-side arraying of two systems (requires one Mb200 wall/ceiling bracket per speaker).
It features a built-in 65 degree x 65 degree Constant Directivity, high-frequency horn, which provides excellent pattern control and better projection than typical compact speakers with 90 deg. horns. The Sx300PIX's black, lightweight, polypropylene enclosure is extremely rugged and durable.
| Frequency Response (-10dB) | 50 - 20000 Hz |
| Sensitivity 1W/1m | 99 dB |
| Max. SPL / 1m (calc) | 131 dB |
| Coverage (nominal -6dB) H¡ | 65 ¡ |
| Coverage (nominal -6dB) V¡ | 65 ¡ |
| LF Transducer | DL12BFH |
| HF Transducer | DH2010 |
| Crossover Frequency | 1500 Hz |
| Nominal Impedance (Passive) | 8 Ohms |
| Minimum Impedance | 6 Ohms |
| Color | Black,white |
| Directivity Index | 11.1 dB |
| Flying | Yes |
| Input Connections | Four-pin Speakon (2) |
| Outdoor | yes |
| Transformer | Yes |
| Chassis Size | 12 inches |
| Internal Crossover | Yes |
| Speaker Type | Fullrange, Mid-High, Two-Way |
