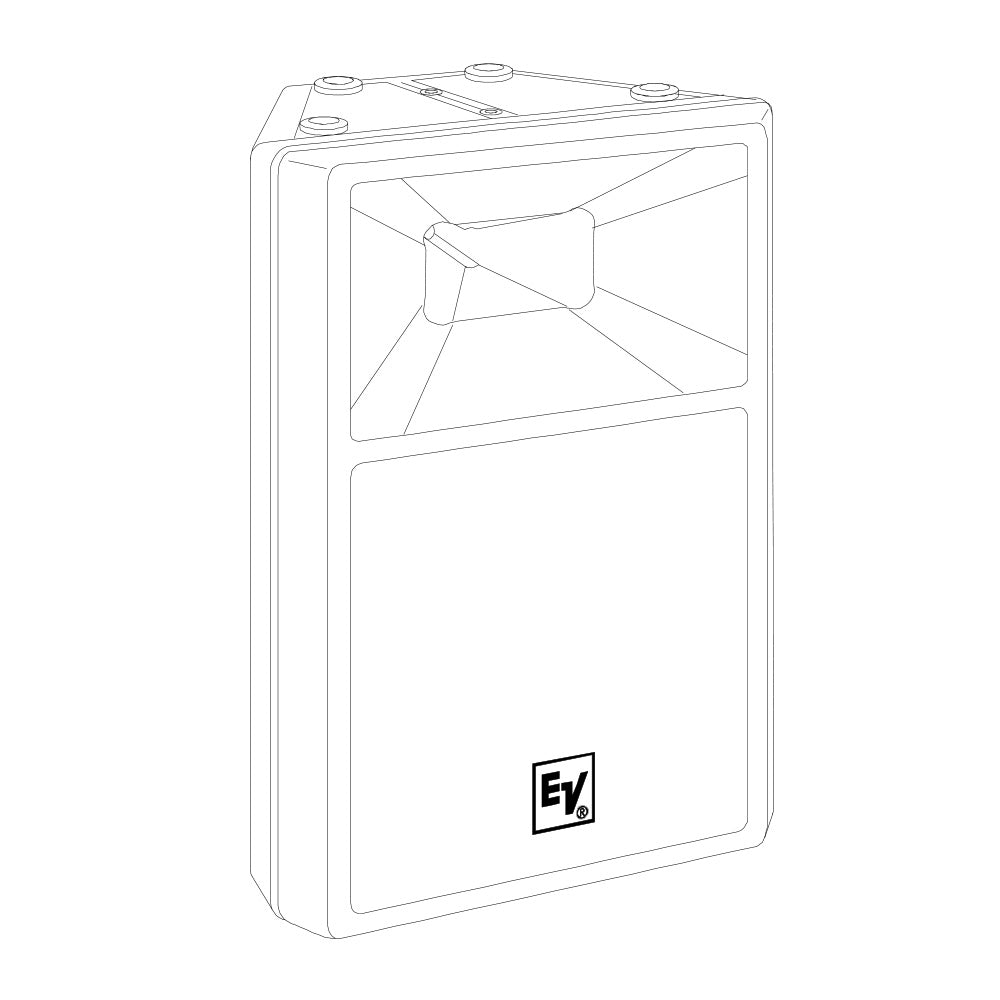

Electro-Voice Sx300WE - Two-Way 12-Inch Passive Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description
The Electro-Voice Sx300 is a 300-watt, 12-inch two-way, high-efficiency, constant-directivity compact speaker system with Ring-Mode Decoupling (RMD). Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state-of-the-art professional loudspeaker system. The high-frequency section of the Sx300 utilizes a molded-in, 65-degree x 65-degree constant-directivity horn. This unique pattern contributes to high intelligibility, vocals sound natural yet cut through in reverberant, noisy rooms. In addition, the coverage pattern is unusually uniform over its range of operation. Sound quality off axis is very well maintained, even at 45-degree off axis (a 90-degree total coverage angle), beyond the rated coverage angle. The horn's unique, Varipath throat geometry helps direct driver output to the corners of the room, this helps cover areas of the audience that typically do not recieve good coverage. High-impact polypropylene structural foam provides a stiff and extremely durable lightweight enclosure. Molded into the cabinet are an integral carrying handle and a stand socket for mounting on 1-3/8-inch stands. Rubber feet that are attatched to the bottom of the cabinet and mating sockets that are molded into the top provide a means of stacking systems. The trapezoidal-shaped cabinet, in combination with the uniform, 65-degree x 65-degree directivity characteristics, make the Sx300 ideal for use alone or in arrays.
Features:
- Compact, portable sound reinforcement
- Designed for use alone or in arrays
- Cast-frame DL12BFH woofer
- 1.25-inch DH3/2010A titanium HF compression driver
- 65º x 65º Constant-directivity Varipath horn
- Ring-Mode Decoupling (RMD) for increased intelligibility
- Power handling: 300 W continuous, 1200 W peak
- Dual Neutrik Speakon(R) high-current connectors
- Trapezoidal black or white polypropylene enclosure
- Rubber feet and mating sockets for stacking
- Integral handles, pole mount
Frequency Range (-10 dB) | 50 - 20000kHz |
Weatherized | No |
Flying | Yes |
Minimum Impedance | 5ë© |
Nominal Impedance (Passive) | 8ë© |
HF Transducer | 1.25-inch DH3/2010A |
Speaker Type | Full-Range, Mid-High, Two-Way |
Woofer Size | 12inch |
Powered or Passive | Passive |
Max. SPL/1m (calc)å_ | 131/123dB (Low Z/100V) |
Coverage (Nominal -6 dB) H | 65å¡ (Const.-dir. horn) |
LF Transducer | 12-inch DL12BFH |
Coverage (Nominal -6 dB) V | 65å¡ (Const.-dir. horn) |
System Power Handling (Continuous/Program/Peak) | 300/1200Watts (Long-Term/Short-Term) |
Crossover Frequency | 1500Hz |
Enclosure Material | Copolymer Composite |
Available Color | Black or white |
Sensitivity 1 W/1 m | 99dB |
Height | 23.07" (586mm) |
Width | 16.89" (429mm) |
Internal Crossover | Yes |
Depth | 12.28" (312mm) |
Weight Net | 39.02lbs (17.7kg) |
Family | Sx |
Chassis Size | 304.8 mm |
Axial Sensitivity (SPL, 1 W @ 1 m) | 99dB |
Input Connections | 2 four-pin Speakon |
Directivity Index | 11.1dB (+2.4/-4.1 dB) |
