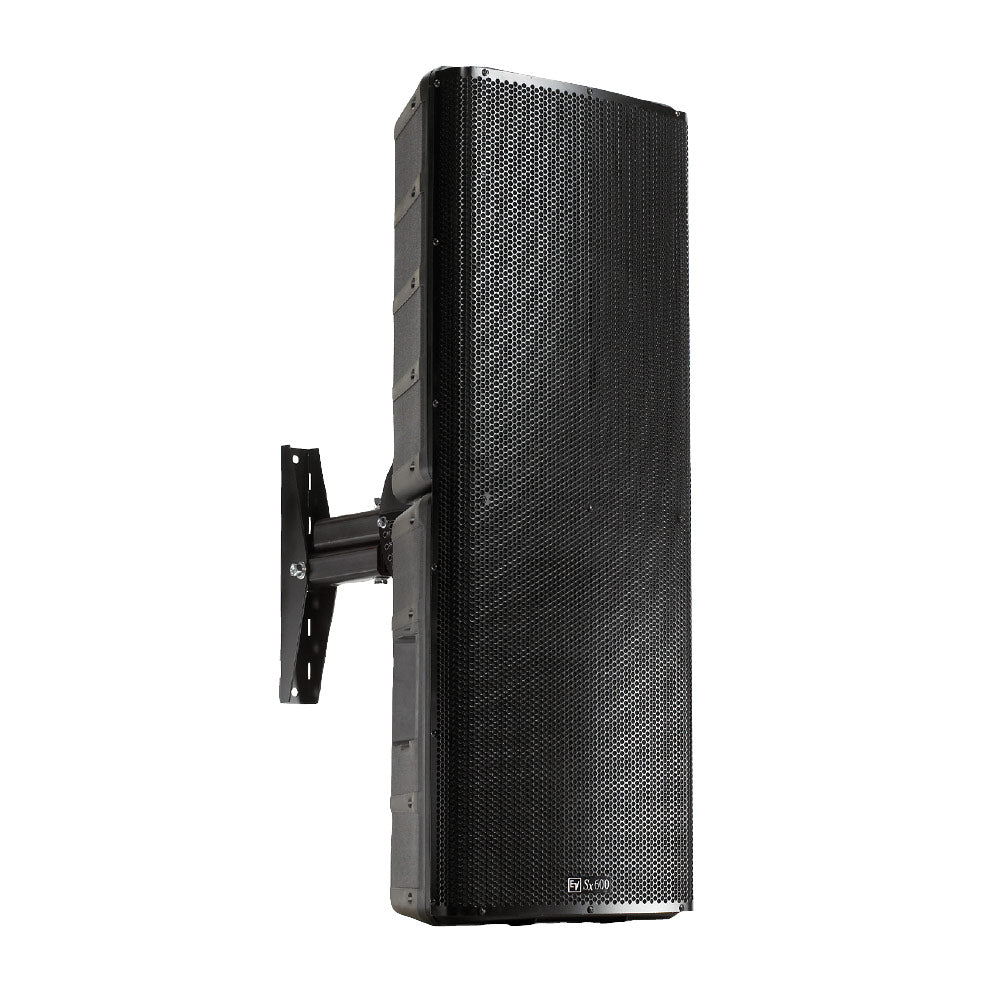

Electro-Voice SX600PIX- High-Output Two-Way Dual 12-Inch Loudspeaker with Transformer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Sx600 is a high-output, indoor/outdoor speaker system that features a dual-element vertical line array for clarity and intelligibility. The Sx600 handles 600-watts (2400 watts peak), and can be vertically mounted.
Features:
- Very High Sensitivity, 105 dB 1 W/1 m (139 dB Peak SPL)
- Easy, Versatile, SuperSAM Mounting System included
- All Weather IEC 529 IP 44 / Mil Spec 810 Environmental Specs
- Available 600 Watt Internal Transformer (Sx600PIX)
- EN54-24 Type B certification 1438-CPD-0300
- Waterproof connection by SJO cable with gland nut
| Frequency Range (-10 dB) | 70 - 16000kHz |
| Weatherized | Yes |
| Flying | Yes |
| Minimum Impedance | 3.5½ |
| Nominal Impedance (Passive) | 4½ |
| HF Transducer | 2-inch DH2T |
| Speaker Type | Full-Range, Two-Way |
| MF Transducer | ND12A |
| Woofer Size | 12inch |
| Max. SPL/1m (calc)_ | 139dB |
| Coverage (Nominal -6 dB) H | 65¡ |
| LF Transducer | One 12-inch DL12BFH (LF), one 12-inch ND12 (MB) |
| Coverage (Nominal -6 dB) V | 65¡ |
| Power Rating | 2400W |
| System Power Handling (Continuous/Program/Peak) | 600//2400Watts (Const.-dir. horn) |
| Crossover Frequency | 1800Hz |
| Enclosure Material | High Density Polymer (Composite) |
| Available Color | Black |
| Sensitivity 1 W/1 m | 105dB |
| Height | 45.79" (1163mm) |
| Recommended High-Pass Frequency | 90 @Q=1.6Hz |
| Width | 16.89" (429mm) |
| Depth | 12.28" (312mm) |
| Internal Crossover | Yes |
| Weight Net | 80.03lbs (36.3kg) |
| Family | Sx |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 105dB |
| Passive Power Handling | 2400W peak |
| Input Connections | SJO cable/gland nut |
| Directivity Index | 11.3dB |
| Chassis Size | 304.8 mm |
The Sx600 is a high-output, indoor/outdoor speaker system that features a dual-element vertical line array for clarity and intelligibility. The Sx600 handles 600-watts (2400 watts peak), and can be vertically mounted.
Features:
- Very High Sensitivity, 105 dB 1 W/1 m (139 dB Peak SPL)
- Easy, Versatile, SuperSAM Mounting System included
- All Weather IEC 529 IP 44 / Mil Spec 810 Environmental Specs
- Available 600 Watt Internal Transformer (Sx600PIX)
- EN54-24 Type B certification 1438-CPD-0300
- Waterproof connection by SJO cable with gland nut
| Frequency Range (-10 dB) | 70 - 16000kHz |
| Weatherized | Yes |
| Flying | Yes |
| Minimum Impedance | 3.5½ |
| Nominal Impedance (Passive) | 4½ |
| HF Transducer | 2-inch DH2T |
| Speaker Type | Full-Range, Two-Way |
| MF Transducer | ND12A |
| Woofer Size | 12inch |
| Max. SPL/1m (calc)_ | 139dB |
| Coverage (Nominal -6 dB) H | 65¡ |
| LF Transducer | One 12-inch DL12BFH (LF), one 12-inch ND12 (MB) |
| Coverage (Nominal -6 dB) V | 65¡ |
| Power Rating | 2400W |
| System Power Handling (Continuous/Program/Peak) | 600//2400Watts (Const.-dir. horn) |
| Crossover Frequency | 1800Hz |
| Enclosure Material | High Density Polymer (Composite) |
| Available Color | Black |
| Sensitivity 1 W/1 m | 105dB |
| Height | 45.79" (1163mm) |
| Recommended High-Pass Frequency | 90 @Q=1.6Hz |
| Width | 16.89" (429mm) |
| Depth | 12.28" (312mm) |
| Internal Crossover | Yes |
| Weight Net | 80.03lbs (36.3kg) |
| Family | Sx |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 105dB |
| Passive Power Handling | 2400W peak |
| Input Connections | SJO cable/gland nut |
| Directivity Index | 11.3dB |
| Chassis Size | 304.8 mm |
