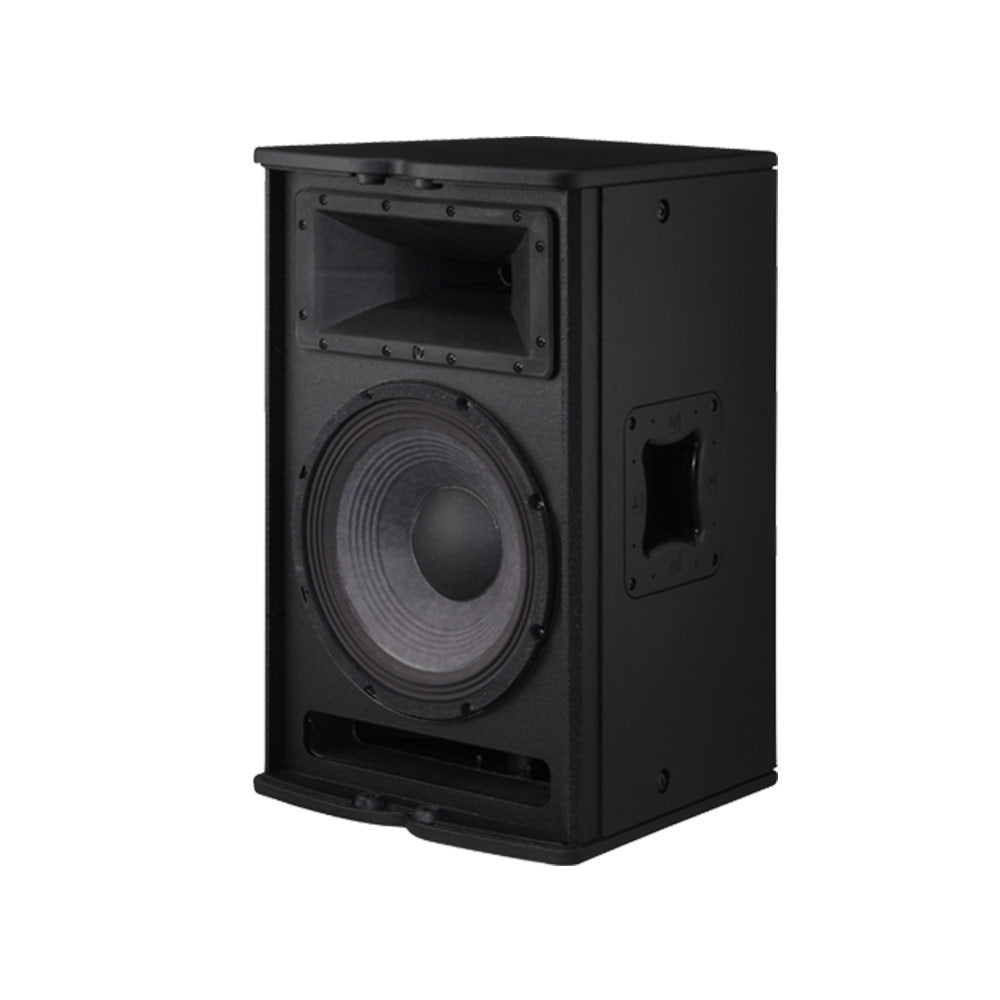

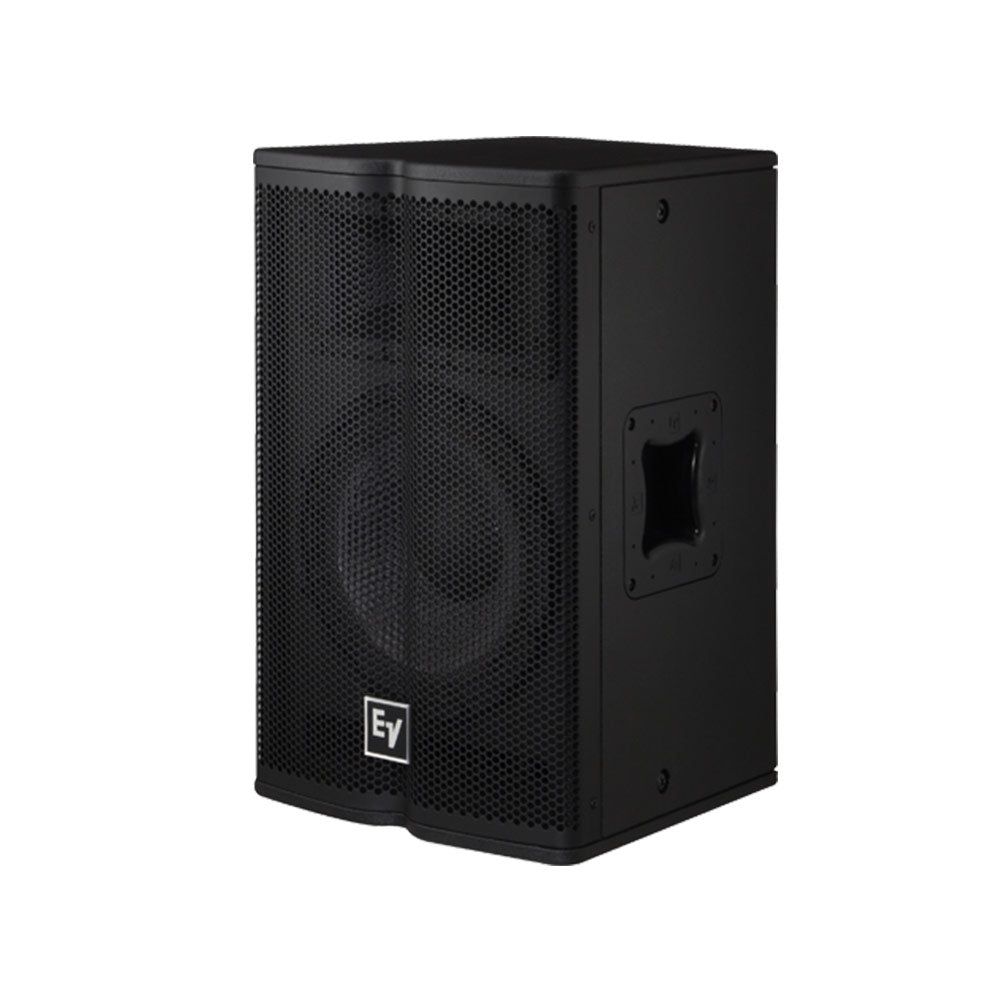

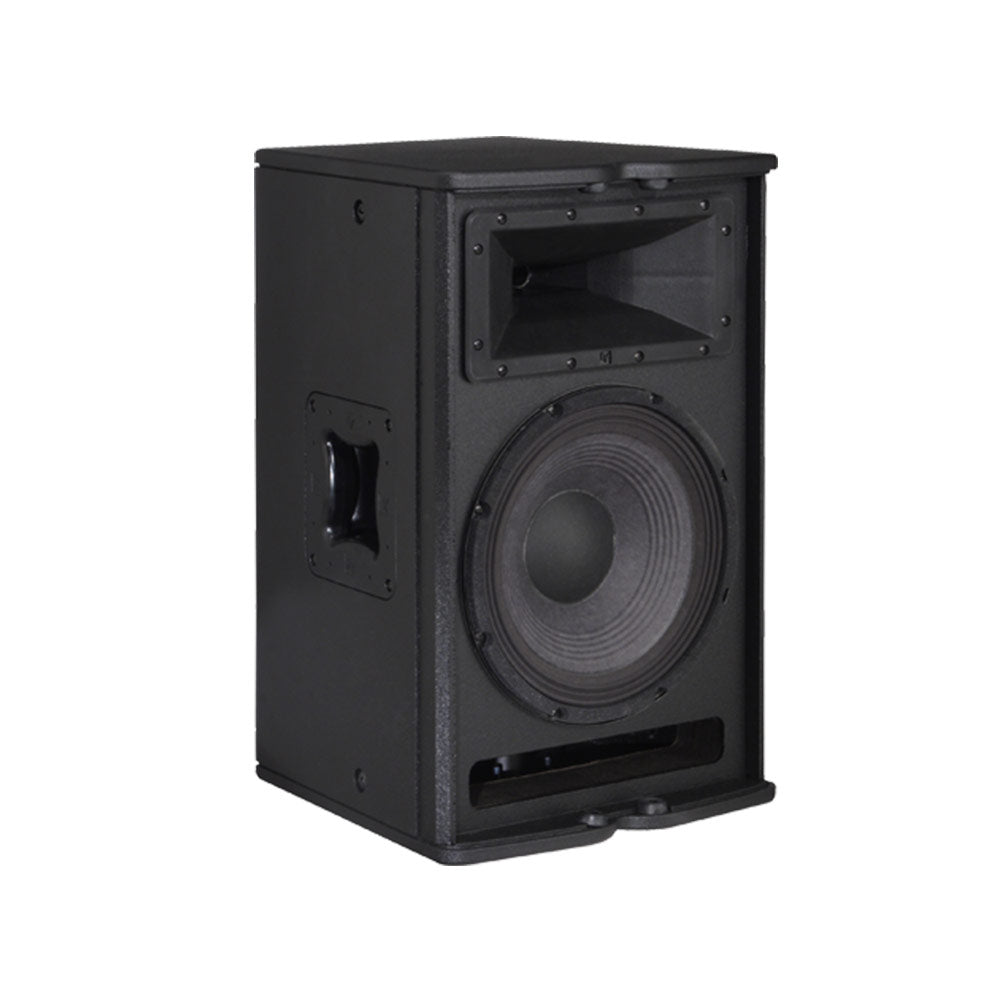

Electro-Voice TX1122 - Two-Way Passive 12-Inch Loudspeaker

The TX1122 from Electro-Voice a high power, 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a lightweight package. The TX1122 utilizes the DH3, a high output 1.25 inch titanium compression driver, coupled to a Constant Directivity 90° x 50° horn. This combination results in a smooth response to 20 kHz and excellent pattern control in short to medium throw applications. The SMX2120 12 inch woofer has an FEA optimized magnet structure for very low distortion and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range, extended HF, and a protection circuit for long term reliability.

The TX1122 has a variety of features that make it equally suited for portable or fixed installation applications. The trapezoidal enclosure is constructed out of a combination of plywood and MDF, and coated with EVCoat for maximum strength while still remaining lightweight. The unique grille design is very strong, dent resistant, and features a rotatable logo. Four way handles allow for gripping the TX1122 in a variety of positions, a pole mount allows for placement on a subwoofer or a tripod. Six (6) M10 threaded points allow a single TX1122 to be suspended in a various positions. The recessed input panel with dual NL4 connectors keeps the connectors hidden while allowing the TX1122 to be used with the TX1181 subwoofer for extended sub bass on a single amplifier channel, with no additional processing needed.

Features:

• High-quality sound at high levels
• Excellent pattern control for short-to-medium throw
• Low-distortion SMX2120 woofer with fully symmetric drive
• 1.25-inch DH3/2010A titanium HF compression driver
• Constant-directivity 90º H x 50º V horn
• Advanced 4th-order crossover with HF protection
• 97 dB sensitivity, 130 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• Lightweight trapezoidal plywood/MDF enclosure
• Pole mount for use with subwoofer or stand
• Six M10 threaded suspension points
• Black EVCoat finish
