Electro-Voice TX2181 - Dual 18-Inch Passive Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description

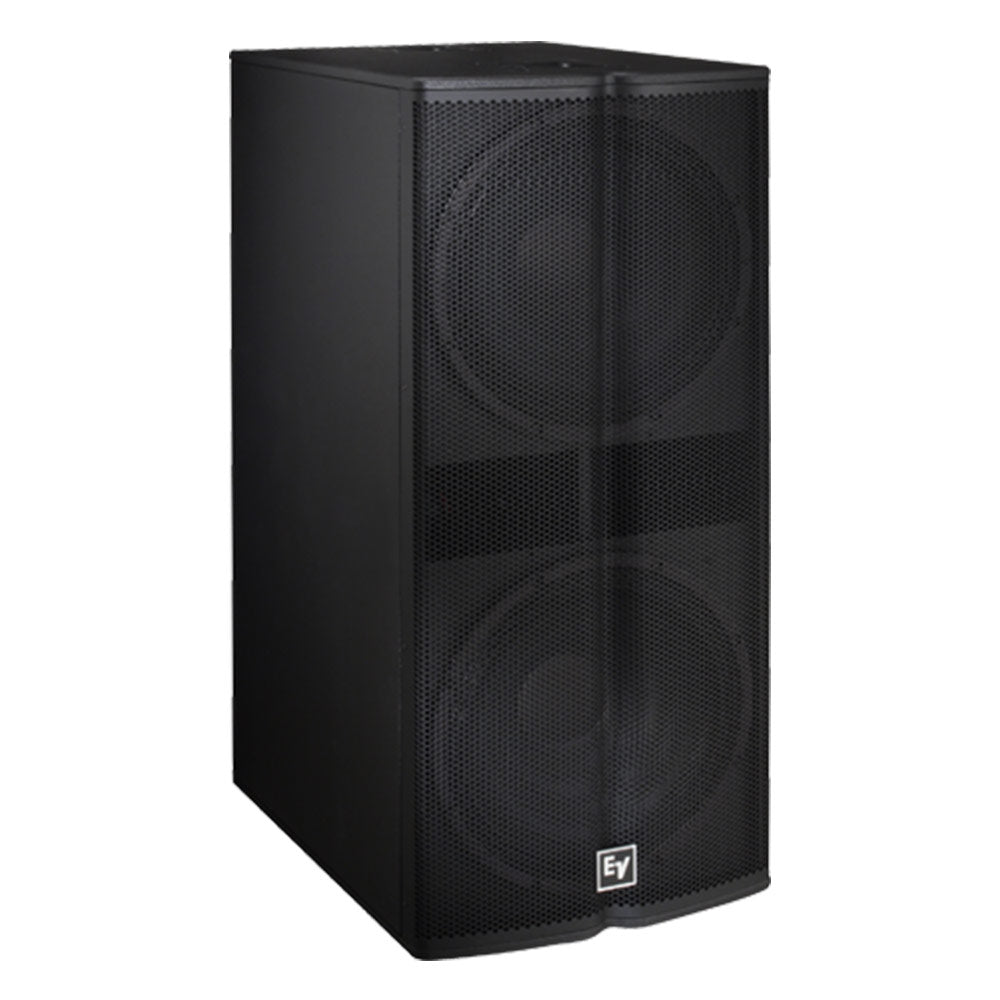

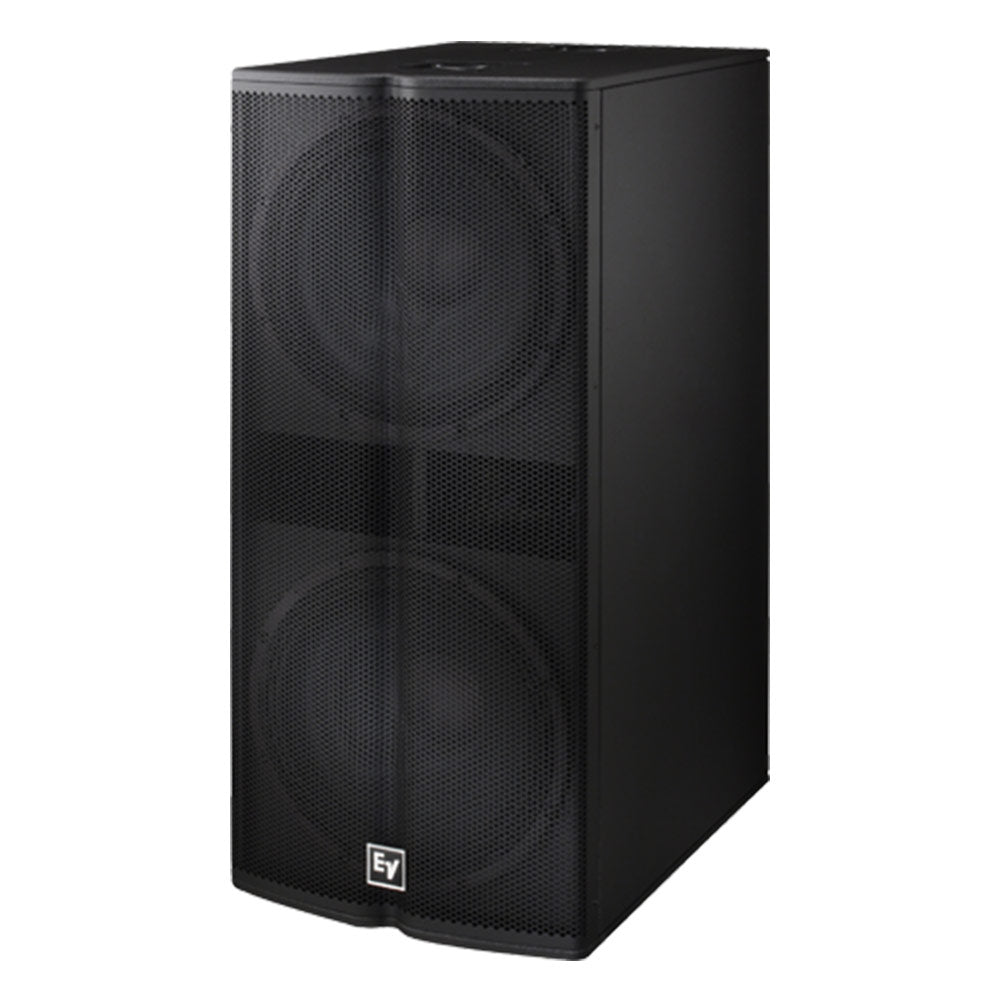

The Electro-Voice TX2181 is a dual subwoofer system that is designed to add high-output, high-impact bass response to the TX2152 loudspeaker system. The TX2181 can move tremendous amounts of air, thanks to dual EVS-18S high excursion woofers, a well braced enclosure, and a low distortion port design. The EVS-18S woofers feature 4-layer voice coils and cast frames for high power handling and maximum durability. The TX2181 is designed to be used with a processor and a dedicated amplifier channel in a biamp configuration.

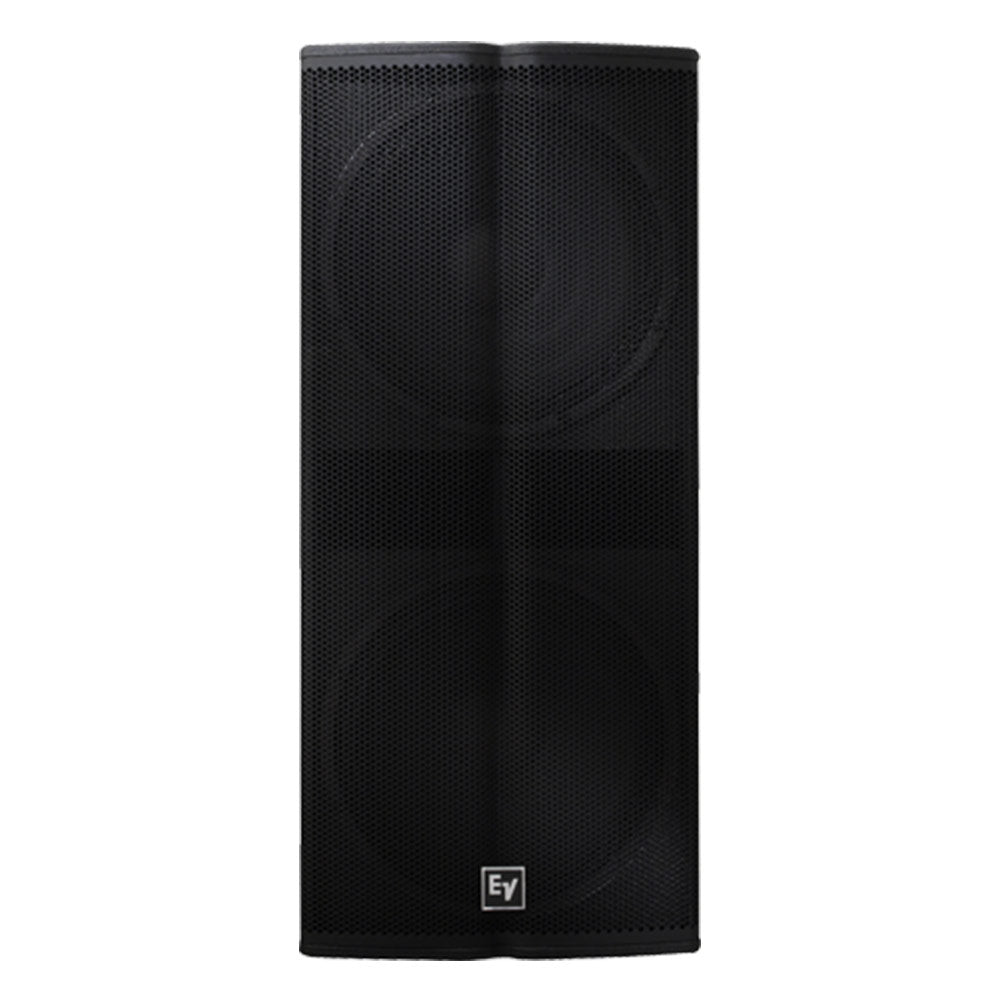

The TX2181 has many features that make it a versatile subwoofer system. The enclosure is constructed out of a combination of MDF and plywood, and coated with EVCoatTM for maximum strength and durability. The unique grille design is very strong, dent resistant, and features a rotatable logo. Four way handles allow for gripping the TX2181 in a variety of positions. The recessed input panel with dual NL4 connectors keeps the connectors hidden and allows for closer placement to a wall or other boundary. The TX2181 is the same width and height as the TX2152, providing a single column appearance when stacked, and uses the minimum amount of space when stored or transported.
Features:
- High-power LF supplement to TX2152
- Low-distortion port design

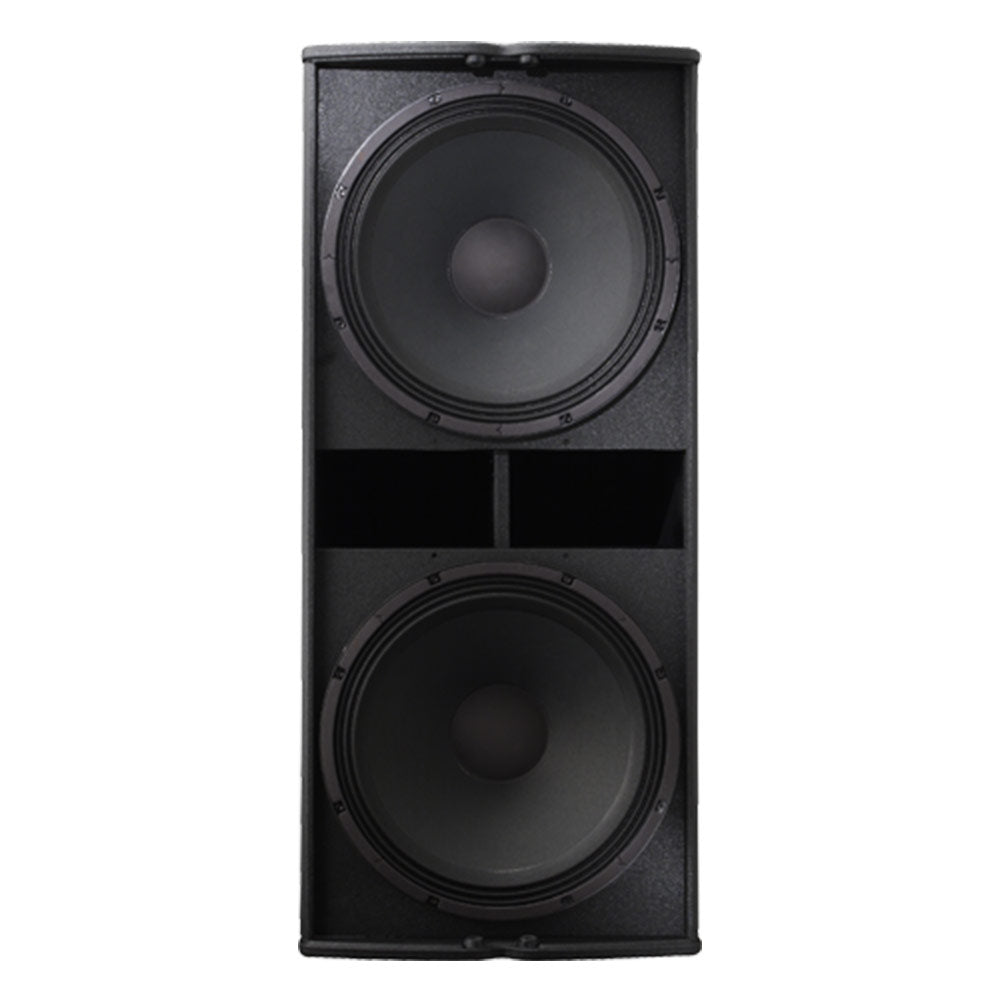

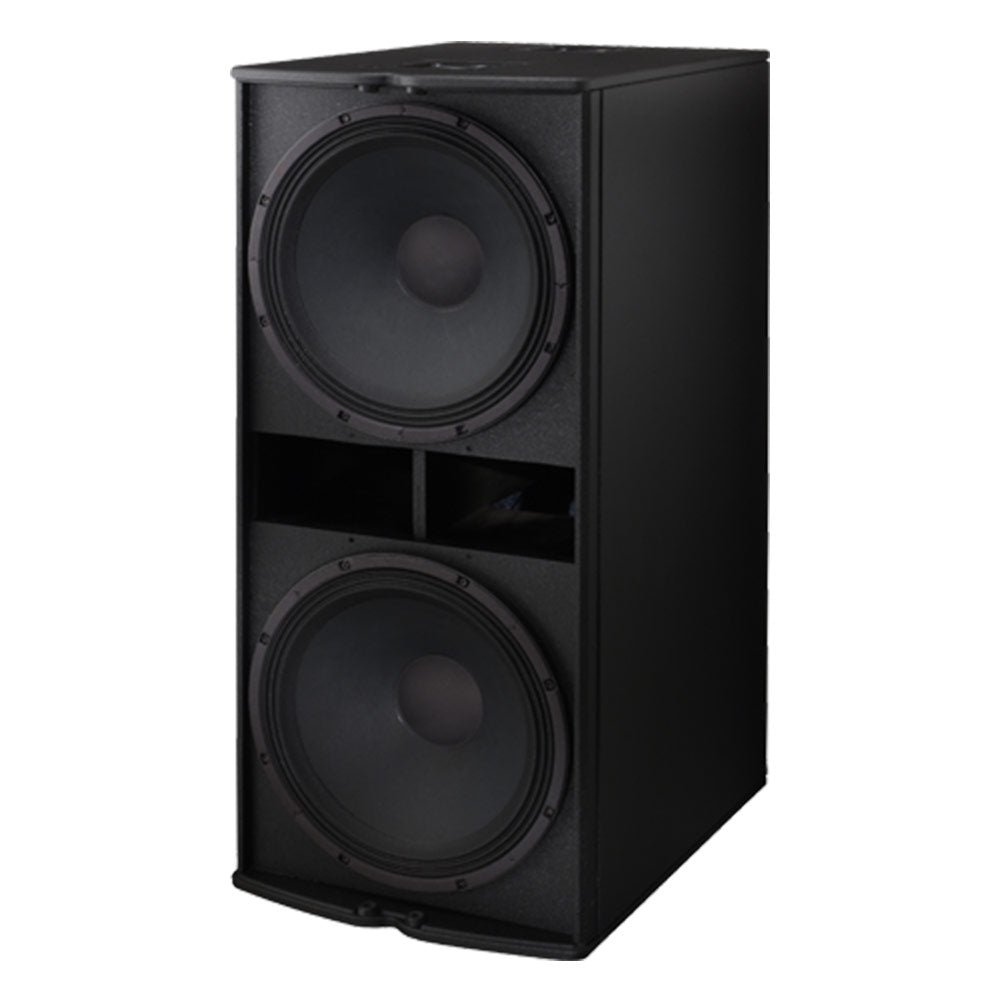

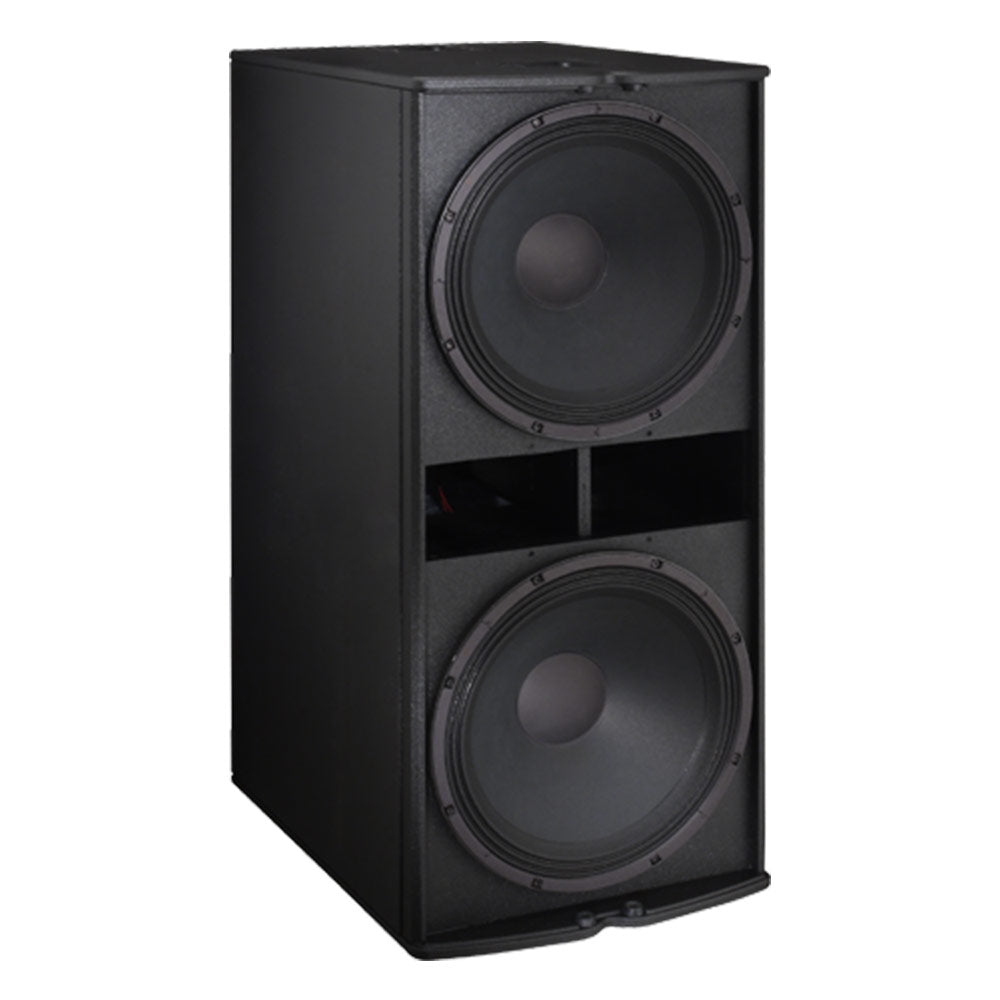

- Two high-excursion EVS-18S woofers
- Use with processor and dedicated amp channel
- 103 dB sensitivity, 138 dB max SPL
- Power handling: 1000 W continuous, 4000 W peak
- Braced plywood/MDF enclosure
- Black EVCoat finish
Freq. Response_ (-3 dB) | 50 Hz - 160 Hz |
Freq. Range_ (-10 dB) | 40 Hz - 1.5 kHz |
Rec. Low Pass Frequency | 80 Hz - 120 Hz |
Axial Sensitivity_ | 103 dB (1W/1m) |
Max. Calculated SPL_ | 138 dB |
Horizontal Coverage | Omnidirectional |
Vertical Coverage | Omnidirectional |
Power Handling | 1000W Continuous, 4000W Peak |
LF Transducers | (2) EVS-18S, 18 in (457mm) Drivers |
Nominal Impedance | 4 Ohms |
Minimum Impedance | 2.9 Ohms |
Connectors | (2) Neutrik Speakon NL4's |
Enclosure Material | Plywood and MDF with EVCoat__ |
Grille | 16 GA Steel, Black Powdercoat, with Rotatable Logo |
Dimensions (H x W x D) | 45.4" x 20.0" x 27.2" (1154mm x 508mm x 691mm) |
Net Weight | 123.5 lbs (56.1 kg) |
Shipping Weight | 139.0 lbs (63.1 kg) |
The Electro-Voice TX2181 is a dual subwoofer system that is designed to add high-output, high-impact bass response to the TX2152 loudspeaker system. The TX2181 can move tremendous amounts of air, thanks to dual EVS-18S high excursion woofers, a well braced enclosure, and a low distortion port design. The EVS-18S woofers feature 4-layer voice coils and cast frames for high power handling and maximum durability. The TX2181 is designed to be used with a processor and a dedicated amplifier channel in a biamp configuration.
The TX2181 has many features that make it a versatile subwoofer system. The enclosure is constructed out of a combination of MDF and plywood, and coated with EVCoatTM for maximum strength and durability. The unique grille design is very strong, dent resistant, and features a rotatable logo. Four way handles allow for gripping the TX2181 in a variety of positions. The recessed input panel with dual NL4 connectors keeps the connectors hidden and allows for closer placement to a wall or other boundary. The TX2181 is the same width and height as the TX2152, providing a single column appearance when stacked, and uses the minimum amount of space when stored or transported.
Features:
- High-power LF supplement to TX2152
- Low-distortion port design
- Two high-excursion EVS-18S woofers
- Use with processor and dedicated amp channel
- 103 dB sensitivity, 138 dB max SPL
- Power handling: 1000 W continuous, 4000 W peak
- Braced plywood/MDF enclosure
- Black EVCoat finish
Freq. Response_ (-3 dB) | 50 Hz - 160 Hz |
Freq. Range_ (-10 dB) | 40 Hz - 1.5 kHz |
Rec. Low Pass Frequency | 80 Hz - 120 Hz |
Axial Sensitivity_ | 103 dB (1W/1m) |
Max. Calculated SPL_ | 138 dB |
Horizontal Coverage | Omnidirectional |
Vertical Coverage | Omnidirectional |
Power Handling | 1000W Continuous, 4000W Peak |
LF Transducers | (2) EVS-18S, 18 in (457mm) Drivers |
Nominal Impedance | 4 Ohms |
Minimum Impedance | 2.9 Ohms |
Connectors | (2) Neutrik Speakon NL4's |
Enclosure Material | Plywood and MDF with EVCoat__ |
Grille | 16 GA Steel, Black Powdercoat, with Rotatable Logo |
Dimensions (H x W x D) | 45.4" x 20.0" x 27.2" (1154mm x 508mm x 691mm) |
Net Weight | 123.5 lbs (56.1 kg) |
Shipping Weight | 139.0 lbs (63.1 kg) |
