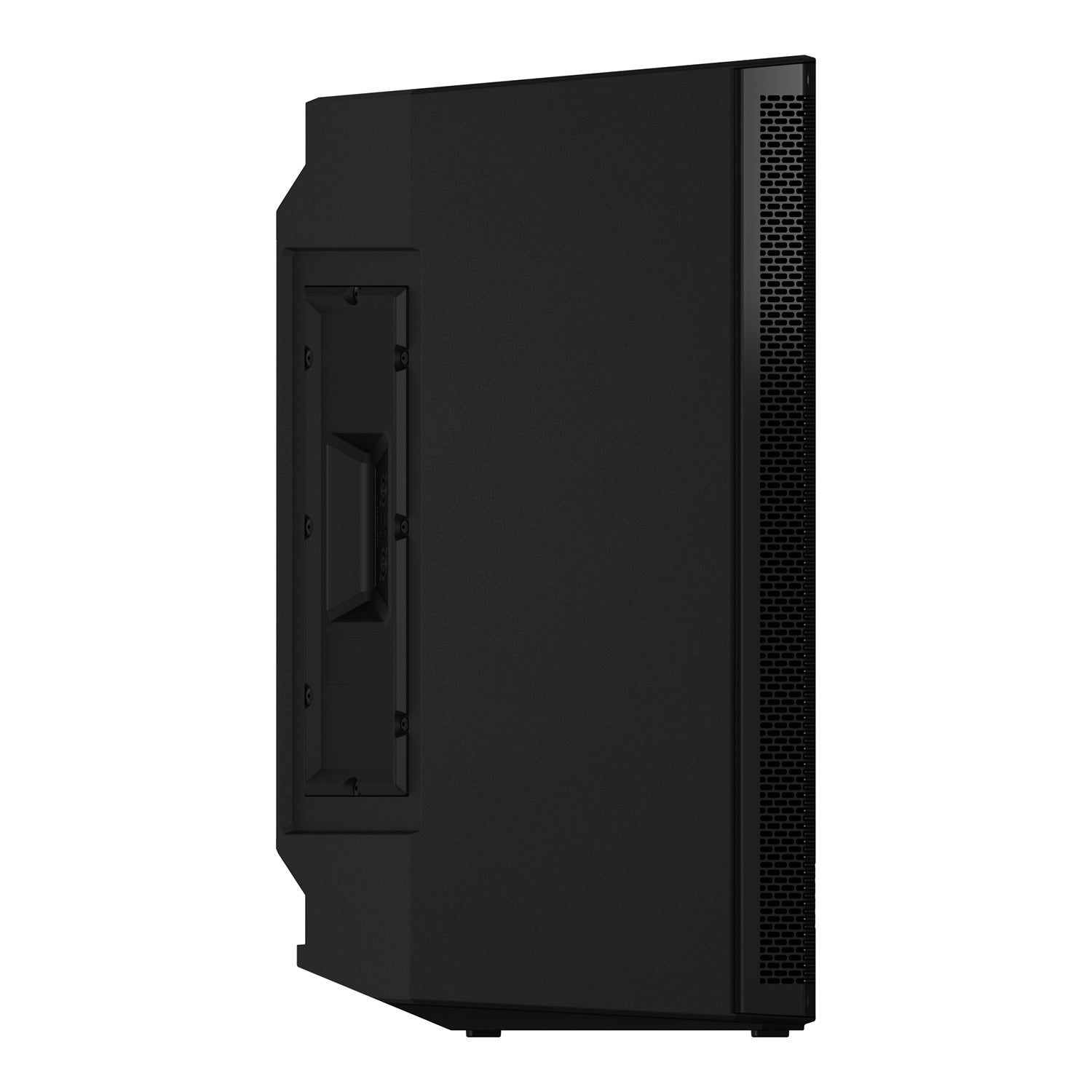

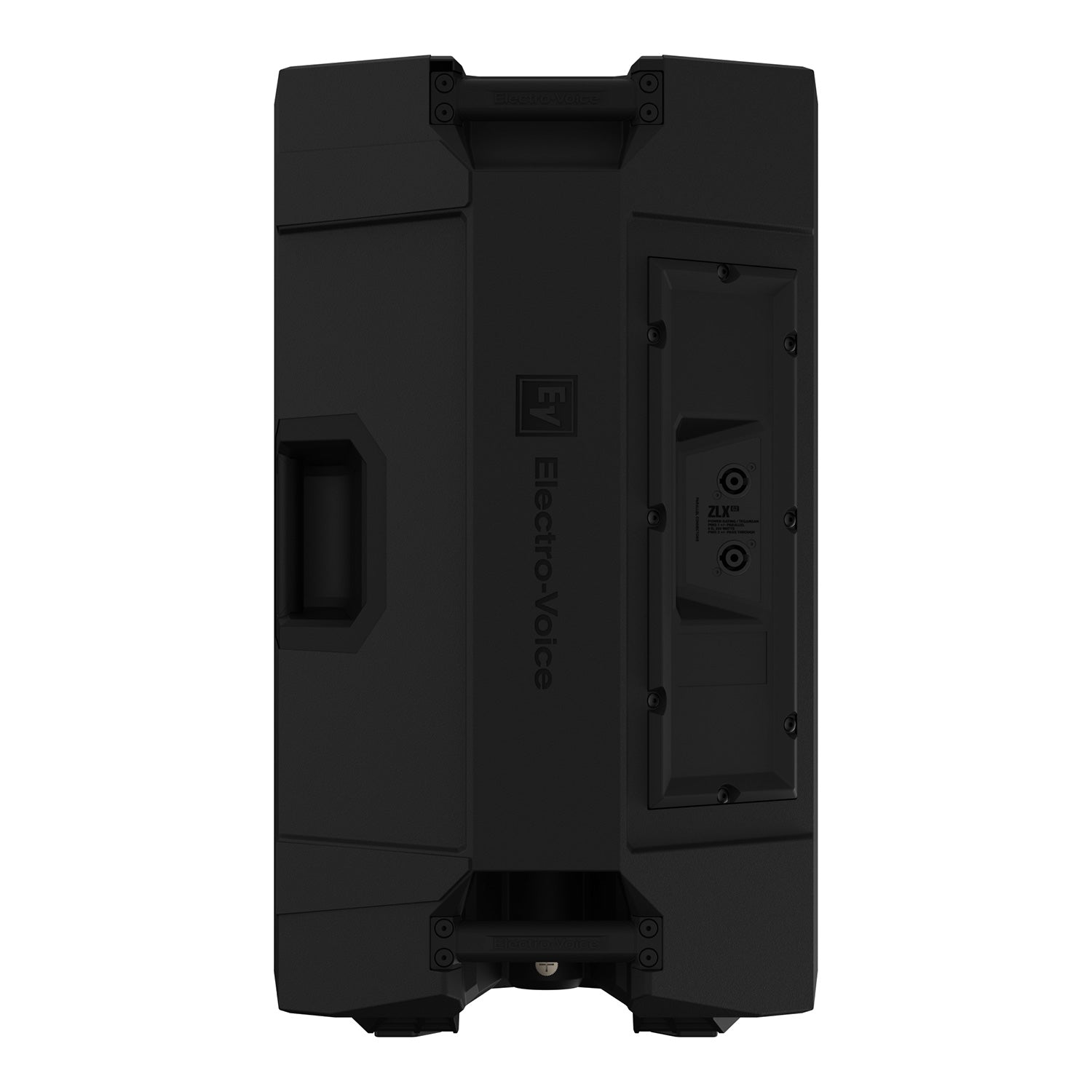

Electro-Voice ZLX-12 G2 - Passive Two-Way 12-Inch Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.
ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a 'kickback' 23-degree monitor angle. ZLX-12-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins. For optimal acoustics and performance, ZLX-12-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.
ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.
Features:
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Recommended to use with Dynacord DSP power amplifiers
- SONICUE integration - optimized speaker settings for best performance
| Frequency response (-3 dB) (Hz) | 69 Hz Ð 18,500 Hz |
| Frequency range (-10 dB) (Hz) | 55 Hz Ð 20,000 Hz |
| Axial sensitivity (dB SPL 1W/1m) | 93 dB SPL 1W/1m |
| Maximum sound pressure level at a distance of 1 m (dB) | 125 dB |
| High pass frequency (Hz) | 48 Hz |
| Crossover frequency (kHz) | 2 kHz |
| Coverage angle HxV (¡) | 90¡ x 60¡ |
| Power handling (continuous) (W) | 250 W |
| Power handling (peak) (W) | 1,000 W |
| Nominal impedance (½) | 8 ½ |
| LF transducer | WECA2128 |
| LF transducer size (in) | 12 in |
| LF transducer magnet material | Ferrite |
| HF transducer | DH-1K |
| HF transducer type | Compression driver |
| HF transducer size (in) | 1.4 in |
| HF transducer diaphragm material | Titanium |
| Dimensions (H x W x D) (mm) | 621.1 mm x 356.2 mm x 356 mm |
| Dimensions (H x W x D) (in) | 24.45 in x 14.02 in x 14.01 in |
| Shipping dimensions (H x W x D) (mm) | 670 mm x 420 mm x 405 mm |
| Shipping dimensions (H x W x D) (in) | 26.38 in x 16.54 in x 15.94 in |
| Weight (kg) | 14.26 kg |
| Weight (lb) | 31.44 lb |
| Shipping weight (kg) | 16.26 kg |
| Shipping weight (lb) | 35.85 lb |
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants.
ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.
ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a 'kickback' 23-degree monitor angle. ZLX-12-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins. For optimal acoustics and performance, ZLX-12-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE.
ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.
Features:
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Recommended to use with Dynacord DSP power amplifiers
- SONICUE integration - optimized speaker settings for best performance
| Frequency response (-3 dB) (Hz) | 69 Hz Ð 18,500 Hz |
| Frequency range (-10 dB) (Hz) | 55 Hz Ð 20,000 Hz |
| Axial sensitivity (dB SPL 1W/1m) | 93 dB SPL 1W/1m |
| Maximum sound pressure level at a distance of 1 m (dB) | 125 dB |
| High pass frequency (Hz) | 48 Hz |
| Crossover frequency (kHz) | 2 kHz |
| Coverage angle HxV (¡) | 90¡ x 60¡ |
| Power handling (continuous) (W) | 250 W |
| Power handling (peak) (W) | 1,000 W |
| Nominal impedance (½) | 8 ½ |
| LF transducer | WECA2128 |
| LF transducer size (in) | 12 in |
| LF transducer magnet material | Ferrite |
| HF transducer | DH-1K |
| HF transducer type | Compression driver |
| HF transducer size (in) | 1.4 in |
| HF transducer diaphragm material | Titanium |
| Dimensions (H x W x D) (mm) | 621.1 mm x 356.2 mm x 356 mm |
| Dimensions (H x W x D) (in) | 24.45 in x 14.02 in x 14.01 in |
| Shipping dimensions (H x W x D) (mm) | 670 mm x 420 mm x 405 mm |
| Shipping dimensions (H x W x D) (in) | 26.38 in x 16.54 in x 15.94 in |
| Weight (kg) | 14.26 kg |
| Weight (lb) | 31.44 lb |
| Shipping weight (kg) | 16.26 kg |
| Shipping weight (lb) | 35.85 lb |
