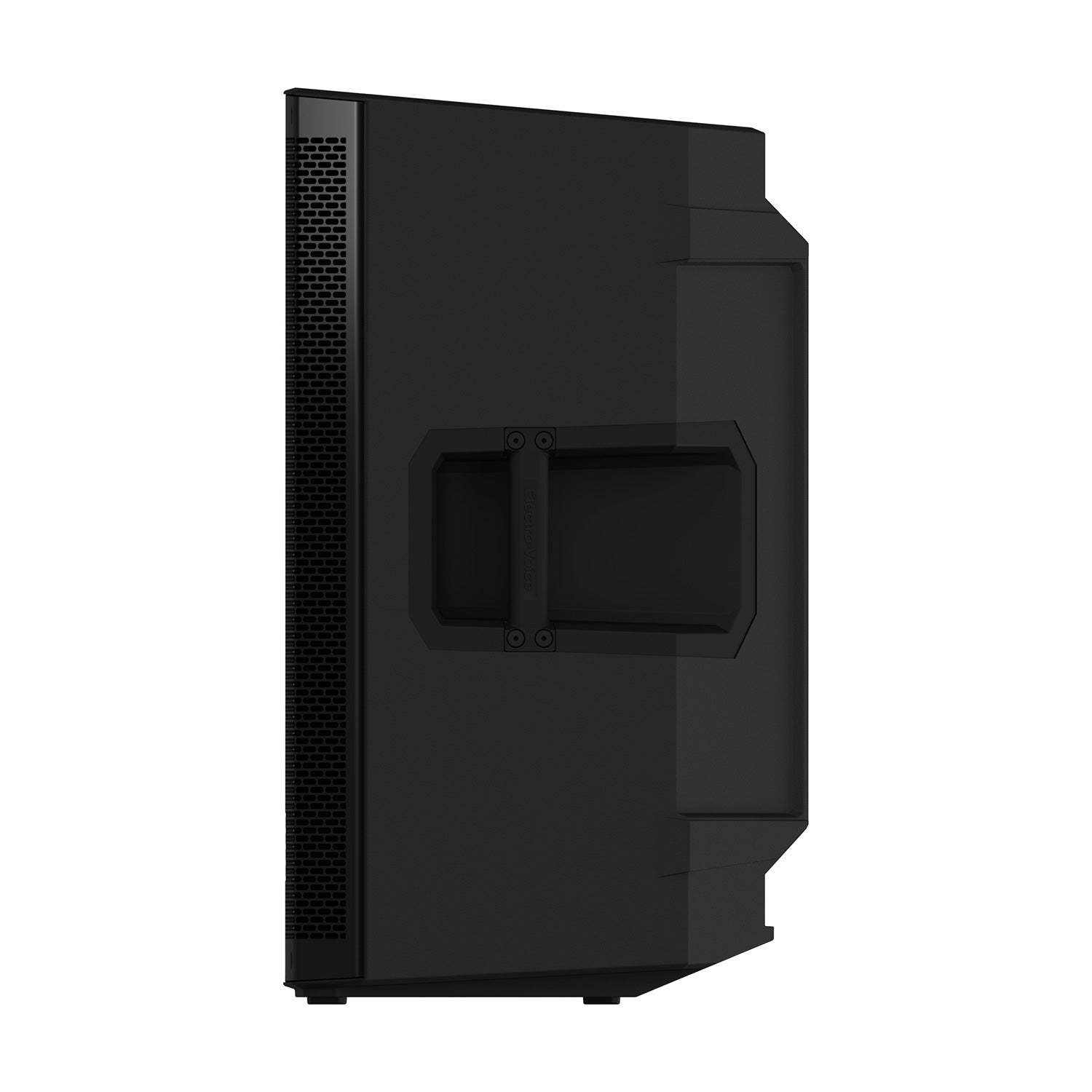

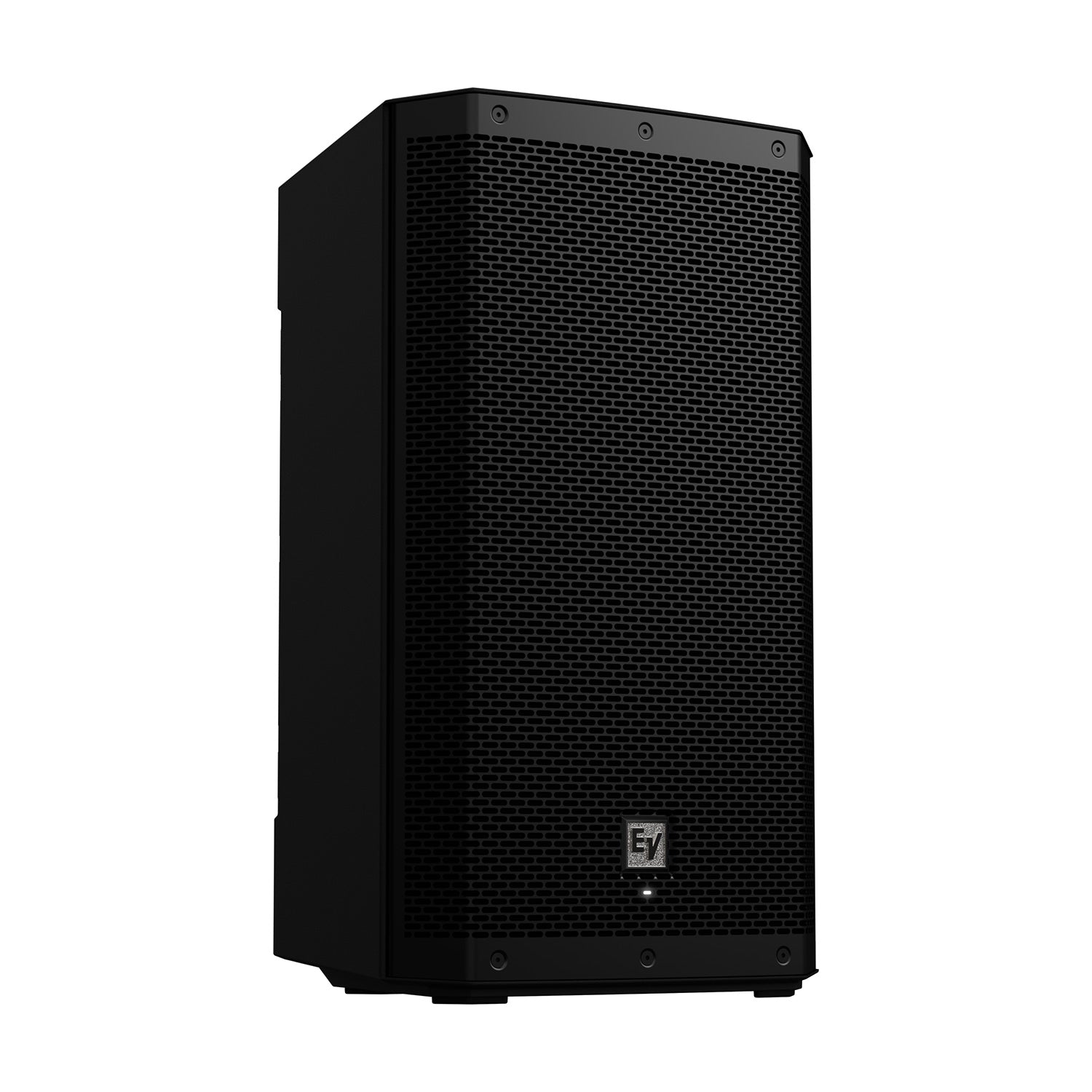

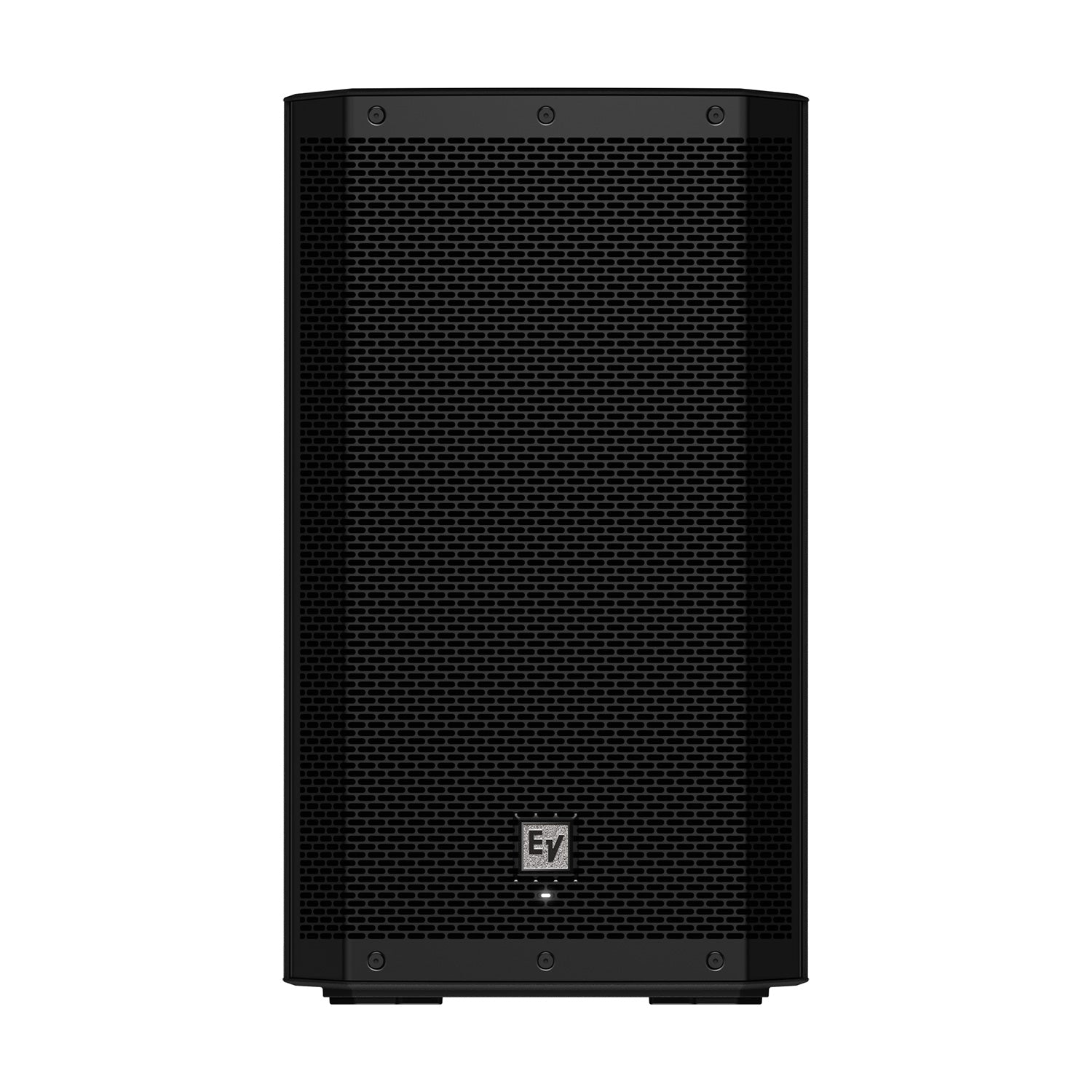

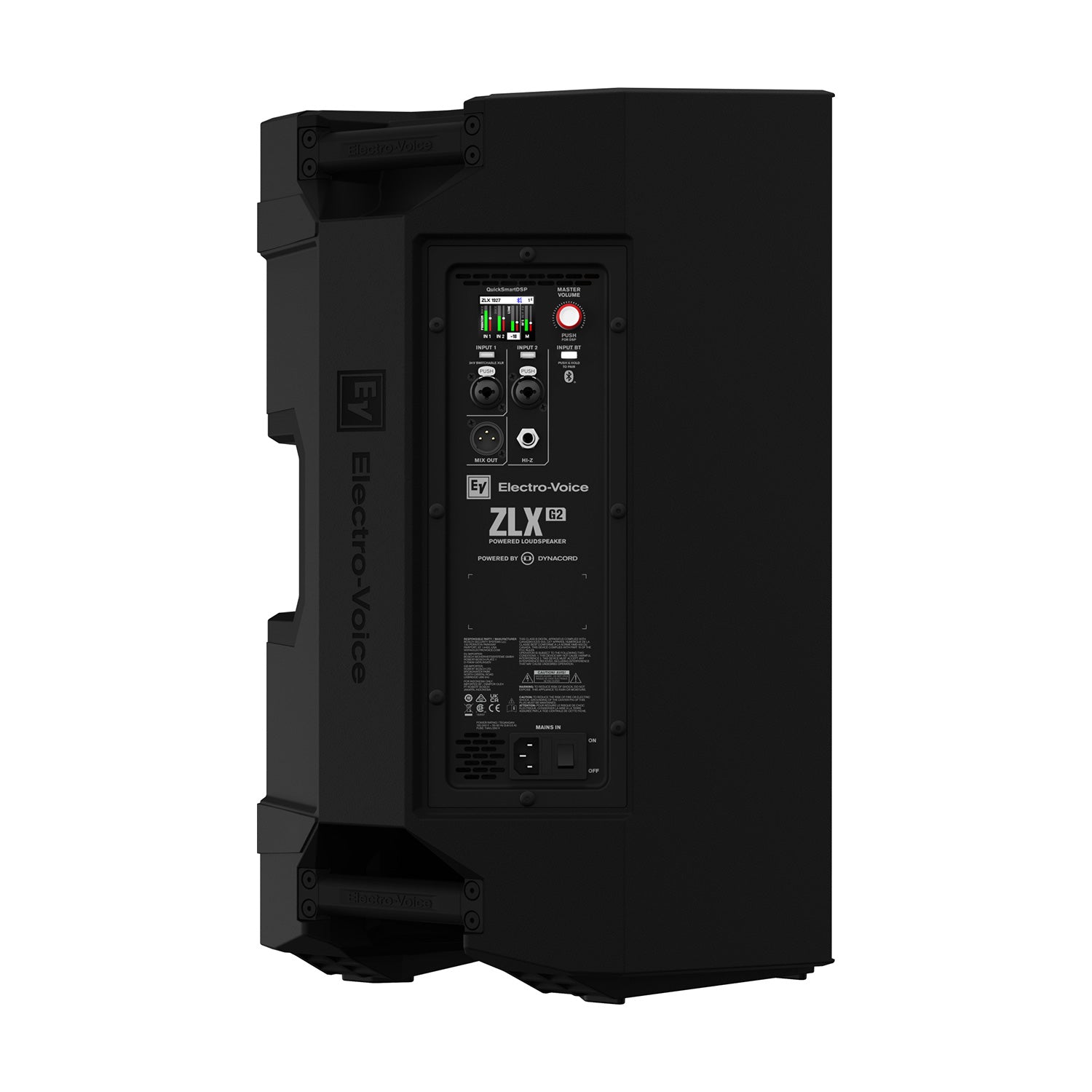

Electro-Voice ZLX-12P G2 - Active Two-Way 12-Inch Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants. ZLX-G2 loudspeakers lead with acoustic output and extended frequency range. The Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures enhanced bass response, smaller size and more even coverage across all frequencies. ZLX-G2 is designed with a robust and ergonomic enclosure for day-to-day durability and portability.
POWERED BY DYNACORD, all powered ZLX-G2 loudspeakers feature a built-in digital mixer with FX, EQ, automatic feedback suppression (AFS) and ducking. The mixer includes two XLR/TRS combo jacks, and provides 24V phantom power and Hi-Z compatibility. Bluetooth® stereo streaming and linking for true wireless stereo setup are integrated into the ZLX-G2 series. The mixer and all speaker functions are easily controlled from the Electro-Voice QuickSmart Mobile app. The app allows pairing and grouping of up to six loudspeakers, in any combination. The new larger full-color LCD display and simple single encoder and push-key interface result in quick setup and more user control. Powered ZLX-G2 loudspeakers contain Electro-Voice-specific subwoofer presets that adjust for both gain and time alignment, resulting in full acoustic optimization. Additional highpass filters (HPF) are available in the DSP for increased compatibility.
ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.
Features:
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Advanced connectivity with Bluetooth® wireless stereo streaming and QuickSmart Mobile app control
- POWERED BY DYNACORD - built in digital mixer with FX, AFS, ducker, PEQ and more
| Frequency response (-3 dB) (Hz) | 54 Hz Ð 18,500 Hz |
| Frequency range (-10 dB) (Hz) | 48 Hz Ð 20,000 Hz |
| Maximum sound pressure level at a distance of 1 m (dB) | 127 dB |
| Coverage angle HxV (¡) | 90¡ x 60¡ |
| Crossover frequency (kHz) | 1.40 kHz |
| Power rating (W) | 1000 W |
| Power consumption (V, Hz)Ê4 | 100 - 240 V~, 50 - 60 Hz |
| LF transducer | WECA2128 |
| LF transducer size (in) | 12 in |
| LF transducer magnet material | Ferrite |
| HF transducer | DECA2516 |
| HF transducer type | Compression driver |
| HF transducer size (in) | 1.40 in |
| HF transducer magnet material | Ferrite |
| HF transducer diaphragm material | Titanium |
| Connector type | (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z |
| Material | Polypropylene |
| Grille material | Powder coated steel |
| Dimensions (H x W x D) (mm) | 621.1 mm x 356.2 mm x 356 mm |
| Dimensions (H x W x D) (in) | 24.45 in x 14.02 in x 14.01 in |
| Shipping dimensions (H x W x D) (mm) | 670 mm x 420 mm x 405 mm |
| Shipping dimensions (H x W x D) (in) | 26.38 in x 16.54 in x 15.94 in |
| Weight (kg) | 14.82 kg |
| Weight (lb) | 32.67 lb |
| Shipping weight (kg) | 16.86 kg |
| Shipping weight (lb) | 37.17 lb |
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants. ZLX-G2 loudspeakers lead with acoustic output and extended frequency range. The Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures enhanced bass response, smaller size and more even coverage across all frequencies. ZLX-G2 is designed with a robust and ergonomic enclosure for day-to-day durability and portability.
POWERED BY DYNACORD, all powered ZLX-G2 loudspeakers feature a built-in digital mixer with FX, EQ, automatic feedback suppression (AFS) and ducking. The mixer includes two XLR/TRS combo jacks, and provides 24V phantom power and Hi-Z compatibility. Bluetooth® stereo streaming and linking for true wireless stereo setup are integrated into the ZLX-G2 series. The mixer and all speaker functions are easily controlled from the Electro-Voice QuickSmart Mobile app. The app allows pairing and grouping of up to six loudspeakers, in any combination. The new larger full-color LCD display and simple single encoder and push-key interface result in quick setup and more user control. Powered ZLX-G2 loudspeakers contain Electro-Voice-specific subwoofer presets that adjust for both gain and time alignment, resulting in full acoustic optimization. Additional highpass filters (HPF) are available in the DSP for increased compatibility.
ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.
Features:
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Advanced connectivity with Bluetooth® wireless stereo streaming and QuickSmart Mobile app control
- POWERED BY DYNACORD - built in digital mixer with FX, AFS, ducker, PEQ and more
| Frequency response (-3 dB) (Hz) | 54 Hz Ð 18,500 Hz |
| Frequency range (-10 dB) (Hz) | 48 Hz Ð 20,000 Hz |
| Maximum sound pressure level at a distance of 1 m (dB) | 127 dB |
| Coverage angle HxV (¡) | 90¡ x 60¡ |
| Crossover frequency (kHz) | 1.40 kHz |
| Power rating (W) | 1000 W |
| Power consumption (V, Hz)Ê4 | 100 - 240 V~, 50 - 60 Hz |
| LF transducer | WECA2128 |
| LF transducer size (in) | 12 in |
| LF transducer magnet material | Ferrite |
| HF transducer | DECA2516 |
| HF transducer type | Compression driver |
| HF transducer size (in) | 1.40 in |
| HF transducer magnet material | Ferrite |
| HF transducer diaphragm material | Titanium |
| Connector type | (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z |
| Material | Polypropylene |
| Grille material | Powder coated steel |
| Dimensions (H x W x D) (mm) | 621.1 mm x 356.2 mm x 356 mm |
| Dimensions (H x W x D) (in) | 24.45 in x 14.02 in x 14.01 in |
| Shipping dimensions (H x W x D) (mm) | 670 mm x 420 mm x 405 mm |
| Shipping dimensions (H x W x D) (in) | 26.38 in x 16.54 in x 15.94 in |
| Weight (kg) | 14.82 kg |
| Weight (lb) | 32.67 lb |
| Shipping weight (kg) | 16.86 kg |
| Shipping weight (lb) | 37.17 lb |
