Description

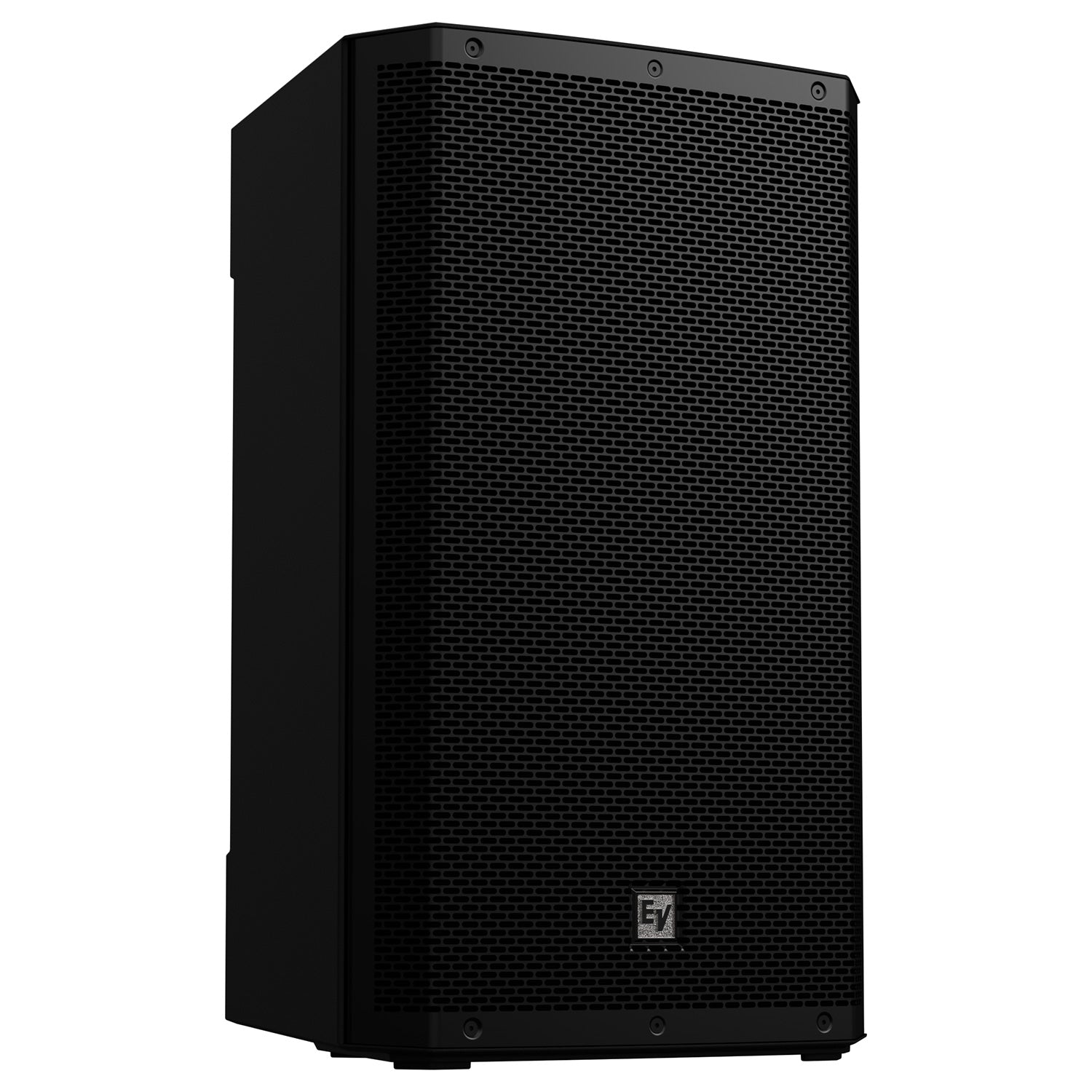

The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants. ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.

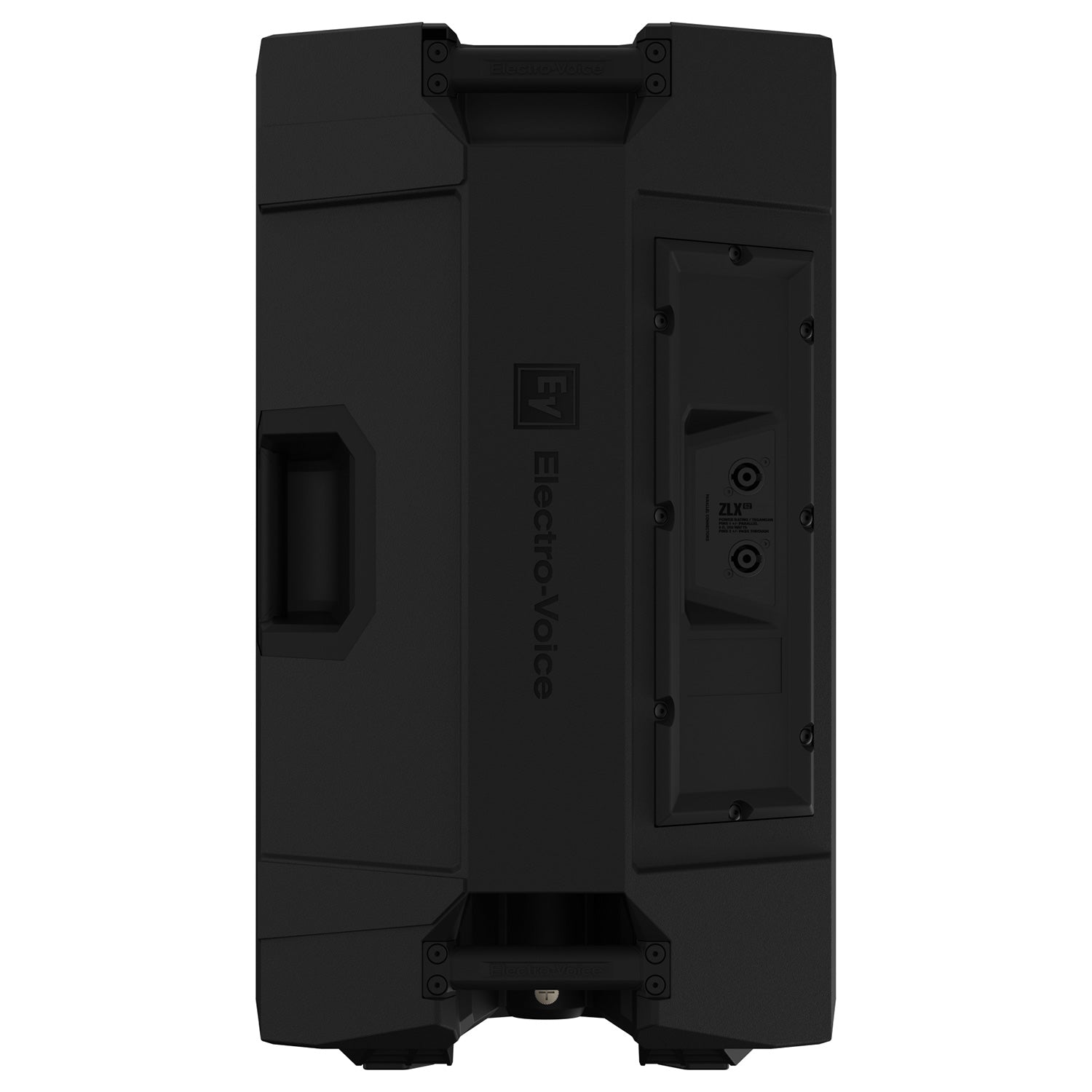

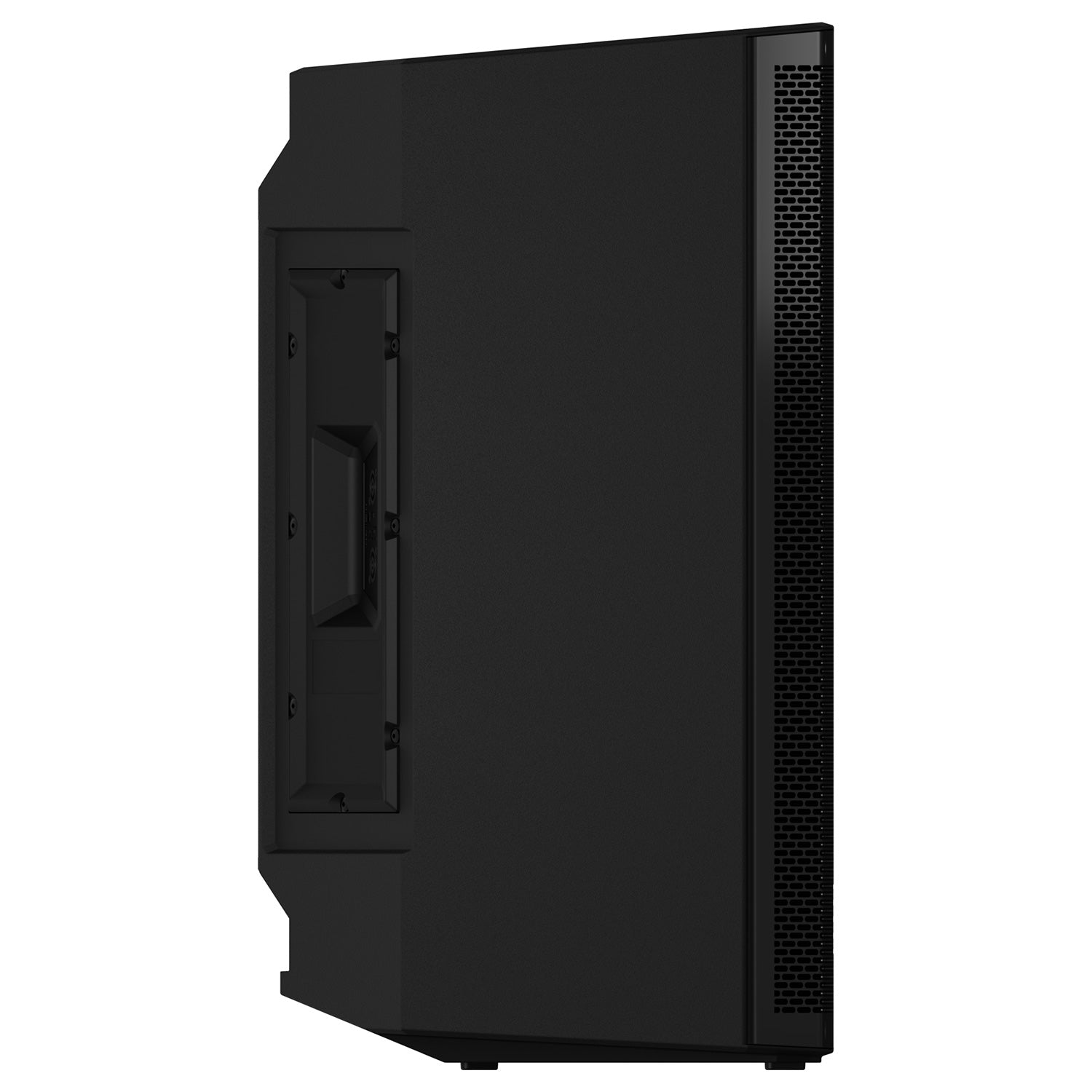

ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a 'kickback' 23-degree monitor angle. ZLX-15-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins. For optimal acoustics and performance, ZLX-15-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE. ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.
Features:
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Recommended to use with Dynacord DSP power amplifiers
- SONICUE integration - optimized speaker settings for best performance
Frequency response (-3 dB) (Hz) | 68 Hz Ð 18,000 Hz |
Frequency range (-10 dB) (Hz) | 53 Hz Ð 20,000 Hz |
Axial sensitivity (dB SPL 1W/1m) | 95 dB SPL 1W/1m |
Maximum sound pressure level at a distance of 1 m (dB) | 126 dB |
High pass frequency (Hz) | 40 Hz |
Crossover frequency (kHz) | 2 kHz |
Coverage angle HxV (¡) | 90¡ x 60¡ |
Power handling (continuous) (W) | 250 W |
Power handling (peak) (W) | 1,000 W |
Nominal impedance (½) | 8 ½ |
LF transducer | WECA2158 |
LF transducer size (in) | 15 in |
LF transducer magnet material | Ferrite |
HF transducer | DH-1K |
HF transducer type | Compression driver |
HF transducer size (in) | 1.4 in |
HF transducer diaphragm material | Titanium |
Dimensions (H x W x D) (mm) | 697.6 mm x 422.8 mm x 383.1 mm |
Dimensions (H x W x D) (in) | 27.46 in x 16.65 in x 15.08 in |
Shipping dimensions (H x W x D) (mm) | 765 mm x 490 mm x 490 mm |
Shipping dimensions (H x W x D) (in) | 30.12 in x 19.29 in x 19.29 in |
Weight (kg) | 16.44 kg |
Weight (lb) | 36.24 lb |
Shipping weight (kg) | 19.18 kg |
Shipping weight (lb) | 42.28 lb |
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class. The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants. ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies.
ZLX-G2 series features a 55-degree monitor angle. 12 and 15-inch models additionally include a 'kickback' 23-degree monitor angle. ZLX-15-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins. For optimal acoustics and performance, ZLX-15-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE. ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.
Features:
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Recommended to use with Dynacord DSP power amplifiers
- SONICUE integration - optimized speaker settings for best performance
Frequency response (-3 dB) (Hz) | 68 Hz Ð 18,000 Hz |
Frequency range (-10 dB) (Hz) | 53 Hz Ð 20,000 Hz |
Axial sensitivity (dB SPL 1W/1m) | 95 dB SPL 1W/1m |
Maximum sound pressure level at a distance of 1 m (dB) | 126 dB |
High pass frequency (Hz) | 40 Hz |
Crossover frequency (kHz) | 2 kHz |
Coverage angle HxV (¡) | 90¡ x 60¡ |
Power handling (continuous) (W) | 250 W |
Power handling (peak) (W) | 1,000 W |
Nominal impedance (½) | 8 ½ |
LF transducer | WECA2158 |
LF transducer size (in) | 15 in |
LF transducer magnet material | Ferrite |
HF transducer | DH-1K |
HF transducer type | Compression driver |
HF transducer size (in) | 1.4 in |
HF transducer diaphragm material | Titanium |
Dimensions (H x W x D) (mm) | 697.6 mm x 422.8 mm x 383.1 mm |
Dimensions (H x W x D) (in) | 27.46 in x 16.65 in x 15.08 in |
Shipping dimensions (H x W x D) (mm) | 765 mm x 490 mm x 490 mm |
Shipping dimensions (H x W x D) (in) | 30.12 in x 19.29 in x 19.29 in |
Weight (kg) | 16.44 kg |
Weight (lb) | 36.24 lb |
Shipping weight (kg) | 19.18 kg |
Shipping weight (lb) | 42.28 lb |
