Electro-Voice ZLX-8 G2 - Passive Two-Way 8-Inch Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.

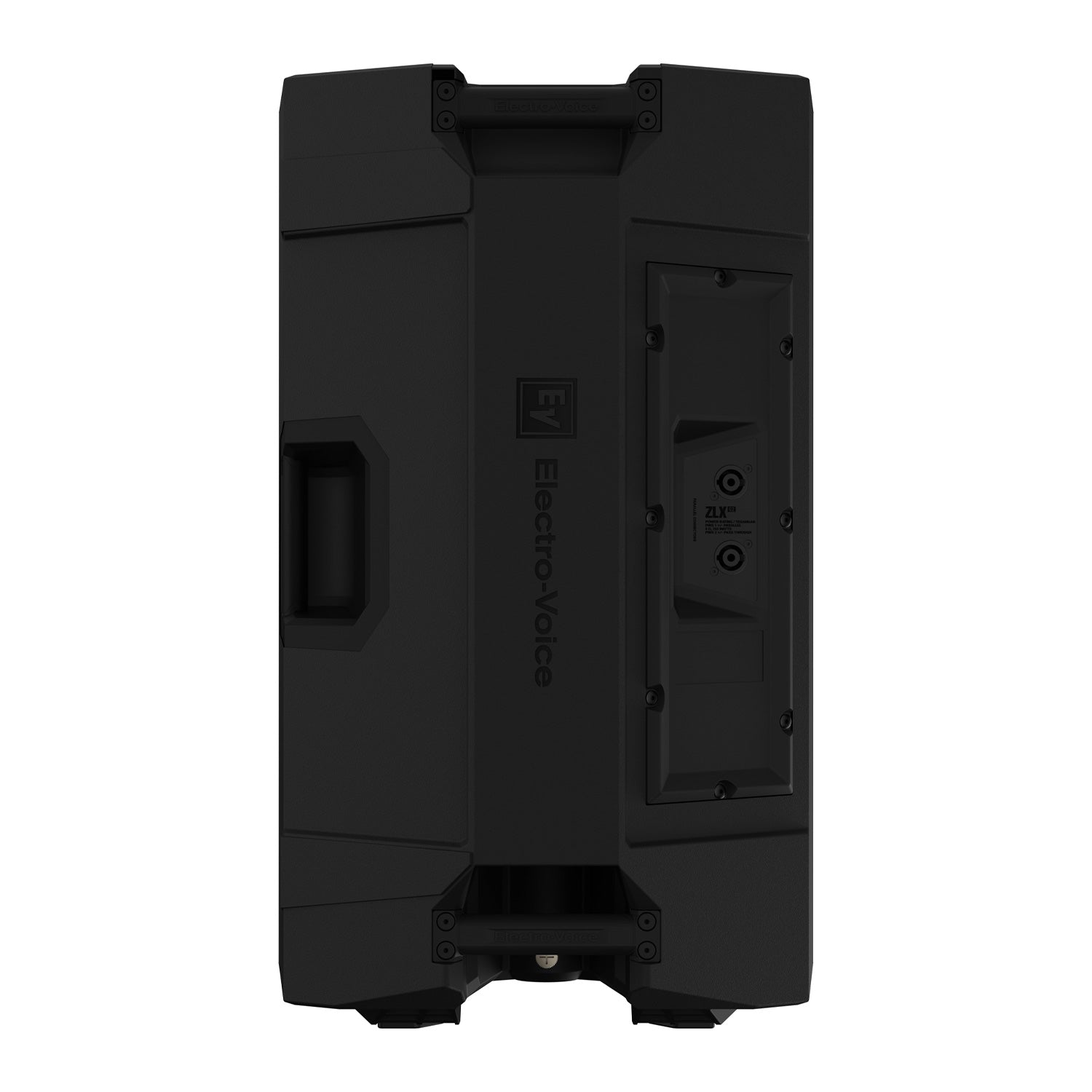

The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants. ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies. ZLX-G2 series features a 55-degree monitor angle. ZLX-8-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins. For optimal acoustics and performance, ZLX-8-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE. ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.
Features:
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Recommended to use with Dynacord DSP power amplifiers
- SONICUE integration - optimized speaker settings for best performance
| Frequency response (-3 dB) (Hz) | 67 Hz Ð 20,000 Hz |
| Frequency range (-10 dB) (Hz) | 55 Hz Ð 20,000 Hz |
| Axial sensitivity (dB SPL 1W/1m) | 90 dB SPL 1W/1m |
| Maximum sound pressure level at a distance of 1 m (dB) | 124 dB |
| High pass frequency (Hz) | 60 Hz |
| Crossover frequency (kHz) | 2 kHz |
| Coverage angle HxV (¡) | 90¡ x 60¡ |
| Power handling (continuous) (W) | 250 W |
| Power handling (peak) (W) | 1,000 W |
| Nominal impedance (½) | 8 ½ |
| LF transducer | WECA2088 |
| LF transducer size (in) | 8 in |
| LF transducer magnet material | Ferrite |
| HF transducer | DH-1K |
| HF transducer type | Compression driver |
| HF transducer size (in) | 1.4 in |
| HF transducer diaphragm material | Titanium |
| Dimensions (H x W x D) (mm) | 459.6 mm x 289.9 mm x 280.5 mm |
| Dimensions (H x W x D) (in) | 18.09 in x 11.41 in x 11.04 in |
| Shipping dimensions (H x W x D) (mm) | 500 mm x 390 mm x 350 mm |
| Shipping dimensions (H x W x D) (in) | 19.69 in x 15.35 in x 13.78 in |
| Weight (kg) | 10.15 kg |
| Weight (lb) | 22.38 lb |
| Shipping weight (kg) | 11.92 kg |
| Shipping weight (lb) | 26.28 lb |
The new ZLX-G2 professional audio loudspeaker series is the next generation of the best-selling speakers from Electro-Voice, which raises the standard for performance and features in its class.
The ZLX-G2 series is offered in 15-inch, 12-inch, and new 8-inch woofer sizes, both powered and passive variants. ZLX-G2 loudspeakers offer the best-in-class acoustic output. Electro-Voice-patented Signal Synchronized Transducers (SST) baffle design ensures improved bass, small size, and even coverage across all frequencies. ZLX-G2 series features a 55-degree monitor angle. ZLX-8-G2 uses industry standard NL4 connections. The two NL4 connectors are in parallel and pass through all pins. For optimal acoustics and performance, ZLX-8-G2 is recommended to be used with a Dynacord DSP power amplifier programmed with the appropriate speaker settings included in the EV Speaker Database for SONICUE. ZLX-G2 series accessories such as padded covers, a Ubracket for mounting 12- and 15-inch models, a truss clamp adapter for 8-inch models, and universal wallmount brackets compatible with all models are available.
Features:
- ZLX-G2 is the next generation of the bestselling pro-audio loudspeaker series from Electro-Voice
- Increased maximum SPL output and extended frequency response
- Robust and ergonomic design for day-to-day durability and portability
- Recommended to use with Dynacord DSP power amplifiers
- SONICUE integration - optimized speaker settings for best performance
| Frequency response (-3 dB) (Hz) | 67 Hz Ð 20,000 Hz |
| Frequency range (-10 dB) (Hz) | 55 Hz Ð 20,000 Hz |
| Axial sensitivity (dB SPL 1W/1m) | 90 dB SPL 1W/1m |
| Maximum sound pressure level at a distance of 1 m (dB) | 124 dB |
| High pass frequency (Hz) | 60 Hz |
| Crossover frequency (kHz) | 2 kHz |
| Coverage angle HxV (¡) | 90¡ x 60¡ |
| Power handling (continuous) (W) | 250 W |
| Power handling (peak) (W) | 1,000 W |
| Nominal impedance (½) | 8 ½ |
| LF transducer | WECA2088 |
| LF transducer size (in) | 8 in |
| LF transducer magnet material | Ferrite |
| HF transducer | DH-1K |
| HF transducer type | Compression driver |
| HF transducer size (in) | 1.4 in |
| HF transducer diaphragm material | Titanium |
| Dimensions (H x W x D) (mm) | 459.6 mm x 289.9 mm x 280.5 mm |
| Dimensions (H x W x D) (in) | 18.09 in x 11.41 in x 11.04 in |
| Shipping dimensions (H x W x D) (mm) | 500 mm x 390 mm x 350 mm |
| Shipping dimensions (H x W x D) (in) | 19.69 in x 15.35 in x 13.78 in |
| Weight (kg) | 10.15 kg |
| Weight (lb) | 22.38 lb |
| Shipping weight (kg) | 11.92 kg |
| Shipping weight (lb) | 26.28 lb |
