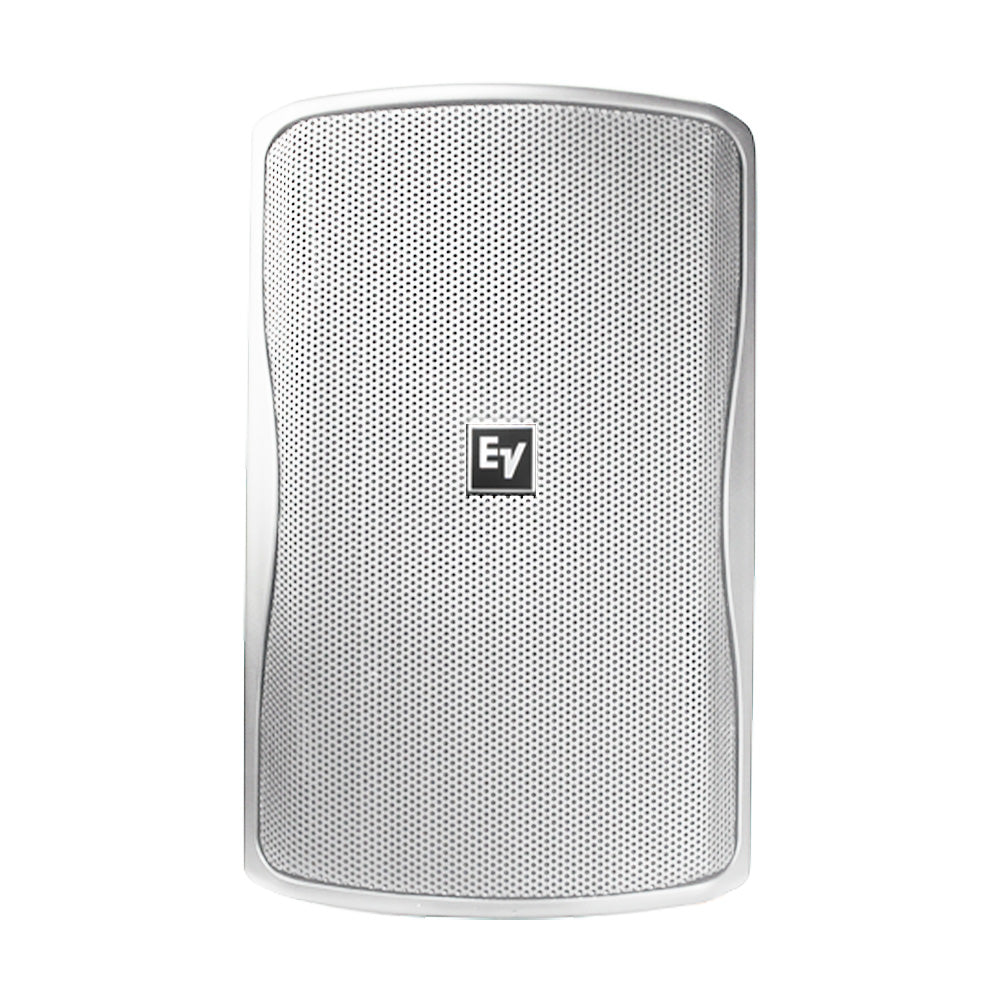

Electro-Voice ZX1I-100TW - Weatherized 2-Way 8-Inch Passive Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Electro-Voice ZX1i is the standard of no compromise audio performance and versatility in an easy to install compact package. The high-tech enclosure uses injection-molded high-impact ABS resin to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response. Two rotatable horn coverage patterns are available; 90° x 50° for longer throw and cluster applications, 100° x 100° for broad even dispersion. A multilayer grille with hydrophobic cloth and weatherized components allows both indoor and outdoor use. An optional weatherized input panel cover with a gland nut is available for additional protection.
Features:
- Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
- 100 x 100 degree coverage pattern
- Patented ASC (Automatic Saturation Compensation) on Transformer Versions
- EV8L 8 inch Weatherized Cone
- High-Output LF Transducer
- DH2005 1 inch Exit True Compression Driver
- EN54-24 type B certification 1438/CPR/0323 with TC-ZX1i cover (Sold separately) installed
| Chassis Size | 203.2 mm (8) |
| Color | Black |
| Input Connections | Parallel Neutrik¨ NL4 |
| Speaker Type | Full-range, Mid-High, Two-Way, Wedges |
| Frequency Response (-3 dB) | 60 - 20000 Hz |
| Frequency Response (-10 dB) | 48 - 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 40 Hz |
| Sensitivity 1 W/1 m | 94 dB |
| Max. SPL/1m (calc) | 123 dB |
| Coverage (Nominal -6 dB) H | 100¡ Rotatable |
| Coverage (Nominal -6 dB) V | 100¡ Rotatable |
| Rotatable Horn | Yes |
| System Power Handling (Continuous/Program/Peak) | 200//800 Watts |
| LF Transducer | 8-inch EV8L |
| HF Transducer | 1.25-inch DH2005 |
| Crossover Frequency | 1700 Hz |
| Nominal Impedance (Passive) | 8 |
| Minimum Impedance | 6 |
| Enclosure Material | High Impact Polystyrene |
| Flying | No |
| Outdoor | No |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 457 mm (17.99) |
| Width | 282 mm (11.1) |
| Depth | 264 mm (10.39) |
| Weight Net | 8.4 kg (18.52 lbs) |
The Electro-Voice ZX1i is the standard of no compromise audio performance and versatility in an easy to install compact package. The high-tech enclosure uses injection-molded high-impact ABS resin to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response. Two rotatable horn coverage patterns are available; 90° x 50° for longer throw and cluster applications, 100° x 100° for broad even dispersion. A multilayer grille with hydrophobic cloth and weatherized components allows both indoor and outdoor use. An optional weatherized input panel cover with a gland nut is available for additional protection.
Features:
- Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
- 100 x 100 degree coverage pattern
- Patented ASC (Automatic Saturation Compensation) on Transformer Versions
- EV8L 8 inch Weatherized Cone
- High-Output LF Transducer
- DH2005 1 inch Exit True Compression Driver
- EN54-24 type B certification 1438/CPR/0323 with TC-ZX1i cover (Sold separately) installed
| Chassis Size | 203.2 mm (8) |
| Color | Black |
| Input Connections | Parallel Neutrik¨ NL4 |
| Speaker Type | Full-range, Mid-High, Two-Way, Wedges |
| Frequency Response (-3 dB) | 60 - 20000 Hz |
| Frequency Response (-10 dB) | 48 - 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 40 Hz |
| Sensitivity 1 W/1 m | 94 dB |
| Max. SPL/1m (calc) | 123 dB |
| Coverage (Nominal -6 dB) H | 100¡ Rotatable |
| Coverage (Nominal -6 dB) V | 100¡ Rotatable |
| Rotatable Horn | Yes |
| System Power Handling (Continuous/Program/Peak) | 200//800 Watts |
| LF Transducer | 8-inch EV8L |
| HF Transducer | 1.25-inch DH2005 |
| Crossover Frequency | 1700 Hz |
| Nominal Impedance (Passive) | 8 |
| Minimum Impedance | 6 |
| Enclosure Material | High Impact Polystyrene |
| Flying | No |
| Outdoor | No |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 457 mm (17.99) |
| Width | 282 mm (11.1) |
| Depth | 264 mm (10.39) |
| Weight Net | 8.4 kg (18.52 lbs) |
