DALE SKU # EVI-ZX1I100W

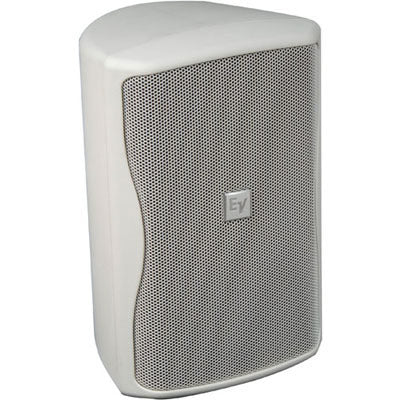

Electro-Voice ZX1i-100W 200 Watt 8" Two-Way Wide Dispersion Indoor / Outdoor Speaker (White)

Sale price$497.00 Regular price$686.00
Save $189.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Weatherized indoor/outdoor version of the ZX1i, ideal for permanent install.

    Features:

    • Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
    • Indoor/Outdoor Design - Meets IEC 529, IP44 & MIL810 Environmental Specs
    • ASCTM Automatic Saturation Compensation
    • EV8L 8" Weatherized Cone High-Output LF Transducer
    • DH2005 1" Exit True Compression Driver
    • 90° x 50° or 100° x 100° Coverage Patterns
    • Rotatable Horn Design
    • 200W Continuous, 800W Peak Power Handling
    • High Sensitivity, 125 dB Maximum SPL

    The Electro-Voice® ZX1i is the new standard of no compromise audio performance and versatility in an easy to install, compact sound reinforcement package. The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response without vent noise.

    ZX1i installation is incredibly simple with the included QuickSAMTM mounting system. The QuickSAMTM is a unique, integrated mounting bracket which is virtually foolproof. It allows the installer to simply snap the speaker onto the bracket, then tighten it to the desired position. For array mounting, there is an optional array bracket kit available which allows multiple units to be mounted together for a variety of configurations.

    Chassis Size 8"Ê(203.2Êmm)
    Color Black
    Input Connections Parallel Neutrik¨ NL4
    Speaker Type Full-range, Mid-High, Two-Way, Wedges
    Frequency Response (-3ÊdB) 60 - 20000ÊHz
    Frequency Response (-10ÊdB) 48 - 20000ÊHz
    Internal Crossover Yes
    Recommended High-Pass Frequency 40ÊHz
    Sensitivity 1 W/1 m 94ÊdB
    Max.ÊSPL/1m (calc) 123ÊdB
    Coverage (Nominal -6ÊdB) H 90 ¡ Rotatable
    Coverage (Nominal -6ÊdB) V 50 ¡ Rotatable
    Rotatable Horn Yes
    System Power Handling (Continuous/Program/Peak) 200//800 Watts
    LFÊTransducer 8-inch EV8L
    HFÊTransducer 1.25-inch DH2005
    Crossover Frequency 1700ÊHz
    Nominal Impedance (Passive) 8 ½
    Minimum Impedance 6 ½
    Enclosure Material High Impact Polystyrene
    Flying No
    Outdoor No
    Grill Polyester Powder Coated, 18GA Galvanized Steel
    Height 17.99"Ê(457Êmm)
    Width 11.1"Ê(282Êmm)
    Depth 10.39"Ê(264Êmm)
    Weight Net 8.4ÊkgÊ(18.52Êlbs)

    Weatherized indoor/outdoor version of the ZX1i, ideal for permanent install.

    Features:

    • Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
    • Indoor/Outdoor Design - Meets IEC 529, IP44 & MIL810 Environmental Specs
    • ASCTM Automatic Saturation Compensation
    • EV8L 8" Weatherized Cone High-Output LF Transducer
    • DH2005 1" Exit True Compression Driver
    • 90° x 50° or 100° x 100° Coverage Patterns
    • Rotatable Horn Design
    • 200W Continuous, 800W Peak Power Handling
    • High Sensitivity, 125 dB Maximum SPL

    The Electro-Voice® ZX1i is the new standard of no compromise audio performance and versatility in an easy to install, compact sound reinforcement package. The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response without vent noise.

    ZX1i installation is incredibly simple with the included QuickSAMTM mounting system. The QuickSAMTM is a unique, integrated mounting bracket which is virtually foolproof. It allows the installer to simply snap the speaker onto the bracket, then tighten it to the desired position. For array mounting, there is an optional array bracket kit available which allows multiple units to be mounted together for a variety of configurations.

    Chassis Size 8"Ê(203.2Êmm)
    Color Black
    Input Connections Parallel Neutrik¨ NL4
    Speaker Type Full-range, Mid-High, Two-Way, Wedges
    Frequency Response (-3ÊdB) 60 - 20000ÊHz
    Frequency Response (-10ÊdB) 48 - 20000ÊHz
    Internal Crossover Yes
    Recommended High-Pass Frequency 40ÊHz
    Sensitivity 1 W/1 m 94ÊdB
    Max.ÊSPL/1m (calc) 123ÊdB
    Coverage (Nominal -6ÊdB) H 90 ¡ Rotatable
    Coverage (Nominal -6ÊdB) V 50 ¡ Rotatable
    Rotatable Horn Yes
    System Power Handling (Continuous/Program/Peak) 200//800 Watts
    LFÊTransducer 8-inch EV8L
    HFÊTransducer 1.25-inch DH2005
    Crossover Frequency 1700ÊHz
    Nominal Impedance (Passive) 8 ½
    Minimum Impedance 6 ½
    Enclosure Material High Impact Polystyrene
    Flying No
    Outdoor No
    Grill Polyester Powder Coated, 18GA Galvanized Steel
    Height 17.99"Ê(457Êmm)
    Width 11.1"Ê(282Êmm)
    Depth 10.39"Ê(264Êmm)
    Weight Net 8.4ÊkgÊ(18.52Êlbs)
