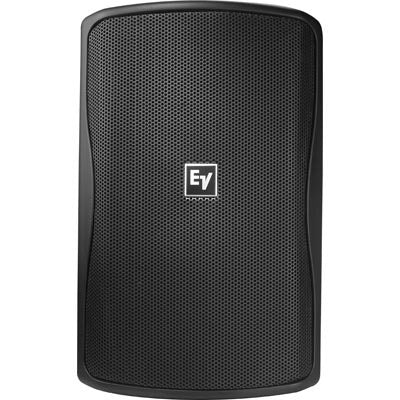

Electro-Voice ZX1i-90 200 Watt 8" Two-Way Narrow Dispersion Indoor / Outdoor Speaker - Black
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
200 WATT 8 TWO-WAY WEATHERIZED SPEAKER SYSTEM WITH EV DH2005 HI-FREQUENCY COMPRESSION DRIVER.
Features:- Integrated QuickSAMTM Heavy-Duty Strong-Arm Mounting Bracket Included
- Indoor/Outdoor Design - Meets IEC 529, IP44 & MIL810 Environmental Specs
- ASCTM Automatic Saturation Compensation
- EV8L 8" Weatherized Cone High-Output LF Transducer
- DH2005 1" Exit True Compression Driver
- 90Îç x 50Îç or 100Îç x 100Îç Coverage Patterns
- Rotatable Horn Design
- 200W Continuous, 800W Peak Power Handling
- High Sensitivity, 125 dB Maximum SPL
The Electro-Voice ZX1i is the new standard of no compromise audio performance and versatility in an easy to install, compact sound reinforcement package.
The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response without vent noise.
ZX1i installation is incredibly simple with the included QuickSAMTM mounting system. The QuickSAMTM is a unique, integrated mounting bracket which is virtually foolproof. It allows the installer to simply snap the speaker onto the bracket, then tighten it to the desired position. For array mounting, there is an optional array bracket kit available which allows multiple units to be mounted together for a variety of configurations.
| Frequency Response(-3 dB) | 60 Hz - 20 kHz |
| Frequency Range(-10 dB) | 48 Hz - 20 kHz |
| Axial Sensitivity | 94 dB (1W/1m) |
| Maximum Calculated SPL | 125 dB |
| Horizontal Coverage | 90¡ or 50¡ |
| Vertical Coverage | 50¡ or 90¡ |
| System Power Handling | 200W Continuous,400W Program |
| LF Transducer | EV8L, 8 in (203mm) Driver |
| HF Transducer | DH2005, 1 in. (25.4mm) Exit Compression Driver |
| Nominal Impedance | 8 Ohms |
| Pole Mount | N/A |
| Transformer Taps | N/A |
| Connectors | 4-Pin detachable Phoenix style |
| Overload Protection | Full protection Ð all modes |
| Mounting System | QuickSAMª Heavy-Duty Strong-Arm Mounting Bracket |
| Built-In Monitor Angle | No |
| Available Colors | Black/White |
| Included Accessories | QuickSAMª Mount |
| Dimensions (H x W x D) | 17.75 x 11.12 x 10.35 451mm x 282mm x 263mm |
| Net Weight | 8.4 kg (18.5 lbs) |
| Shipping Weigh | 10.2 kg (22.5 lbs) |
200 WATT 8 TWO-WAY WEATHERIZED SPEAKER SYSTEM WITH EV DH2005 HI-FREQUENCY COMPRESSION DRIVER.
Features:- Integrated QuickSAMTM Heavy-Duty Strong-Arm Mounting Bracket Included
- Indoor/Outdoor Design - Meets IEC 529, IP44 & MIL810 Environmental Specs
- ASCTM Automatic Saturation Compensation
- EV8L 8" Weatherized Cone High-Output LF Transducer
- DH2005 1" Exit True Compression Driver
- 90Îç x 50Îç or 100Îç x 100Îç Coverage Patterns
- Rotatable Horn Design
- 200W Continuous, 800W Peak Power Handling
- High Sensitivity, 125 dB Maximum SPL
The Electro-Voice ZX1i is the new standard of no compromise audio performance and versatility in an easy to install, compact sound reinforcement package.
The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response without vent noise.
ZX1i installation is incredibly simple with the included QuickSAMTM mounting system. The QuickSAMTM is a unique, integrated mounting bracket which is virtually foolproof. It allows the installer to simply snap the speaker onto the bracket, then tighten it to the desired position. For array mounting, there is an optional array bracket kit available which allows multiple units to be mounted together for a variety of configurations.
| Frequency Response(-3 dB) | 60 Hz - 20 kHz |
| Frequency Range(-10 dB) | 48 Hz - 20 kHz |
| Axial Sensitivity | 94 dB (1W/1m) |
| Maximum Calculated SPL | 125 dB |
| Horizontal Coverage | 90¡ or 50¡ |
| Vertical Coverage | 50¡ or 90¡ |
| System Power Handling | 200W Continuous,400W Program |
| LF Transducer | EV8L, 8 in (203mm) Driver |
| HF Transducer | DH2005, 1 in. (25.4mm) Exit Compression Driver |
| Nominal Impedance | 8 Ohms |
| Pole Mount | N/A |
| Transformer Taps | N/A |
| Connectors | 4-Pin detachable Phoenix style |
| Overload Protection | Full protection Ð all modes |
| Mounting System | QuickSAMª Heavy-Duty Strong-Arm Mounting Bracket |
| Built-In Monitor Angle | No |
| Available Colors | Black/White |
| Included Accessories | QuickSAMª Mount |
| Dimensions (H x W x D) | 17.75 x 11.12 x 10.35 451mm x 282mm x 263mm |
| Net Weight | 8.4 kg (18.5 lbs) |
| Shipping Weigh | 10.2 kg (22.5 lbs) |
