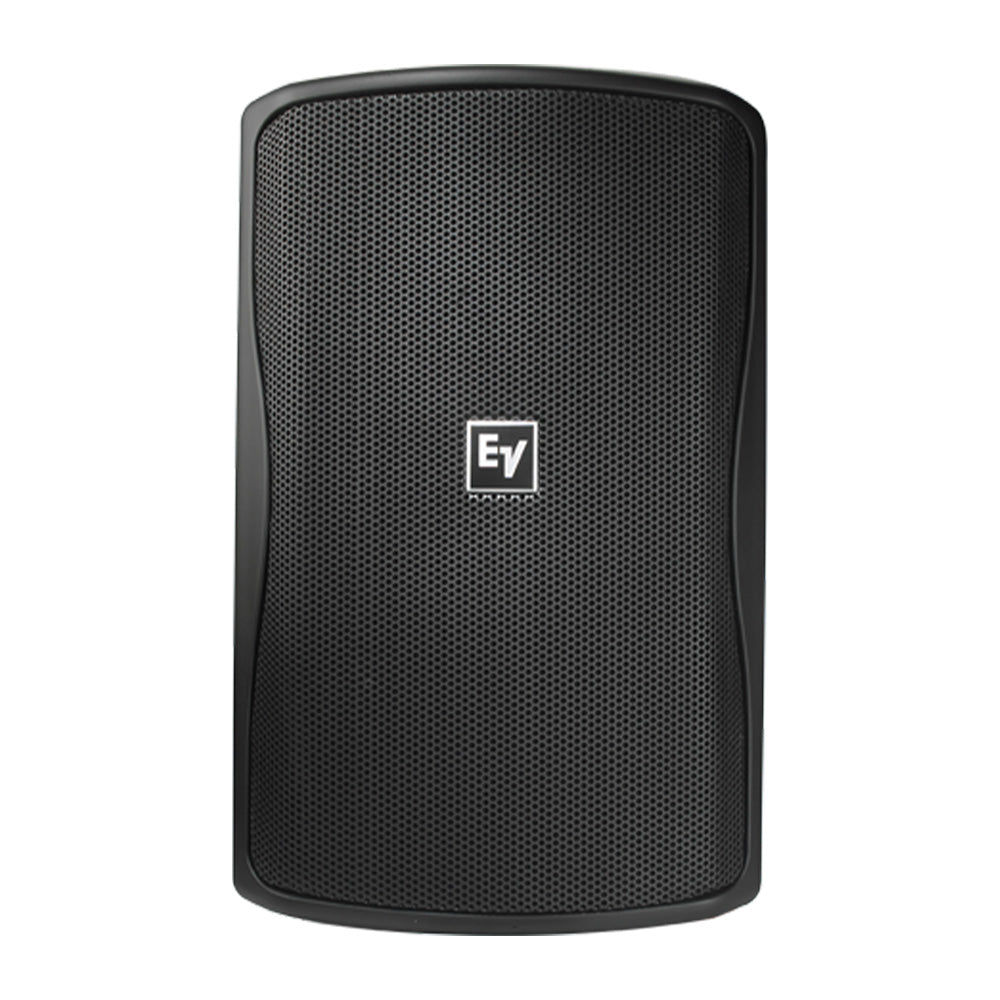

Electro-Voice ZX1I-90T - Weatherized 2-Way 8-Inch Passive Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
200 watt 8 two-way weatherized speaker system with EV DH2005 hi-frequency compression driver. 90x50 coverage pattern with rotatable waveguide. Includes QuickSAM mount bracket and 4 pole phoenix connector Includes transformer.
Designed for top-notch quality with amazing versatility, the ZX series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed high power woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX series represents the next level in advanced loudspeaker technology.
Features:
- Smooth, wide frequency response
- Ideal for mains, fills, or monitors
- Velocity-compensated port for exceptional LF
- Long-excursion weather-treated EV8L woofer
- 1.25-inch DH2005 titanium HF compression driver
- Rotatable 90º x 50º horn for flexible coverage
- Passive crossover with full-band overload protection
- High sensitivity, 123 dB maximum SPL
- Power handling: 200 W continuous, 800 W peak
- High-impact polypropylene enclosure
- Compact monitor-friendly wedge shape
- Integrated pole mount adapter and pocket handle
- Metric mounting inserts (4)
- Available in black or white
| Chassis Size | 203.2 mm (8) |
| Color | Black |
| Input Connections | Parallel Neutrik¨ NL4 |
| Speaker Type | Full-range, Mid-High, Two-Way, Wedges |
| Frequency Response (-3 dB) | 60 - 20000 Hz |
| Frequency Response (-10 dB) | 48 - 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 40 Hz |
| Sensitivity 1 W/1 m | 94 dB |
| Max. SPL/1m (calc) | 123 dB |
| Coverage (Nominal -6 dB) H | 90 ¡ Rotatable |
| Coverage (Nominal -6 dB) V | 50 ¡ Rotatable |
| Rotatable Horn | Yes |
| System Power Handling (Continuous/Program/Peak) | 200//800 Watts |
| LF Transducer | 8-inch EV8L |
| HF Transducer | 1.25-inch DH2005 |
| Crossover Frequency | 1700 Hz |
| Nominal Impedance (Passive) | 8 |
| Minimum Impedance | 6 |
| Enclosure Material | High Impact Polystyrene |
| Flying | No |
| Outdoor | No |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 457 mm (17.99) |
| Width | 282 mm (11.1) |
| Depth | 264 mm (10.39) |
| Weight Net | 8.4 kg (18.52 lbs) |
