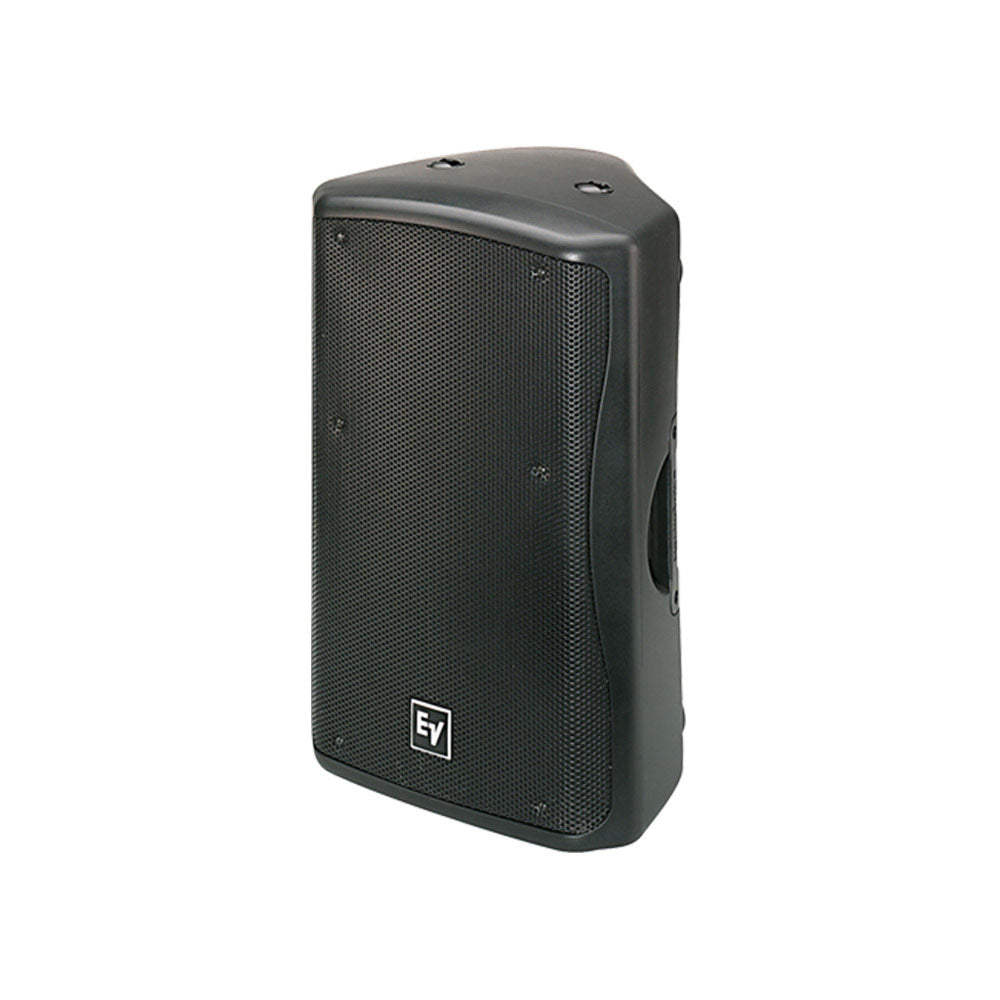

Electro-Voice ZX5-60B 600 Watt 15 Inch 2 Way Loudspeaker Cabinet (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Designed for top-notch quality with amazing versatility, the ZX series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed high power woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX series represents the next level in advanced loudspeaker technology.
Features:
- Versatile performance for mains, fills, or monitors
- DVX3150A woofer with forced-air cooling
- 2-inch ND2 titanium/neodymium HF driver
- Switchable bi-amp or passive crossover operation
- 60º x 60º coverage horn
- High sensitivity, 132 dB maximum SPL
- Power handling: 600 W continuous, 2400 W peak
- High impact polypropylene enclosure
- Wedge shape for monitors at 45º or 55º
- Up to five anchor-plate attachments
- M8 mounting inserts (10)
- Integrated handle
| Chassis Size | 381ÊmmÊ(15) |
| Color | Black, white |

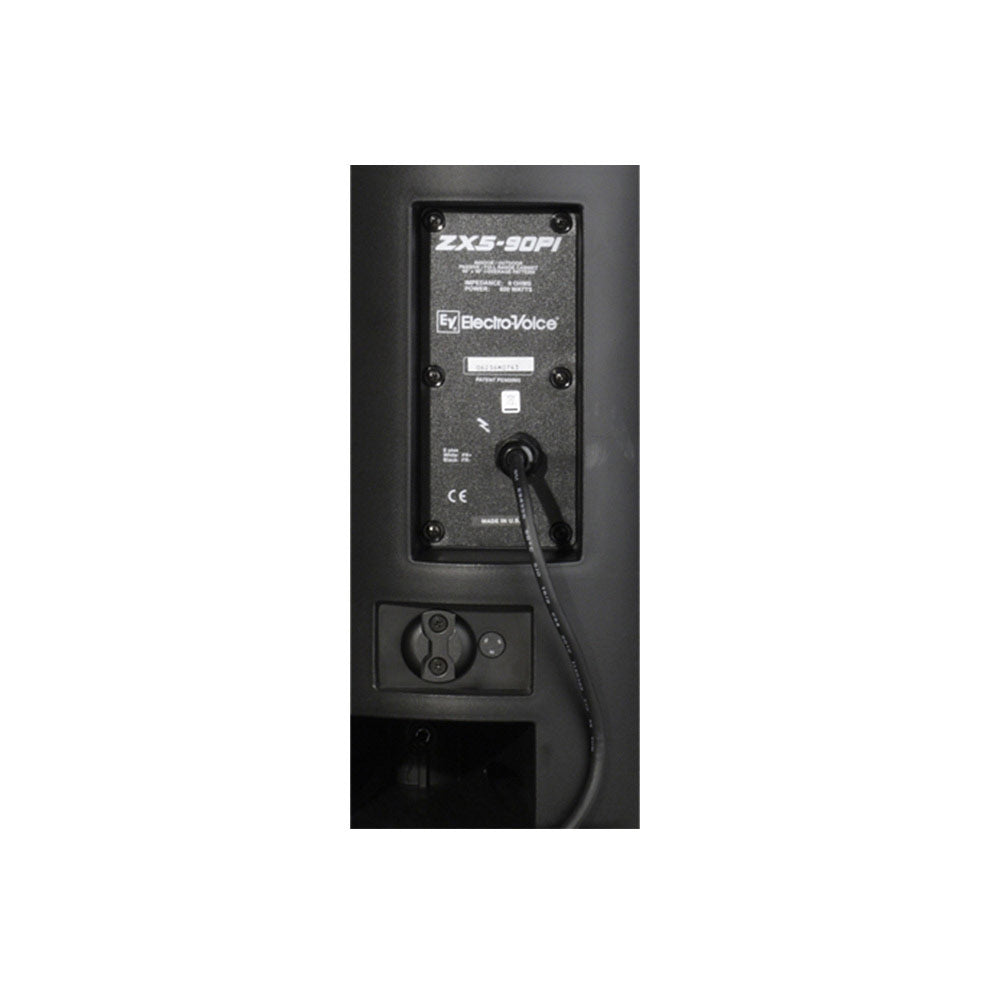

| Input Connections | Parallel Neutrik¨ NL4 |
| Speaker Type | Full-range, Mid-High, Two-Way, Wedges |
| Frequency Response (-3ÊdB) | 58 - 18000ÊHz |
| Frequency Response (-10ÊdB) | 39 - 20000ÊHz |
| Internal Crossover | Switchable biamp or passive crossover |
| Recommended High-Pass Frequency | 36ÊHz |
| Sensitivity 1 W/1 m | 98ÊdB |
| Max.ÊSPL/1m (calc) | 132ÊdB |
| Coverage (Nominal -6ÊdB) H | 90/60 ¡ |
| Coverage (Nominal -6ÊdB) V | 50/60 ¡ |
| System Power Handling (Continuous/Program/Peak) | 600//2400 Watts |
| LFÊTransducer | 15-inch DVX3150A |
| LFÊPower Handling | 500 Watts |
| HFÊPower Handling | 40 Watts |
| LFÊNominal Impedance | 8 |
| HFÊTransducer | 2-inch ND2 |
| HFÊNominal Impedance | 8 |
| Crossover Frequency | 1500ÊHz |
| Nominal Impedance (Passive) | 8 |
| Minimum Impedance | 6.5 |
| Enclosure Material | High Impact Polystyrene |
| Flying | Yes |
| Outdoor | Yes |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 692ÊmmÊ(27.24) |
| Width | 446ÊmmÊ(17.56) |
| Depth | 411ÊmmÊ(16.18) |
| Weight Net | 22.2ÊkgÊ(48.94Êlbs) |
Designed for top-notch quality with amazing versatility, the ZX series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed high power woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX series represents the next level in advanced loudspeaker technology.
Features:
- Versatile performance for mains, fills, or monitors
- DVX3150A woofer with forced-air cooling
- 2-inch ND2 titanium/neodymium HF driver
- Switchable bi-amp or passive crossover operation
- 60º x 60º coverage horn
- High sensitivity, 132 dB maximum SPL
- Power handling: 600 W continuous, 2400 W peak
- High impact polypropylene enclosure
- Wedge shape for monitors at 45º or 55º
- Up to five anchor-plate attachments
- M8 mounting inserts (10)
- Integrated handle
| Chassis Size | 381ÊmmÊ(15) |
| Color | Black, white |
| Input Connections | Parallel Neutrik¨ NL4 |
| Speaker Type | Full-range, Mid-High, Two-Way, Wedges |
| Frequency Response (-3ÊdB) | 58 - 18000ÊHz |
| Frequency Response (-10ÊdB) | 39 - 20000ÊHz |
| Internal Crossover | Switchable biamp or passive crossover |
| Recommended High-Pass Frequency | 36ÊHz |
| Sensitivity 1 W/1 m | 98ÊdB |
| Max.ÊSPL/1m (calc) | 132ÊdB |
| Coverage (Nominal -6ÊdB) H | 90/60 ¡ |
| Coverage (Nominal -6ÊdB) V | 50/60 ¡ |
| System Power Handling (Continuous/Program/Peak) | 600//2400 Watts |
| LFÊTransducer | 15-inch DVX3150A |
| LFÊPower Handling | 500 Watts |
| HFÊPower Handling | 40 Watts |
| LFÊNominal Impedance | 8 |
| HFÊTransducer | 2-inch ND2 |
| HFÊNominal Impedance | 8 |
| Crossover Frequency | 1500ÊHz |
| Nominal Impedance (Passive) | 8 |
| Minimum Impedance | 6.5 |
| Enclosure Material | High Impact Polystyrene |
| Flying | Yes |
| Outdoor | Yes |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 692ÊmmÊ(27.24) |
| Width | 446ÊmmÊ(17.56) |
| Depth | 411ÊmmÊ(16.18) |
| Weight Net | 22.2ÊkgÊ(48.94Êlbs) |
