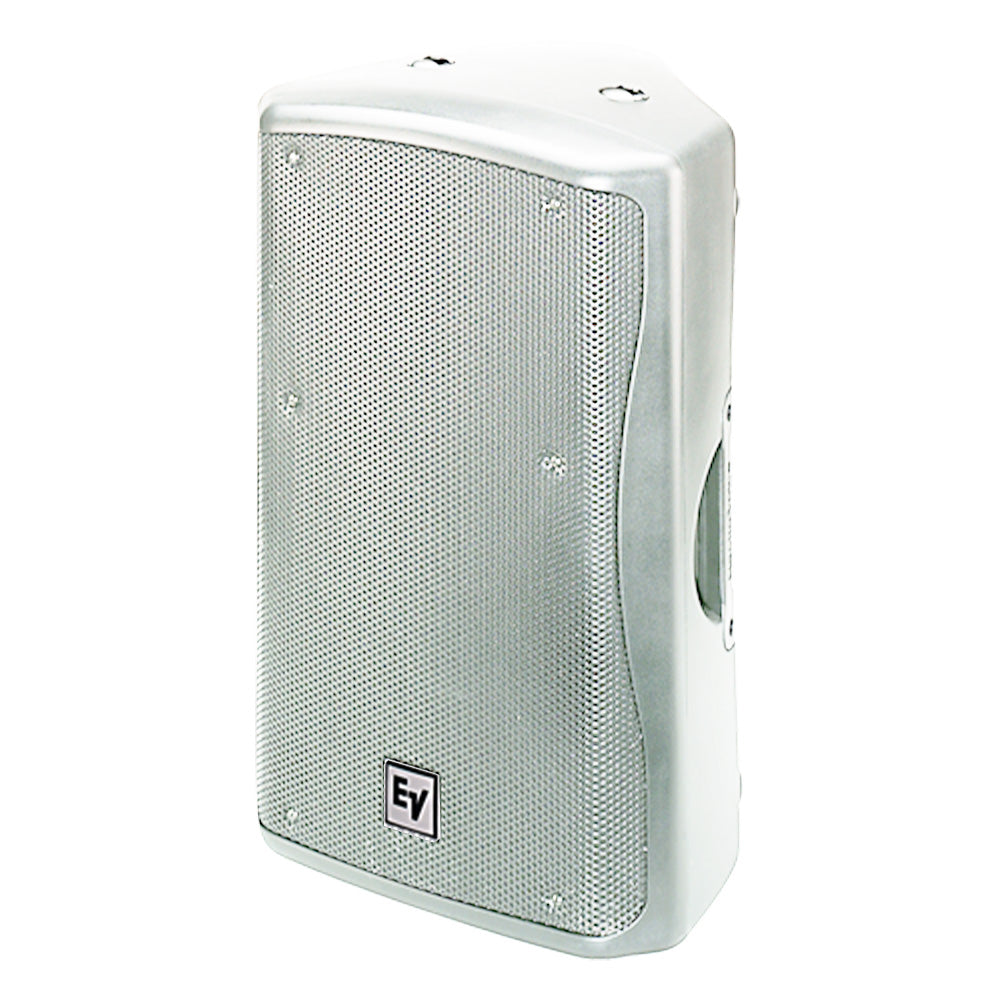

Electro-Voice ZX5-60B 600 Watt 15 Inch 2 Way Loudspeaker Cabinet (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Designed for top-notch quality with amazing versatility, the ZX series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed high power woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX series represents the next level in advanced loudspeaker technology.
Features:
- Versatile performance for mains, fills, or monitors
- DVX3150A woofer with forced-air cooling
- 2-inch ND2 titanium/neodymium HF driver
- Switchable bi-amp or passive crossover operation
- 60º x 60º coverage horn
- High sensitivity, 132 dB maximum SPL
- Power handling: 600 W continuous, 2400 W peak
- High impact polypropylene enclosure
- Wedge shape for monitors at 45º or 55º
- Up to five anchor-plate attachments
- M8 mounting inserts (10)
- Integrated handle
| Chassis Size | 381 mm (15) |
| Color | Black, white |
| Input Connections | Parallel Neutrik¨ NL4 |
| Speaker Type | Full-range, Mid-High, Two-Way, Wedges |
| Frequency Response (-3 dB) | 58 - 18000 Hz |
| Frequency Response (-10 dB) | 39 - 20000 Hz |
| Internal Crossover | Switchable biamp or passive crossover |
| Recommended High-Pass Frequency | 36 Hz |
| Sensitivity 1 W/1 m | 98 dB |
| Max. SPL/1m (calc) | 132 dB |
| Coverage (Nominal -6 dB) H | 90/60 ¡ |
| Coverage (Nominal -6 dB) V | 50/60 ¡ |
| System Power Handling (Continuous/Program/Peak) | 600//2400 Watts |
| LF Transducer | 15-inch DVX3150A |
| LF Power Handling | 500 Watts |
| HF Power Handling | 40 Watts |
| LF Nominal Impedance | 8 |
| HF Transducer | 2-inch ND2 |
| HF Nominal Impedance | 8 |
| Crossover Frequency | 1500 Hz |
| Nominal Impedance (Passive) | 8 |
| Minimum Impedance | 6.5 |
| Enclosure Material | High Impact Polystyrene |
| Flying | Yes |
| Outdoor | Yes |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 692 mm (27.24) |
| Width | 446 mm (17.56) |
| Depth | 411 mm (16.18) |
| Weight Net | 22.2 kg (48.94 lbs) |
Designed for top-notch quality with amazing versatility, the ZX series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed high power woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX series represents the next level in advanced loudspeaker technology.
Features:
- Versatile performance for mains, fills, or monitors
- DVX3150A woofer with forced-air cooling
- 2-inch ND2 titanium/neodymium HF driver
- Switchable bi-amp or passive crossover operation
- 60º x 60º coverage horn
- High sensitivity, 132 dB maximum SPL
- Power handling: 600 W continuous, 2400 W peak
- High impact polypropylene enclosure
- Wedge shape for monitors at 45º or 55º
- Up to five anchor-plate attachments
- M8 mounting inserts (10)
- Integrated handle
| Chassis Size | 381 mm (15) |
| Color | Black, white |
| Input Connections | Parallel Neutrik¨ NL4 |
| Speaker Type | Full-range, Mid-High, Two-Way, Wedges |
| Frequency Response (-3 dB) | 58 - 18000 Hz |
| Frequency Response (-10 dB) | 39 - 20000 Hz |
| Internal Crossover | Switchable biamp or passive crossover |
| Recommended High-Pass Frequency | 36 Hz |
| Sensitivity 1 W/1 m | 98 dB |
| Max. SPL/1m (calc) | 132 dB |
| Coverage (Nominal -6 dB) H | 90/60 ¡ |
| Coverage (Nominal -6 dB) V | 50/60 ¡ |
| System Power Handling (Continuous/Program/Peak) | 600//2400 Watts |
| LF Transducer | 15-inch DVX3150A |
| LF Power Handling | 500 Watts |
| HF Power Handling | 40 Watts |
| LF Nominal Impedance | 8 |
| HF Transducer | 2-inch ND2 |
| HF Nominal Impedance | 8 |
| Crossover Frequency | 1500 Hz |
| Nominal Impedance (Passive) | 8 |
| Minimum Impedance | 6.5 |
| Enclosure Material | High Impact Polystyrene |
| Flying | Yes |
| Outdoor | Yes |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 692 mm (27.24) |
| Width | 446 mm (17.56) |
| Depth | 411 mm (16.18) |
| Weight Net | 22.2 kg (48.94 lbs) |
