Description
The PULSE16 is the high-quality solution to connect a wide range of external analog and ADAT studio equipment to a mixer or a computer interface. The high-density converter provides 16 x 16 balanced analoge TRS-I/Os and can handle pro studio levels up to +20dBu - adjustable in 1 dB steps. 2 x 4 A... Read MoreRetail Price: $1,149.00 Our Price: $1,099.00
Free Shipping (Continental US)
Suggested Accessories
Description
The PULSE16 is the high-quality solution to connect a wide range of external analog and ADAT studio equipment to a mixer or a computer interface. The high-density converter provides 16 x 16 balanced analoge TRS-I/Os and can handle pro studio levels up to +20dBu - adjustable in 1 dB steps. 2 x 4 ADAT ports provide full 16 x 16 channel operation - even with up to 96 kHz. The optical ADAT 'Lightpipe' interface is still the most affordable way to transfer a variety of audio channels. Originally designed for the Alesis Digital Audio Tape machine - hence the name - in 1991 ADAT is reliable, standardized and still everywhere.
The PULSE series is using the recent high-performance low-latency converter generation from Cirrus Logic. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the fan-less, 98-channel PULSE16 delivers an exceptional detailed sound.
The Pulse16 incorporates a Word Clock I/O and a MIDI I/O for embedding signals and remote control of the unit. Many popular features from the flagship A32 have been added as well: Preset Management, Panel Lock and the sophisticated routing matrix.
Internal Routing Matrix
The PULSE16 provides an internal matrix for the free routing and splitting of all 48 Ins to all 48 Outs in blocks of 8 channels. The integrated headphone output on the front allows it to monitor every mono or stereo I/O directly on the unit.

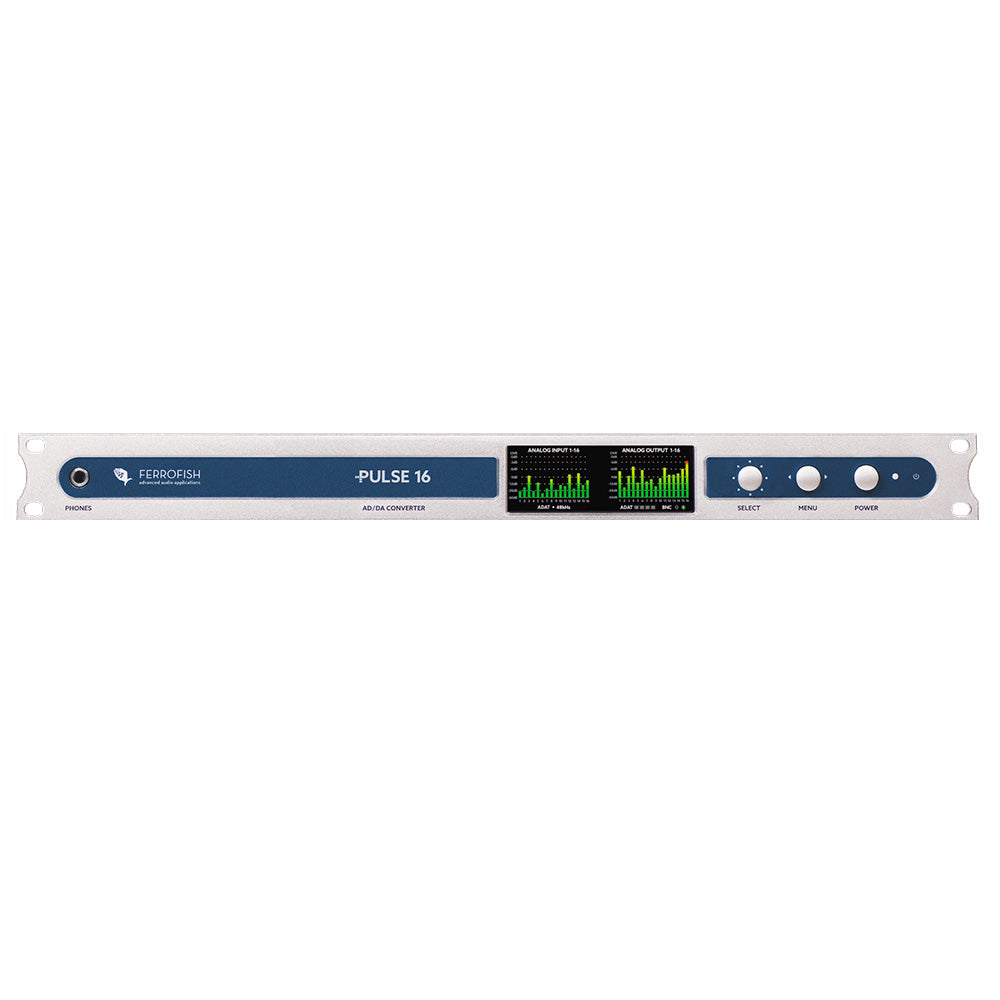

Dual TFT Display
Two high-resolution TFT displays provide detailed level information for all 2 x 16 signals at a glance. The innovative on-board contextual help, much loved by Ferrofish users, allows it to use the high-tech device, without reaching for the manual.
Optional MADI Upgrade
The PULSE16 can be upgraded with an optical MADI I/O module via the SFP port, turning it into a full-advanced PULSE16 MX. It not only adds 64 x 64 MADI channels, but allows sample rates of up to 192 kHz for all I/O, incl. ADAT (SMUX/4).
More +
Product Specs

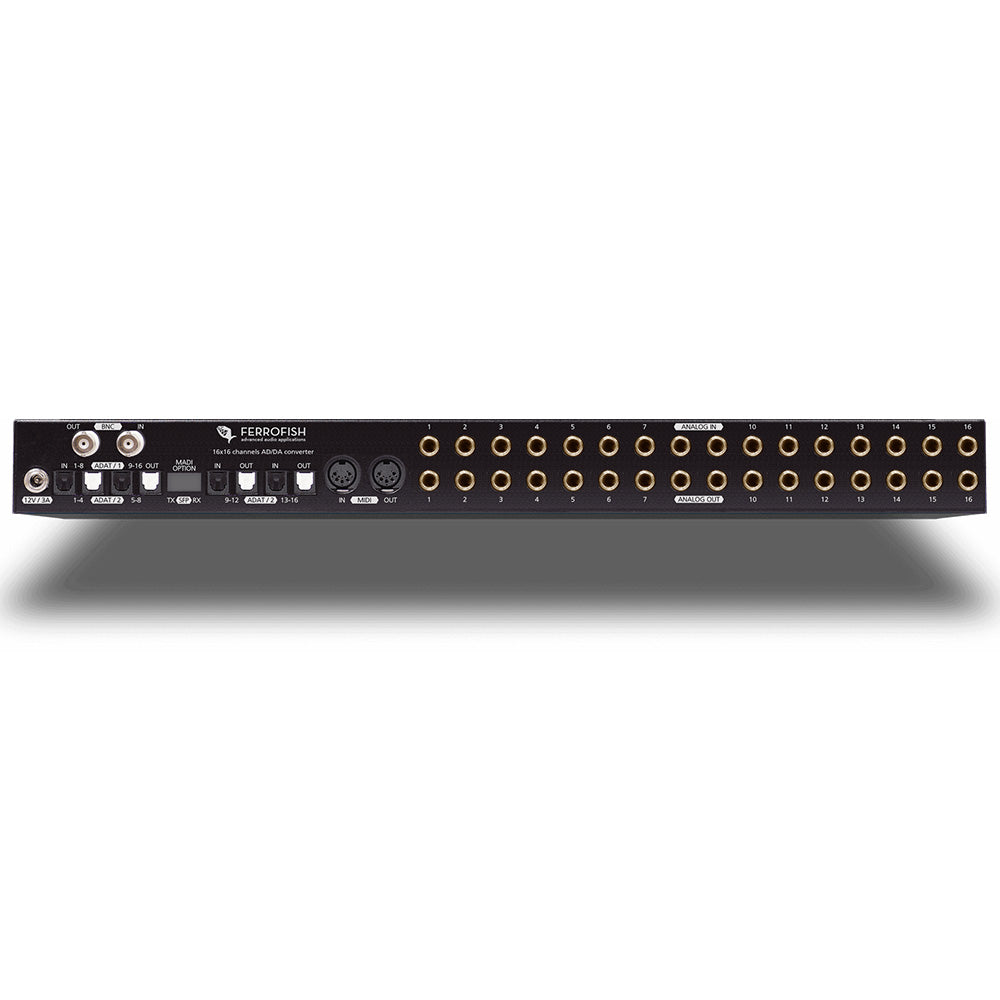

Analog Inputs (AD) | |
Processing | 2 x CS5368 (Cirrus Logic) |
Connectors | 16 x TRS ¼” (6.3mm), female |
Analog switches | +20dBu, +13dBu, +4dBu |
Digital gain | +20dBu ... -8dBu, 1dB steps |
Latency | @48kHz: 7.8/fs, 0.16ms @96kHz: 5.4/fs, 0.06ms @192kHz: 6.6/fs, 0.03ms |
OpAmps | RC4580 |
Level indicator | TFT screen, 28 levels |
Analog Outputs (DA) | |
Processing | 2 x CS4365 (Cirrus Logic) |
Connectors | 16 x TRS ¼” (6.3mm), female |
Digital gain | +20dBu ... -8 dBu, 1dB steps |
Latency | @48kHz: 12/fs, 0.25ms @96kHz: 9/fs, 0.09ms @192kHz: 5/fs, 0.03ms |
OpAmps | RC4580 |
Headphones Out | |
Connection | 1 x ¼” (6.3mm) TRS jack, stereo |
Controls | Selectable mono or stereo source. Digitally controlled volume level. |
ADAT I/O | |
Connection | 4+4 optical ports (8 channels each with 48 kHz) |
Conversion | 16 channels @32kHz, 44.1kHz, 48kHz 16 channels @64kHz, 88.2kHz, 96kHz 8 channels @128kHz, 176.4kHz, 192kHz (SMUX4 - only with installed MADI MX option) |
Latency | 2 samples |
MIDI I/O | |
Connection | 2 x DIN5 connector for remote control of the unit |
Conversion | MIDI <> MIDI over MADI possible (MADI MX option required.) |
Wordclock I/O | |
Type | BNC: 1 x input, 1 x output 75 Ohm Termination switchable for input |
Power Supply | |
Rating | 12V, 3A 1 x power supply included |
Connection | 1 x input jack with screw lock. |
Power required | 12VA in operation, 0,1VA in standby mode (Efficiency Level VI) |
Circuit Protection | Internal resettable polyfuse |
Additional Features | SMUX4 with 192 kHz operation (requires installed MADI option). Delay-compensation for MADI chain (requires installed MADI option). MIDI over MADI Preset Management (requires installed MADI option) |
Internal Clock | |
Type | TCXO (temp. compensated oscillator) with high accuracy |
Initial accuracy | +/-1.5ppm |
Over temperature range | +/-2.5ppm |
Aging | +/-1ppm |
PLL | |
Type | Digitally controlled PLL / Jitter reduction system |
Output jitter | 50ps ... 100ps typ. |
LCD Displays | |
Type | 2 x TFT Color Screens for the complete control of all analog I/O levels and all settings of the unit |
Control | One Key Control provides an easy control of all functions. Multi language help pages guides available (No need to study the manual.) |
Dimensions | |
Rack Space | 1RU |
Depth | 19cm (7.5”) (including connectors) |
Weight | 2 kg (4.4lbs) |
Ambient temperature | 41°F up to 113°F (+5°C up to +45°C) |
