Ferrofish PULSE16 DX - 16x16 Channel Analog to ADAT/MADI/Dante Audio Converter (with +24dBu Option)

Sale price$2,249.00 Regular price$2,399.00
Save $150.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Equipped with +24 dB Digital Gain option.

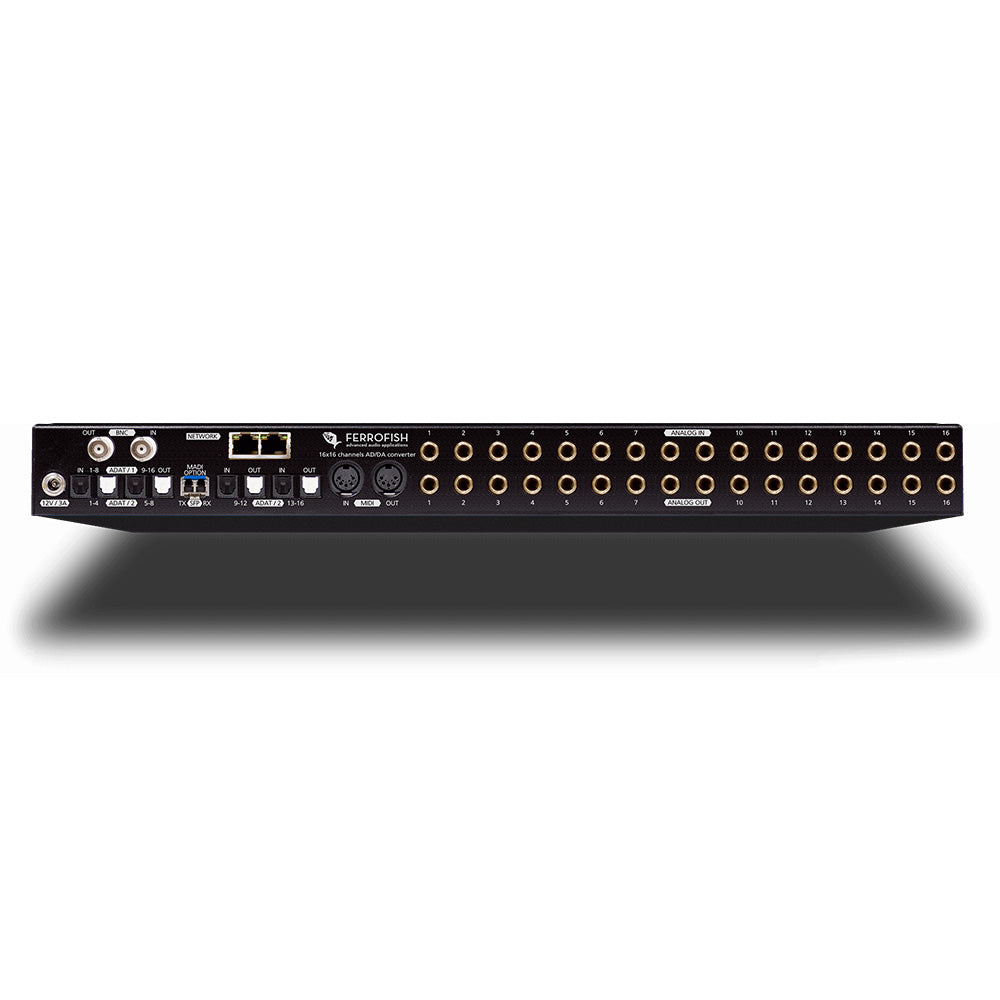

    The PULSE16 DX is the high-quality solution to connect and route a wide range of Analog, MADI, ADAT and Dante equipment – with up to 192 kHz.

    The high-density converter provides 16 x 16 balanced analoge TRS-I/Os. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the 354-channel DX delivers an exceptional detailed sound.

    On the digital side, the multi-format device provides an optical MADI I/O with 64 I/Os. 2 x 4 ADAT ports can convert all 16 analog I/Os – even with up to 96 kHz.

    On top of it, the DX adds 64 x 64 channels of Dante/AES67 to an already impressive array of various I/Os – unique in this size and price range.

    The Pulse16DX incorporates a Word Clock I/O and a MIDI I/O for embedding signals and remote control of the unit. Many popular features from the flagship A32 have been added as well: Preset Management, Panel Lock and the sophisticated routing matrix.

    All in all the fan-less, small footprint device is a huge problem solver for studio and live sound applications.

    An exceptional choice for live sound, recording, broadcast and house of worship. Wherever high-end, multi-format conversion, including network audio, is required.

    High Quality AD/DA
    The PULSE16 DX uses the most recent low-latency AD&DA generation from Cirrus Logic. The high performance converters capture and restore audio signals with all details, a highly neutral frequency response and low distortion. All analog inputs and output are using balanced TRS jacks, and can be set independently to levels between -8dBu and +20dBu in steps of 1 dB.

    Dante Plug & Play Eco System
    The PULSE16 DX fits directly into scalable network infrastructures of the Dante Eco System – with Plug & Play. The powerful Dante control software allows the routing of all channels freely within the network. Combined with the Virtual Dante soundcard, the PULSE16 DX turns into a powerful audio interface.

    Optical MADI I/O
    The PULSE16 DX provides a MADI SFP module with optical LC connector. The MADI I/O supports daisy-chain delay compensation and carries MIDI-over-MADI. The default Multimode module can be exchanged with a Singlemode module (order here).

    Internal Routing Matrix
    The PULSE16 DX provides a sophisticated internal matrix for the free routing and splitting of all 176 Ins to all 176 Outs in blocks of 8 channels. The headphone output on the front allows it to monitor every mono or stereo I/O directly on the unit.

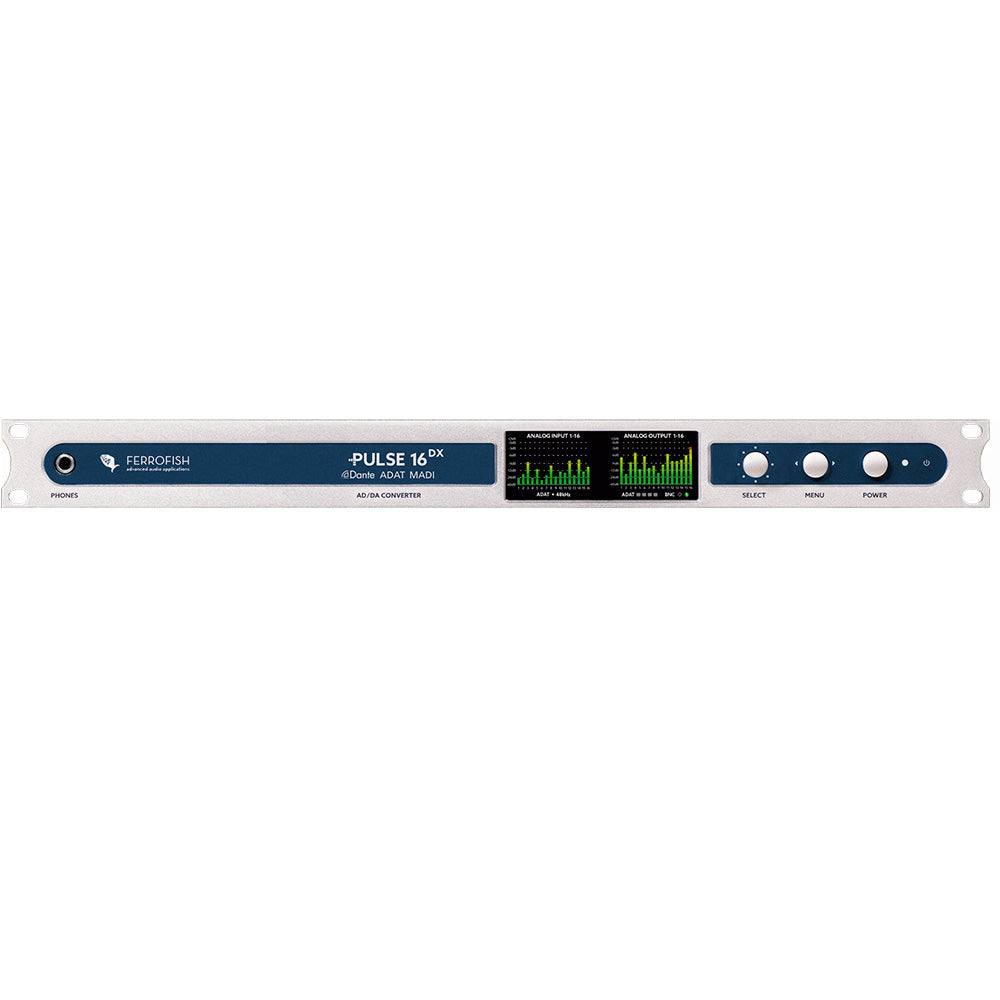

    Dual TFT Display
    Two high-resolution TFT displays provide detailed level information for all 2 x 16 analog signals – allowing the overview of the signal flow in and out of the unit. The innovative on-board contextual help, much loved by Ferrofish users, allows it to use the high-tech device, without reaching for the manual.

    Flexible Remote Control
    The PULSE16 DX can be remotely controlled via MIDI, MIDI-over-MADI and the Dante Network. Dante and MADI audio streams can be used to send and receive embedded MIDI messages.

    MADI I/O (AES10)
    Type SFP port for MADI optical Multimode or Singlemode SFP module
    Processing 64 channels @32kHz, 44.1kHz, 48kHz
    32 channels @64kHz, 88.2kHz, 96kHz
    16 channels @128kHz, 176.4kHz, 192kHz
    Support of MIDI over MADI Yes
    Latency 2 samples
    Analog Inputs (AD)
    Processing 2 x CS5368 (Cirrus Logic)
    Connectors 16 x TRS _Ó (6.3mm), female
    Analog switches +20dBu, +13dBu, +4dBu
    Digital gain +20dBu ... -8dBu, 1dB steps
    Latency @48kHz: 7.8/fs, 0.16ms
    @96kHz: 5.4/fs, 0.06ms
    @192kHz: 6.6/fs, 0.03ms
    OpAmps RC4580
    Level indicator TFT screen, 28 levels
    Analog Outputs (DA)
    Processing 2 x CS4365 (Cirrus Logic)
    Connectors 16 x TRS _Ó (6.3mm), female
    Digital gain +20dBu ... -8 dBu, 1dB steps
    Latency @48kHz: 12/fs, 0.25ms
    @96kHz: 9/fs, 0.09ms
    @192kHz: 5/fs, 0.03ms
    OpAmps RC4580
    Headphones Out
    Connection 1 x _Ó (6.3mm) TRS jack, stereo
    Controls Selectable mono or stereo source.
    Digitally controlled volume level.
    ADAT I/O
    Connection 4+4 optical ports (8 channels each with 48 kHz)
    Conversion 16 channels @32kHz, 44.1kHz, 48kHz
    16 channels @64kHz, 88.2kHz, 96kHz
    8 channels @128kHz, 176.4kHz, 192kHz (SMUX4 - only with installed MADI MX option)
    Latency 2 samples
    MIDI I/O
    Connection 2 x DIN5 connector for remote control of the unit
    Conversion MIDI <> MIDI over MADI possible (MADI MX option required.)
    Wordclock I/O
    Type BNC: 1 x input, 1 x output
    75 Ohm Termination switchable for input
    Power Supply
    Rating 12V, 3A
    1 x power supply included
    Connection 1 x input jack with screw lock.
    Power required 12VA in operation, 0,1VA in standby mode
    (Efficiency Level VI)
    Circuit Protection Internal resettable polyfuse
    Additional Features SMUX4 with 192 kHz operation (requires installed MADI option).
    Delay-compensation for MADI chain (requires installed MADI option).
    MIDI over MADI Preset Management (requires installed MADI option)
    Internal Clock
    Type TCXO (temp. compensated oscillator) with high accuracy
    Initial accuracy +/-1.5ppm
    Over temperature range +/-2.5ppm
    Aging +/-1ppm
    PLL
    Type Digitally controlled PLL / Jitter reduction system
    Output jitter 50ps ... 100ps typ.
    LCD Displays
    Type 2 x TFT Color Screens for the complete control of all analog I/O levels and all settings of the unit
    Control One Key Control provides an easy control of all functions.
    Multi language help pages guides available (No need to study the manual.)
    Dimensions
    Rack Space 1RU
    Depth 19cm (7.5Ó) (including connectors)
    Weight 2 kg (4.4lbs)
    Ambient temperature 41¡F up to 113¡F (+5¡C up to +45¡C)

    Equipped with +24 dB Digital Gain option.

    The PULSE16 DX is the high-quality solution to connect and route a wide range of Analog, MADI, ADAT and Dante equipment – with up to 192 kHz.

    The high-density converter provides 16 x 16 balanced analoge TRS-I/Os. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the 354-channel DX delivers an exceptional detailed sound.

    On the digital side, the multi-format device provides an optical MADI I/O with 64 I/Os. 2 x 4 ADAT ports can convert all 16 analog I/Os – even with up to 96 kHz.

    On top of it, the DX adds 64 x 64 channels of Dante/AES67 to an already impressive array of various I/Os – unique in this size and price range.

    The Pulse16DX incorporates a Word Clock I/O and a MIDI I/O for embedding signals and remote control of the unit. Many popular features from the flagship A32 have been added as well: Preset Management, Panel Lock and the sophisticated routing matrix.

    All in all the fan-less, small footprint device is a huge problem solver for studio and live sound applications.

    An exceptional choice for live sound, recording, broadcast and house of worship. Wherever high-end, multi-format conversion, including network audio, is required.

    High Quality AD/DA
    The PULSE16 DX uses the most recent low-latency AD&DA generation from Cirrus Logic. The high performance converters capture and restore audio signals with all details, a highly neutral frequency response and low distortion. All analog inputs and output are using balanced TRS jacks, and can be set independently to levels between -8dBu and +20dBu in steps of 1 dB.

    Dante Plug & Play Eco System
    The PULSE16 DX fits directly into scalable network infrastructures of the Dante Eco System – with Plug & Play. The powerful Dante control software allows the routing of all channels freely within the network. Combined with the Virtual Dante soundcard, the PULSE16 DX turns into a powerful audio interface.

    Optical MADI I/O
    The PULSE16 DX provides a MADI SFP module with optical LC connector. The MADI I/O supports daisy-chain delay compensation and carries MIDI-over-MADI. The default Multimode module can be exchanged with a Singlemode module (order here).

    Internal Routing Matrix
    The PULSE16 DX provides a sophisticated internal matrix for the free routing and splitting of all 176 Ins to all 176 Outs in blocks of 8 channels. The headphone output on the front allows it to monitor every mono or stereo I/O directly on the unit.

    Dual TFT Display
    Two high-resolution TFT displays provide detailed level information for all 2 x 16 analog signals – allowing the overview of the signal flow in and out of the unit. The innovative on-board contextual help, much loved by Ferrofish users, allows it to use the high-tech device, without reaching for the manual.

    Flexible Remote Control
    The PULSE16 DX can be remotely controlled via MIDI, MIDI-over-MADI and the Dante Network. Dante and MADI audio streams can be used to send and receive embedded MIDI messages.

    MADI I/O (AES10)
    Type SFP port for MADI optical Multimode or Singlemode SFP module
    Processing 64 channels @32kHz, 44.1kHz, 48kHz
    32 channels @64kHz, 88.2kHz, 96kHz
    16 channels @128kHz, 176.4kHz, 192kHz
    Support of MIDI over MADI Yes
    Latency 2 samples
    Analog Inputs (AD)
    Processing 2 x CS5368 (Cirrus Logic)
    Connectors 16 x TRS _Ó (6.3mm), female
    Analog switches +20dBu, +13dBu, +4dBu
    Digital gain +20dBu ... -8dBu, 1dB steps
    Latency @48kHz: 7.8/fs, 0.16ms
    @96kHz: 5.4/fs, 0.06ms
    @192kHz: 6.6/fs, 0.03ms
    OpAmps RC4580
    Level indicator TFT screen, 28 levels
    Analog Outputs (DA)
    Processing 2 x CS4365 (Cirrus Logic)
    Connectors 16 x TRS _Ó (6.3mm), female
    Digital gain +20dBu ... -8 dBu, 1dB steps
    Latency @48kHz: 12/fs, 0.25ms
    @96kHz: 9/fs, 0.09ms
    @192kHz: 5/fs, 0.03ms
    OpAmps RC4580
    Headphones Out
    Connection 1 x _Ó (6.3mm) TRS jack, stereo
    Controls Selectable mono or stereo source.
    Digitally controlled volume level.
    ADAT I/O
    Connection 4+4 optical ports (8 channels each with 48 kHz)
    Conversion 16 channels @32kHz, 44.1kHz, 48kHz
    16 channels @64kHz, 88.2kHz, 96kHz
    8 channels @128kHz, 176.4kHz, 192kHz (SMUX4 - only with installed MADI MX option)
    Latency 2 samples
    MIDI I/O
    Connection 2 x DIN5 connector for remote control of the unit
    Conversion MIDI <> MIDI over MADI possible (MADI MX option required.)
    Wordclock I/O
    Type BNC: 1 x input, 1 x output
    75 Ohm Termination switchable for input
    Power Supply
    Rating 12V, 3A
    1 x power supply included
    Connection 1 x input jack with screw lock.
    Power required 12VA in operation, 0,1VA in standby mode
    (Efficiency Level VI)
    Circuit Protection Internal resettable polyfuse
    Additional Features SMUX4 with 192 kHz operation (requires installed MADI option).
    Delay-compensation for MADI chain (requires installed MADI option).
    MIDI over MADI Preset Management (requires installed MADI option)
    Internal Clock
    Type TCXO (temp. compensated oscillator) with high accuracy
    Initial accuracy +/-1.5ppm
    Over temperature range +/-2.5ppm
    Aging +/-1ppm
    PLL
    Type Digitally controlled PLL / Jitter reduction system
    Output jitter 50ps ... 100ps typ.
    LCD Displays
    Type 2 x TFT Color Screens for the complete control of all analog I/O levels and all settings of the unit
    Control One Key Control provides an easy control of all functions.
    Multi language help pages guides available (No need to study the manual.)
    Dimensions
    Rack Space 1RU
    Depth 19cm (7.5Ó) (including connectors)
    Weight 2 kg (4.4lbs)
    Ambient temperature 41¡F up to 113¡F (+5¡C up to +45¡C)
